Web.Config configuration file in ASP.NET 3.5

3. Name: <connectionStrings>

Description: This section allows you to define database connection strings that will be used elsewhere in your application. Since connection strings need to be reused exactly to support connection pooling and may need to be modified without recompiling the web application, it makes perfect sense to store them in the web.config file. We can add as many connection strings as needed.

<configuration>
    <connectionStrings>
        <add name="myConnectionString"
        connectionString=
        "Data Source=localhost;Integrated Security=SSPI;Initial Catalog=AIrtel;"
        providerName="System.Data.SqlClient" />
    </connectionStrings>
</configuration>

4. Name: <appSettings>

Description: You add custom settings to a web.config file in a special element called <appSettings>. Here's where the <appSettings> section fits into the web.config file:

<appSettings>
<add key="websiteName" value="Vishal Nayan Blog" />
<add key="welcomeMessage" value="Welcome, friend." />
</appSettings>

Retrieving these values from code behind is fairly simple and you can update the config file as well from code behind;

protected void Page_Load(object sender, EventArgs e)
{
    Configuration config = WebConfigurationManager.OpenWebConfiguration(Request.ApplicationPath);

    lblSiteName.Text =
        config.AppSettings.Settings["websiteName"].Value;
    lblWelcome.Text =
        config.AppSettings.Settings["welcomeMessage"].Value;

    if (config.AppSettings.Settings["welcomeMessage"].Value.Length > 15)
    {
        config.AppSettings.Settings["welcomeMessage"].Value = "Welcome, again.";
    }
    else
    {
        config.AppSettings.Settings["welcomeMessage"].Value = "Welcome, friend.";
    }
    config.Save();
}

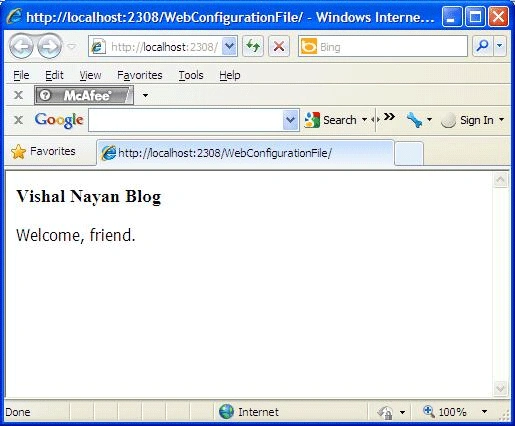

So when we run this, it looks like this:

5. Name: <system.web>

Description: The <system.web> element contains all the configuration settings specific to ASP.NET. These settings configure various aspects of your web application and enable services such as security, state management, and tracing.

It has a few important elements; let us take them one by one;

1. authentication : This element determines how you will verify a client's identity when the client requests a page.
2. authorization: This element controls which clients have access to the resources within the web application or current directory.
3. Compilation: Contains the <assemblies> element, which lists the assemblies your web application uses. These assemblies are then made available to your code (as long as they can be found in the Bin directory or the GAC).
4. customErrors: Allows you to set specific redirect URLs that should be used when specific (or default) errors occur.
5. identity: Controls the security identity of the ASP.NET application. You can use this setting to cause the web application to temporarily assume the identity of another Windows account and its permissions and restrictions. This setting is set at the application level.
6. httpHandlers: Defines the classes that process the HTTP requests your application receives. For example, requests for files with the extension .aspx are automatically handled by the System.Web.UI.PageHandlerFactory class, which runs the. page life cycle.
7. httpModules: Defines classes that are given a chance to react to every request your web application receives. For example, ASP.NET's session state and authentication features work through dedicated modules. Later, in the section "Extending the HTTP Pipeline
8. pages: Defines default page settings (most of which you can override with the Page directive)
9. SessionState: Configures the various options for maintaining session state for the application, such as whether to maintain it at all and where to maintain it (SQL, a separate Windows service, and so on). This is set at the application level.
10. Trace: Configures tracing, an ASP.NET feature that lets you display diagnostic information in the page (or collect it for viewing separately).

Before we wrap up everything about web.config, we will look into code by which we can encrypt web.config file.

Make a button and on onClick, write the following code;

protected void btn_Click(object sender, EventArgs e)
{
    Configuration config = WebConfigurationManager.OpenWebConfiguration(Request.ApplicationPath);
    ConfigurationSection appSettings = config.GetSection("appSettings");

    if (appSettings.SectionInformation.IsProtected)
    {
        appSettings.SectionInformation.UnprotectSection();
    }
    else
    {
        appSettings.SectionInformation.ProtectSection(
          "DataProtectionConfigurationProvider");
    }
    config.Save();
    lblInfo.Text = "web.config file saved with encrypted appSettings section.";
}

This will encrypt our application setting values, which are now:

<appSettings>
    <add key="websiteName" value="Vishal Nayan Blog" />
    <add key="welcomeMessage" value="Welcome, friend." />
</appSettings>

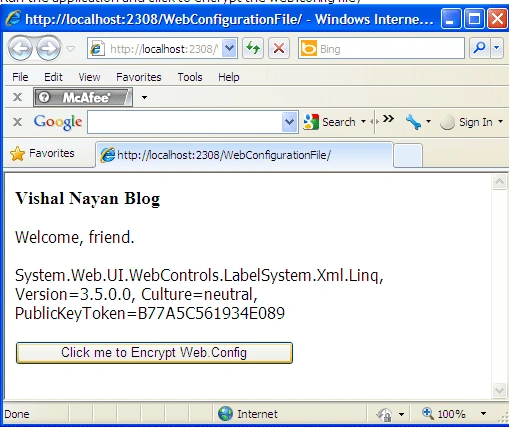

Run the application and click to encrypt the web.config file:

After clicking, our application setting value in web.config file will become like:

<appSettings configProtectionProvider="DataProtectionConfigurationProvider">
    <EncryptedData>
      <CipherData>
<CipherValue>AQAAANCMnd8BFdERjHoAwE/Cl+sBAAAAA2dU9YrCl0KQ9yq+HxDwzgQAAAACAAAAAAADZgAAqAAAABAAAA
Cikb0f8CR1B6m2cgbtGQM7AAAAAASAAACgAAAAEAAAAO02mpJDxfDU4UDHKa0syKkoAQAADKftolRs3rpque88bIBjpZEB6
wnz3Lyu6VFd/t/mICOq68KSSXToO2i2S+321wxiFN3Dv60RWnozQp2m4pLMlaVdFK/lWTjtAr+xsOp0QtLAfsJyjl+/AMocDh
kLc7dcfmCOy8WJ3wNCPmapOLZRQf3KdwMo9R8iaW/4bTWfmW2l+RRi5o5IEjd6lZlFbyb9ox8yk+M7bE3vOs6noYCjJZ4OXF
sUta2vwkNE5KC4gm2tKyOkMDB4Z+2/aqUaO5PULTp97mLCHjultSWcyWYaoRRESOS6LheNCcVr7Q5mO6UtvGghOBNA2zFbNSr
gfBi+mMdMX4uCcDyOYUCR5PkkeleWCP8didy83qU/FVxQNd7msiSjqY596aRXHeA7y5rfK74You3lT2sUAAAAYLxUegHFaakY
B8cJ57aezYcgSSk=</CipherValue>
      </CipherData>
    </EncryptedData>
</appSettings>

Cool, isn't it? I hope you enjoyed; Cheers.
