AutoGenerateColumns
The AutoGenerateColumns property determines whether the DataGrid columns will be autogenerated at run-time based on the data source object and its properties. Each public property of the data source collection becomes a column in the DataGrid. The DataGrid control is smart enough to know what type of column to generate for various data types. As you saw in Figure 4, the DataGrid generated 5 columns for 5 public properties of the Author class and a CheckBox column was generated for a book type IsMVP property.
Note: The AutoGenerateColumns value is set to true by default for a DataGrid.
The XAML code snippet in Listing 7 sets the AutoGenerateColumns to True.
- <DataGrid HorizontalAlignment="Left" Margin="10,10,0,0" VerticalAlignment="Top"
- Height="219" Width="465" Name="McDataGrid" AutoGenerateColumns="True"/>
If the data source bound to the DataGrid has 50 columns and the user has set the AutoGenerateColumns property to “true” then it will generate and show all 50 columns for you. If you want to show fewer columns then set it to false and create the columns manually. We will discuss how to create columns manually later in this book.
ColumnWidth
The DataGrid control is smart enough to adjust and manage the width of its colummns. The ColumnWidth property represents the width settings of a DataGrid columns. The ColumnWidth is a DataGridLength structure that has the following key values that apply to columns:
- Auto: Automatic sizing mode.
- DesiredValue: Calculated pixel value needed for columns.
- DisplayValue: Pixel value needed for columns.
- SizeToCells: Width based on the content of the cells.
- SizeToHeader: Width based on the header.
- Value: Width in pixels.
Let's look at the output of some of these values.

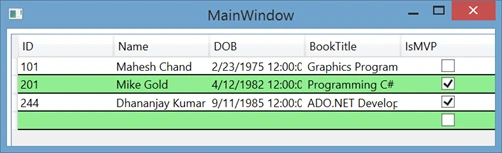

Figure 8 is the result of ColumnWidth="SizeToHeader".
Figure 8

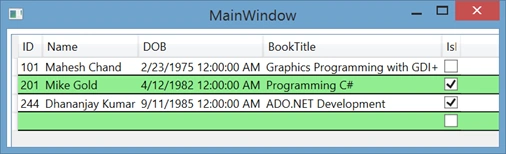

Figure 9 is the result of ColumnWidth="SizeToCells".
Figure 9
Figure 10 is the result of ColumnWidth="100".
Figure 10
Figure 11 is the result of ColumnWidth="*".
Figure 11
CanUserResizeColumns
By default, the DataGrid allows users to resize its columns and rows. But you can restrict users if they can resize the DataGrid columns and rows.
The CanUserResizeRows property is used to set whether or not users can resize the row. The CanUserResizeColumns property is used to set whether or not users can resize the columns.
The code snippet in Listing 13 restricts users from resizing the rows and columns of the DataGrid.
