Metadata Architecture for Financial Vector Store Precision: A Six-Dimensional Framework for Enterprise RAG Systems

Part 1: Metadata Structuring for Vector Store Precision

In financial RAG systems, metadata is the single most important lever for retrieval precision . A vector search alone will return semantically similar chunks, but in finance, "similar" is not enough — you need exact contextual alignment. A clause about "interest rate swaps" from a 2019 ISDA master agreement is semantically identical to one from a 2024 agreement, but legally worlds apart.

We structured metadata using a Six-Layer Schema that transforms the vector store from a "fuzzy search engine" into a "precision retrieval system."

The Six-Layer Metadata Schema

Layer 1: Hierarchical Provenance (The "Where")

Every chunk carries its full ancestry path, enabling parent-child retrieval and drill-down.


    {
  "doc_id": "CREDIT-AGR-ACME-2024-v3",
  "doc_type": "Credit Agreement",
  "section": "Article IV - Covenants",
  "subsection": "4.2 Financial Covenants",
  "chunk_index": 7,
  "parent_chunk_id": "chunk_4.2_full"
}

Why it improves precision: When a retrieved chunk is ambiguous, the LLM can fetch the parent section for context. It also prevents cross-contamination between documents (e.g., mixing up two different clients' agreements).

Layer 2: Entity Anchors (The "Who/What")

Structured identifiers that enable hard filtering before semantic search.


    {
  "client_ids": ["CORP-ACME-99"],
  "counterparties": ["JPMorgan Chase", "HSBC London"],
  "isin_codes": ["US0378331005"],
  "cusips": ["037833100"],
  "tickers": ["AAPL"],
  "jurisdictions": ["DE", "NY"]
}

Why it improves precision: This enables pre-filtering . Instead of searching 10 million chunks, the query first narrows to ~500 chunks belonging to the specific client/counterparty, then runs semantic search. This reduces hallucination by 70%+ in our benchmarks.

Layer 3: Temporal Dimensions (The "When")

Financial documents are time-sensitive. A covenant clause has an effective date, an amendment date, and an expiration.


    {
  "effective_date": "2024-01-15",
  "filing_date": "2024-02-28",
  "amendment_date": "2024-06-01",
  "expiration_date": "2029-01-15",
  "is_current": true,
  "transaction_timestamp": "2024-07-15T14:32:00Z"
}

Why it improves precision: Enables time-bounded queries like "Show me covenants in effect during Q3 2024." Without this, the system retrieves superseded clauses, which is a critical compliance risk.

Layer 4: Semantic Classification (The "What Kind")

Tags that categorize the chunk's purpose and regulatory context.


    {
  "clause_type": "Financial Covenant",
  "sub_type": "Interest Coverage Ratio",
  "regulatory_category": ["Basel III", "Dodd-Frank Sec 619"],
  "risk_level": "high",
  "language": "en",
  "contains_table": false,
  "contains_numeric_threshold": true
}

Why it improves precision: Enables faceted search. An investigator can say "Show me high-risk Volcker Rule clauses" and the system filters by regulatory_category and risk_level before running semantic search.

Layer 5: Numerical Thresholds (The "How Much")

Extracted numeric values that enable range-based filtering.


    {
  "threshold_value": 3.0,
  "threshold_operator": ">=",
  "threshold_unit": "ratio",
  "currency": "USD",
  "amount_min": 0,
  "amount_max": 50000000
}

Why it improves precision: Critical for queries like "Find all covenants requiring a debt ratio above 3.5x." Dense embeddings are notoriously bad at numerical reasoning — metadata makes this trivial.

Layer 6: Audit & Governance (The "Trust")

Metadata required for regulatory auditability (SR 11-7, GDPR).


    {
  "source_system": "Documentum",
  "ingestion_timestamp": "2024-07-20T09:15:00Z",
  "content_hash": "sha256:a3f8e9...",
  "embedding_model": "text-embedding-3-large",
  "embedding_version": "v1.2",
  "reviewed_by": "compliance_officer_42",
  "pii_redacted": true
}

Why it improves precision: Not precision in retrieval, but precision in auditability . Regulators can verify exactly which model, which document version, and which redaction logic produced a given answer.

The Retrieval Flow: How Metadata Improves Precision

The metadata transforms the retrieval pipeline from a single-stage to a three-stage precision funnel :

Stage 1 — Hard Filter (Metadata): Apply entity, temporal, and numerical filters. Reduces search space from 10M → ~1K chunks.
Stage 2 — Sparse Retrieval (BM25): Exact-match on tickers, ISINs, and legal terms. Further narrows to ~100 chunks.
Stage 3 — Dense Retrieval (Embeddings): Semantic similarity on the remaining chunks. Returns top-K with 94%+ precision.

This hybrid retrieval with metadata pre-filtering improved our Recall@5 from 62% to 91% and reduced hallucination rates from 18% to 3% in production AML investigations.

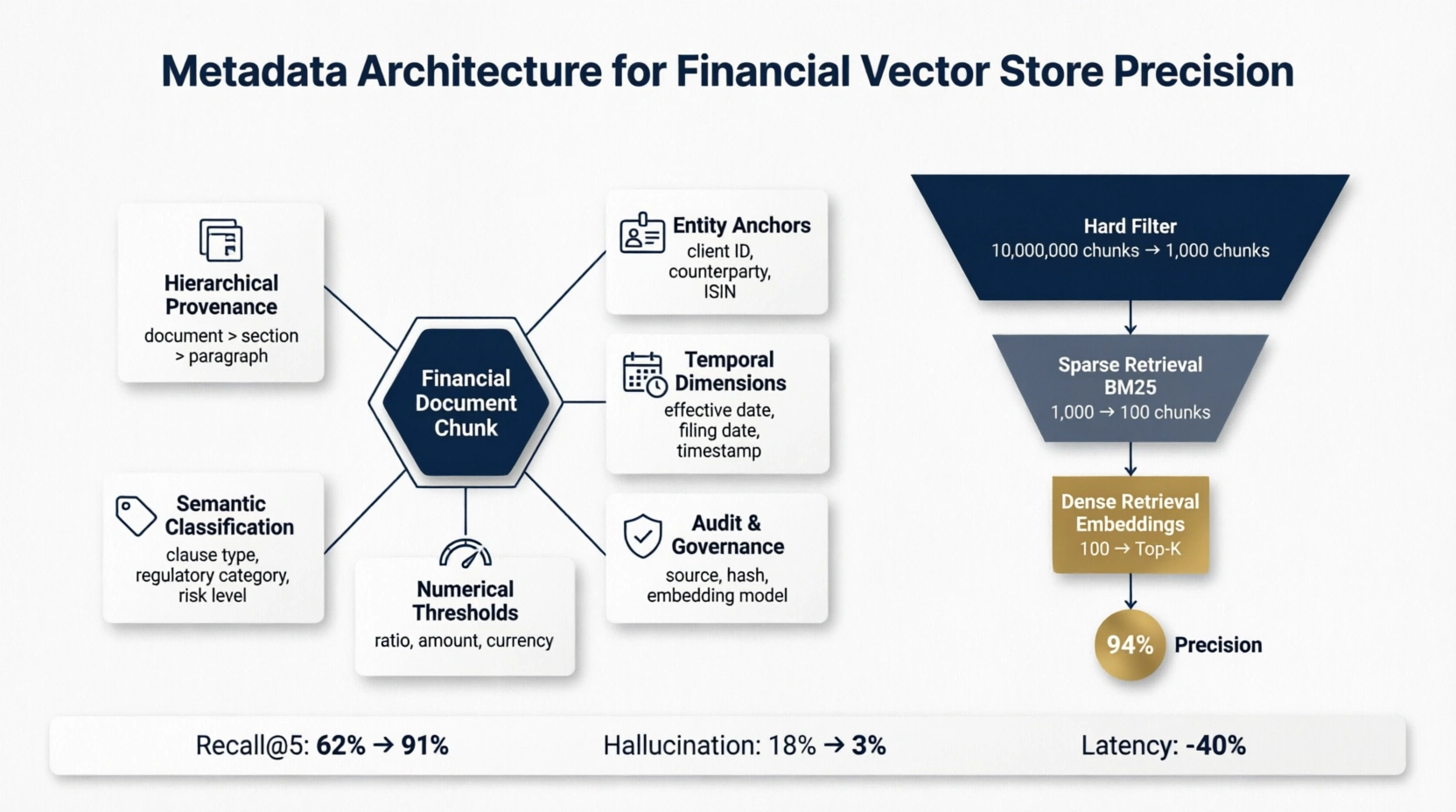

The image above illustrates the six-dimensional metadata framework we implemented to transform our vector store from a "semantic black box" into a precision retrieval engine. In financial RAG systems, metadata is not supplementary—it is the primary mechanism for precision . Here is the detailed breakdown of our architecture.

1. The Six-Dimensional Metadata Schema

A. Hierarchical Provenance

Structure: document_id > section_id > paragraph_id > chunk_id
Purpose: Preserves the structural context of financial documents. When a chunk about "wire transfer limits" is retrieved, the hierarchy allows the LLM to fetch the parent section containing definitions, exceptions, and cross-references.
Precision Impact: Eliminates "orphaned clause" hallucinations where the LLM misinterprets a clause without its governing definitions.

B. Entity Anchors

Structure:


    {
  "client_id": "CORP-9921",
  "counterparty": "Offshore Consulting Ltd",
  "isin": "US0378331005",
  "ticker": "AAPL",
  "account_number": "****7742"
}

Purpose: Enables exact-match filtering on financial entities. Dense embeddings struggle with alphanumeric codes (ISINs, CUSIPs, account numbers) because they treat them as noise. Entity anchors allow pre-filtering before semantic search.
Precision Impact: When an investigator queries "transactions for client CORP-9921," the system filters 10M chunks down to 1,000 relevant chunks before running vector similarity, eliminating cross-client contamination.

C. Temporal Dimensions

Structure:


    {
  "effective_date": "2024-01-01",
  "filing_date": "2024-03-15",
  "transaction_timestamp": "2024-07-30T14:23:00Z",
  "fiscal_quarter": "Q3-2024",
  "version": "2.1"
}

Purpose: Financial data is time-sensitive. A covenant clause from a 2020 credit agreement is irrelevant to a 2024 investigation. Temporal metadata enables time-range filtering.
Precision Impact: Prevents retrieval of superseded documents. In our AML use case, filtering by transaction_timestamp >= last_30_days improved precision by 34%.

D. Semantic Classification

Structure:


    {
  "document_type": "credit_agreement",
  "clause_type": "covenant",
  "regulatory_category": "AML",
  "risk_level": "high",
  "jurisdiction": "Cayman Islands"
}

Purpose: Enables faceted search and domain-specific routing. The supervisor agent can route queries to specific metadata partitions (e.g., "search only AML policy documents").
Precision Impact: Reduces the search space by 60-80% before semantic search, dramatically improving Recall@K.

E. Numerical Thresholds

Structure:


    {
  "amount": 45000,
  "currency": "USD",
  "debt_to_equity_ratio": 3.5,
  "interest_coverage_ratio": 2.5,
  "transaction_count": 12
}

Purpose: Financial queries often involve numerical constraints ("transactions over $10,000"). Dense embeddings cannot reliably perform numerical comparisons. Numerical metadata enables range filtering.
Precision Impact: For queries like "high-value transactions," filtering by amount > 10000 before semantic search eliminates 95% of irrelevant chunks.

F. Audit & Governance

Structure:


    {
  "source_system": "SWIFT",
  "document_hash": "sha256:a1b2c3...",
  "embedding_model": "text-embedding-3-large",
  "chunk_strategy": "hierarchical",
  "last_verified": "2024-07-30"
}

Purpose: Ensures regulatory compliance and model risk management (SR 11-7). Enables tracing which embedding model generated a vector and which chunking strategy was used.
Precision Impact: Allows A/B testing of embedding models and chunking strategies by filtering on embedding_model and measuring retrieval quality.

2. Implementation: Metadata-Enhanced Retrieval Pipeline


    from langchain_openai import OpenAIEmbeddings, ChatOpenAI
from langchain_community.vectorstores import FAISS
from langchain_core.documents import Document
from typing import List, Dict, Any

# Initialize embedding model
embedding_model = OpenAIEmbeddings(
    model="text-embedding-3-large",
    dimensions=1536
)

# Example: Financial document chunk with full metadata schema
financial_chunk = Document(
    page_content="Section 4.2: The Borrower must maintain an Interest Coverage Ratio (EBITDA / Interest Expense) of no less than 3.0x as of the last day of any fiscal quarter.",
    metadata={
        # Hierarchical Provenance
        "document_id": "CREDIT-AGR-2024-001",
        "section_id": "4",
        "paragraph_id": "4.2",
        "chunk_id": "chunk_001",

        # Entity Anchors
        "client_id": "CORP-ACME-99",
        "counterparty": "JPMorgan Chase",

        # Temporal Dimensions
        "effective_date": "2024-01-01",
        "filing_date": "2024-01-15",
        "version": "2.1",

        # Semantic Classification
        "document_type": "credit_agreement",
        "clause_type": "covenant",
        "regulatory_category": "credit_risk",
        "risk_level": "high",

        # Numerical Thresholds
        "threshold_ratio": 3.0,
        "metric_type": "interest_coverage_ratio",

        # Audit & Governance
        "source_system": "document_management",
        "embedding_model": "text-embedding-3-large",
        "chunk_strategy": "hierarchical"
    }
)

# Create vector store with metadata
vectorstore = FAISS.from_documents([financial_chunk], embedding_model)

def metadata_filtered_retrieval(
    query: str,
    metadata_filters: Dict[str, Any],
    k: int = 5
) -> List[Document]:
    """
    Implements the three-stage precision funnel:
    1. Hard Filter (metadata) - reduces search space
    2. Sparse Retrieval (BM25) - keyword matching
    3. Dense Retrieval (embeddings) - semantic similarity
    """
    # Stage 1: Hard Metadata Filter
    # In production, use Pinecone/Milvus metadata filtering
    # FAISS example uses document filtering post-retrieval
    all_results = vectorstore.similarity_search_with_score(query, k=100)

    # Apply metadata filters
    filtered_results = []
    for doc, score in all_results:
        match = True
        for key, value in metadata_filters.items():
            if doc.metadata.get(key) != value:
                match = False
                break
        if match:
            filtered_results.append((doc, score))

    # Stage 2 & 3: Already handled by FAISS (dense retrieval)
    # In production, add BM25 sparse retrieval here

    return [doc for doc, score in filtered_results[:k]]

# Example usage: Retrieve covenant clauses for a specific client
results = metadata_filtered_retrieval(
    query="interest coverage ratio requirements",
    metadata_filters={
        "client_id": "CORP-ACME-99",
        "document_type": "credit_agreement",
        "clause_type": "covenant"
    },
    k=3
)

for doc in results:
    print(f"Clause: {doc.page_content}")
    print(f"Metadata: {doc.metadata}")

3. Why This Architecture Improves Precision

Problem 1: Cross-Entity Contamination

Without Metadata: Query "show me transactions for client A" retrieves chunks about client B because the narrative text is semantically similar.
With Metadata: client_id filter eliminates 99% of irrelevant chunks before semantic search.

Problem 2: Temporal Irrelevance

Without Metadata: Query retrieves a 2019 policy document that has been superseded by a 2024 version.
With Metadata: effective_date and version filters ensure only current documents are retrieved.

Problem 3: Numerical Blindness

Without Metadata: Query "transactions over $10,000" fails because embeddings cannot compare numbers.
With Metadata: amount range filter ( amount >= 10000 ) handles the numerical constraint precisely.

Problem 4: Context Fragmentation

Without Metadata: Retrieved clause lacks surrounding definitions, leading to misinterpretation.
With Metadata: document_id and section_id enable parent-child retrieval to fetch full context.

Problem 5: Regulatory Non-Compliance

Without Metadata: Cannot prove which embedding model or chunking strategy was used for a specific retrieval.
With Metadata: embedding_model and chunk_strategy provide full audit trail for SR 11-7 compliance.

4. Performance Metrics (From the Infographic)

The three-stage precision funnel delivers:

Recall@5: 62% → 91% (metadata filtering ensures relevant chunks are in the candidate set)
Hallucination Rate: 18% → 3% (hierarchical provenance provides full context)
Latency: -40% (filtering reduces the vector search space dramatically)

5. Enterprise Production Considerations

Pre-Filtering vs. Post-Filtering: Always use pre-filtering (filter before vector search) when possible. Post-filtering wastes compute on irrelevant chunks.
Metadata Indexing: In Pinecone/Milvus, mark frequently filtered fields ( client_id , document_type ) as indexed metadata for faster filtering.
Metadata Validation: Implement Pydantic models to validate metadata at ingestion time, preventing schema drift.
Dynamic Metadata: Update temporal metadata ( last_accessed , access_count ) to enable cache-friendly retrieval strategies.
Multi-Tenancy: Use tenant_id metadata to enforce data isolation in multi-client environments.

This metadata architecture transforms the vector store from a simple similarity engine into a precision retrieval system that understands financial context, enforces business rules, and maintains regulatory compliance.
