Mobile Touch Controls - Moving A Character From Left To Right Using C# Scripts In Unity

Introduction


In this article, we discuss how to make mobile touch controls and move a character from left to right using C# scripts in Unity.

Prerequisites

Unity Environment version 2018.4.19f1

Create the 2D project in Unity.

Mobile Touch Controls - Moving A Character From Left To Right Using C# Scripts In Unity

Now open up main.Assets. Import the 2D Character for the Unity. Drag the Scene view onto your view controller.

Mobile Touch Controls - Moving A Character From Left To Right Using C# Scripts In Unity

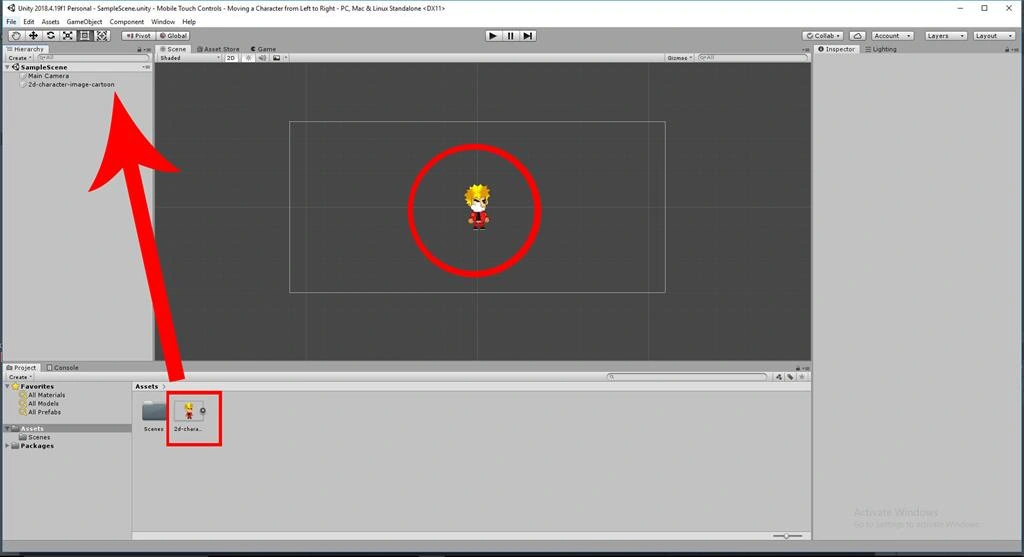

Select 2D Character and go to the Drag n Drop Scene view in Unity.

Mobile Touch Controls - Moving A Character From Left To Right Using C# Scripts In Unity

Create a Button in your project.

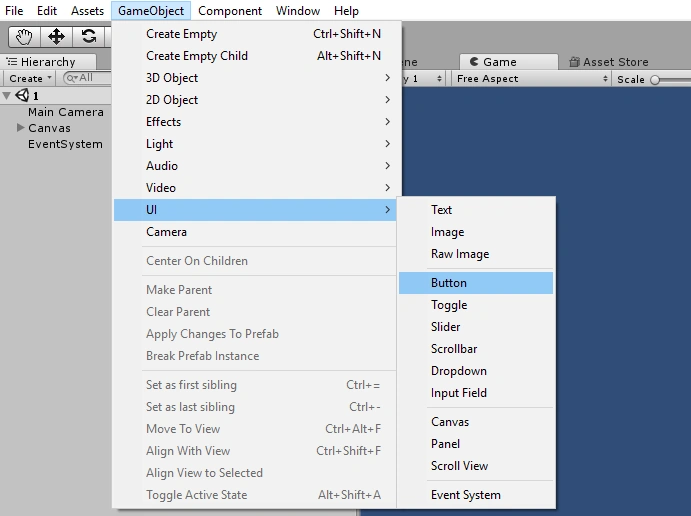

Click on the "GameObject" menu in the menu bar. Select Create UI (Button). The Create Button will be added to the scene View.

Mobile Touch Controls - Moving A Character From Left To Right Using C# Scripts In Unity

Rename the Button as Left button.

Mobile Touch Controls - Moving A Character From Left To Right Using C# Scripts In Unity

Create a DuplicateButton in your project.

Select the button and type the keys (Ctrl + D). The Create Duplicate Button will be added to the scene View.

Mobile Touch Controls - Moving A Character From Left To Right Using C# Scripts In Unity

Rename the Duplicate Button as the Right button.

Mobile Touch Controls - Moving A Character From Left To Right Using C# Scripts In Unity

Create a C# Script

Right-click on Assets. Select Create >> C# script.

Mobile Touch Controls - Moving A Character From Left To Right Using C# Scripts In Unity

Rename the script as Movement.

Mobile Touch Controls - Moving A Character From Left To Right Using C# Scripts In Unity

Write the code like the following.

Double click on the Movement. The MonoDevelop-Unity editor will open up.
  1. using System.Collections;
  2. using System.Collections.Generic;
  3. using UnityEngine;
  4. public class Movement: MonoBehaviour {
  5.     //variables
  6.     public float moveSpeed = 300;
  7.     public GameObject character;
  8.     private Rigidbody2D characterBody;
  9.     private float ScreenWidth;
  10.     // Use this for initialization
  11.     void Start() {
  12.         ScreenWidth = Screen.width;
  13.         characterBody = character.GetComponent < Rigidbody2D > ();
  14.     }
  15.     // Update is called once per frame
  16.     void Update() {
  17.         int i = 0;
  18.         //loop over every touch found
  19.         while (i < Input.touchCount) {
  20.             if (Input.GetTouch(i).position.x > ScreenWidth / 2) {
  21.                 //move right
  22.                 RunCharacter(1.0 f);
  23.             }
  24.             if (Input.GetTouch(i).position.x < ScreenWidth / 2) {
  25.                 //move left
  26.                 RunCharacter(-1.0 f);
  27.             }
  28.             ++i;
  29.         }
  30.     }
  31.     void FixedUpdate() {
  32.         #if UNITY_EDITOR
  33.         RunCharacter(Input.GetAxis("Horizontal"));
  34.         #endif
  35.     }
  36.     private void RunCharacter(float horizontalInput) {
  37.         //move player
  38.         characterBody.AddForce(new Vector2(horizontalInput * moveSpeed * Time.deltaTime, 0));
  39.     }
  40. }
Save the Program.

Go back to the Unity window. Drag and drop the movement script onto the MainCamera.

Mobile Touch Controls - Moving A Character From Left To Right Using C# Scripts In Unity

Drag and drop the 2D character onto the Movement script.

Mobile Touch Controls - Moving A Character From Left To Right Using C# Scripts In Unity

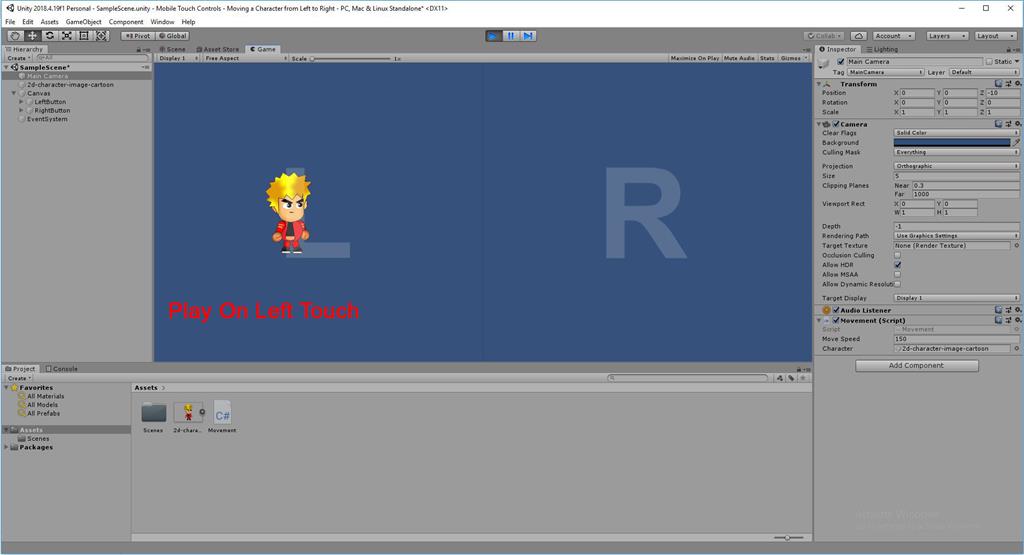

Click on the Play button. Press the “Left touch ” and “Left Arrow ” key. The 2D character will move to the Left side.

Mobile Touch Controls - Moving A Character From Left To Right Using C# Scripts In Unity

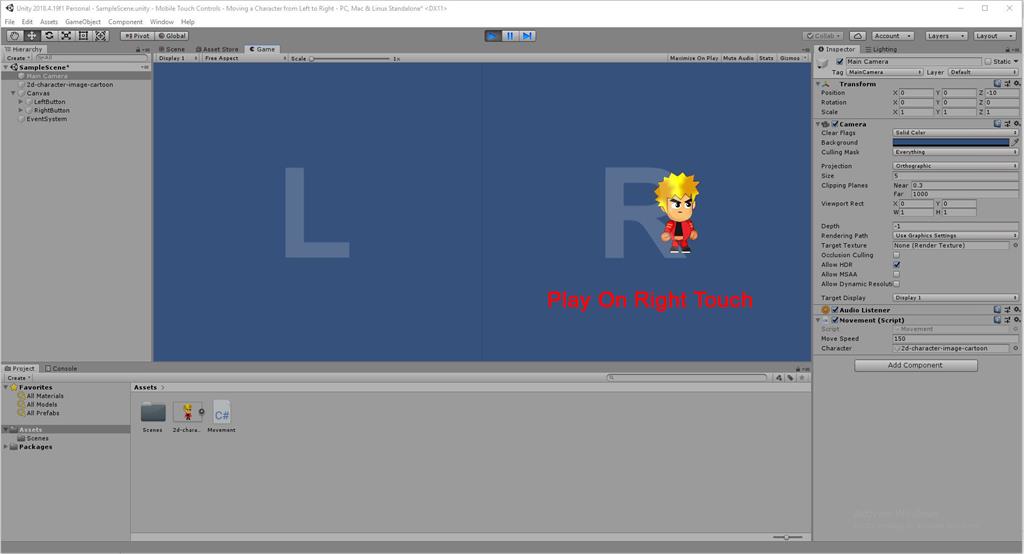

Click on the Play button. Press the “Right touch ” and “Right Arrow ” key. The 2D character will move to the Right side.

Mobile Touch Controls - Moving A Character From Left To Right Using C# Scripts In Unity


Summary


I hope you understood how to make mobile touch controls and move a character from left to right using C# scripts in Unity.
