Model View Presenter (MVP) design pattern and data binding

Introduction

Model View Presenter (MVP) design pattern is the evolution of the MVC design pattern and it's aimed at providing a cleaner separation of concerns between the view, the model, and the controller improving the architecture (you can use several UI technologies without recompiling the business logic components) and testability of the enterprise solution. The pattern was originally developed at Taligent in the 1990s.

In this article, I will explain the principles and how to use the MVP design pattern along with data binding with an example using C# language in Microsoft.NET.

The Model View Presenter (MVP) design pattern

Starting from the Model View Controller (MVC) design pattern, creators of MVP neatly separated the model from the view/controller pair. The core of MVP is the strictly regulated interaction taking place between the view and the controller. In MVP, this controller is renamed to presenter.
In the Figure 1, you can see an overview of the MVP design pattern.



Figure 1

As you can see in the Figure 1, the view and model are neatly separated (they don't know each other) and the view exposes an interface for the communication of the presenter with the view and in this way the presenter doesn't know the underlying UI technology and the view is mockable for testing purposes. As well as the presenter knows the model and can invoke its operations.

Note that each Presenter object has exactly one reference to a View object, and each View object has exactly one reference to a Presenter object. There is one Model object for the whole application. As you can see it's required to define an interface and a presenter for every View object of your application (each Web form in ASP.NET and form in Windows).

Let's explain the MVP triad at a glance.

The Model represents the business objects of the domain problem. That is business entities encapsulating the data, business services implementing the business logic and rules of your solution. It's a domain object and should have no knowledge of the user interface, unlike previous design patterns such as MVC (Model-View-Controller) where the model implements the user interface to manipulate it which is a big design error if you try to separate the concerns of the domain.

The View is responsible to display the content of the model and interact with the user's events regarding the UI technology of the solution.
The Presenter is responsible to interpret the user's events and the communication with the model objects. It implements the main workflow of the application. This is where the heart of the application lies.

It's remarkable to say that Martin Fowler has extended the original MVP design pattern with Passive View and Supervising Controller/Presenter.
In the case of the Passive View pattern, the main idea is to have no dependencies between the View and the Model concerns and the view is dumb. The Supervising Controller is a flexible interpretation of the original MVP design pattern and the view is not completely dumb and has some responsibilities.

Now well, my approach, to architect an enterprise-class application for being implemented using Microsoft technologies, is to separate concerns in multiple layers and follow the MVP design patter along with data binding (data binding using BindingSource support in Windows applications and data binding with ObjectDataSource support in ASP.NET applications). The View has some responsibilities such as displaying, formatting and gathering data as well as handling user interaction's events. The Presenter has the responsibility to interpret the messages sent and received from the View as well as to invoke the underlying business objects in the business logic layer in the Model. Now, the communication between the layers of the application is through Data Transfer Objects (DTO). The use of DTO is trade-off because we create new DTO, we're increasing the cost of the complexity of the solution and this cost is justified in large enterprise applications. For small and medium application, it makes sense to reference the business objects directly from the View concern (and bind the data represented by the business object in the controls) in order to avoid the definition of new DTO. The idea is to use the data model represented by the business object as the DTO. But it's not correct to invoke operations and business logic directly from the View (data access methods, calculation, invocation of external services, etc).

The solution, which I will explain in this article, will be based on the MVP design pattern along with data binding for small enterprise application.

Implementing the Model View Presenter (MVP) design pattern

Now let's go and implement the principles and concepts of the Model View Presenter (MVP) design pattern along with data binding in a multi-layer enterprise application using C# in Microsoft.NET.

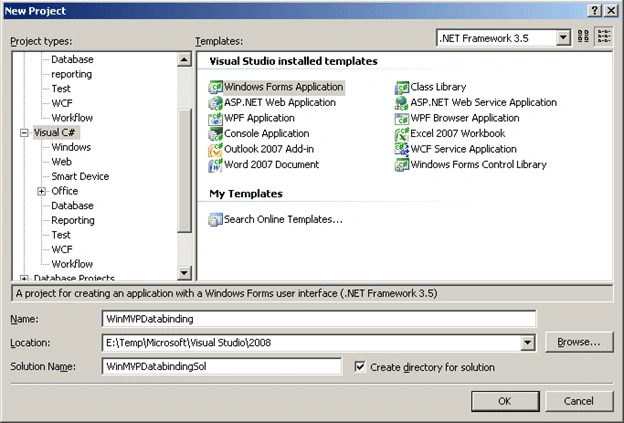

Let's open the Visual Studio.NET 2008 IDE and create an example solution (see Figure 2).



Figure 2

For this example, we're going to create an application which enables managing the contacts of one enterprise. The data source is the Person.Contact table in the AdventureWorks database shipped with SQL Server 2005.

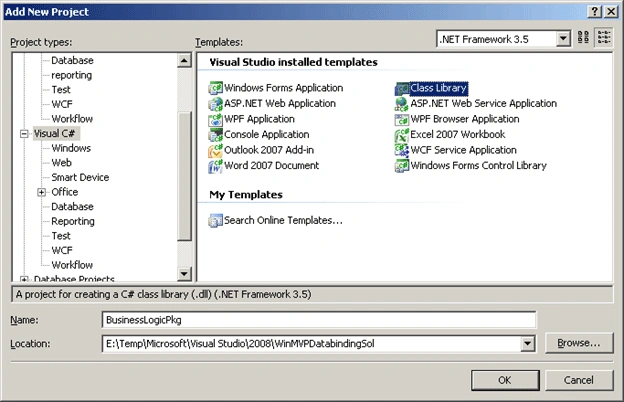

Let's add the business logic layer using a Class Library project (see Figure 3).



Figure 3

Next step is to add the business entities and objects which model your problem domain (see Listing 1). For the definition of the business entities we're going to use strongly typed Data Set and for the data access code we're going to rely on the underlying table adapters.

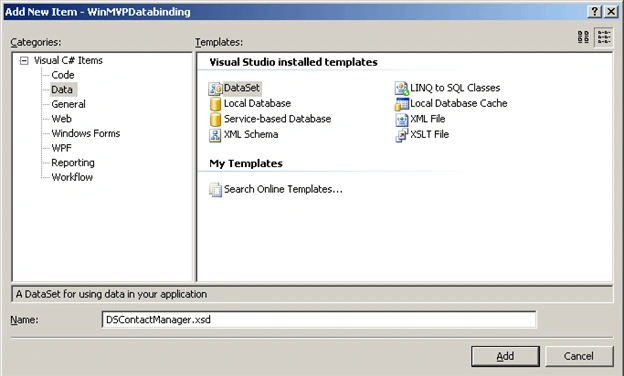

Let's add a DataSet to the project named DSContactManager as shown in the Figure 4.



Figure 4

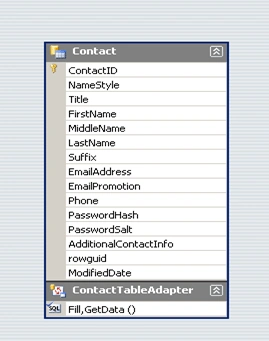

Let's add a Contact data table and its underlying table adapter (see Figure 5).



Figure 5

Now let's add the business service objects to implement the business logic concerning the Contact business entity (see Figure 6).



Figure 6

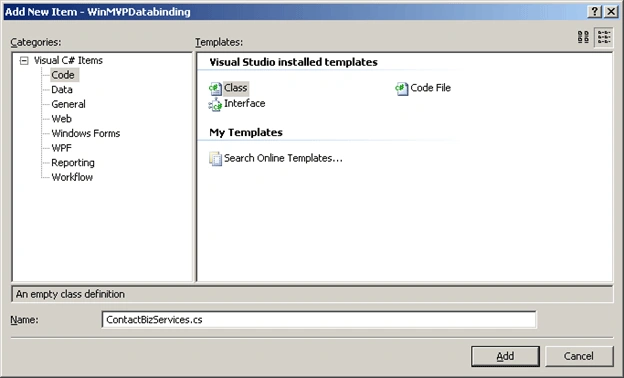

The code definition for the business services regarding the contact entity is the Listing 1.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;

namespace BusinessLogicPkg
{
public class ContactBizServices
{
private DSContactManager m_dsContact;

public ContactBizServices(DSContactManager dsContact)
{
this.m_dsContact = dsContact;
}

public void Load()
{
DSContactManagerTableAdapters.ContactTableAdapter taContact = new BusinessLogicPkg.DSContactManagerTableAdapters.ContactTableAdapter();
taContact.Fill(this.m_dsContact.Contact);
}

public void Save()
{
DSContactManagerTableAdapters.ContactTableAdapter taContact = new BusinessLogicPkg.DSContactManagerTableAdapters.ContactTableAdapter();
taContact.Update(this.m_dsContact.Contact);
}
}
}

Listing 1

Now let's add the Presentation layer where the presenter objects lies using a Class Library project (see Figure 7).



Figure 7

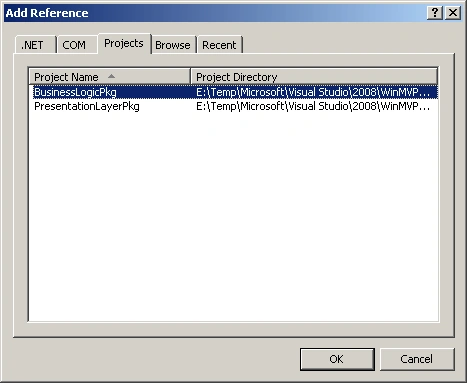

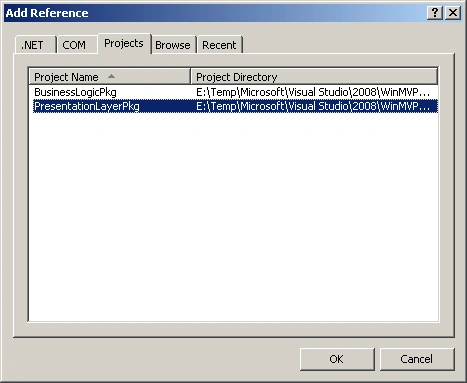

We need to add a reference to the business logic layer in the PresentationLayer as in the Figure 8.



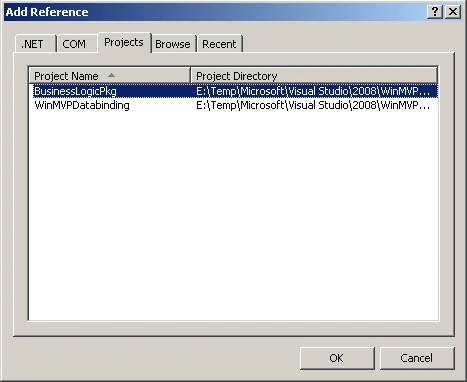

Figure 8

Next step is to add the ContactManagerPresenter class to handle the workflow for the communication between the UI controls and the model objects as well as to add the IContactManagerView interface to define the interface to be implemented by the underlying UI artifacts which need to communicate with the Presenter artifact.

In order to define the IContactManagerView interface, we deal with the user stories and requirements and in this case, we want to load contact data, to be changed and then save the changes. We need to access to the data model (the strongly typed Data Set DSContactManager) as the DTO and send a message to the user notifying the status of the performed operation (see Listing 2).

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using BusinessLogicPkg;
