Night Clock In Android Using Android Studio

Introduction

In this article, we are going to learn about Night Clock in Android using Android Studio. It is a type of library which performs all clock operations. In this, we have used Analog Clock in night mode.

Step 1

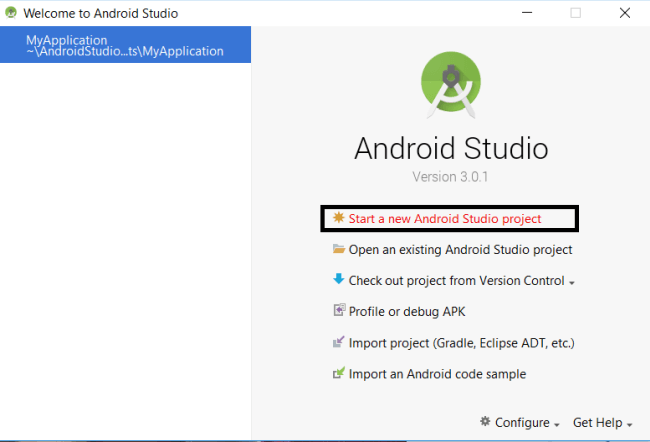

Create a new project in Android Studio.

Android

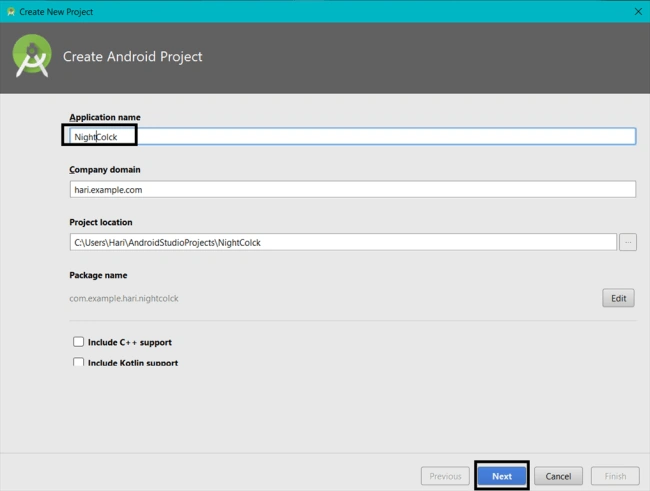

Give a name to the project and click "Next".

Android

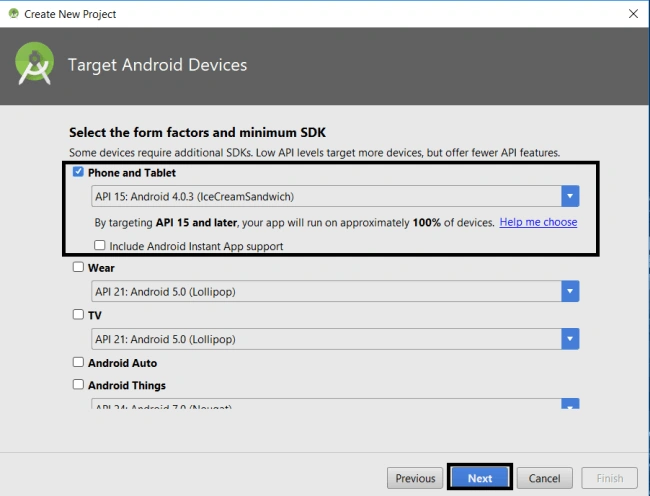

Select the "Phone and Tablet" option and click "Next".

Android

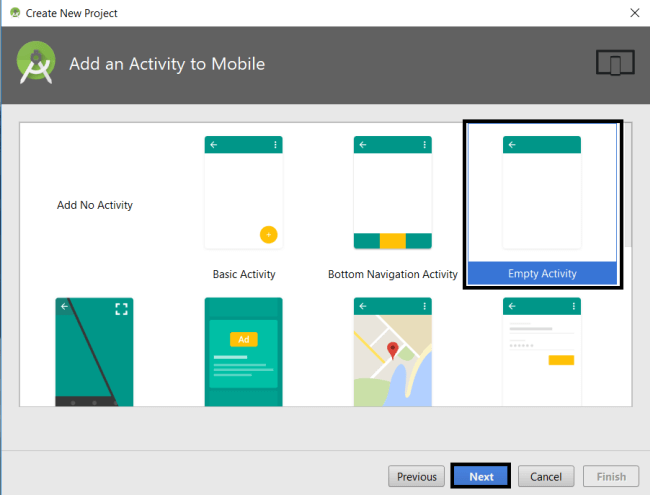

Select an empty activity and click "Next".

Android

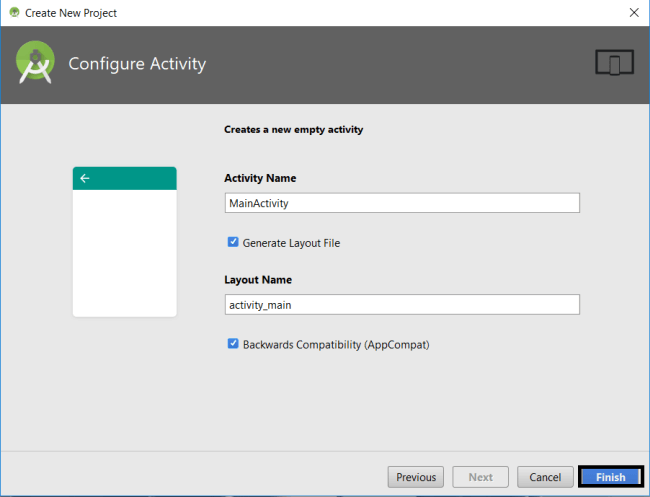

At last, give the activity name and click on "Finish".

Android

Step 2

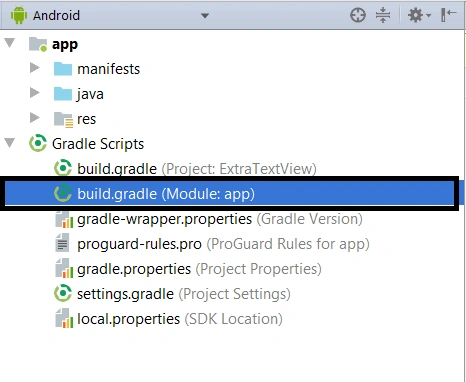

Locate the Gradle Scripts>>Build.Gradle.

Android

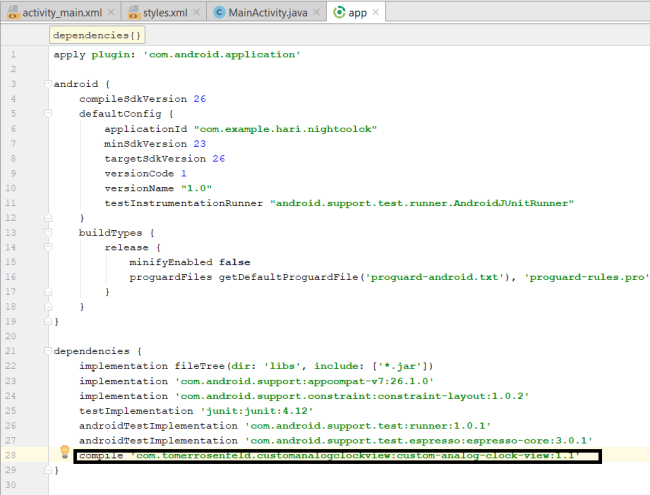

And, type the following dependency in your app's build.gradle.

Android

Code copy is here:
  1. compile 'com.tomerrosenfeld.customanalogclockview:custom-analog-clock-view:1.1'
Step 3

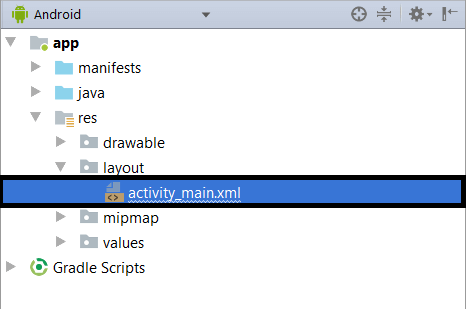

Next, go to app >> res >> layout >> activity_main.xml. Select activity page.

Android

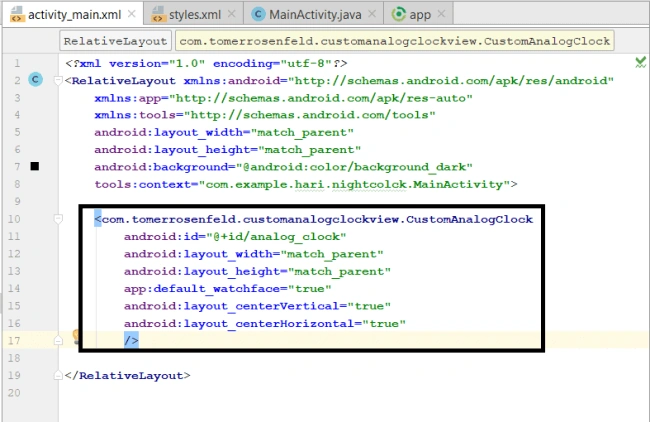

Just type the code as follows.

Android

The code copy is here.
  1. <com.tomerrosenfeld.customanalogclockview.CustomAnalogClock
  2.         android:id="@+id/analog_clock"
  3.         android:layout_width="match_parent"
  4.         android:layout_height="match_parent"
  5.         app:default_watchface="true"
  6.         android:layout_centerVertical="true"
  7.         android:layout_centerHorizontal="true"
  8.         />
Step 4

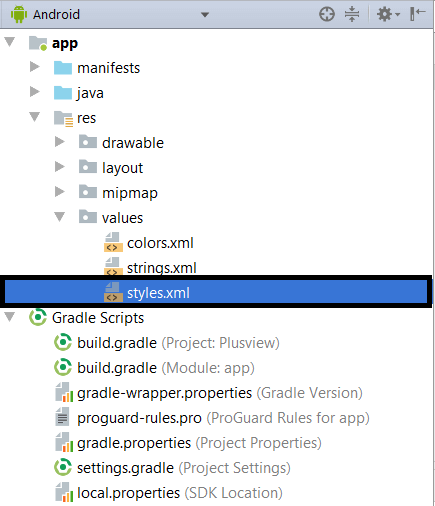

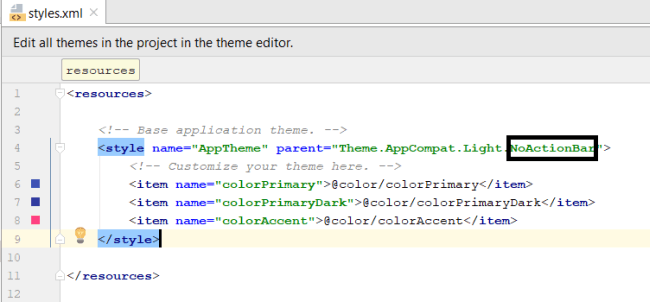

Next, go to app >> res >>Styles and:

Android



Just type the code as follows.

Android

Code copy is here.
  1. <style name="AppTheme" parent="Theme.AppCompat.NoActionBar">
  2.         <!-- Customize your theme here. -->
  3.         <item name="colorPrimary">@color/colorPrimary</item>
  4.         <item name="colorPrimaryDark">@color/colorPrimaryDark</item>
  5.         <item name="colorAccent">@color/colorAccent</item>
  6.     </style>
Step 5

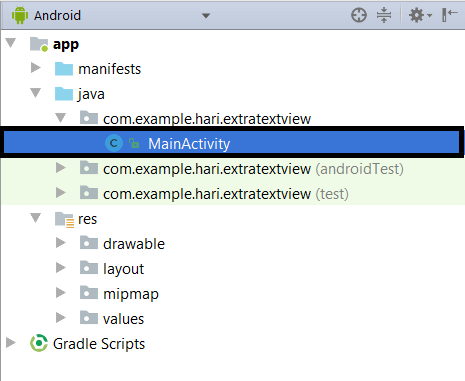

Next, go to app >> java>>Mainactivity.java. Select Mainactivity page.

Android

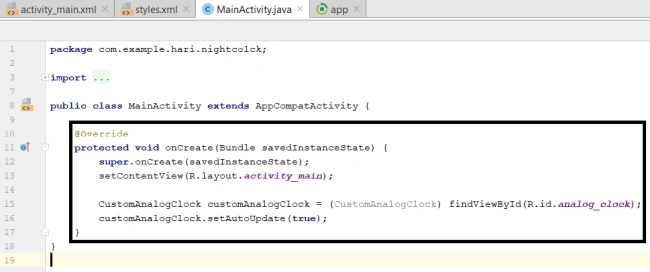

Just type the code as follows.

Android

Code copy is here.
  1. @Override
  2.    protected void onCreate(Bundle savedInstanceState) {
  3.        super.onCreate(savedInstanceState);
  4.        setContentView(R.layout.activity_main);
  5.
  6.        CustomAnalogClock customAnalogClock = (CustomAnalogClock) findViewById(R.id.analog_clock);
  7.        customAnalogClock.setAutoUpdate(true);
Step 6

Verify the preview.

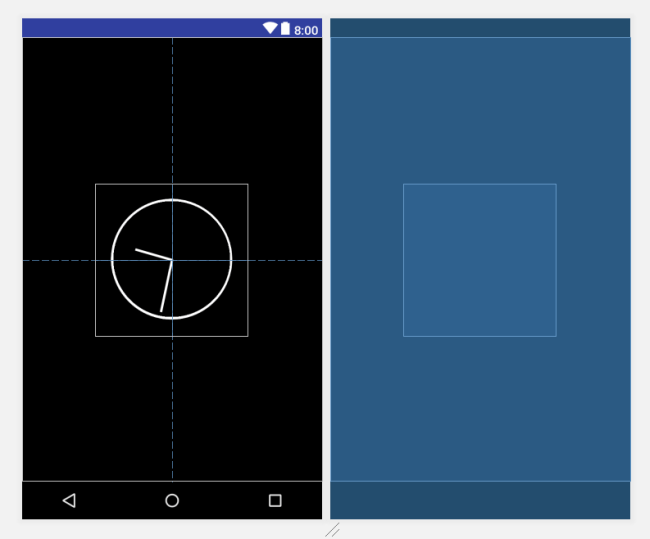

After the code is applied, the preview will appear like this.


Android

Step 7

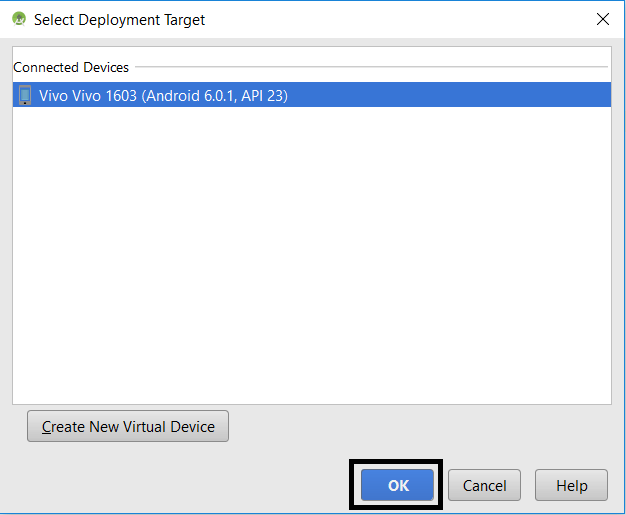

Next, go to Android Studio and deploy the application. Select an Emulator or your mobile with USB debugging enabled. Give it a few seconds to make installations and set permissions.

Android

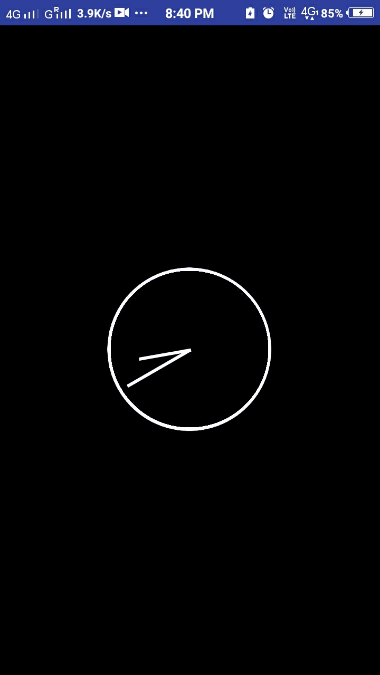

Run the application in your desired emulator (Shift + F10).

Android

Explanation of source code

The source code used in the activitymain.xml file will implement an Analog Clock in the app and Mainactivity.java will render the current time to the clock.

Summary

We have just created the app to see the Analog Clock in night mode and learned how to use it.
