Parse CSV From SharePoint Document Library

Introduction

The use case here is when a CSV is uploaded to the SharePoint online document library, and the Power Automate reads the CSV and parses the data into the SharePoint list. I have written a similar use case, but in that, the CSV document is uploaded to One Drive. Please refer to the link in the references section for the CSV uploaded to One Drive.

Steps

Below are the steps briefly.

Create item

The user uploaded the CSV to the SPO Document Library.
Power Automate gets triggered based on the condition
Data from CSV is parsed and created in the SharePoint list.

Step 1. Create and Configure SharePoint list and library. Here, I am using the sample below for this scenario.

Configure SharePoint list

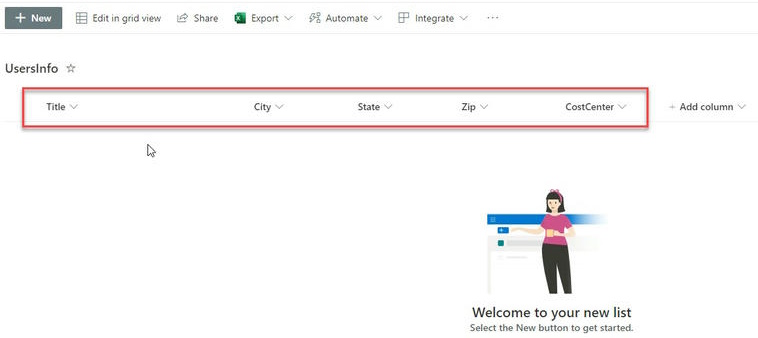

For the SharePoint list, I have created the list with the required metadata. Title, City, State, Zip, CostCenter. All are of type ‘single line of text’.

SharePoint list

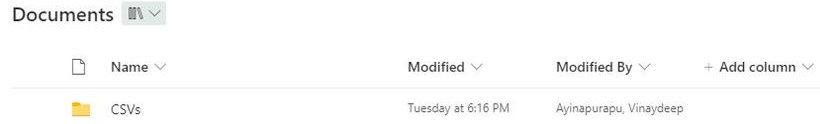

For the document library, I have created a folder called ‘CSVs’ inside the default ‘Shared Documents’ Library.

Shared Documents

The idea here is that when a file gets created inside the folder, the data from the CSV file needs to be parsed and created in the SharePoint list. Let’s see this in action.

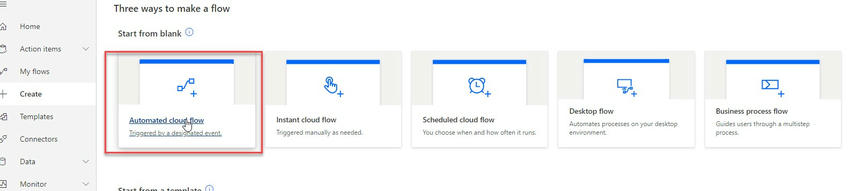

Step 2. Login to https://flow.microsoft.com with your organization / Development tenant credentials. From the home page, click on ‘Create’ à select ‘Automated cloud flow’.

Development tenant credentials

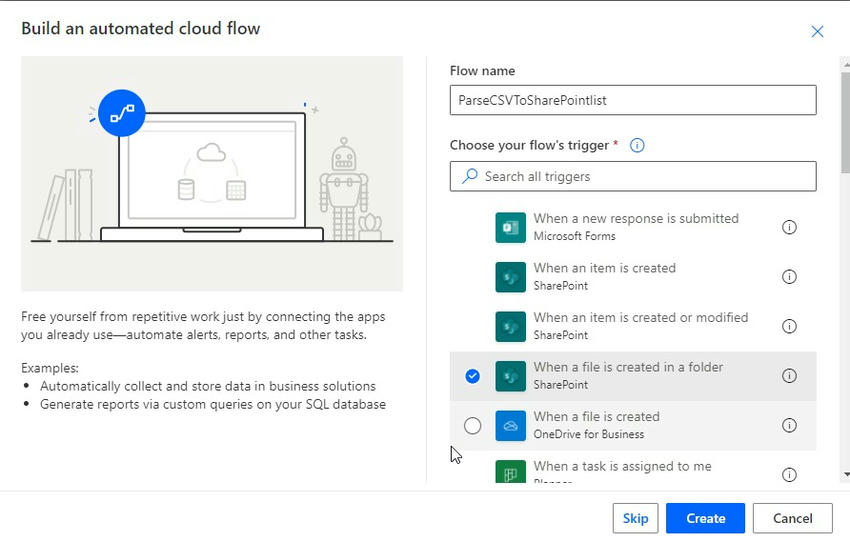

Step 3. Give a meaningful name. Here I have selected the trigger ‘When a file is created in a folder’.

Give Name

Step 4. Add an action ‘Get file content’ and select the file identifier ‘x-ms-file-id’ under the ‘Dynamic Content’. Below is the screen capture for reference.

Dynamic Content

Step 5. The output from the ‘SharePoint Get File Content’ is in octet-stream, which is not in readable format. In order to query the data, it needs to be converted to string format. For this, I am using the function called ‘base64ToString()’.

base64ToString(outputs('Get_file_content')?['body']['$content'])

SharePoint Get File Content

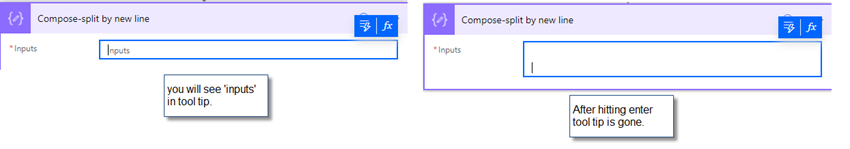

Step 6. Now select the ‘Compose’ action and rename it to ‘Compose –new line’. Inside the ‘Inputs’ field, just hit the ‘Enter’ key. This denotes a new line.

Inputs

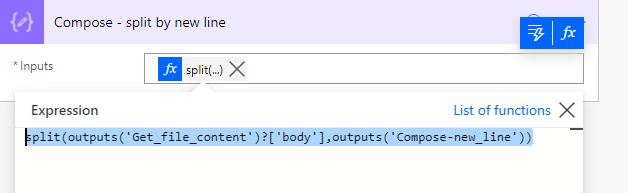

Step 7. Now select another compose. Rename it as ‘Compose – split by new line’. Here, we need to split the outputs of get file content by the new line. Let's see how to do this.

select expression and enter split([Select the outputs from file content], [select the output of compose-new line].

Enter split

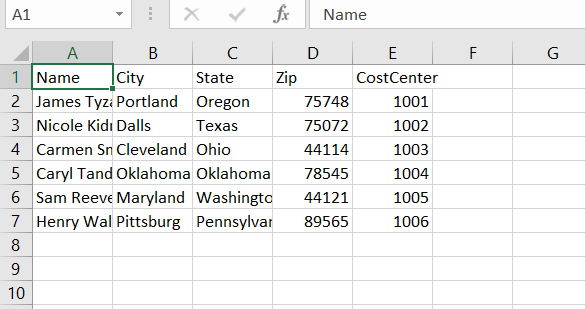

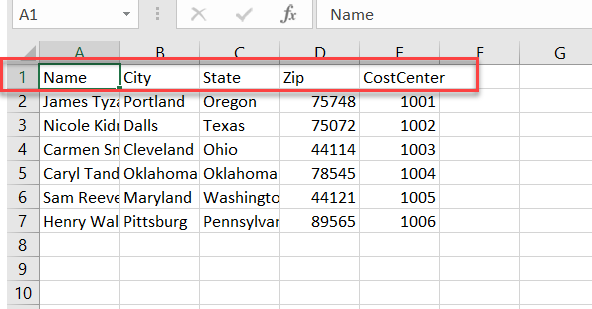

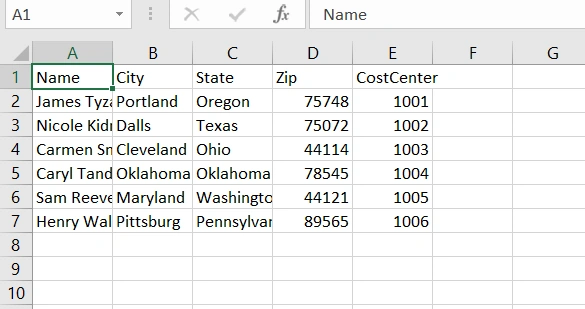

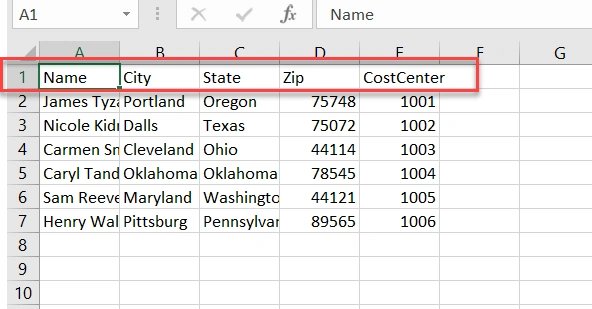

Step 8. Now, get the field names. We know from the CSV that the header has field names. In this case, the input CSV file has five fields.

Input csv

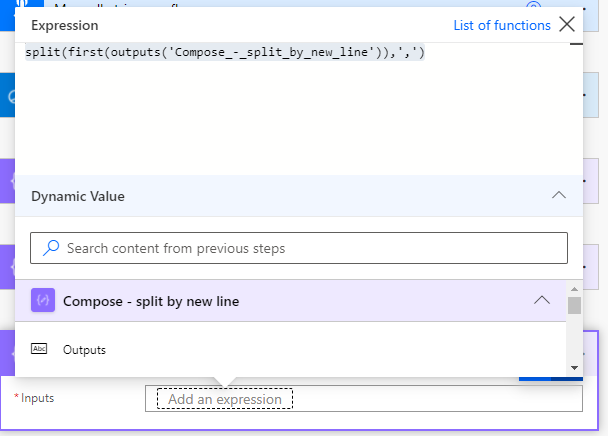

The result in my case is,

split(first(outputs('Compose_-_split_by_new_line')),',')

Result

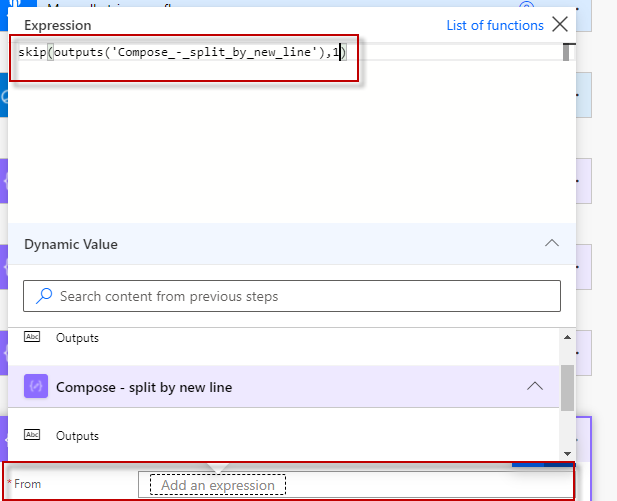

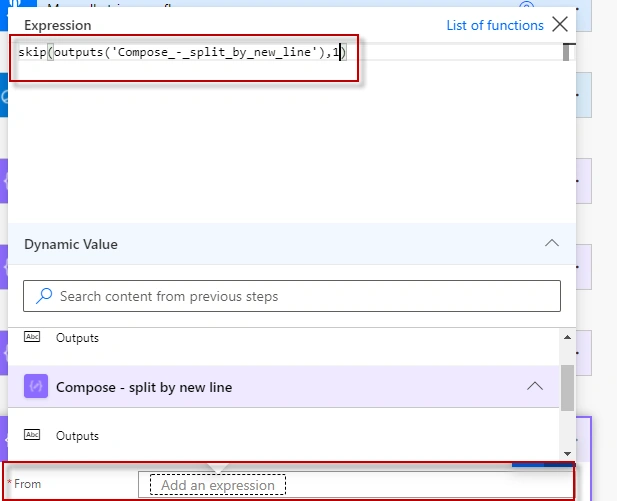

Step 9. Now, add a new step and choose the ‘select’ action. Under expression, it should skip the first record since the first row contains the data.

Select

Step 10. Configure the key and value as per the following.

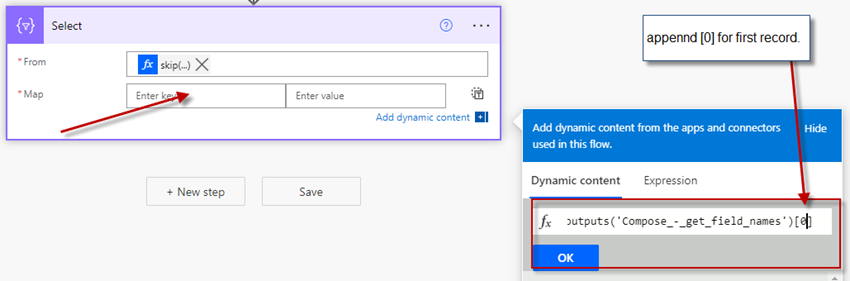

key: These should be values from the outputs ‘compose - get field names’. Note that we are getting the array values here.

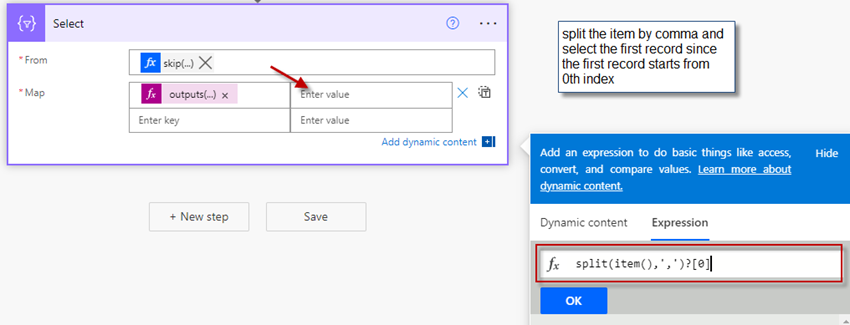

value: It should be the values from the outputs of compose-split by new line’.

Key

Value

Since we have five field values, we will map the values for each field.

Second key, the expression, would be outputs('Compose_-_get_field_names')[1]

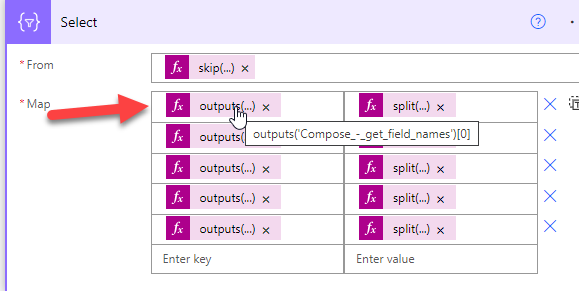

Screen capture for the first key

First Key

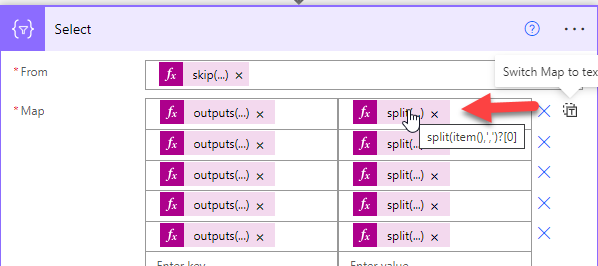

Screen capture for the first value.

Split

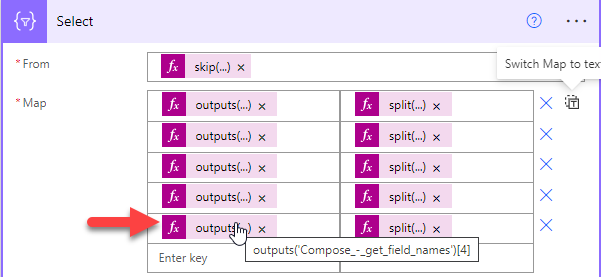

Screen capture for the last key.

Screen capture

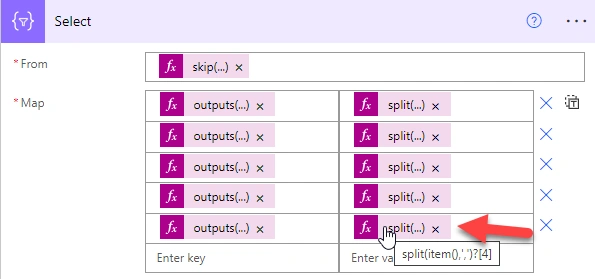

Screen capture for the last value.

Last value

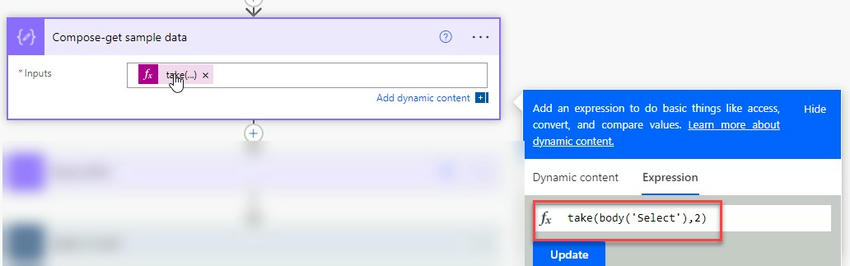

Step 11. Now, add another ‘Compose’ action to get the sample data. The schema of this sample data is needed for the ‘Parse JSON’ action. The expression is taken (outputs from ‘select’, 3). This means it would select the top 3 records from the previous ‘Select’ output action.

take(body('Select'),3)

Output action

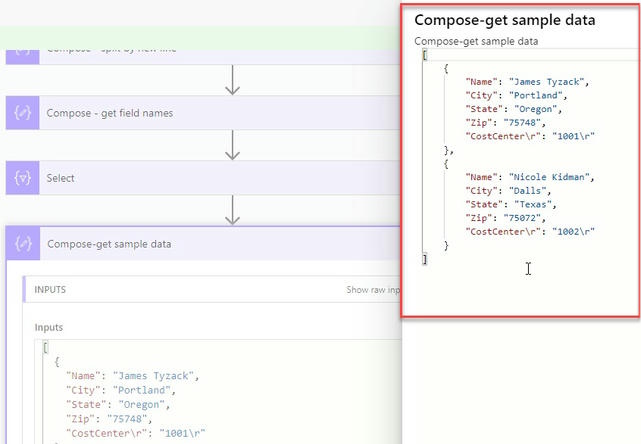

Step 12. Now save and run the flow. And copy the output from the ‘Compose – get sample data’. In this case, you may need to upload the csv file to the document library to get the sample data.

Compose

Step 13. Now add the ‘Parse JSON’ action and configure the action.

Content: It would be the output from the ‘Select’

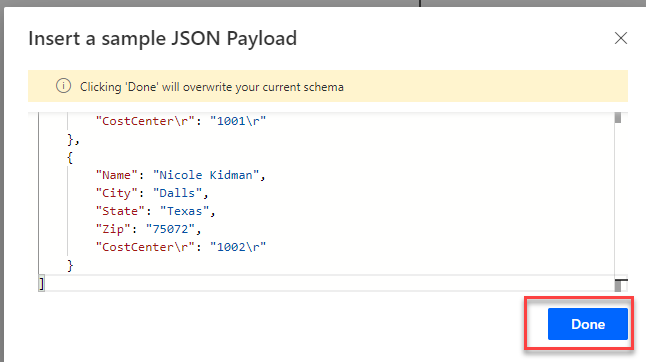

Schema: the output payload that you have copied before. Click on ‘Generate from sample’.

Generate from sample

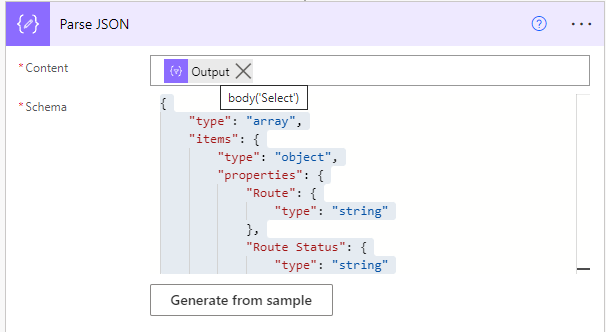

The final ‘Parse JSON’ should look like the one below.

Parse JSON

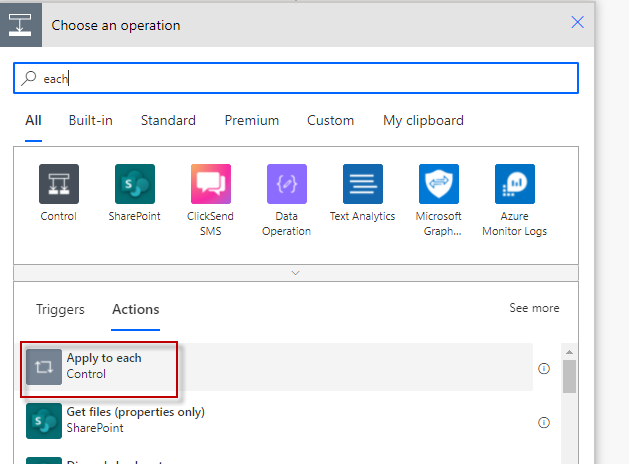

Step 14. Now, for each record in the JSON file, a SharePoint list item needs to be created.

JSON file

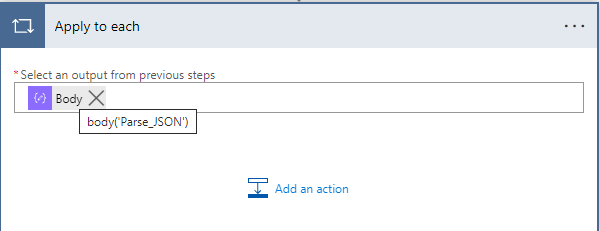

Now select the ‘Body from Parse JSON’ action item.

Action item

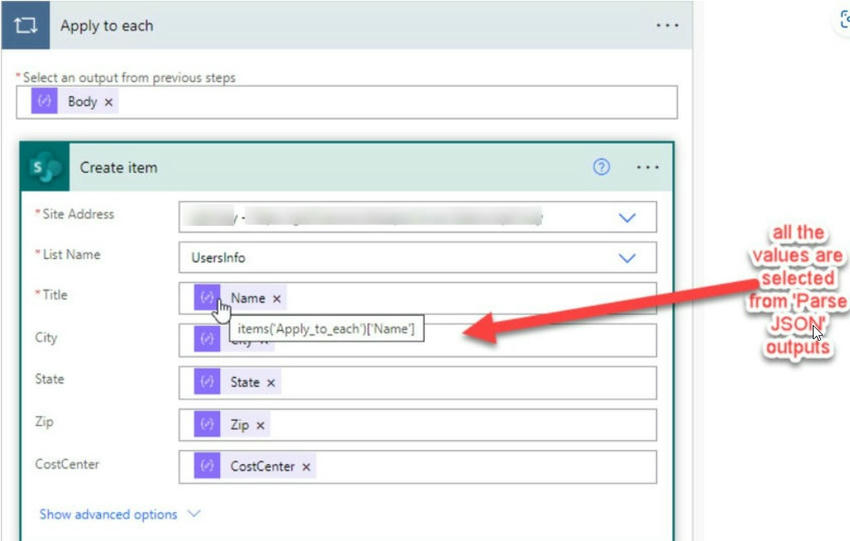

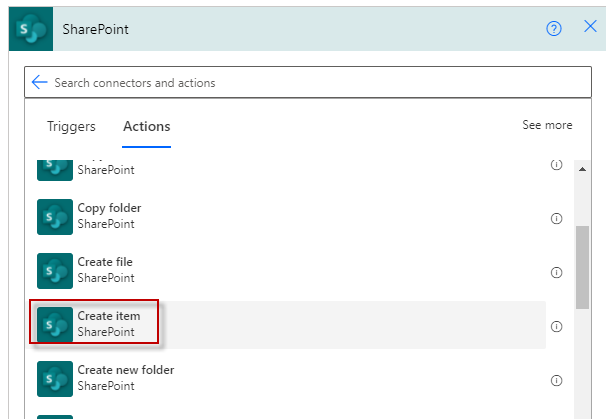

Step 15. Inside, apply to each, add a SharePoint list, and create the item.

SharePoint list create

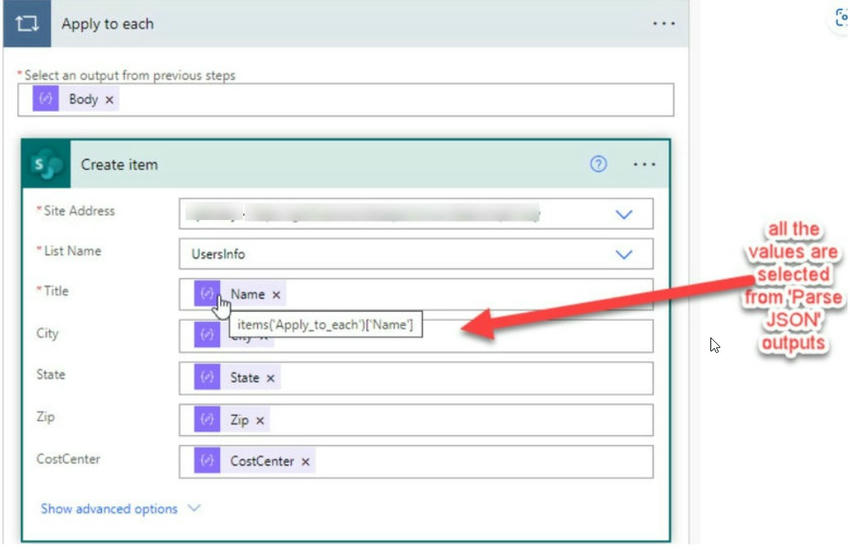

Configure the Site Address, the ‘List Name’, and the rest of the field values from the ‘Parse JSON’ dynamic output values. Please refer to the screen capture.

Site Address

Validation

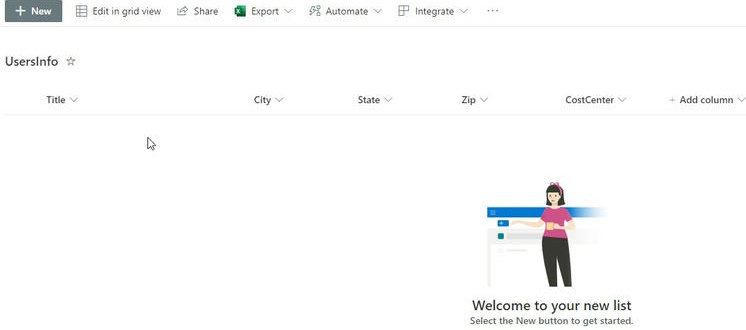

Before the run, I have no items on the list.

Items on the list.

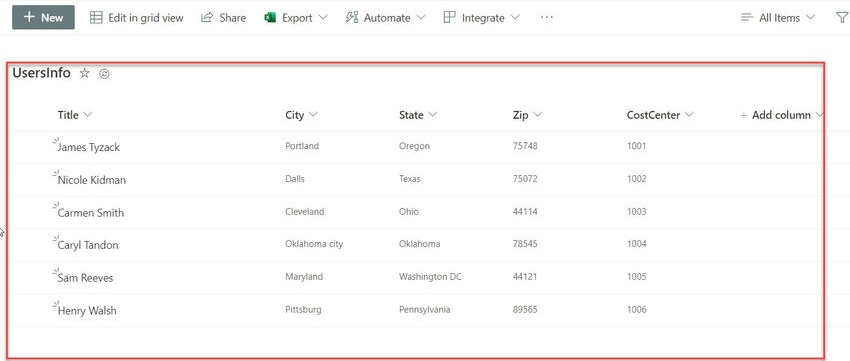

After the run, the items from the CSV are created in the SPO list.

SPO list

Possible Errors

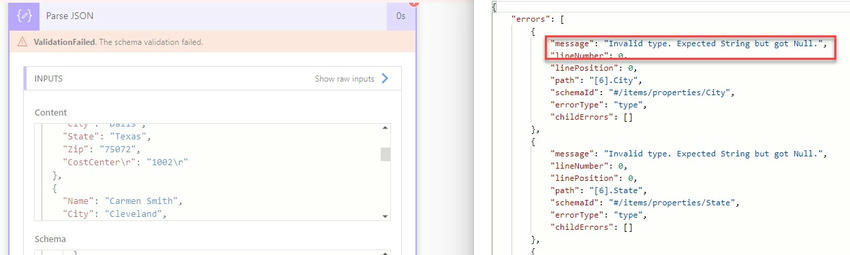

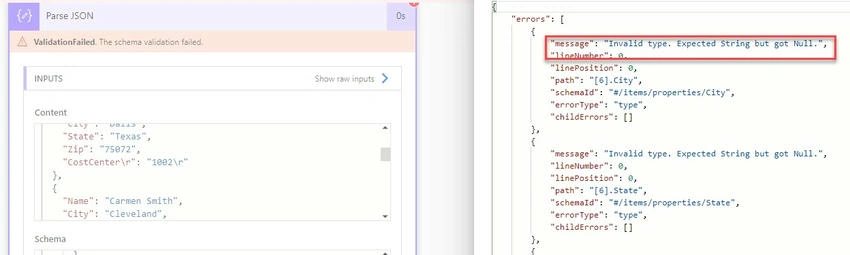

Error in Parse JSON action: Invalid Type, expected string but got null.

JSON action:

Reason

This is due to, in some cases, in the CSV file, the last column has an empty value. There are two ways to fix it. Edit the CSV file using Notepad and delete the last empty line. The instructions are mentioned in the below link.

https://www.c-sharpcorner.com/blogs/invalid-type-expected-string-but-got-null-parse-json-error

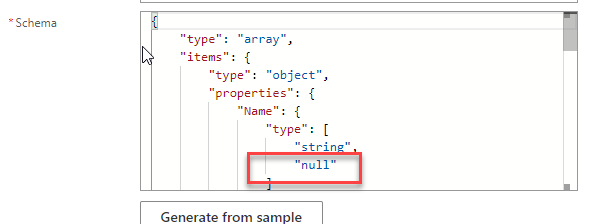

The other way to fix this is updating the schema type in the parse JSON action by adding the type ‘null’.

Schema type

By updating this schema, we are telling the parsed JSON action that expects null values and takes action accordingly. But please note that after adding a null schema, an empty item in the SharePoint list gets created for the final item.

Conclusion

Thus, in this article, we have seen how to parse the CSV data uploaded into the SharePoint document library and parse the CSV data and create it in the SPO list. If you get stuck, you can refer to the attached flow template and check for issues.
