Progress Bar in Windows Store App

Introduction

Today we will use one of the important controls in Metro style applications. It is the best tool to show the progress of any specific task at run time. With the help of a progress bar we can guide user to wait for the next task until your current task is completed.

Here we are implementing a progress bar that is used to show the progress of a form filling status, so to do it we are using four textboxes with a progress bar control.

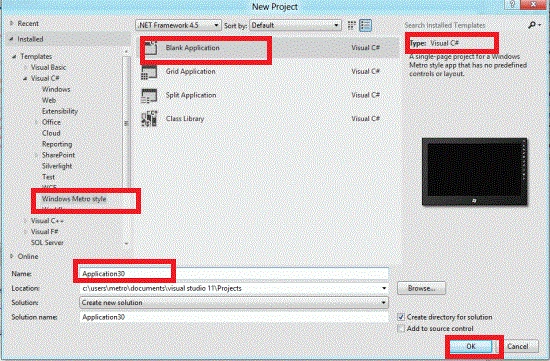

Step 1 : First of all you will create a new Metro Style Application. Let us see the description with images of how you will create it.

• Open Visual Studio 2011
• File -> New -> Project
• Choose Template -> Visual C# ->Metro Style Application
• Rename this Application

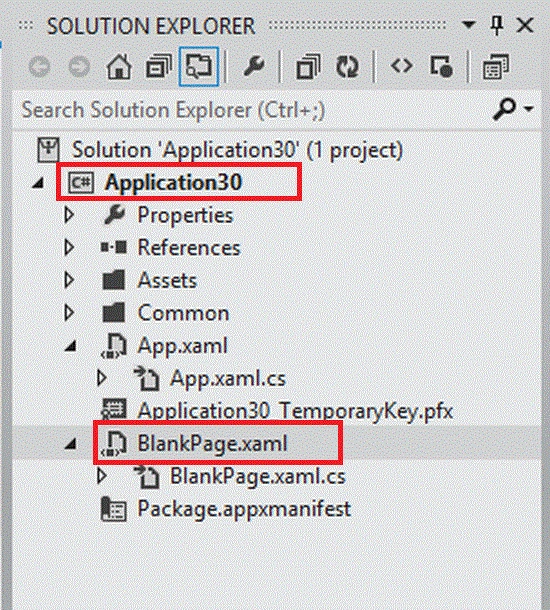

Step 2 : In the Solution Explorer there are two files that we will primarily work with; BlankPage.xaml and BlankPage.xaml.cs files.

Step 3 : The BlankPage.xaml file is as in the following code:

Code :

<Page

x:Class="Application30.BlankPage"

xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

xmlns:local="using:Application30"

xmlns:d="http://schemas.microsoft.com/expression/blend/2008"

xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"

mc:Ignorable="d">

<Grid Background="{StaticResource ApplicationPageBackgroundBrush}">
<Grid x:Name="ContentRoot" Background="LimeGreen" Margin="100,20,100,20">

<Grid.RowDefinitions>

<RowDefinition Height="Auto"/>

<RowDefinition Height="*"/>

<RowDefinition Height="Auto"/>

</Grid.RowDefinitions>

<!-- Content -->

<Grid HorizontalAlignment="Center" VerticalAlignment="Top">

<StackPanel>

<TextBlock Text="Progress Bar in Metro Apps" FontSize="30" Foreground="Black"></TextBlock>

<ProgressBar x:Name="myBar" Foreground="Red" Background="White" BorderBrush="Blue"
