What is MVC

MVC is an architecture pattern which separates logic, UI & database connection of our application. It’s divided into three broader sections, “Model”, “View” and “Controller”.

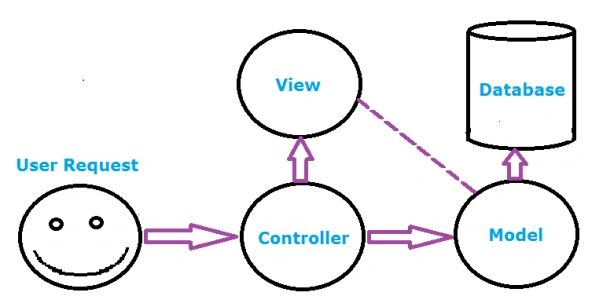

The following diagram represents how MVC pattern works internally.

MVC

Real Life Example of MVC 5

Suppose there is one restaurant, in this restaurant some people are working as follows:

Now the order is ready to eat. This is actual View in MVC. Waiter is responsible for making decorate view.
Ready to eat

Some steps to create MVC 5 Project

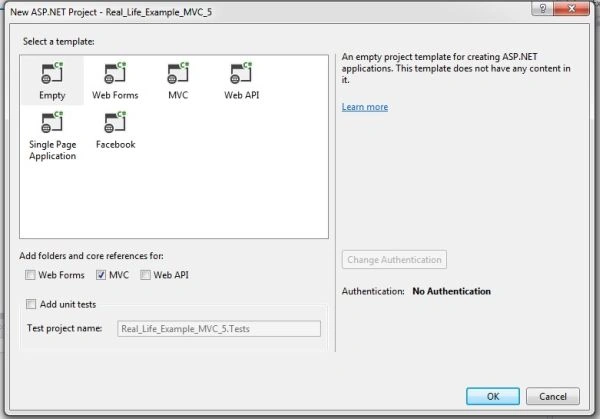

Step 1: Create one project in Visual Studio 2013.

project

Add one controller

Add controller

Step 2: Add one model to our project named MyOrder & add some properties:

  1. public int QtyPoha {
  2. get;
  3. set;
  4. }
  5. //public string Poha { get; set; }
  6. public int QtyUpma {
  7. get;
  8. set;
  9. }
  10. //public string Upma { get; set; }
  11. public int QtyDosa {
  12. get;
  13. set;
  14. }
  15. //public string Dosa { get; set; }

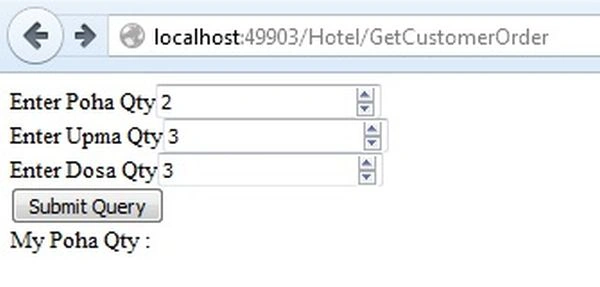

get order
Step 3: Add one View to our project by right clicking on action method.


Step 4: Now add model to our view & add some input textbox for taking user input like the following:

order
  1. @model MvcApplication1.Models.MyOrder@
  2. {
  3. Layout = null;
  4. }
  5. < !DOCTYPE html >< html >< head >< meta name = "viewport"
  6. content = "width=device-width" / >< title > GetCustomerOrder < /title>< /head>< body >< div > @using(Html.BeginForm("Test", "Hotel", FormMethod.Post))
  7. {@
  8. Html.Label("Enter Poha Qty")@ Html.EditorFor(m => m.QtyPoha, new
  9. {
  10. style = "width: 650px"
  11. }) < br / > @Html.Label("Enter Upma Qty")@ Html.EditorFor(m => m.QtyUpma, new
  12. {
  13. style = "width: 650px"
  14. }) < br / > @Html.Label("Enter Dosa Qty")@ Html.EditorFor(m => m.QtyDosa, new
  15. {
  16. style = "width: 650px"
  17. }) < br / >< input type = "submit"
  18. id = "submit" / >< br / > @ * @Html.Label("My Poha Qty : ") * @@ViewBag.QtyP
  19. } < /div>< /body>< /html>

Step 5: Now add action method to our controller as:

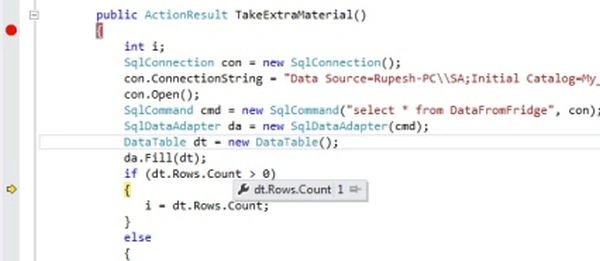

extra material
  1. [HttpPost]
  2. public ActionResult Test(MyOrder m)
  3. {
  4. if (ModelState.IsValid)
  5. {
  6. int QtyPoha = m.QtyPoha;
  7. ViewBag.QtyP = QtyPoha;
  8. int QtyUpma = m.QtyUpma;
  9. ViewBag.QtyU = QtyUpma;
  10. if (m.QtyDosa != null)
  11. {
  12. return RedirectToAction("TakeExtraMaterial", "TakeValuesFromDb");
  13. }
  14. }
  15. else if (m.QtyPoha > 0 && m.QtyUpma > 0)
  16. {
  17. return RedirectToAction("ViewForSnacs");
  18. }
  19. return View("GetCustomerOrder");
  20. }
  21. public ActionResult ViewForSnacs()
  22. {
  23. return PartialView("ViewForSnacs");
  24. }

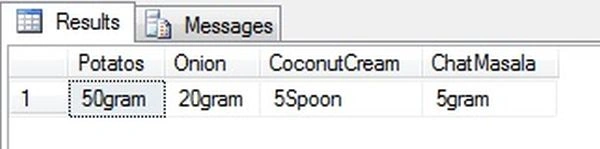

Step 6: Now for just understanding, how model can take data from database. I have created one sample database with table & added some dummy data into this table:


dummy data
  1. Create Table DataFromFridge(Potatos varchar(100), Onion varchar(100), CoconutCream varchar(100), ChatMasala varchar(100)) Insert Into DataFromFridge
  2. values('50gram', '20gram', '5Spoon', '5gram')
  3. Select * from
  4. DataFromFridge

Step 7: Now create another controller for database connectivity. Firstly, add some namespace to get database connection:

controller
  1. using System.Configuration;
  2. using System.Data.SqlClient;
  3. using System.Data;
  4. public class TakeValuesFromDbController: Controller
  5. {
  6. public ActionResult TakeExtraMaterial()
  7. {
  8. int i;
  9. SqlConnection con = new SqlConnection();
  10. con.ConnectionString = "Data Source=Rupesh-PC\\SA;Initial Catalog=My_Hotel;Integrated Security=True";
  11. con.Open();
  12. SqlCommand cmd = new SqlCommand("select * from DataFromFridge", con);
  13. SqlDataAdapter da = new SqlDataAdapter(cmd);
  14. DataTable dt = new DataTable();
  15. da.Fill(dt);
  16. if (dt.Rows.Count > 0)
  17. {
  18. i = dt.Rows.Count;
  19. }
  20. else
  21. {
  22. i = 0;
  23. }
  24. ViewBag.DbValue = i;
  25. return PartialView("OrderIsReady", ViewBag.DbValue);
  26. }
  27. }

Step 8: Now add one folder to our project as Imgaes which will help us to show on UI part i.e. on partial views.

Add some images in this folder.

images

Step 9: Now create Partial View to show an output. Add image URL in this partial view:

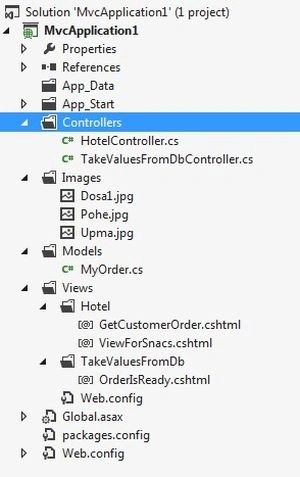

Now our solution structure looks like the following:

Action Result

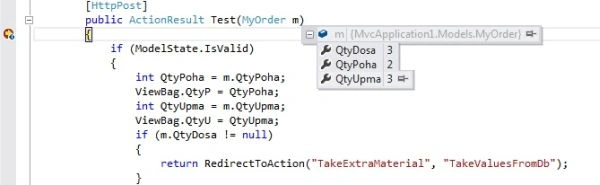

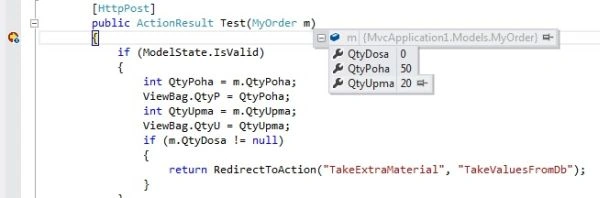

Step 10: Now run our application. I put some debugger here to understand how our application will work.

Now we have entered all values so it will redirect to TakeValuesFromDb Controller.

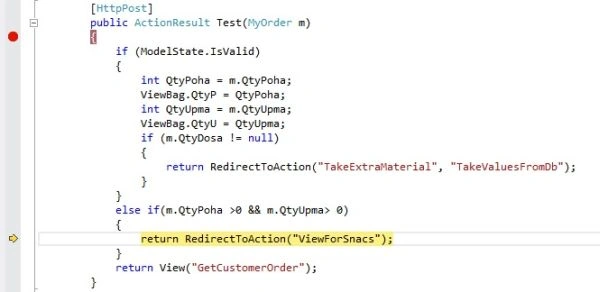

Redirect

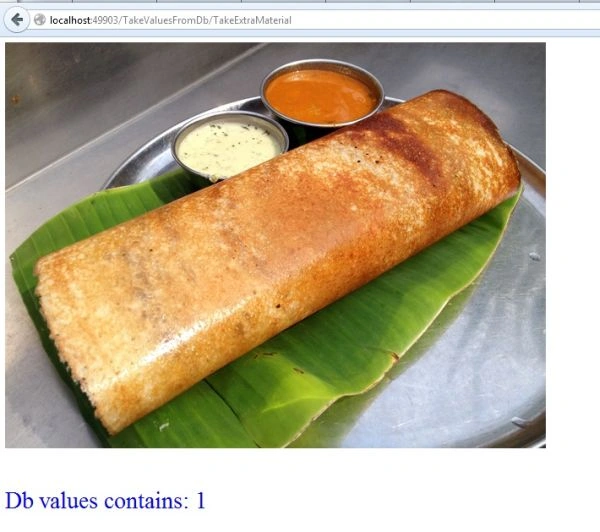

Step 11: Now our UI looks like the following. This is a Partial View.

partial view

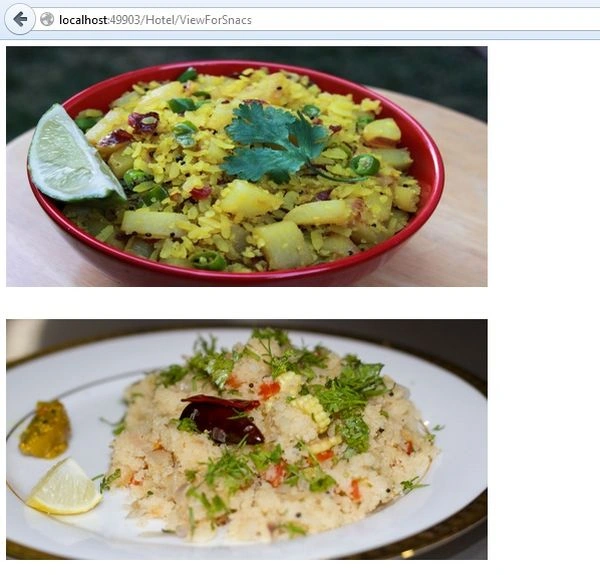

Step 12: Now we will again rerun our application & enter only two values and check the controller. Now it will go to partial view of ViewForSnacs
& see our URL goes to Partial View of ViewForSnacs.

UI

For more understanding you can download the code.

Summary

This article will help fresher candidates to understand ASP.NET MVC 5 & real life example of MVC 5.

Hope you enjoyed this one. Post your suggestions in comments section.
