Routing in Angular

Routing in Angular

In this article, we are going to discuss routings in Angular and different ways to use routing to render different components.

Agenda

  • What is Angular?
  • What is Routing?
  • Benefits of Routing
  • Routing in Angular
  • Routing examples

Prerequisites

  • Node Js
  • Angular
  • VS Code

What is Angular?

Angular is a popular open-source JavaScript framework for building web applications. It was developed by Google and is currently maintained by the Angular Team at Google. Angular allows developers to create dynamic, single-page applications (SPAs) and provides a structured approach to building complex web applications.

What is Routing?

Routing, in the context of web development, refers to the process of determining how an application responds to a specific URL or path. It involves mapping URLs to different components or views within the application and rendering the appropriate content based on the requested URL.

In a client-side web application, such as a single-page application (SPA) built with Angular, routing allows users to navigate between different views or pages without actually loading a new HTML page from the server. Instead, the application dynamically updates the content in the browser by loading the necessary components and data based on the requested route.

Benefits of Routing

Routing in web applications offers several benefits. Here are some key advantages of using routing:

  • Improved User Experience: Routing enables a seamless and interactive user experience by allowing users to navigate between different views or pages within the application without a full page reload.
  • Faster Page Transitions: With routing, only the necessary components and data for the requested route are loaded, resulting in faster page transitions.
  • Modularity and Maintainability: Routing encourages a modular structure for the application by separating it into different views or components associated with specific routes. This promotes code reusability, separation of concerns, and better maintainability. Each route can have its own component, making it easier to manage and update specific sections of the application independently.
  • Conditional Rendering and Dynamic Content: Routing enables conditional rendering of components based on the current route. This allows you to show or hide certain sections of the application based on the user’s navigation path.
  • Route Parameters and Query Parameters: Routing supports passing route parameters and query parameters. Route parameters allow you to pass dynamic values within the URL, such as an ID or a username, and retrieve them in the corresponding component. Query parameters provide a way to pass additional data into the URL for filtering, sorting, or other purposes.
  • Route Guards and Security: Angular routing includes route guards, which are mechanisms to control access to specific routes based on certain conditions. Route guards can be used for authentication, authorization, and other security-related purposes. They help ensure that users can only access routes or perform actions if they meet the necessary criteria.
  • Nested Routes: Routing supports nested or child routes, allowing you to define a hierarchical navigation structure within the application. This is particularly useful when dealing with complex applications with multiple levels of navigation or sections that need to be encapsulated and managed independently.

Overall, routing plays a crucial role in enhancing the user experience, improving performance, and enabling modular and maintainable code structures in web applications.

Routing in Angular

In a client-side web application, such as a single-page application (SPA) built with Angular, routing allows users to navigate between different views without actually loading a new HTML page from the server. Instead, the application dynamically updates the content in the browser by loading the necessary components and data based on the requested route.

Routing in Angular typically involves the following components:

  • Routes: Routes define the mapping between the URL path and the corresponding components to be rendered. Each route is defined with a URL path and a corresponding component to be displayed when that path is accessed.
  • Router: The router is responsible for interpreting the current URL and loading the appropriate components based on the defined routes. It listens to URL changes and handles navigation within the application.
  • Router Outlet: The router outlet is a placeholder in the application’s template where the content of the current route is rendered.
  • Router Links and Navigation: Links and navigation elements, such as anchor tags (<a>) or buttons, are used to trigger navigation to different routes within the application. These elements can be decorated with directives like routerLink in Angular to specify the target route.

Routing example in Angular

Step 1

Install NodeJS.

https://nodejs.org/en/download

Step 2

Install Angular CLI using the following command.

npm install -g @angular/cli

Step 3

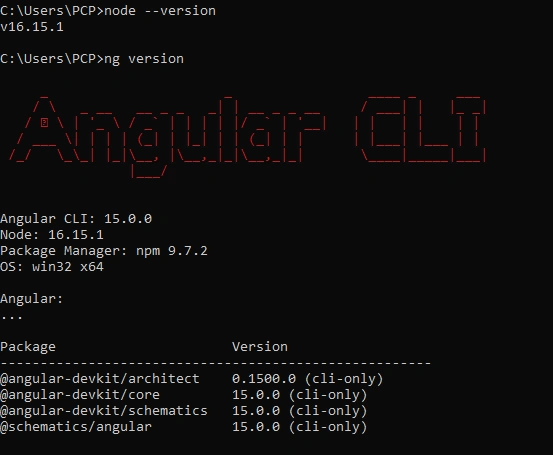

Verify NodeJS and Angular CLI are installed or not using the following commands:

node — version

ng version

Routing in Angular

Create a new Angular Application.

ng new RoutingDemo

Step 4

Open the Angular application in one of the editors, like VS Code, and install the bootstrap with the help of the following command:

npm install bootstrap

next, add the bootstrap script inside the angular.json file inside the scripts and styles section

"styles": [
"src/styles.css",
"./node_modules/bootstrap/dist/css/bootstrap.min.css"
],
"scripts": [
"./node_modules/bootstrap/dist/js/bootstrap.min.js"
]

Step 5

Open your terminal or command prompt and navigate to your Angular project directory. Run the following commands to generate the components:

ng generate component home

ng generate component about

ng generate component contact

ng generate component feedback

ng generate component product

ng generate component product-offer

ng generate component product-updates

ng generate component rating

Step 6

Routing Configuration:

Open the app-routing.module.ts file in your project and update the route configuration to include the newly created components.

import { NgModule } from '@angular/core';
import { RouterModule, Routes } from '@angular/router';
import { HomeComponent } from './components/home/home.component';
import { ProductComponent } from './components/product/product.component';
import { AboutComponent } from './components/about/about.component';
import { ContactComponent } from './components/contact/contact.component';
import { ProductOfferComponent } from './components/product-offer/product-offer.component';
import { ProductUpdatesComponent } from './components/product-updates/product-updates.component';
import { RatingComponent } from './components/rating/rating.component';
import { FeedbackComponent } from './components/feedback/feedback.component';

const routes: Routes = [
  { path: '', redirectTo: 'home', pathMatch: 'full' }, //default route
  { path: 'home', component: HomeComponent },
  {
    path: 'product/:id', component: ProductComponent,
    children: [
      {path: '', redirectTo:'updates', pathMatch:'full'},
      { path: 'offers', component: ProductOfferComponent },
      { path: 'updates', component: ProductUpdatesComponent }
    ]
  },
  { path: 'about', component: AboutComponent,
    children: [
      {path: 'rating', outlet:'rate', component:RatingComponent},
      {path: 'feedback', outlet:'feed', component:FeedbackComponent}
    ]
  },
  { path: 'contact', component: ContactComponent },
  { path: '**', component: HomeComponent }
];

@NgModule({
  imports: [RouterModule.forRoot(routes)],
  exports: [RouterModule]
})
export class AppRoutingModule { }

This configuration maps the respective paths to their corresponding components.

In Angular, the RouterModule and Routes are key components used for configuring and managing routing in an application.

RouterModule

The RouterModule is an Angular module that provides the necessary directives, services, and functionality for implementing routing in an application.

Routes

Routes is an array that defines the routes and their configurations within the application. Each route object within the Routes array specifies the URL path and the corresponding component to be rendered when that path is accessed.

Line No. 13:

To define a default route in Angular, you can use an empty path ‘ ’ as the route path in the Routes array configuration. When the empty path is accessed, Angular will render the component associated with that route.

To redirect to a different route when the default route is accessed, you can use the redirectTo property with a target route path. Additionally, the pathMatch property can be used to define the matching strategy for the route.

Line 15 to 22:

To create a route with an id parameter for displaying product details, you can modify the routing configuration in Angular as follows:

path: 'product/:id', component: ProductComponent

In this example, we’ve added a route with the path ‘product/:id’ to represent the product details page. The :id part indicates a dynamic parameter that can be accessed in the ProductComponent.

import { Component, OnInit } from '@angular/core';
import { ActivatedRoute } from '@angular/router';
import { ProductsService } from '../../services/products.service';

@Component({
  selector: 'app-products',
  templateUrl: './product.component.html',
  styleUrls: ['./product.component.css']
})
export class ProductComponent implements OnInit {

  productDetail? : any;

  constructor(private route : ActivatedRoute,private productService : ProductsService){}

  ngOnInit(): void {
    let productId = this.route.snapshot.params['id'];
    this.getProductDetailById(productId)
  }

  getProductDetailById(id: number){
    this.productService.getProductDetailById(id).subscribe(res => {
      this.productDetail = res
      console.log(res)
    })
  }
}

In this code, we inject the ActivatedRoute service to access the current route’s parameters. In the ngOnInit() lifecycle hook, we retrieve the id parameter using this.route.snapshot.params[‘id’] and assign it to the productId property for later use in the component’s template.

Finally, you can navigate to the product details page by providing an id value in the URL. For example, if you have a product with an id of 123, you can navigate to http://localhost:4200/product/123 to see the product details.

The ProductComponent will be rendered with the corresponding id parameter retrieved from the URL, and you can use the productId property to display the relevant product information in the template.

To create child components, ProductOfferComponent and ProductUpdatesComponent, nested under the ProductComponent, you can modify the routing configuration in Angular as follows:

Update the Routes array in your routing module (e.g., app-routing.module.ts) to include the child routes under the ProductComponent:

{
  path: 'product/:id', component: ProductComponent,
  children: [
    {path: '', redirectTo:'updates', pathMatch:'full'},
    { path: 'offers', component: ProductOfferComponent },
    { path: 'updates', component: ProductUpdatesComponent }
  ]
}

In this updated example, we’ve added child routes to the ProductComponent. The empty path ‘ ’within the children routes corresponds to the ProductComponent as the default component to be rendered when accessing /product. The offers and updates paths map to the ProductOfferComponent and ProductUpdatesComponent, respectively.

Lines 23 to 28:

To create child components RatingComponent and FeedbackComponent nested under the AboutComponent, with named outlets for rating and feedback, you can modify the routing configuration in Angular as follows:

Update the Routes array in your routing module (e.g., app-routing.module.ts) to include the child routes under the AboutComponent with named outlets:

{
  path: 'about', component: AboutComponent,
  children: [
    {path: 'rating', outlet:'rate', component:RatingComponent},
    {path: 'feedback', outlet:'feed', component:FeedbackComponent}
  ]
}

In this updated example, we’ve added child routes to the AboutComponent and specified the named outlet's rate and feed for the RatingComponent and FeedbackComponent, respectively.

Implement the AboutComponent template (about.component.html) to include the named outlets’ placeholders. For example:

<p>Lorem ipsum dolor sit, amet consectetur adipisicing elit. Tenetur magni saepe sint, vel eaque veniam recusandae laboriosam numquam necessitatibus? Laborum mollitia excepturi qui. Modi corporis quasi ab minima eligendi numquam!</p>

<div class="row">
    <div class="col-md-6">
        <router-outlet name="rate"></router-outlet>
    </div>
    <div class="col-md-6">
        <router-outlet name="feed"></router-outlet>
    </div>
</div>

In this template, we’ve added two <router-outlet> placeholders with the name attribute set to ‘rate’ and ‘feed’. These placeholders will be used to render the RatingComponent and FeedbackComponent within the AboutComponent template.

Update the component files for RatingComponent and FeedbackComponent as needed.

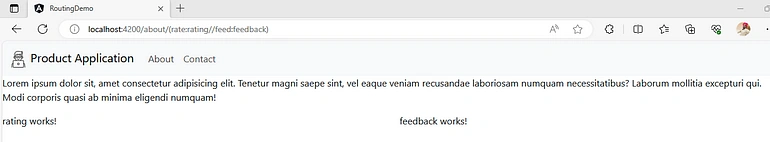

Finally, you can navigate to the About and Child components using the named outlets. For example, to access the rating component, navigate to http://localhost:4200/about/(rate:rating//feed:feedback).

I have created an outer link, as I have shown below in the app component. But You can create a URL as per your requirement, and for that, you need appropriate router links with outlets.

<a class="nav-link" [routerLink]="['/about',{
  outlets:{
    'rate': ['rating'],
    'feed': ['feedback']
  }
}]">About</a>

Line No. 30:

In Angular, the double asterisk (**) route, also known as the wildcard route or catch-all route, is used to handle routes that do not match any predefined routes. It acts as a fallback route to handle unknown or invalid URLs within your application.

To define a wildcard route, you can add a route with the path: ‘**’ configuration at the end of your routes array. This route will be matched when no other route matches the requested URL.

{ path: '**', component: HomeComponent }

Step 7

Mention the router outlet in the app component view to conditionally render different components based on navigation.

<nav class="navbar navbar-expand-lg bg-body-tertiary">
  <div class="container-fluid">
    <a class="navbar-brand" href="#">
      <img src="../assets/logo/coder.png" class="navlogo"/> Product Application
    </a>
    <button class="navbar-toggler" type="button" data-bs-toggle="collapse" data-bs-target="#navbarNavAltMarkup" aria-controls="navbarNavAltMarkup" aria-expanded="false" aria-label="Toggle navigation">
      <span class="navbar-toggler-icon"></span>
    </button>
    <div class="collapse navbar-collapse" id="navbarNavAltMarkup">
      <div class="navbar-nav">
        <a class="nav-link" [routerLink]="['/about',{
          outlets:{
            'rate': ['rating'],
            'feed': ['feedback']
          }
        }]">About</a>
        <a class="nav-link" routerLink="/contact">Contact</a>
      </div>
    </div>
  </div>
</nav>

<router-outlet></router-outlet>

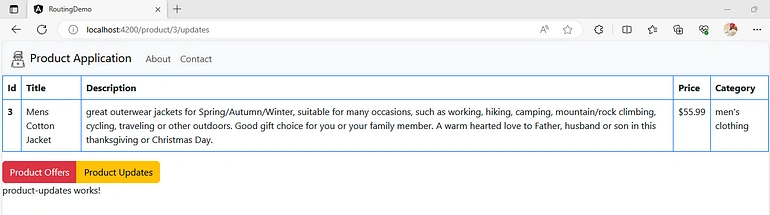

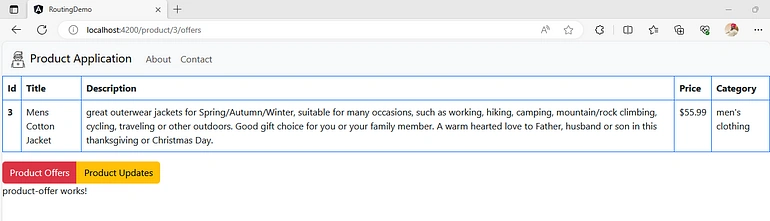

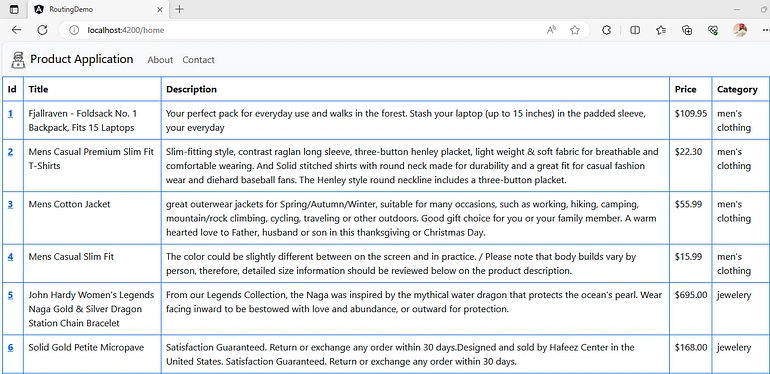

Routing in Angular

Routing in Angular

Routing in Angular

Routing in Angular

Routing in Angular

So, this is all about routing in Angular.

GitHub

https://github.com/Jaydeep-007/angular-routing

Conclusion

In this article, we discussed routing, its benefits in Angular, and step-by-step implementation after creating different components in Angular 15.

Happy Coding!
