How to Create Records for Salesforce SObjects using SOAP API?

In this article, we explore how we can create new records for Salesforce Standard & Custom SObjects using SOAP API Endpoints available for the Salesforce Platform.

saleswebserver

Prepare Request Object – [With MRU = True]

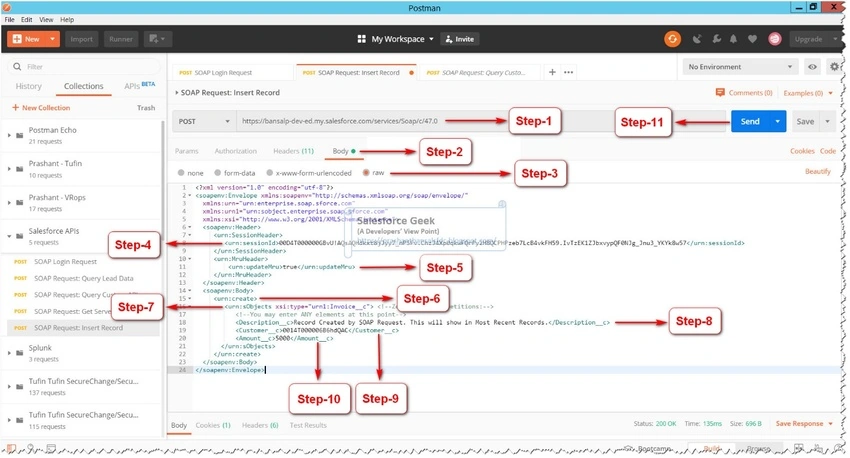

Step 1. We will use the appropriate SOAP Endpoint in the format to prepare aPOSTrequest by using the following conventions

“<Salesforce Org Host Name>/services/Soap/c/<Salesforce API Version>”

In this demo, this Endpoint URL would be

“https://bansalp-dev-ed.my.salesforce.com/services/Soap/c/47.0”

Step 2. Now we need to prepare the body of the request. Click on “Body”

Step 3. Since this is going to be raw input, click on“raw&rdquo

Step 4. As usual, we need to specify the“SessionId,” which is the security token returned as the response to SOAP Login Request. To more about SOAP Login Request, please refer to my earlier blog: Salesforce SOAP API Authentication: The Login Request

Step 5.The next important thing to notice isMost Recent Update(MRU)Header. Here is a little description of this important parameter:

If MRU Header is set to True, then this newly created record will be displayed under the” Recently Viewed” View of the SObject otherwise, it won’t be available under Recently Viewed records.

For this demo, we will set this value to true

Step 6. Under SOAP Enveloper Body, we will be having a Create Tag

Step 7. Under Create a tag, we will be having subjects Tag; if you notice, we have specified the name of API Name of the SObject for which we adding a new record using this SOAP Request Body. In this demo, we are using a Custom SObject“Invoice__c”

Under SObject Tag, we need to specify all the tags “ONE FOR EACH of the Required Fields” in them as per SObject Schema. These should be in the following format-

<Field-API-Name>Value of the field based on the respective data type of the field</Field-API-Name>

For example. We have the first tag for the Description. Next is for Customer, and so on.

In the Custom SObject “Invoice__c,” we have 3 Required Fields “Description__c”, “Customer__c”, “Amount__c”, and Create/Update request will be successful only if specified all the fields as part of the request body. It holds even if we are updating only one field. We still need to pass on all the request fields to the request body.

Step 8. Include the tag for the “Description__c” field and specified its value as required.

Step 9. Include the tag for the “Customer_c” field and specified its value as required.

Step 10. Include the tag for the “Amount_c” field and specified its value as required

With this, the SOAP Request Body is ready to be posted back to the Salesforce API Endpoint

Step 11. Click on the Send button to submit this POST Request

saleforce

Analyze Response Object

As long as the POST Request is successful, we would be getting a response object returned. We will explore the response object in the following section-

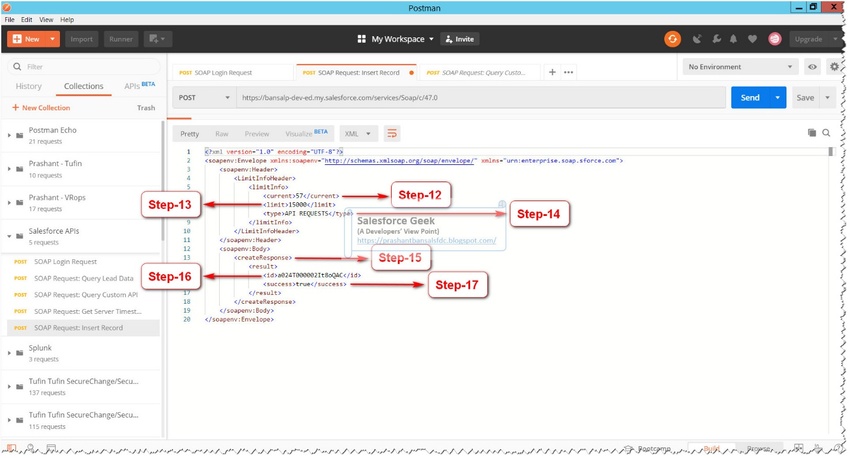

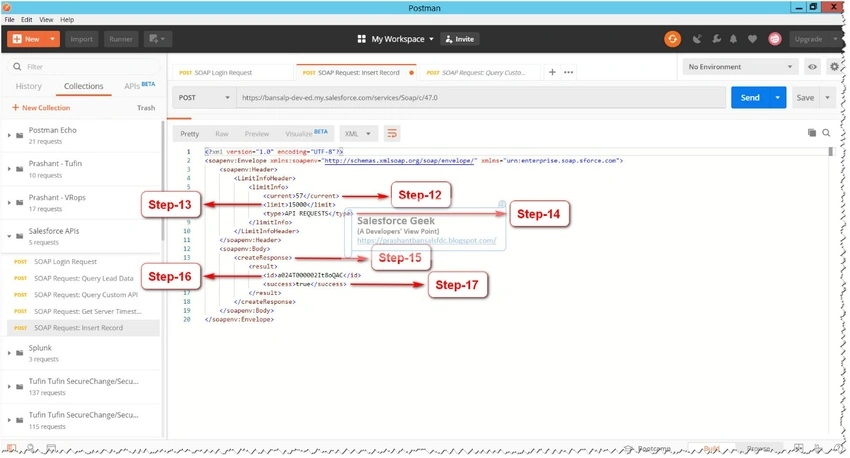

Step 12. We can see the current usage of the API Requests as per the governor limits of the target ORG. This value represents the total number of API Requests issued already against the target ORG. For demo this, we can see 57 API Requests are already been consumed so far

Step 13. We can see the total number of API Requests allowed as per the governor limits per ORG. For this Developer ORG, this limit is 15000.

Step 14. Shows this information related to the Limits is referring to KPIs of type “API REQUESTS”

Step 15. Response object consists of the “create Response” tag since we send a “create” enveloper in the POST Request

Under “result” tag, we can see two output parameters are included Id: Unique Id for the record & Status: Status of the last operation performed by API Request

Step 16. <id>. Contains the Record Unique Identifier; this is helpful in case we would like to track the records added to SObject

Step 17. <success>. Contains the status of the POST Request. In this case, it is “true,” which shows that the last create operation on the custom SObject “Invoice__c” was a success

Now let’s go to Salesforce ORG for the eyeball verification

XmlVersion

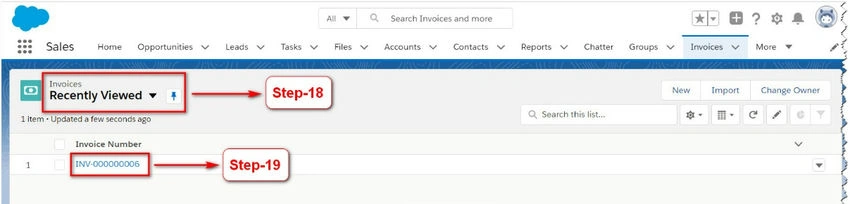

Step 18. We can see the newly added record in the Recently Viewed list, it happens since we set “MRU Header = True”

Step 19. We can see the actual record added to the SObject. Click on the Invoice Number link to view the details

salesforceinvoiceno

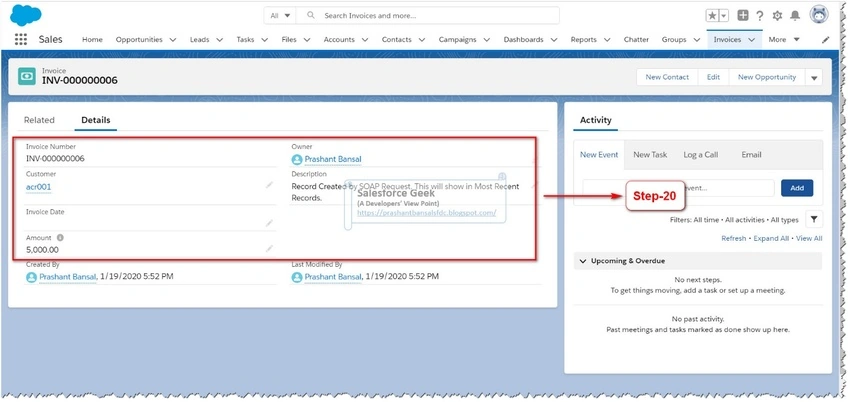

Step 20. We see Description, Customer & Amount values updated correctly for this record as per the SOAP Request Body

invoicesales

Prepare Request Object – [With MRU = False]

Let’s create a new request with everything the same as before except the “MRU Header” & Description Field

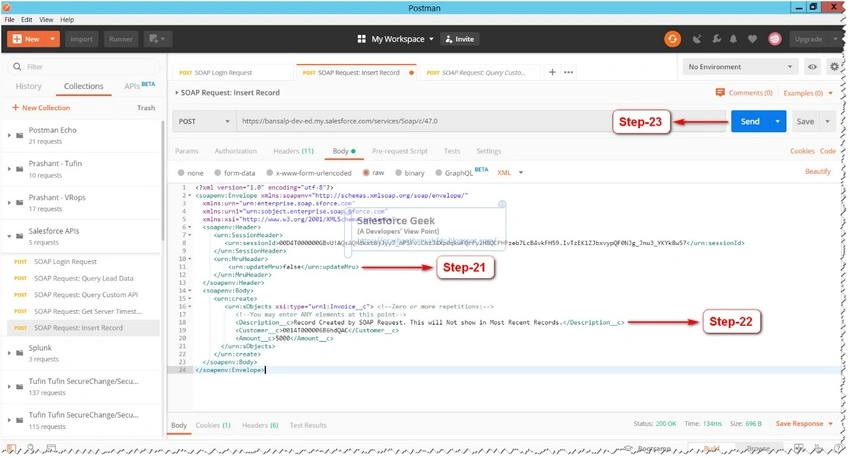

Step 21. Change the value of “<urn:updateMru>” to “false”

Step 22. I changed the description to something telling us that this particular record will not be in the “Recently Viewed” view of the SObject

Step 23. Once we have made the changes as required, click on the “Send” button to submit the request

record for sale

Analyze Response Object

Now if investigate the “result” tag again, we can see two output parameters are included Id. Unique Id for the record & Status: Status of the last operation performed by API Request

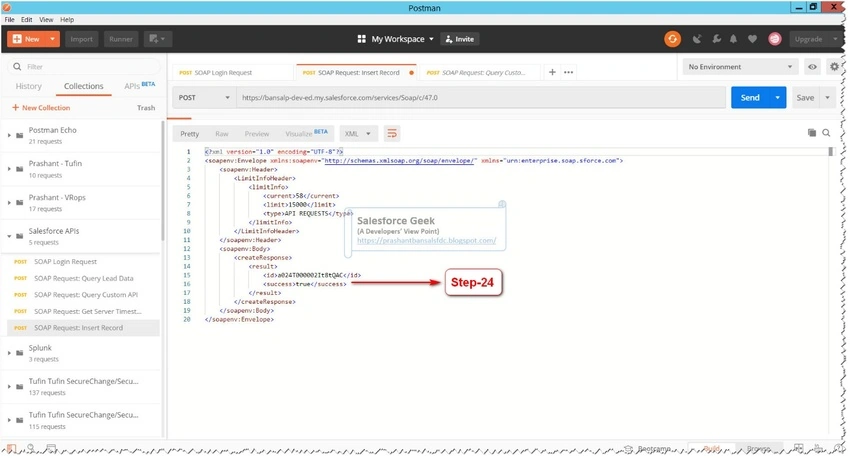

Step 24. <id> tag contains the Id of the newly created record for reference, while the <success> tag contains the status of the POST request, and we can see it was a successful operation.

sales function

Now let’s go to Salesforce ORG for the eyeball verification

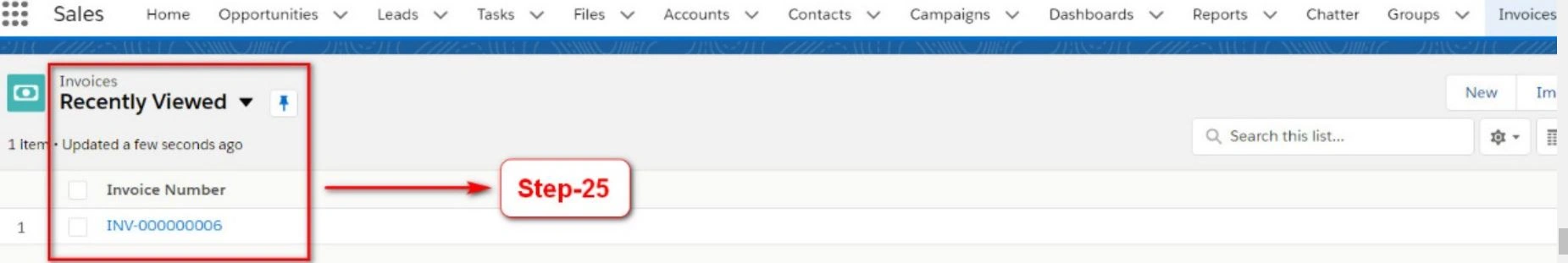

Step 25. This time we will not be able to see the newly created record under the “Recently Viewed” list. It happens since we set the “MRU Header = False”

updatedtablestack

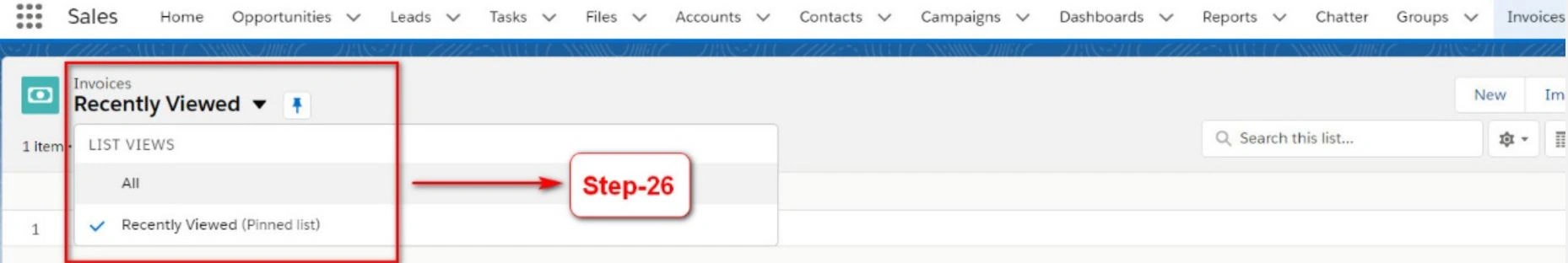

Step 26. Now click on the Views Dropdown and Select “All” View to see all the available records

Step 27. Under “All” View, we can see another Invoice,”…007,” is added

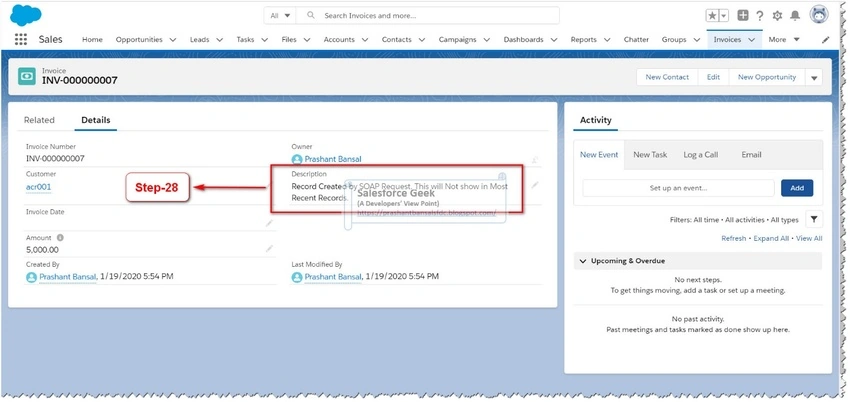

Step 28. Now click on the record link to open the details of the record and can see the description as we specified during the API request

stack data

Errors & Resolution

As I mentioned earlier, API requests have a major shortcoming in that it doesn’t support ignoring Required Fields while preparing the Request Envelope.

This means that we must have to supply all required fields for an SObject along with their respective values, and if we fail to supply even a single required field, it will lead to a fatal error, and the POST request will be returned with an error included in the response Object.

In the following steps, we will try to simulate the scenario to reproduce the error due to missing Required Field in the Request Object

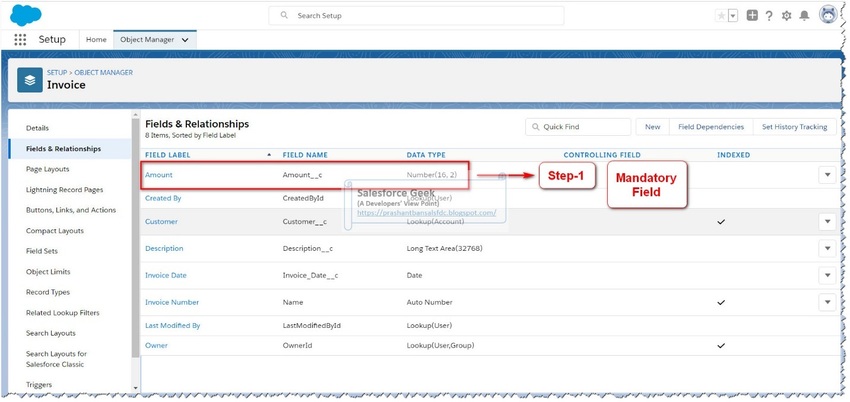

Step 1. We can see the schema of “Invoice__c” SObject. It is having a required field “Amount” that must be supplied a value while adding a record to it

fieldandrelationship

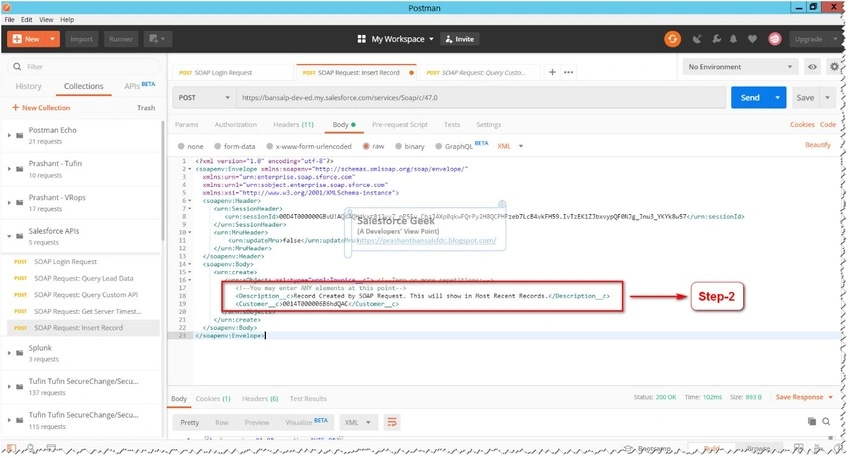

Step 2. Let’s prepare a new POST Request. To generate the error, I skipped the inclusion of the “Amount” field. In this request, I have included only Description & Customer Fields. Submit the request to the Salesforce API Endpoint.

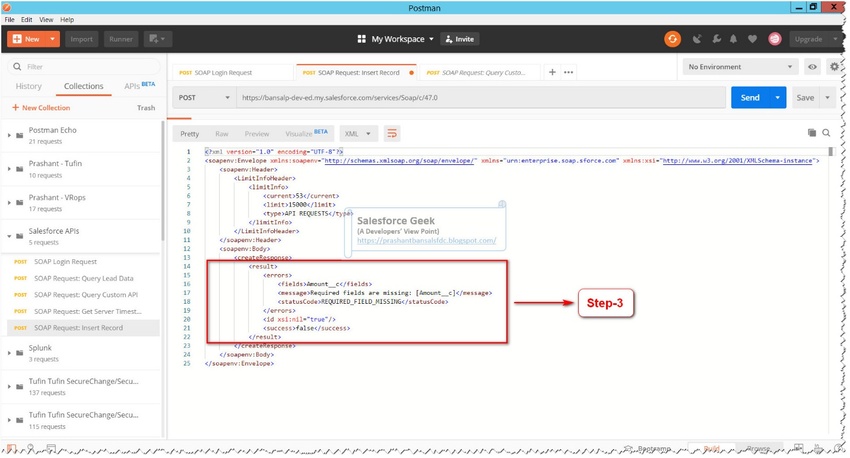

Step 3. Now if we investigate the Response Object, we can see the <errors> tag is added to the response Object with an important piece of information

<fields>. It contains the name of the field that caused this issue
<message>. It contains the error message explaining the details of the error that occurred with this request.
<statusCode>. It contains the Status Code corresponding to this operation. This Status code is self-explanatory
<id>. We can see no record Id is returned since this operation got failed
<success>. We can see a “false” value returned since this operation was a failure

functionofstack

We can avoid such errors by supplying all the Required Fields of the SObject to the Request Envelope.

Hope you enjoyed this article. Please leave your comments to let me know how you like the content and how you find it helpful to learn the topic.
