Scalable Vector Graphics

Introduction

Before reading further, read the following articles.

Now let's move forward to our current topic.

The tag <circle> is used to draw the circle with a center point and radius.

It includes cx, cy, and r as main attributes that are described as:

The cx and cy attributes define the x and y coordinates of the center of the circle. The default center value is (0, 0).
The r attribute defines the radius of the circle.

Let's see a few examples to understand SVG Circle.

Example 1: Simple circle

Output

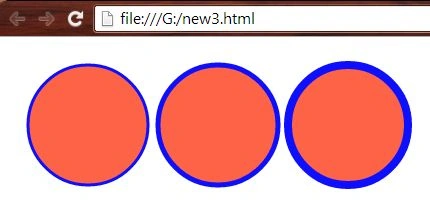

Example 2: Circle with multiple strokes.

<html>
<body>
<svg height="500" width="500">
<circle cx="80" cy="80" r="60" fill="tomato" stroke="#0f0fff" stroke-width="3"/>
<circle cx="210" cy="80" r="60" fill="tomato" stroke="#0f0fff" stroke-width="5"/>
<circle cx="340" cy="80" r="60" fill="tomato" stroke="#0f0fff" stroke-width="8"/>
</svg>
</body>
</html>

Output

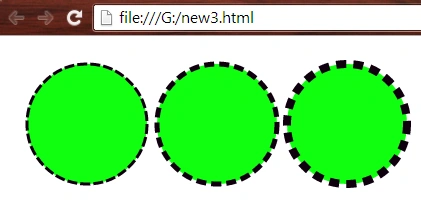

Example 3: Circle with multiple dashed strokes.

<html>
<body>
<svg height="500" width="500">
<circle cx="80" cy="80" r="60" fill="#0fff0f" stroke="#0f000f" stroke-width="3" stroke-dasharray="10 3";/>
<circle cx="210" cy="80" r="60" fill="#0fff0f" stroke="#0f000f" stroke-width="5" stroke-dasharray="10 5";/>
<circle cx="340" cy="80" r="60" fill="#0fff0f" stroke="#0f000f" stroke-width="8" stroke-dasharray="10 7";/>
</svg>
</body>
</html>

Output

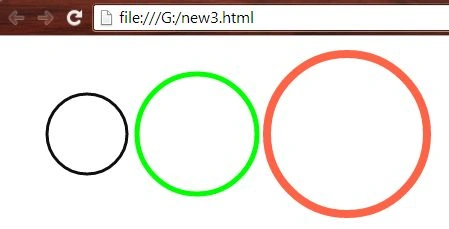

Example 4: Circle with multiple strokes only.

<html>
<body>
<svg height="500" width="500">
<circle cx="80" cy="90" r="40" fill="none" stroke="#0f0f0f" stroke-width="3";/>
<circle cx="190" cy="90" r="60" fill="none" stroke="#00ff00" stroke-width="5";/>
<circle cx="340" cy="90" r="80" fill="none" stroke="tomato" stroke-width="8";/>
</svg>
</body>
</html>

Output

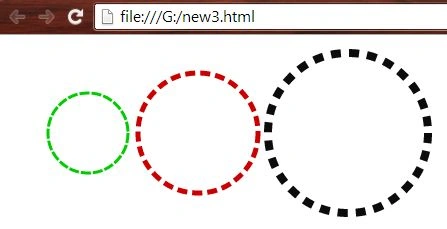

The following produces a circle with multiple dashed strokes only.

<html>
<body>
<svg height="500" width="500">
<circle cx="80" cy="90" r="40" fill="none" stroke="#00cc00" stroke-width="3" stroke-dasharray="10 2";/>
<circle cx="190" cy="90" r="60" fill="none" stroke="#cc0000" stroke-width="5" stroke-dasharray="10 5";/>
<circle cx="340" cy="90" r="80" fill="none" stroke="#0c0c0c" stroke-width="8" stroke-dasharray="10 8";/>
</svg>
</body>
</html>

Output

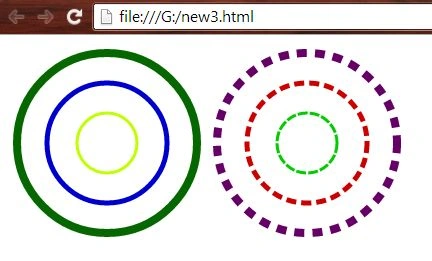

The following produces a circle overlapped with multiple strokes/dashed strokes only.

<html>
<body>
<svg height="500" width="500">
<circle cx="100" cy="100" r="30" fill="none" stroke="#c0ff00" stroke-width="3";/>
<circle cx="100" cy="100" r="60" fill="none" stroke="#0000cc" stroke-width="5";/>
<circle cx="100" cy="100" r="90" fill="none" stroke="#066600" stroke-width="8";/>
<circle cx="300" cy="100" r="30" fill="none" stroke="#00cc00" stroke-width="3" stroke-dasharray="10 2";/>
<circle cx="300" cy="100" r="60" fill="none" stroke="#cc0000" stroke-width="5" stroke-dasharray="10 5";/>
<circle cx="300" cy="100" r="90" fill="none" stroke="#660066" stroke-width="8" stroke-dasharray="10 8";/>
</svg>
</body>
</html>

Output

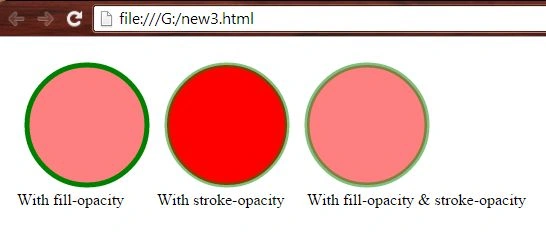

Example 5: Circle with different opacity.

<html>
<body>
<svg height="600" width="600">
<circle cx="80" cy="80" r="60" fill="red" stroke="green" stroke-width="5" fill-opacity="0.5"/>
<text x="10" y="160" fill="black">With fill-opacity</text>
<circle cx="220" cy="80" r="60" fill="red" stroke="green" stroke-width="5" stroke-opacity="0.5"/>
<text x="150" y="160" fill="black">With stroke-opacity</text>
<circle cx="360" cy="80" r="60" fill="red" stroke="green" stroke-width="5" fill-opacity="0.5" stroke-opacity="0.5"/>
<text x="300" y="160" fill="black">With fill-opacity & stroke-opacity</text>
</svg>
</body>
</html>

Output

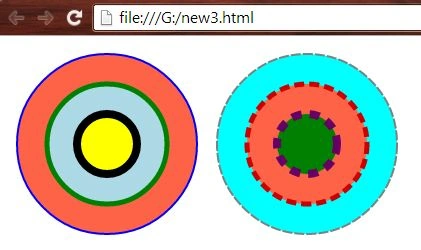

Example 6: Circles with multiple overlaps.

Circles with complete overlapping.

<html>
<body>
<svg height="500" width="500">
<circle cx="100" cy="100" r="90" fill="tomato" stroke="blue" stroke-width="2";/>
<circle cx="100" cy="100" r="60" fill="lightblue" stroke="green" stroke-width="5";/>
<circle cx="100" cy="100" r="30" fill="yellow" stroke="black" stroke-width="8";/>
<circle cx="300" cy="100" r="90" fill="cyan" stroke="grey" stroke-width="2" stroke-dasharray="10 2";/>
<circle cx="300" cy="100" r="60" fill="tomato" stroke="#cc0000" stroke-width="5" stroke-dasharray="10 5";/>
<circle cx="300" cy="100" r="30" fill="green" stroke="#660066" stroke-width="8" stroke-dasharray="10 8";/>
</svg>
</body>
</html>

Output

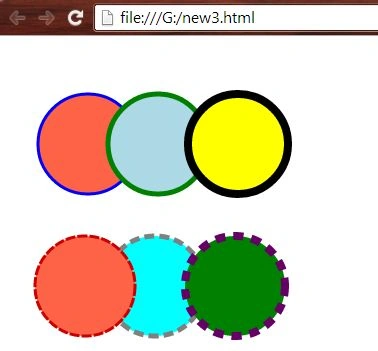

The following produces circles that half overlap.

<html>
<body>
<svg height="500" width="500">
<circle cx="80" cy="100" r="50" fill="tomato" stroke="blue" stroke-width="3";/>
<circle cx="150" cy="100" r="50" fill="lightblue" stroke="green" stroke-width="5";/>
<circle cx="230" cy="100" r="50" fill="yellow" stroke="black" stroke-width="8";/>
</svg>
<br>
<svg>
<circle cx="150" cy="60" r="50" fill="cyan" stroke="grey" stroke-width="5" stroke-dasharray="10 5";/>
<circle cx="80" cy="60" r="50" fill="tomato" stroke="#cc0000" stroke-width="3" stroke-dasharray="10 2";/>
<circle cx="230" cy="60" r="50" fill="green" stroke="#660066" stroke-width="8" stroke-dasharray="10 8";/>
</svg>
</br>
</body>
</html>

Output

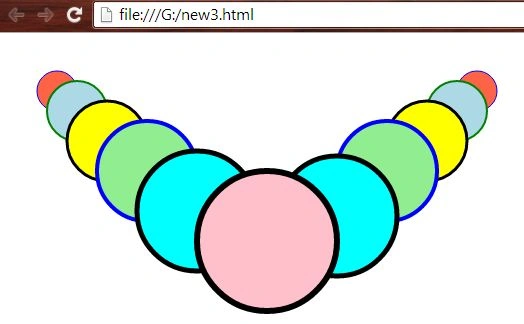

Example 7

<html>
<body>
<svg height="1200" width="1200">
<circle cx="50" cy="50" r="20" fill="tomato" stroke="blue" stroke-width="1";/>
<circle cx="470" cy="50" r="20" fill="tomato" stroke="blue" stroke-width="1";/>
<circle cx="70" cy="70" r="30" fill="lightblue" stroke="green" stroke-width="2";/>
<circle cx="450" cy="70" r="30" fill="lightblue" stroke="green" stroke-width="2";/>
<circle cx="100" cy="100" r="40" fill="yellow" stroke="black" stroke-width="3";/>
<circle cx="140" cy="130" r="50" fill="lightgreen" stroke="blue" stroke-width="4";/>
<circle cx="420" cy="100" r="40" fill="yellow" stroke="black" stroke-width="3";/>
<circle cx="190" cy="170" r="60" fill="cyan" stroke="black" stroke-width="5";/>
<circle cx="380" cy="130" r="50" fill="lightgreen" stroke="blue" stroke-width="4";/>
<circle cx="330" cy="175" r="60" fill="cyan" stroke="black" stroke-width="5";/>
<circle cx="260" cy="200" r="70" fill="pink" stroke="black" stroke-width="6";/>
</svg>
</body>
</html>

Output

Want to read more...

Thank you, keep learning and sharing.
