Selecting A Date From Calendar Using Xamarin.Forms

Introduction

In this article, we will discuss how to create a Xamarin.Forms app for selecting the dates for appointments, meetings, and for setting reminders. So, let's dive into the article.

Prerequisites

Windows 10
Xamarin Package
Visual Studio 2017 Community Edition

Step 1

Open your Visual Studio 2017 Community Edition.

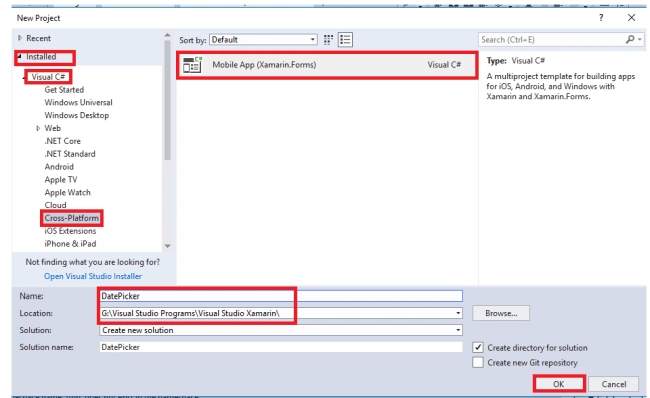

Go to File -> New -> Project. Then, a new window will appear.
Then, under Installed, select Visual C# -> Cross-Platform.
On the right side of the window, select Mobile App (Xamarin.Forms). Then, give the name of the project and save it in your required location.
Click OK.

Step 2

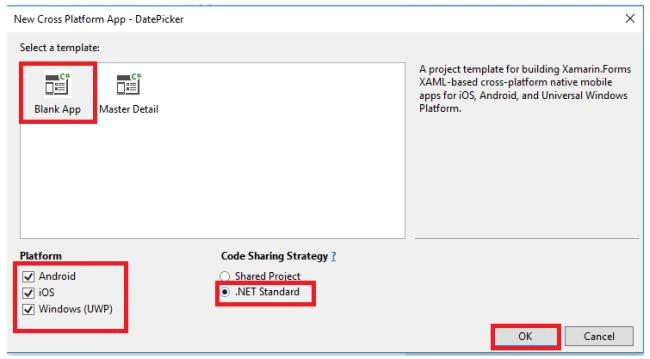

Now, a new window will appear on your screen. Under template, select Blank App.
Select all platforms or your required platforms for executing your application.
Then, select .NET Standard and click OK.

Step 3

After creating your project, open MainPage.xaml for writing the UI part of your application.

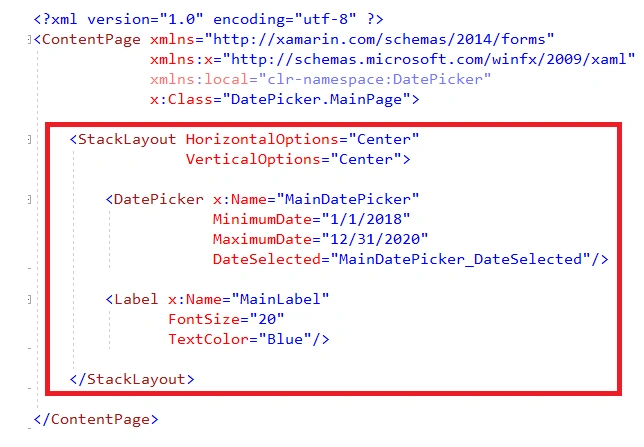

XAML Code

<?xml version="1.0" encoding="utf-8" ?>
<ContentPage xmlns="http://xamarin.com/schemas/2014/forms" xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml" xmlns:local="clr-namespace:DatePicker" x:Class="DatePicker.MainPage">
<StackLayout HorizontalOptions="Center" VerticalOptions="Center">
<DatePicker x:Name="MainDatePicker" MinimumDate="1/1/2018" MaximumDate="12/31/2020" DateSelected="MainDatePicker_DateSelected" />
<Label x:Name="MainLabel" FontSize="20" TextColor="Blue" /> </StackLayout>
</ContentPage>

In this, we use DatePicker for displaying the calendar. For that calendar, let us set the minimum and maximum ranges of that calendar. Then, use an event for displaying the date on the label.

Step 4

Now, open MainPage.xaml.cs file for writing the code.

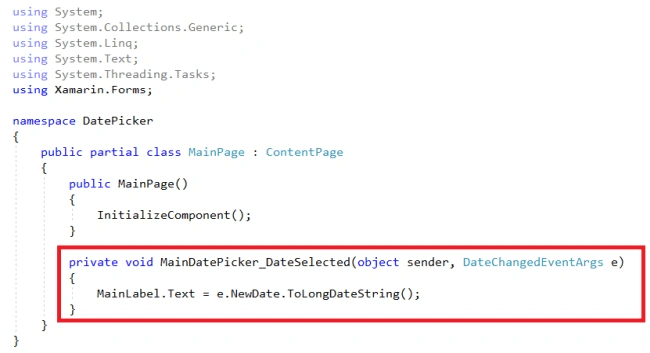

C# Code

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using Xamarin.Forms;
namespace DatePicker {
public partial class MainPage: ContentPage {
public MainPage() {
InitializeComponent();
}
private void MainDatePicker_DateSelected(object sender, DateChangedEventArgs e) {
MainLabel.Text = e.NewDate.ToLongDateString();
}
}
}

Step 5

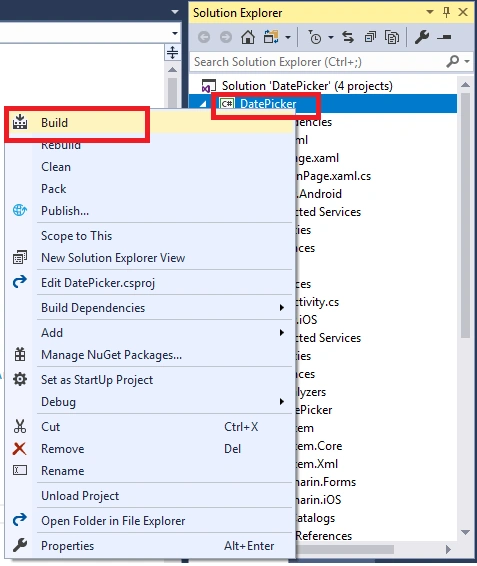

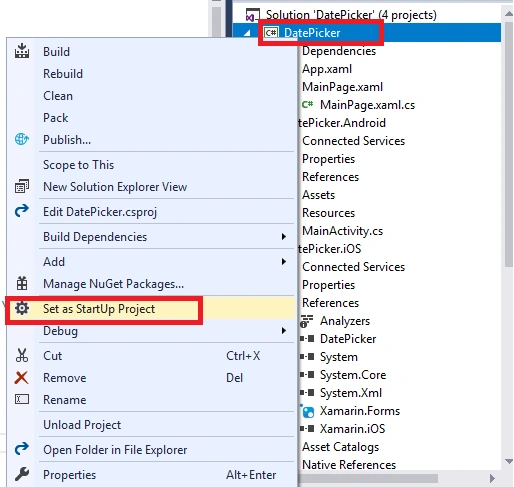

Now, set the project's Portable file for "Startup Project" and build the project.

Step 6

Now, select the platform for executing your application. I am selecting UWP platform for executing the app.
Click on the Local Machine to deploy your app on your machine.

Now, I am selecting the date on the calendar.

Now, I am deploying the same app on my mobile phone using Xamarin Live Player.

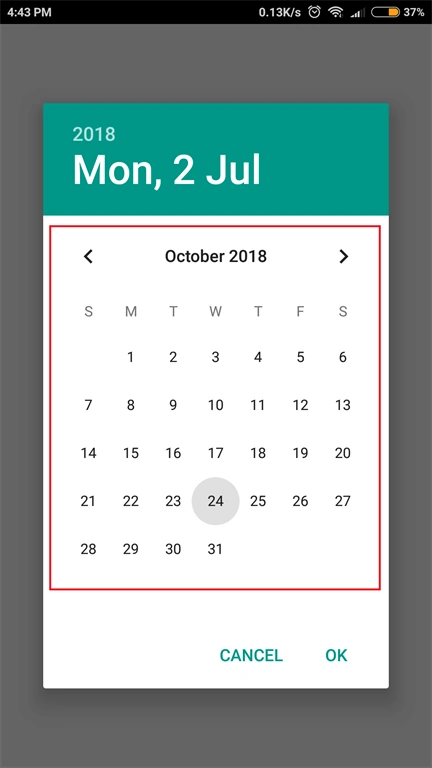

On the calendar, I am selecting the date.

Conslusion

Now, we have successfully created the Xamarin app for selecting a required date.
