SignalR Overview
Hello friends, today I am going to explain to you how to create a simple chat application using SignalR. Before looking at the code and understanding, let's try and understand what "SignalR" is.
SignalR is nothing but an Asynch Library which can be used to develop web applications and those applications provide some services which runs asynchronously. In other terms, SignalR is a library that can be used to create Real-Time applications. In general terms, I feel the term "Real-Time" means something or some event that actually happens with us at a particular time. Well, then "Real-Time" in terms of a web application would mean "An immediate response sent by the Server on the Client's request". There is a brief explanation of the term Real-Time here...
Alright now moving towards SignalR, earlier it was not a part of the ASP.Net Family, but now Microsoft has incorporated it into VS 2012 and the .Net Framework 4.5. You can download the package here "Microsoft Asp.Net Fall 2012 Update BUILD Release". Check out the Overview section before downloading the package.
SignalR is a library that is supported only by .Net Framework 4.0 and 4.5. So if you are one of those unlucky guys that want this library but are still working using .Net Framework 3.5, it's now high time to switch to the latest framework version.
How do SignalR works?
You might have heard about some more terms like "Long Polling" or "Forever Frames" or "Web Sockets" or "Server-Sent Events", if not then stay tuned for my next article on all these topics. Let me say those terms are "Concepts".
These concepts are used to create a persistent connection with the server and allow the client to interact with a Server. But there are a few drawbacks to each of these concepts. Well, I am not going to write about it in this article though. So SignalR is a new Concept / Technology which has overcome the problems associated with these concepts.
The most important funda behind using any of these concepts is to create a connection with the Server and do the required work. Well, SignalR it basically makes use of all of these concepts, but depending upon the Client. Now "Client" here is nothing else but the user's browser. So if a user sends a request and tries to connect to the Server, SignalR first checks what kind of support this Client gives; whether it supports "Web Sockets" or "Forever Frames" depending upon the support, SignalR makes a persistent connection between the Server and the Client.
This connection is not just for a few minutes or seconds. It remains persistent until the user shuts/closes the browser explicitly. Here a few other, very important entities are relevant; they are "Hubs" and "Clients". I won't explain them here, but definitely will add it to my next article on SignalR.

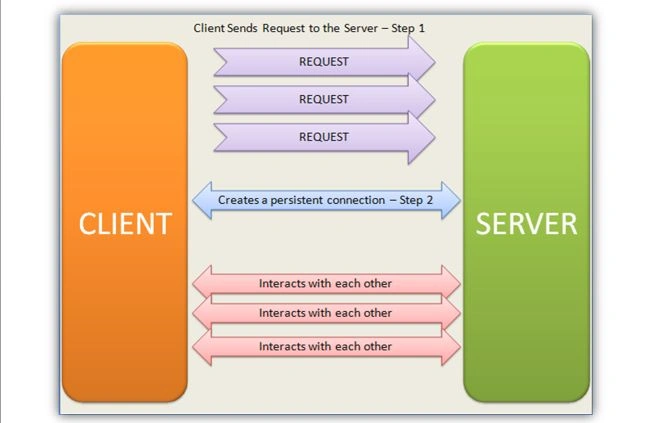

The following is an overview of the interaction between the Server and the Client.
SignalR Interactions
Explanation - In the image, the Client sends requests to the Server. The Server, using SignalR, checks if the Client supports any of the following data transportation techniques:
1. Web Sockets
2. Forever Frames
3. Server-Sent Events
4. Long Polling
If the Client supports any of these techniques, the Server creates a connection between them and starts a conversation (Request-Response action).
My Chat Application: Alright, by now you definitely might have had an overview of "SignalR". Now it's time to have a look at the Sample Chat Application. I have created this application using .Net Framework 4.0 and Visual Studio 2010. Since I don't have VS 2012 I cannot download the fall package.
But no need to worry, there is another way to add the SignalR Library to your application. The following are the steps for installing the library to your application.

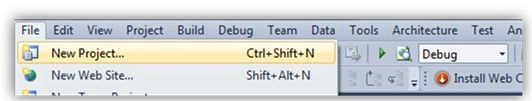

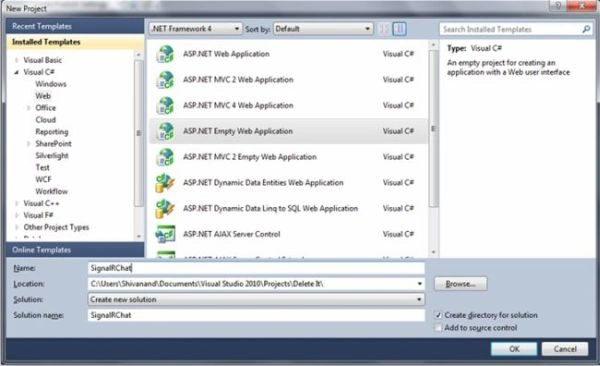

2. The "New Project" window opens up. In the left panel, select your preferred language and select "Web". I love C# and hence this project is created using C#. Just give your project a name and click on "Ok"

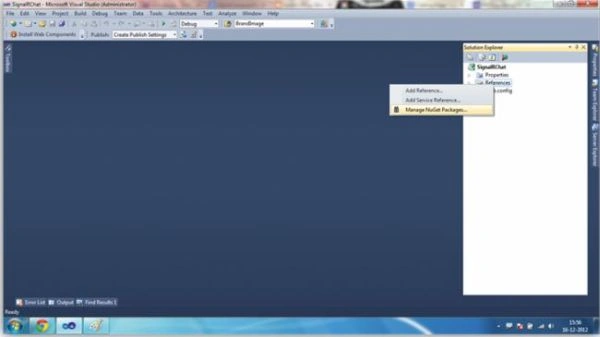

3. Now Visual Studio will load your project and your application will be created something as shown in the image below. Now it's time to add the SignalR package. So just right-click on the "References" folder and select "Manage NuGet Packages". If you do not have the "Nuget manager", then you can download the library using the Package Manager Console... Click here.

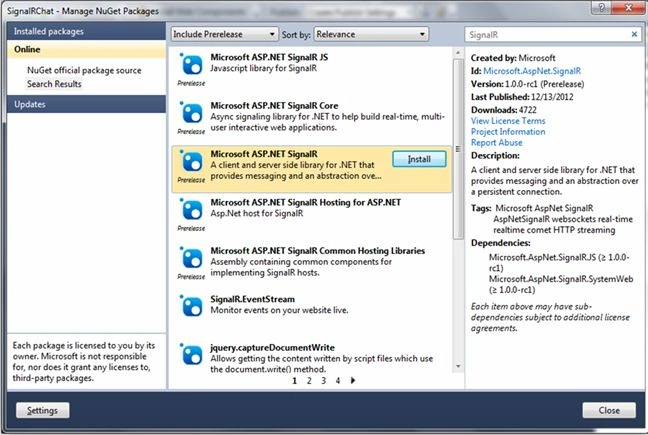

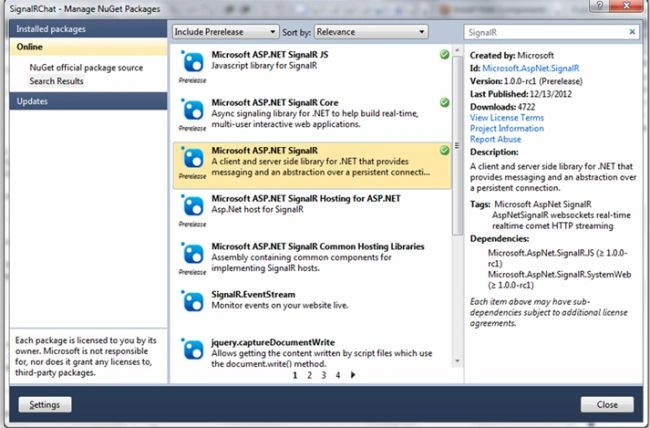

4. After clicking on the "Manage Nuget Packages", a window will popup, Check the image below – Select "Microsoft ASP.NET SignalR" and click on "Install".

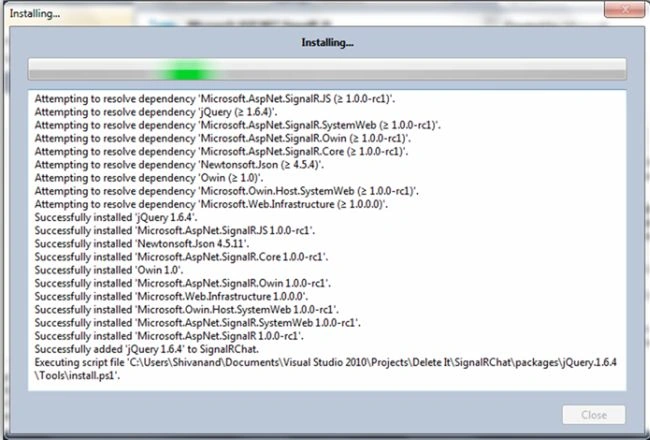

5. Now the installation begins and the window should look something like this:
7. Once the installation is completed, the final window will look something like this:

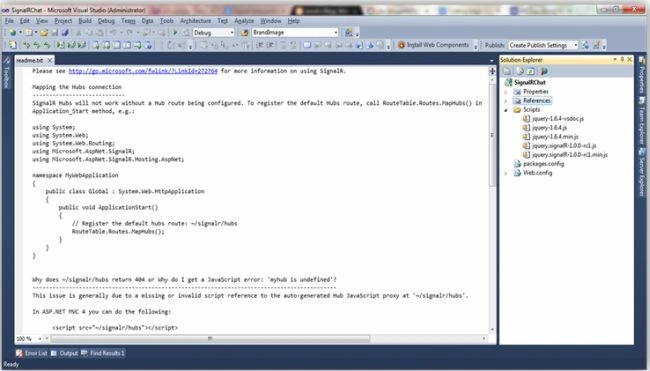

8. The following jQuery file will be installed in your application; see the "Solution Explorer" in the image below:

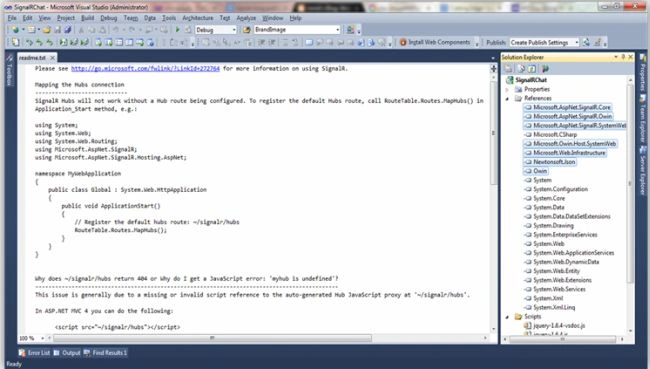

9. And the following references will be added. Check the Solution Explorer on the right side in the image below:
