The Real Problem: Lack of Deterministic Execution
Most teams do not struggle with calling APIs.
They struggle with:
environments that cannot be reliably recreated
workflows that behave differently across dev, staging and production
implicit logic hidden in scripts or manual steps
validation happening too late
This is not a testing problem.
It is a determinism problem .
The Daily Pain (What Actually Happens)
Scenario 1: The Production 400
You deploy an endpoint. Everything passed locally and in Postman.
Production fails.
Why?
Because:
The mismatch is discovered at runtime.
Scenario 2: DB Snapshot Hell
You seed staging from a snapshot.
Tests pass.
But:
You are not testing the system. You are testing a static dataset.
Scenario 3: Manual Workflow Testing
You test a flow manually:
login
copy JWT
create entity
copy ID
reuse it
This is:
manual
error-prone
non-reproducible
And impossible to scale in CI.
Why Current Approaches Break Down
Typical tools focus on interaction, not execution.
What is missing:
A way to define and execute API workflows deterministically.
What SphereIntegrationHub Is
SphereIntegrationHub (SIH) is a deterministic API workflow engine .
It enables teams to define, execute, and reproduce API-driven workflows with predictable behavior.
It is designed to:
execute workflows deterministically
validate against contracts before execution
propagate context automatically
bootstrap environments via APIs
generate reproducible artifacts
What It Is Not
Not Postman, Bruno, Apidog → no interactive exploration focus
Not a request collection runner → workflows contain logic
Not a load testing tool
Not a distributed orchestration engine
SIH focuses on execution, not interaction .
How SIH Solves These Problems
1. Contract Validation Before Execution
Instead of discovering issues at runtime:
sih --workflow create-order.workflow --env dev --dry-run
You validate against OpenAPI before execution.
Result:
mismatches caught early
faster feedback loop
2. API-First State Creation
Instead of DB snapshots:
forEach: "{{input.userCount}}"
parallel: true
body: |
{
"id": "{{rand:guid()}}",
"email": "user_{{rand:text(8)}}@test.com"
}
ensure:
mode: "CreateIfMissing"
Now:
validation runs
domain logic executes
events fire
3. Deterministic Workflow Execution
Instead of manual steps:
- name: login
output:
jwt: "{{response.body.token}}"
- name: create-order
headers:
Authorization: "Bearer {{context.jwt}}"
No copy/paste.
No scripts.
4. Execution Model
SIH supports:
This enables modeling real flows, not just requests.
What You Gain
Before
runtime failures
manual workflows
brittle scripts
non-reproducible tests
After
Deterministic Workflow Tracing (Visual Execution)
SIH does not just execute workflows. It produces a deterministic, visual trace of their execution .
Each run generates:
Unlike traditional logs, this is a full, inspectable execution graph of the workflow.
What You Can See
The HTML trace provides:
stage-by-stage timeline (Gantt-like view)
execution order and parallelism
duration per stage
branching decisions (executed vs not executed)
request/response details per stage
inputs and outputs
HTTP status codes
final workflow result
This is conceptually similar to distributed tracing systems like Jaeger, but with a key difference:
Jaeger observes what happened (passive, requires instrumentation)
SIH defines and executes what happens (active, deterministic)
Why This Matters
Typical debugging relies on:
ephemeral console logs
distributed traces that require instrumentation
manual correlation across services
re-running scenarios to understand behavior
SIH replaces that with a single, self-contained execution trace .
What You Gain
With a single trace, you can inspect:
This makes the trace useful for:
debugging without re-execution
CI/CD artifacts
sharing execution evidence with teammates
documenting integration behavior
reasoning about execution paths
Example Output Files
customer-order.a3f2b5c8.workflow.output
customer-order.a3f2b5c8.workflow.trace.json
customer-order.a3f2b5c8.workflow.trace.html
Example JSON Structure
{
"workflowName": "customer-order",
"executionId": "a3f2b5c8",
"startTime": "2026-04-20T10:30:00Z",
"duration": "00:00:01.245",
"stages": [
{
"name": "login",
"status": "Ok",
"duration": "00:00:00.120",
"httpStatus": 200,
"output": {
"jwt": "eyJhbGc..."
}
},
{
"name": "create-order",
"status": "Failed",
"duration": "00:00:00.110",
"httpStatus": 400,
"error": "Expected status 201, got 400"
}
]
}

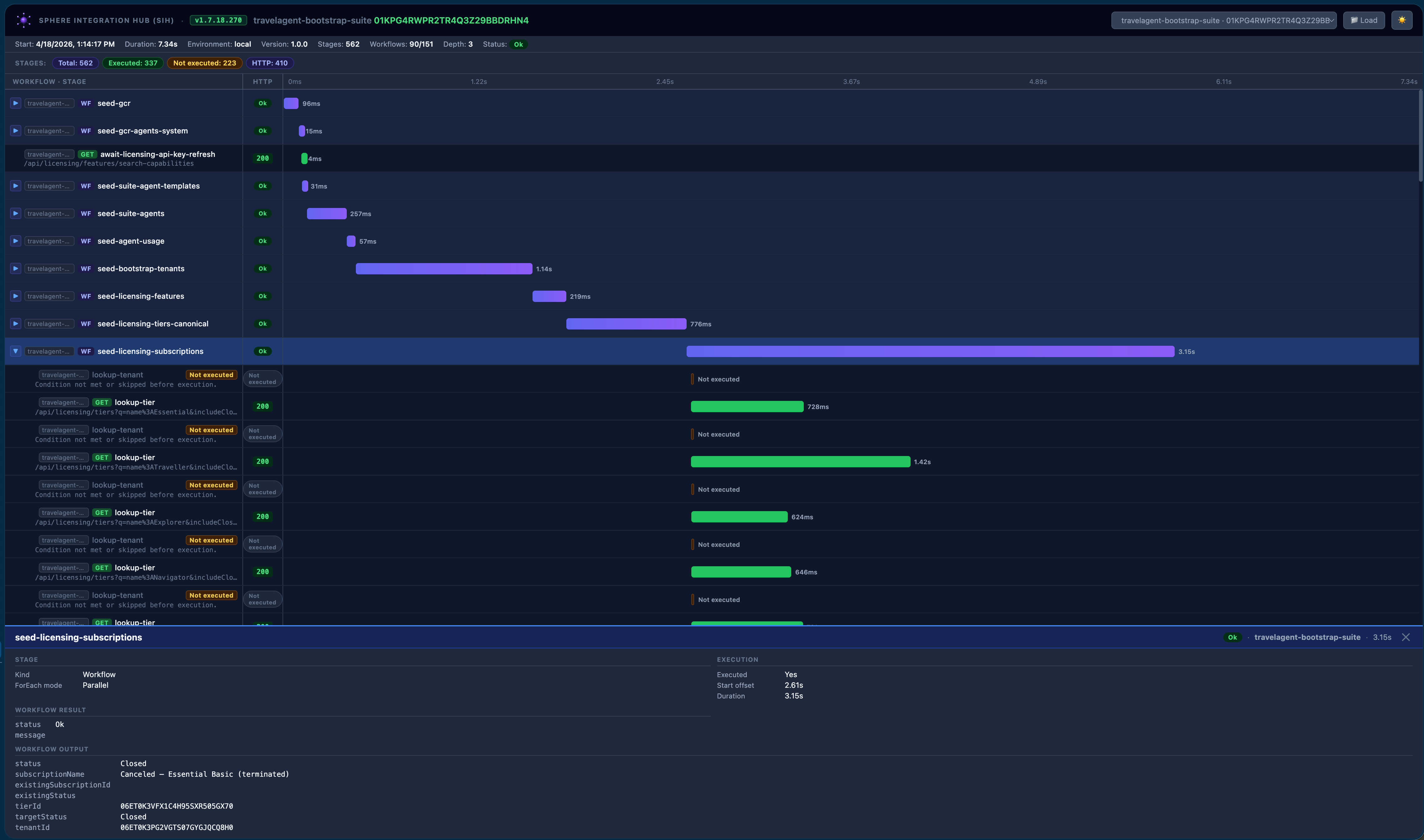

Visual Trace Example
-- Deterministic workflow trace showing execution timeline, branching, parallel stages, and per-stage input/output inspection. --
This is one of the most differentiating aspects of SIH: it makes workflow behavior visible, reproducible, and explainable without relying on external tracing systems.
This is not a log. It is a deterministic execution trace.
MCP Integration
SIH exposes workflows via MCP.
Instead of exposing raw APIs to AI:
You expose controlled execution units .
This enables:
CI/CD Native
SIH runs directly in pipelines.
- name: Run workflows
run: |
sih --workflow workflows/smoke-test.workflow \
--env staging \
--report-format both
No adapters. No transformation.
GitHub Action
SIH also provides a GitHub Action for direct integration.
- name: Run SIH workflow
uses: PinedaTec-EU/sphere-integration-hub-action@v1
with:
workflow: workflows/smoke-test.workflow
env: staging
env:
ADMIN_PASSWORD: ${{ secrets.ADMIN_PASSWORD }}
This allows:
native execution inside GitHub workflows
reuse across repositories
simplified pipeline configuration
standardized execution patterns
Reports can be uploaded as artifacts for later inspection.
What SIH Requires to Work Well
SIH can provide deterministic execution, but only if the systems it interacts with expose enough determinism themselves.
In practice, SIH works best when APIs are:
reasonably idempotent for creation and update flows
explicit about success and failure through correct HTTP status codes
contract-driven and kept aligned with OpenAPI definitions
consistent in response structures
stable enough to support repeatable execution paths
This matters because SIH does not invent determinism out of thin air.
It makes deterministic execution possible when the underlying APIs make that achievable .
Examples
If an API:
returns 200 , 201 , 409 , 404 consistently
exposes clear lookup endpoints
distinguishes between "already exists" and "created"
provides stable identifiers in responses
then SIH can model reusable and idempotent workflows very effectively.
If an API instead:
always returns 200 for everything
hides failures in response bodies
has unstable contracts
does not expose lookup or recovery paths
produces side effects without clear response semantics
then workflow determinism becomes harder to guarantee.
Important Distinction
SIH can enforce workflow logic, branching, validation, and traceability.
But its ability to provide reliable idempotency and predictable execution depends on the quality of the API surface behind it.
That is not a limitation of SIH alone. It is a property of any system that aims to orchestrate real APIs deterministically.
Where It Fits
SIH is most useful when:
APIs are the integration backbone
environments must be reproducible
workflows span multiple services
CI/CD requires deterministic execution
APIs are designed with clear contracts and predictable semantics
Where It Does Not Fit
Status: Active Development
SIH is under continuous improvement.
The model is stable.
The engine is evolving.
Focus remains on:
simplicity
determinism
real-world applicability
End-to-End Example: From Login to Confirmed Order
A single workflow can model a real user journey across services, with deterministic execution and no manual steps.
In this example:
the main workflow performs authentication and order creation
customer provisioning is delegated to a child workflow
the child workflow checks whether the customer already exists
runIf and jumpTo control the execution path
Main Workflow
version: "3.11"
name: "e2e-order-flow"
input:
- name: "customerName"
type: "Text"
required: true
- name: "customerEmail"
type: "Text"
required: true
references:
workflows:
- name: "ensure-customer"
path: "./workflows/ensure-customer.workflow"
stages:
- name: "login"
kind: "Endpoint"
endpoint: "/api/auth/login"
httpVerb: "POST"
body: |
{
"username": "admin",
"password": "{{env:ADMIN_PASSWORD}}"
}
output:
jwt: "{{response.body.token}}"
- name: "ensure-customer"
kind: "Workflow"
workflowRef: "ensure-customer"
inputs:
customerName: "{{input.customerName}}"
customerEmail: "{{input.customerEmail}}"
jwt: "{{stage:login.output.jwt}}"
- name: "create-order"
kind: "Endpoint"
endpoint: "/api/orders"
httpVerb: "POST"
headers:
Authorization: "Bearer {{stage:login.output.jwt}}"
body: |
{
"customer_id": "{{stage:ensure-customer.workflow.output.customerId}}",
"items": [
{ "product_id": "prod-1", "quantity": 2 }
]
}
output:
orderId: "{{response.body.id}}"
- name: "confirm-order"
kind: "Endpoint"
endpoint: "/api/orders/{{stage:create-order.output.orderId}}/confirm"
httpVerb: "POST"
headers:
Authorization: "Bearer {{stage:login.output.jwt}}"
endStage:
output:
customerId: "{{stage:ensure-customer.workflow.output.customerId}}"
orderId: "{{stage:create-order.output.orderId}}"
Child Workflow: Ensure Customer Exists
version: "3.11"
name: "ensure-customer"
input:
- name: "customerName"
type: "Text"
required: true
- name: "customerEmail"
type: "Text"
required: true
- name: "jwt"
type: "Text"
required: true
stages:
- name: "find-customer"
kind: "Endpoint"
endpoint: "/api/customers/by-email/{{input.customerEmail}}"
httpVerb: "GET"
headers:
Authorization: "Bearer {{input.jwt}}"
expectedStatuses: [200, 404]
output:
exists: "{{response.status == 200}}"
customerId: "{{response.body.id}}"
- name: "jump-if-customer-exists"
kind: "NoOp"
runIf: "{{stage:find-customer.output.exists}} == true"
jumpTo: "finish"
- name: "create-customer"
kind: "Endpoint"
runIf: "{{stage:find-customer.output.exists}} == false"
endpoint: "/api/customers"
httpVerb: "POST"
headers:
Authorization: "Bearer {{input.jwt}}"
body: |
{
"name": "{{input.customerName}}",
"email": "{{input.customerEmail}}"
}
output:
customerId: "{{response.body.id}}"
endStage:
name: "finish"
output:
customerId: "{{stage:find-customer.output.customerId || stage:create-customer.output.customerId}}"
Run it:
sih --workflow e2e-order-flow.workflow \
--env staging \
--input customerName="John Doe" \
--input customerEmail="[email protected]" \
--report-format both
What this demonstrates:
workflow composition through nested workflows
conditional branching with runIf
flow control with jumpTo
deterministic output regardless of whether the customer already existed
reusable customer provisioning logic across multiple parent workflows
The same workflow can run in dev, staging, or production by switching the environment.
No scripts. No manual steps. No hidden logic.
Final Thought
Most teams do not need more tools.
They need predictability .
SphereIntegrationHub provides that by turning API interactions into:
declarative
executable
reproducible workflows
That is the shift
