Steps To Create Custom Master Page In SharePoint 2013 Using Design Manager

In this article, you will learn how to create a custom master page in SharePoint 2013, using Design Manager.

Introduction

SharePoint master pages gives the common page layout and interface for SharePoint pages. Master pages provides the same look and feel for all the pages in our site. It lets you create and update the header, navigation links and Site Actions menu elements in one place, rather than changing them on each Web page. Using Design Manager, the branding and customization can be done in SharePoint 2013. Design Manager is available on publishing the site template. In this article I will explain, how to create a custom Master page in SharePoint 2013, using Design Manager.

Pre-Requisites

  1. Go to SharePoint 2013 central administration site.

  2. Create new publishing portal site collection.

    page

  3. Create a static HTML page design with CSS, JavaScript and images for the master page.


Create Master Page

  1. Open SharePoint publishing site, which we created.

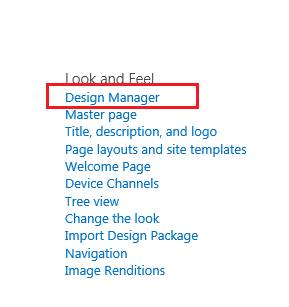

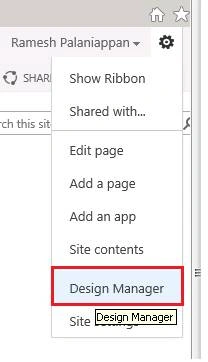

  2. Go to Site Action -> Design Manager or Site Action -> Site Settings -> Design Manager under “Look and Feel”.

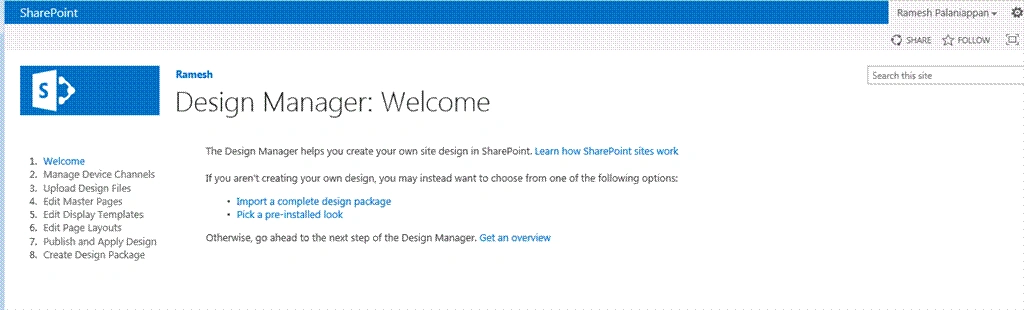

  3. Design Manager Page opens.

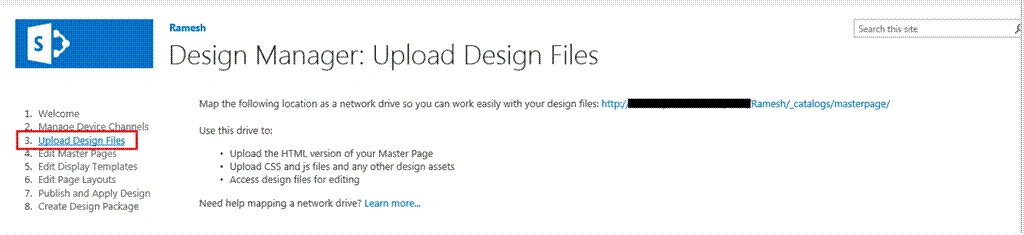

  4. Click “Upload Design Files” link in the left navigation menu.


  5. Click on the link, as show in the page to upload your design files.

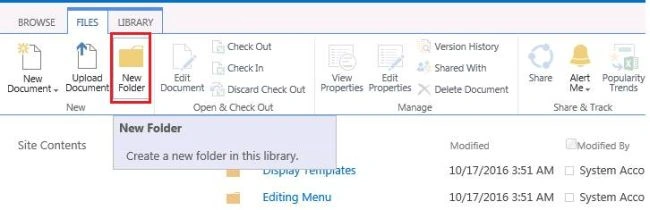

  6. Catalog master pages opens. Click on “New Folder” under files menu.

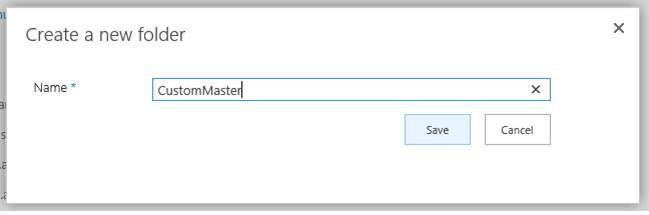

  7. Name it as CustomMaster.

    page

  8. Open CustomMaster folder and create map folder for our CSS, Scripts and Images.

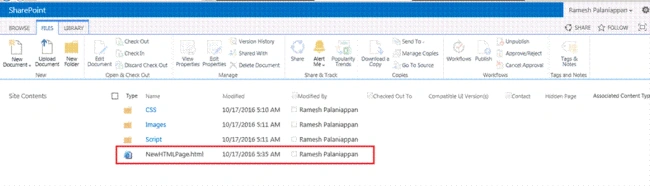

  9. Add our static HTML file, CSS, JS and the images in the respective folders.

    page

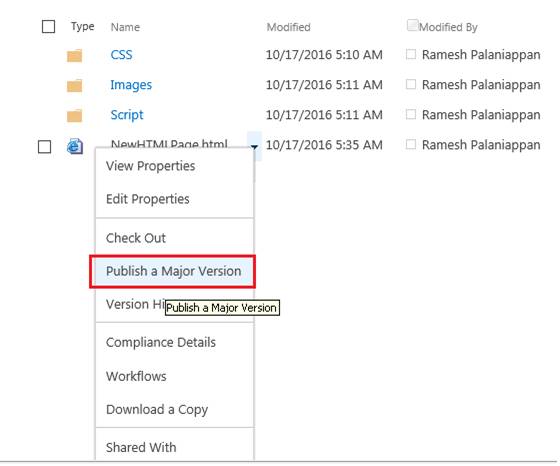

  10. Publish the NewHTMLPage as a major version.
    NewHTMLPage

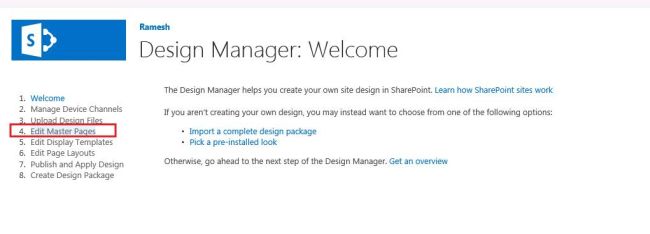

  11. Go to Design Manager -> Edit master pages.

    NewHTMLPage

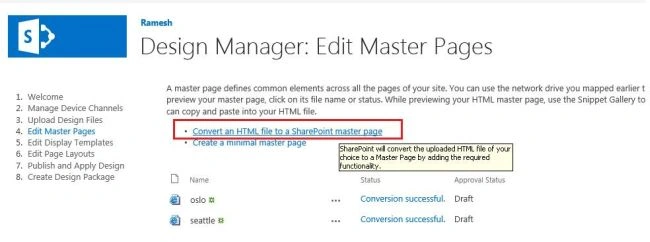

  12. Click “Convert an HTML file to a SharePoint master page”.

    SharePoint

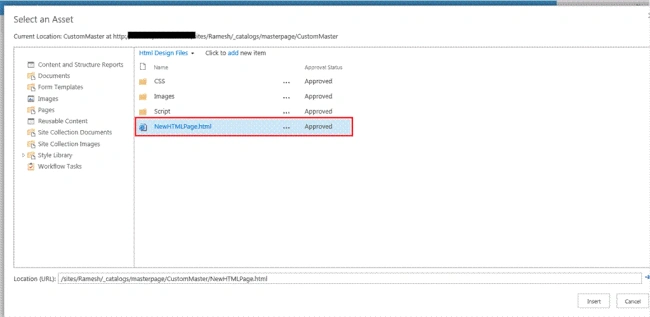

  13. Select HTML file, which we uploaded and published for the conversion.

    SharePoint

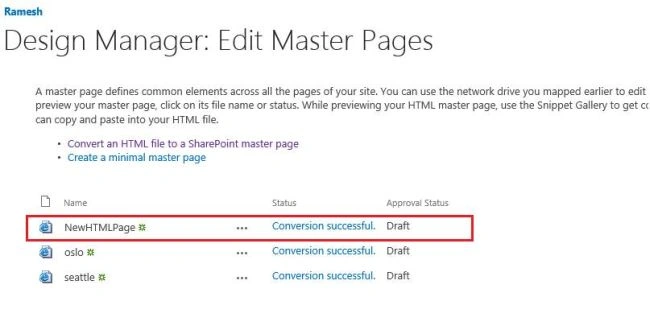

  14. HTML file successfully converted in to the master page.

    SharePoint

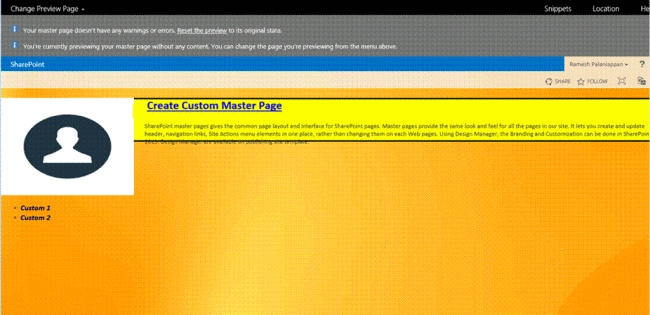

  15. Click on the master page preview and create it without any error.

    SharePoint

  16. If we want to edit HTML file, click Snippets in the top menu bar of the preview page.

    SharePoint

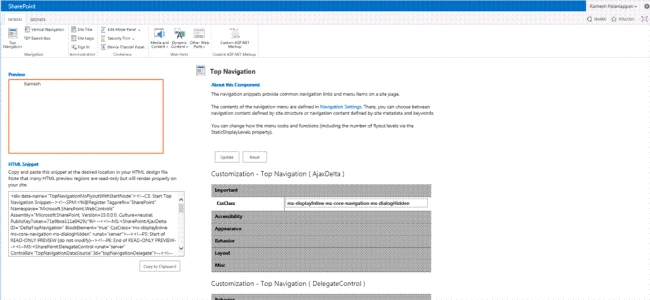

  17. Add SharePoint components like the top navigation, Web parts and other controls. Click “Update” to generate the new snippet.

    SharePoint

  18. Copy the code snippet to HTML file. After doing HTML changes, upload it again.

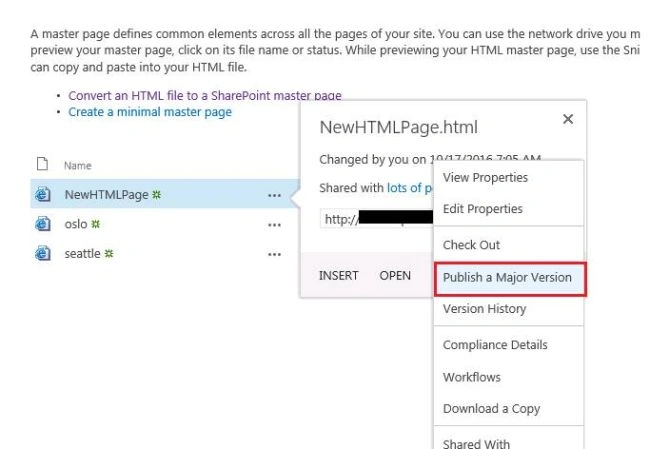

  19. After doing all HTML changes, go back and publish the master page as a major version in Design Manager.
    SharePoint

  20. If we want to edit this master page design, go to SharePoint designer and edit HTML file. Hence, the corresponding master page gets updated automatically and published as a major version.

  21. To set this master page to our portal pages, go to Site Action -> Site Settings.

    SharePoint

  22. Click master page under Look and Feel.
    SharePoint

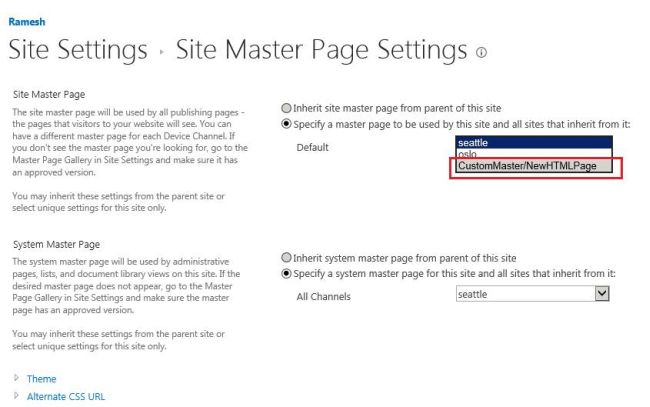

  23. Select the new created master page and click OK.
    SharePoint

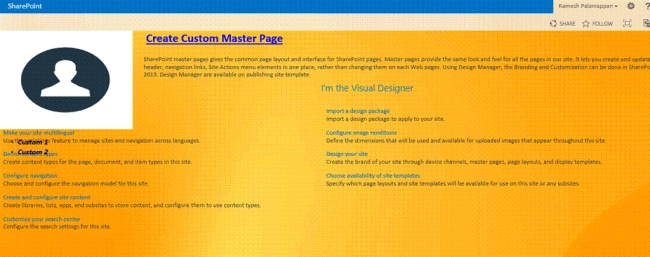

  24. Go to SharePoint portal in the Browser. We applied our custom master page. Site pages will appear with our custom master page changes.

    SharePoint

Summary

Thus, you have learned how to create a custom master page in SharePoint 2013, using Design Manager.
