Switch Light On With Up And Down Arrow Keys Using C# Scripts In Unity

Introduction


This article demonstrates how to switch a  light on using up & down arrow keys using C# Scripts In Unity.

Prerequisites

Unity Environment version 2018.4.19f1

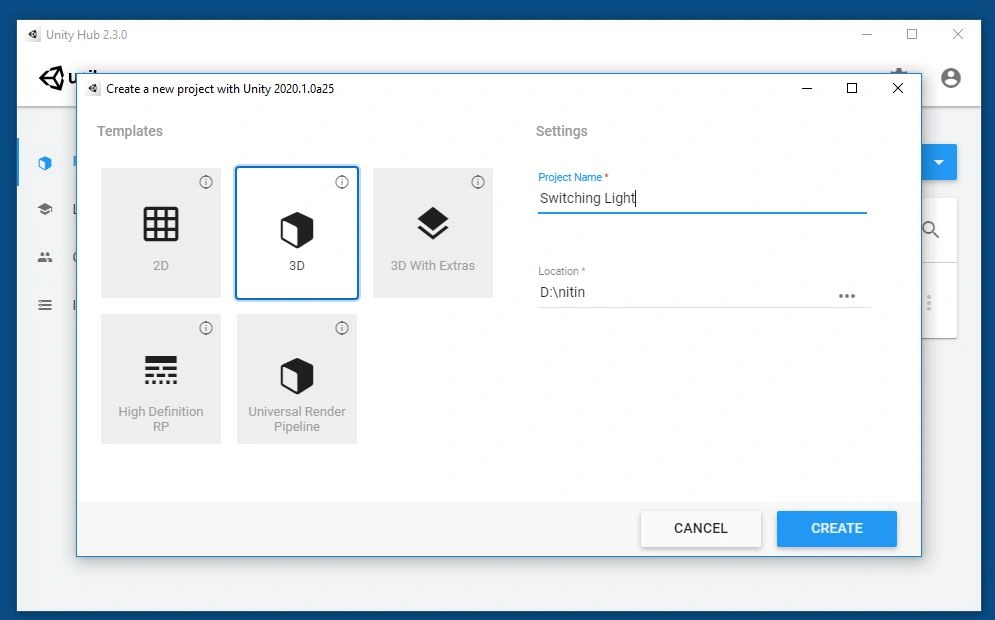

Create the Project

Switching Light On UP And Down Arrow Keys Using C# Scripts In Unity


Create plane in Unity

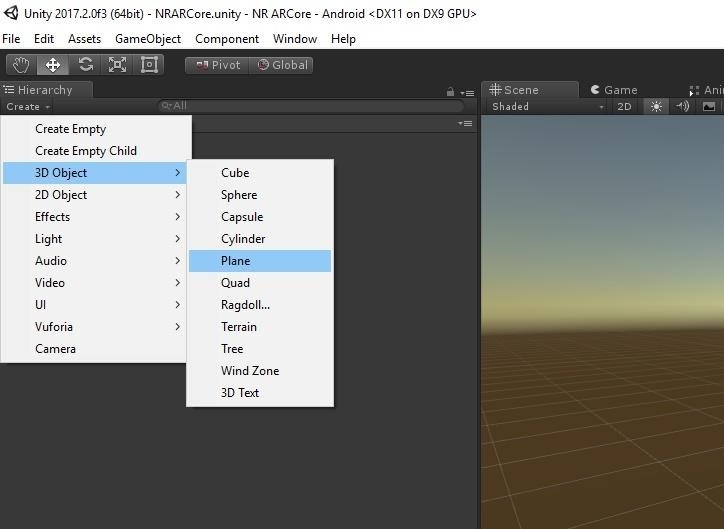

First, you have to open the Unity project. Click on the "GameObject" menu in the menu bar. Select the 3D object and click on plane.

Switching Light On UP And Down Arrow Keys Using C# Scripts In Unity

Create the Cube in Scene View

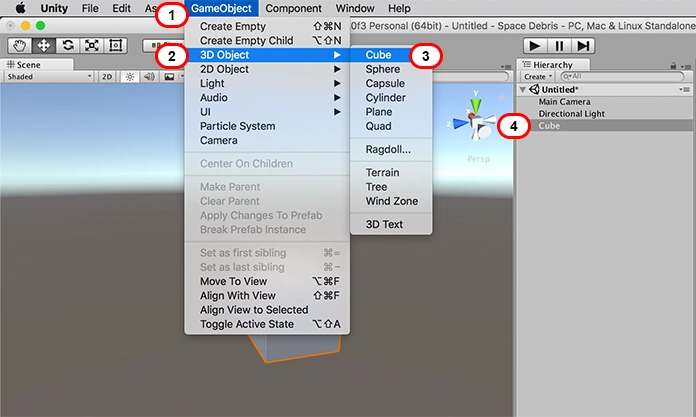

Click on the "GameObject" menu in the menu bar. Select the 3D Object. Click on Cube.

Switching Light On UP And Down Arrow Keys Using C# Scripts In Unity

Add the Point Light in Scene View

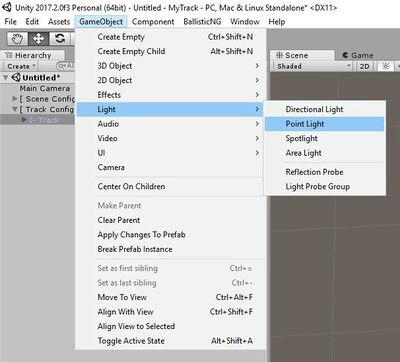

Add one to your scene by going to GameObject > Light > Point Light .

Switching Light On UP And Down Arrow Keys Using C# Scripts In Unity

Color Change to Point Light in Scene View

As you can see, the inspector shows the color change so a light with a blue color is the same as no light at all.

Switching Light On UP And Down Arrow Keys Using C# Scripts In Unity

Create the folder

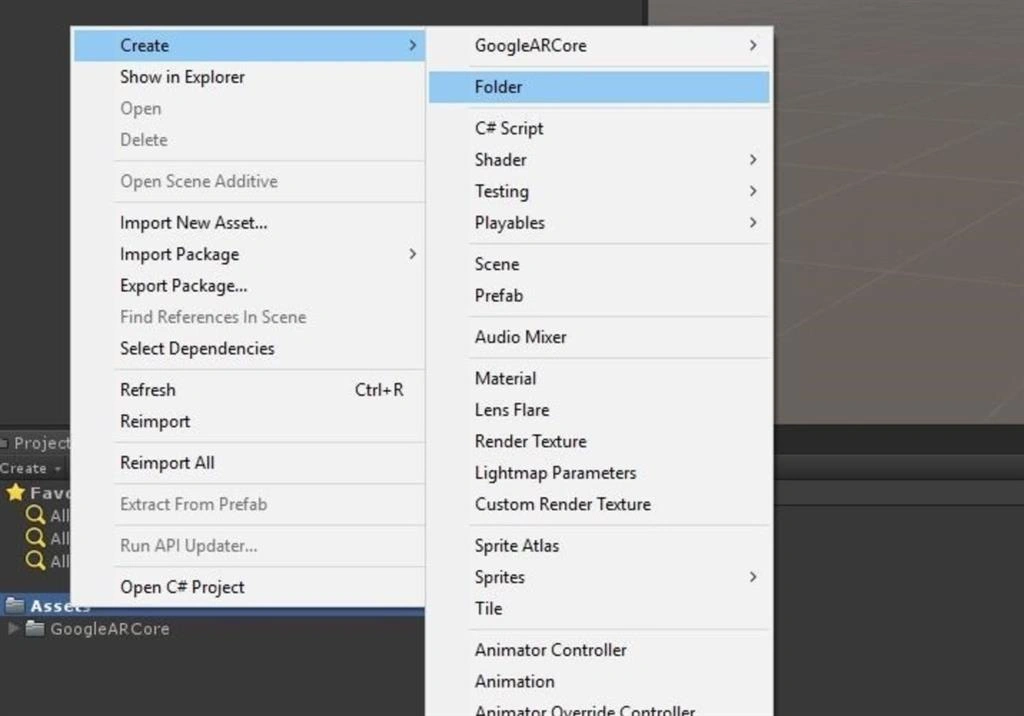

Right-click on Assets. Select Create >> Folder

Switching Light On UP And Down Arrow Keys Using C# Scripts In Unity

Rename the Folder as Scripts

Switching Light On UP And Down Arrow Keys Using C# Scripts In Unity


Create the Scripts

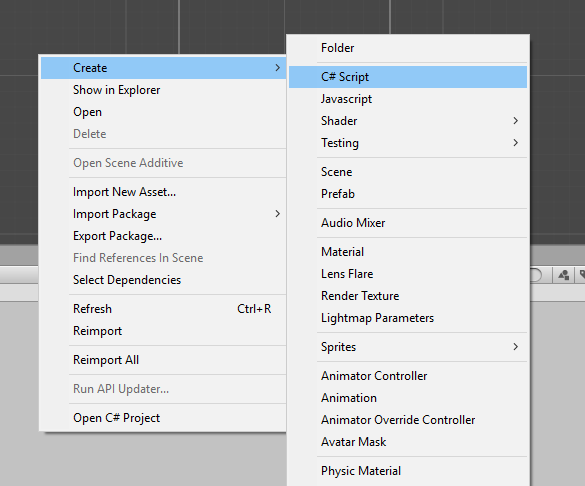

Right-click on Assets. Select Create >> C# script

Switching Light On UP And Down Arrow Keys Using C# Scripts In Unity

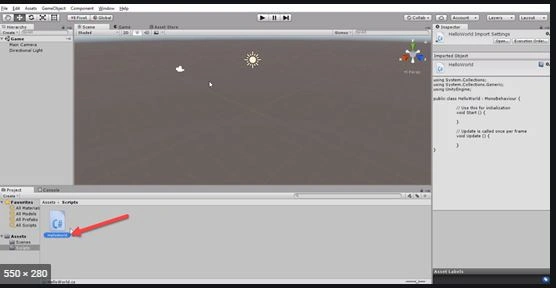

Rename the Scripts as Switch

Switching Light On UP And Down Arrow Keys Using C# Scripts In Unity

Double click on the Exit script. Write the code as shown below,
  1. using System.Collections;
  2. using System.Collections.Generic;
  3. using UnityEngine;
  4. public class Switch: MonoBehaviour {
  5.     void start() {}
  6.     void update() {
  7.         if (Input.GetKey(KeyCode.UpArrow)) this.GetComponent < Light > ().enabled = true;
  8.         if (Input.GetKey(KeyCode.DownArrow)) this.GetComponent < Light > ().enabled = false;
  9.     }
  10. }
Save the Program

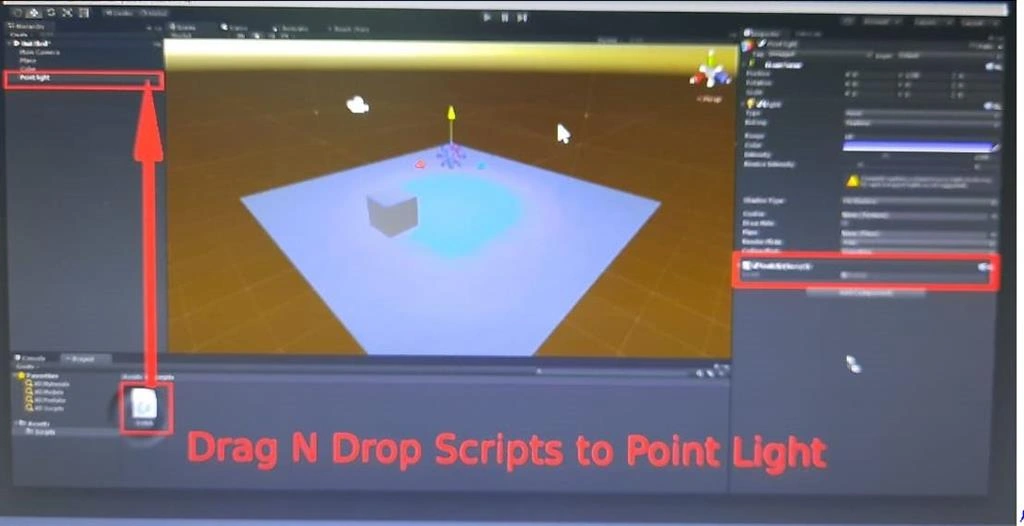

Drag and drop the Switch Scripts onto the Point Light .

Switching Light On UP And Down Arrow Keys Using C# Scripts In Unity

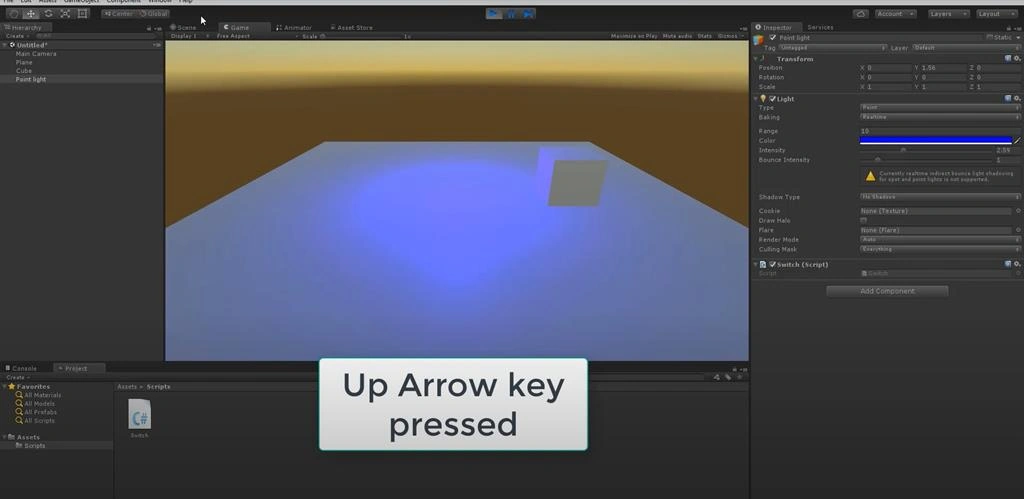

Click on the Play button. Select UpArrow Keys and click on the light in scene view.

Switching Light On UP And Down Arrow Keys Using C# Scripts In Unity

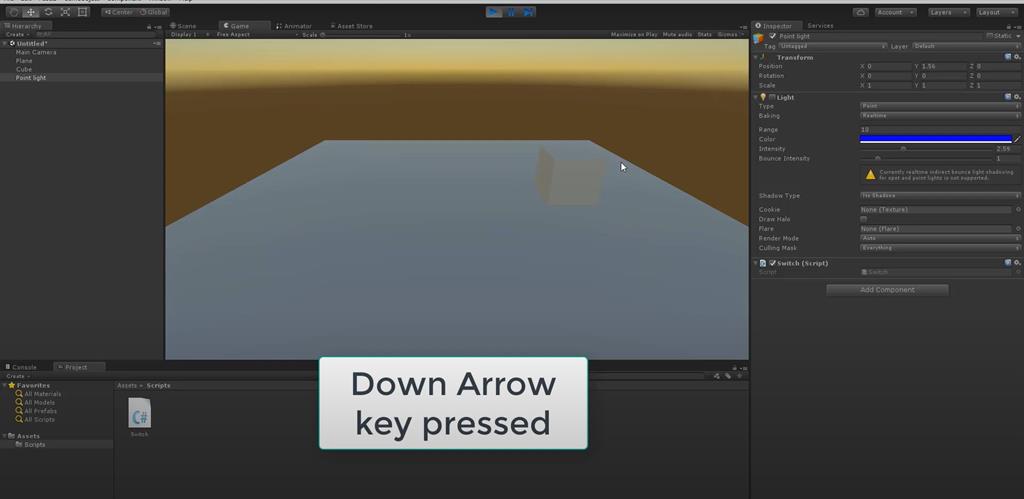

Select on DownArrow Keys and click off the light in scene view.

Switching Light On UP And Down Arrow Keys Using C# Scripts In Unity


Summary


I hope you understood how to switch a light on and off using the up and down arrow keys using C# Scripts In Unity.
