Introduction

In this article we learn what a Text Template Transformation Toolkit (T4) template is using XML. If you are unfamiliar with the T4 template then please read my article What a T4 Template is in MVC.

Let's create an empty MVC4 project.

Go to File → Project.

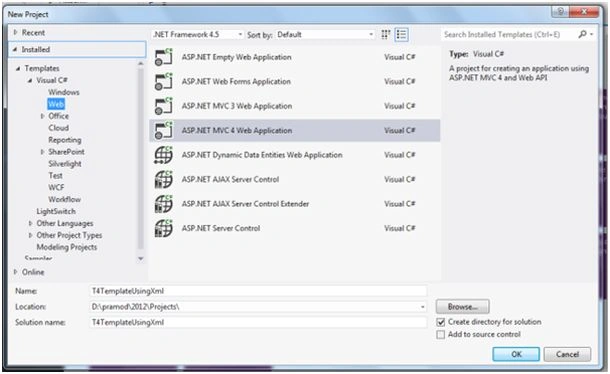

Select ASP.NET MVC 4 Web Application and name it T4TemplateUsingXml.
Click Ok.

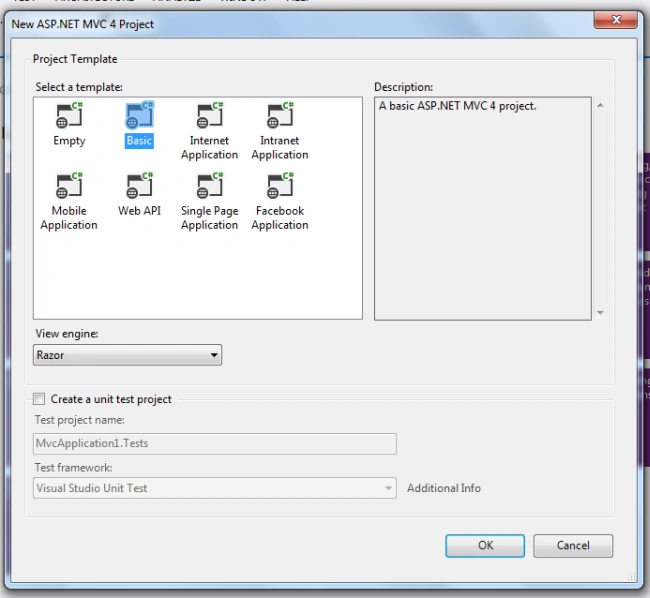

Select an Empty Project.

ASP NET MVC Project

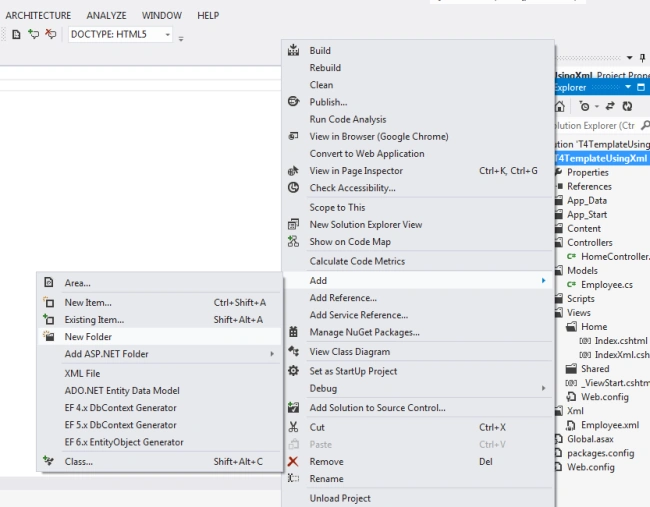

After creating the project let's add a folder called Xml in the root directory.

ADD new Folder

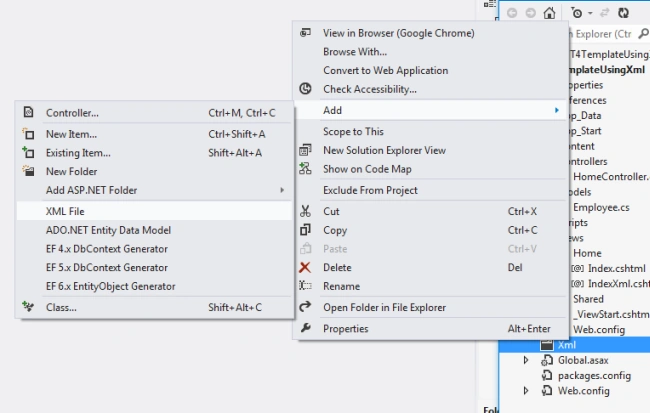

Right-click on the Xml folder and add a XML file and name it Employee.xml.

ADD XML file

After creating Employee.xml paste in the following code.

<Employee>
<EmployeeDetail>
<Id>E001</Id>
<Name>Pramod</Name>
<Email>[email protected]</Email>
</EmployeeDetail>
<EmployeeDetail>
<Id>E002</Id>
<Name>Ravi Kant</Name>
<Email>[email protected]</Email>
</EmployeeDetail>
<EmployeeDetail>
<Id>E003</Id>
<Name>Rahul</Name>
<Email>[email protected]</Email>
</EmployeeDetail>
<EmployeeDetail>
<Id>E004</Id>
<Name>Deepak</Name>
<Email>[email protected]</Email>
</EmployeeDetail>
</Employee>

To create a model right-click on the Models folder and add a class and name it Employee and paste in the following code:

using System;
using System.Xml.Serialization;
namespace T4TemplateUsingXml.Models
{
[Serializable]
[XmlRoot("Employee"), XmlType("Employee")]
public class Employee
{
public string Id { get; set; }
public string Name { get; set; }
public string Email { get; set; }
}
}

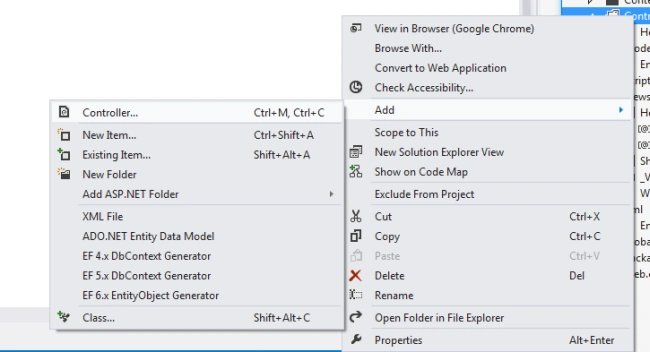

Now we create a controller, right-click on the Controller folder and add a controller named HomeController.

Home Controller

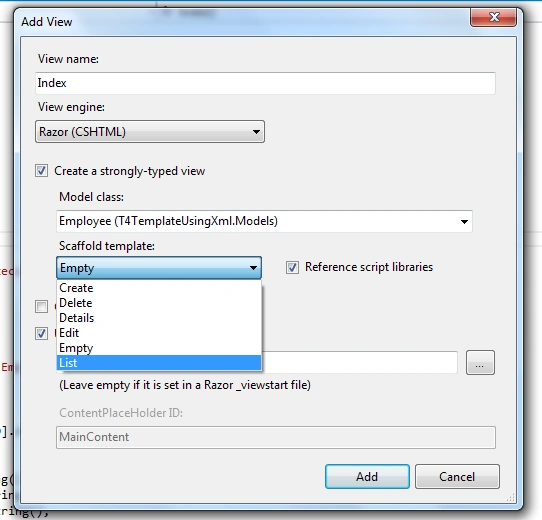

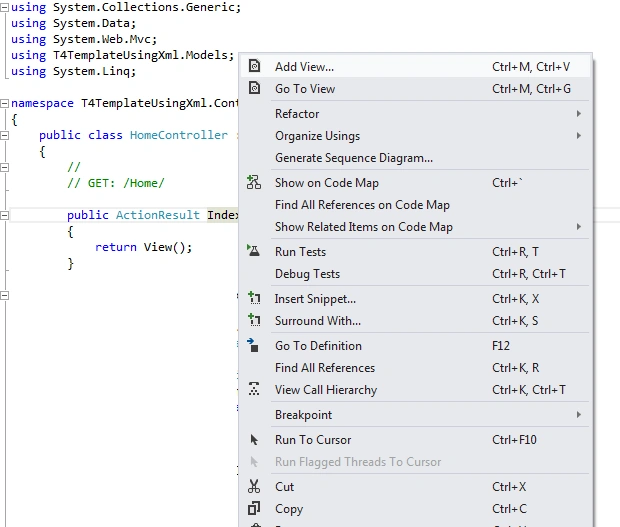

And then right-click on the index code inline and choose Add View using a scaffold empty template.

Add View

Add View1

Let's run the project and see the output.

Index

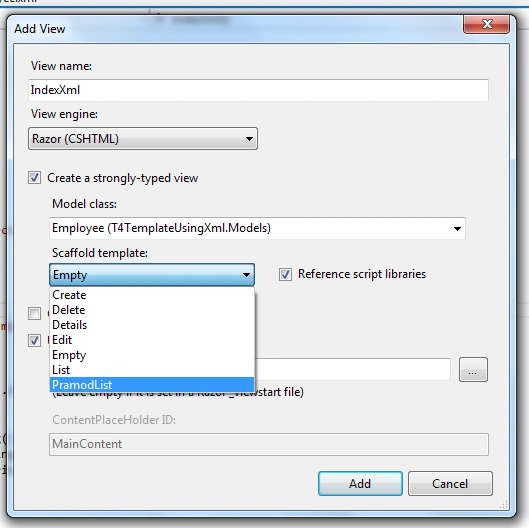

Now I make a copy of List.tt and name it PramodList.tt and make some changes. After that add another view called IndexXml using a scaffold PramodList template.

//Location of List.tt is C:\Program Files\Microsoft Visual Studio 11.0\Common7\IDE\ItemTemplates\CSharp\Web\MVC 4\CodeTemplates\AddView\CSHTML

Add View List

And write some code in HomeController as in the following:

public ActionResult IndexXml()
{
string Data = Server.MapPath("~/Xml/Employee.xml");
DataSet ds = new DataSet();
ds.ReadXml(Data);
var employee = new List<Employee>();
employee = (from item in ds.Tables[0].AsEnumerable()
select new Employee
{
Id = item[0].ToString(),
Name = item[1].ToString(),
Email = item[2].ToString(),
}
).ToList();
return View(employee);
}

And run the application.
Index XML
Note: I am attaching a PramodList.tt along with the application. Please paste the PramodList.tt file into the following folder:

C:\Program Files\Microsoft Visual Studio 11.0\Common7\IDE\ItemTemplates\CSharp\Web\MVC 4\CodeTemplates\AddView\CSHTML

In the application I am just attaching Controller, Models, Views and XML folders.

I hope you enjoy this article.

Happy coding.
