Introduction

This article shows how to do table splitting and later we will also look at how to do a delete data operation.

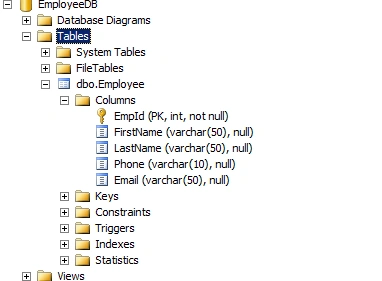

SQL Server table structure

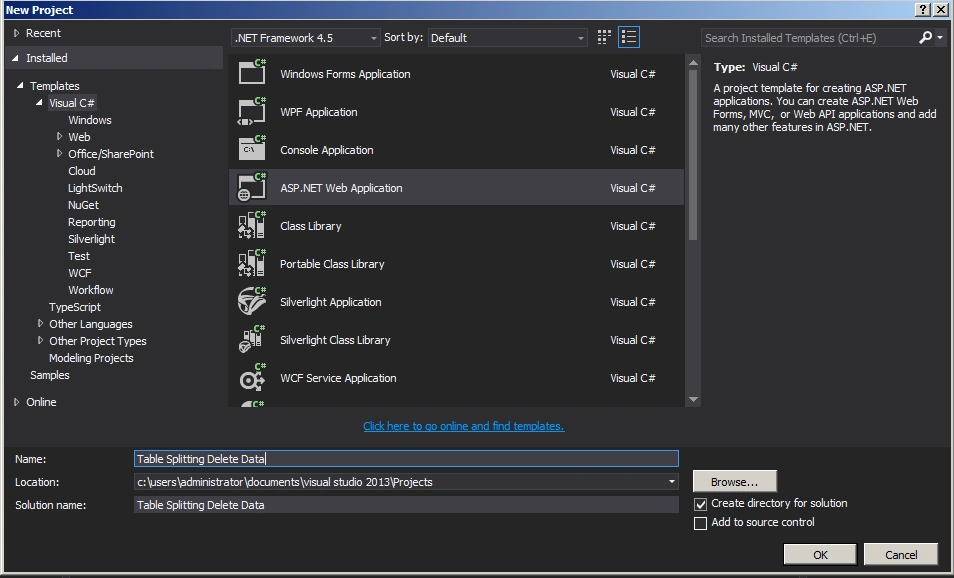

Create an ASP.Net Web Application as in the following:

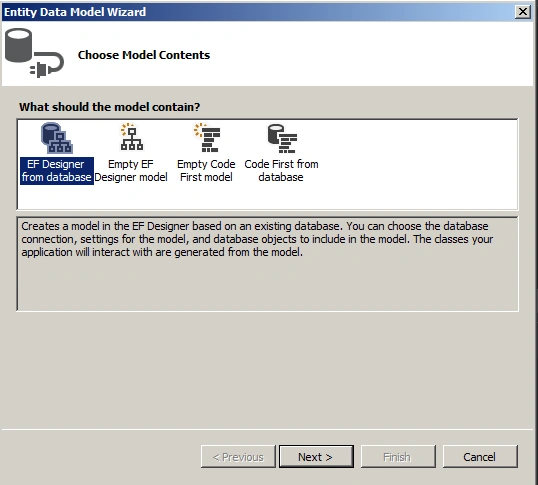

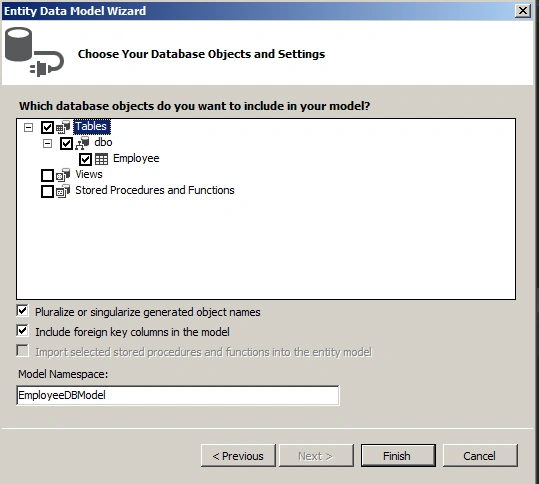

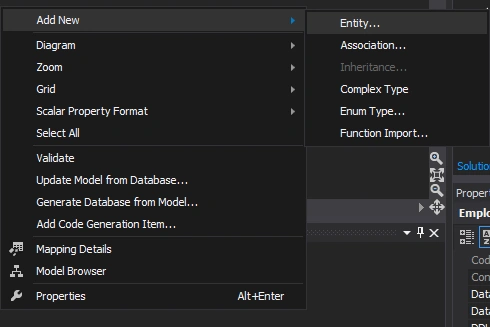

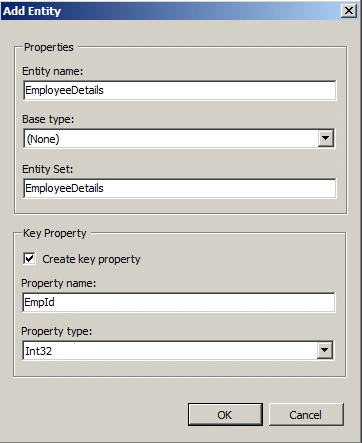

Set up Entity Framework as in the following:

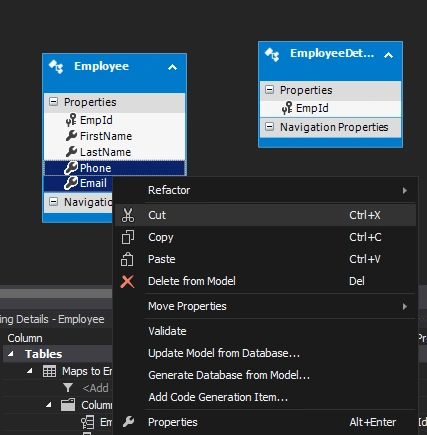

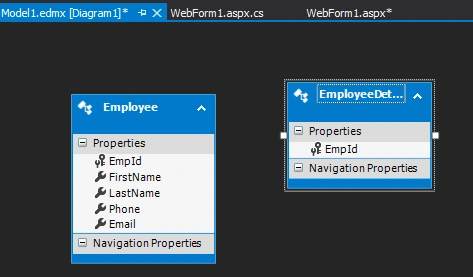

Cut columns from the Employee entity as in the following:


Paste them into the EmployeeDetails entity as in the following:

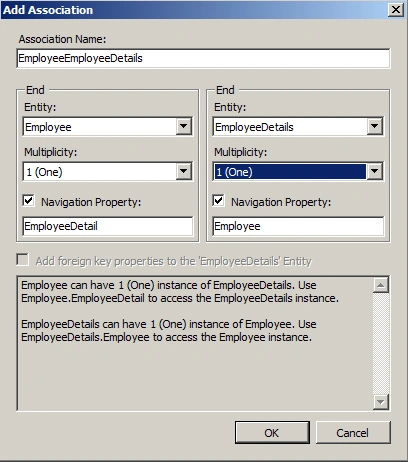

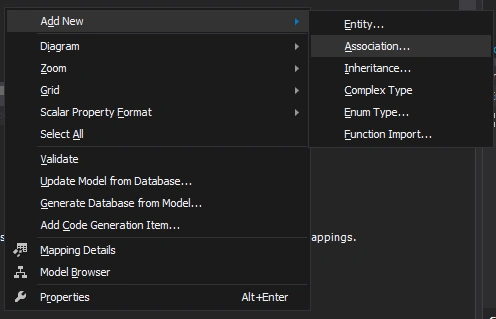

Add an association between Employee and EmployeeDetails as in the following:

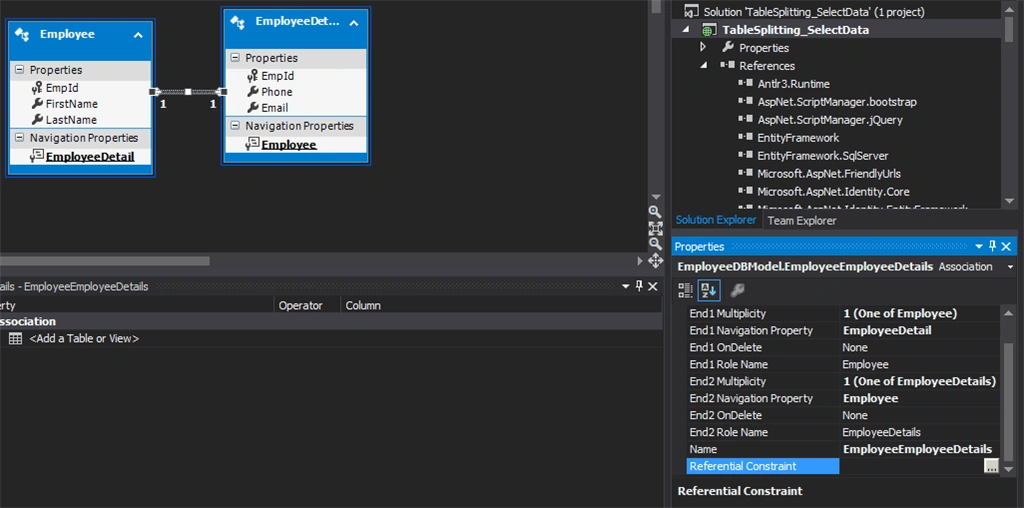

Referential Constraints


Webform1.aspx

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="Table_Splitting_Delete_Data.WebForm1" %>
  3. <!DOCTYPE html>
  5. <html xmlns="http://www.w3.org/1999/xhtml">
  6. <head runat="server">
  7. <title></title>
  8. </head>
  9. <body>
  10. <form id="form1" runat="server">
  11. <div>
  12. <asp:Button ID="Button1" runat="server" Text="Delete" OnClick="Button1_Click" style="height: 26px" />
  13. </div>
  14. </form>
  15. </body>
  16. </html>

Webform1.aspx.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Data.Entity;
  4. using System.Linq;
  5. using System.Web;
  6. using System.Web.UI;
  7. using System.Web.UI.WebControls;
  9. namespace Table_Splitting_Delete_Data
  10. {
  11. public partial class WebForm1 : System.Web.UI.Page
  12. {
  13. protected void Page_Load(object sender, EventArgs e)
  14. {
  16. }
  18. protected void Button1_Click(object sender, EventArgs e)
  19. {
  20. using (var dbContext = new EmployeeDBEntities())
  21. {
  22. var master = dbContext.Set<Employee>().Include(m => m.EmployeeDetail)
  23. .SingleOrDefault(m => m.EmpId == 1);
  24. dbContext.Set<Employee>().Remove(master);
  25. dbContext.SaveChanges();
  26. }
  27. }
  28. }
  29. }

The following is the output of the application:

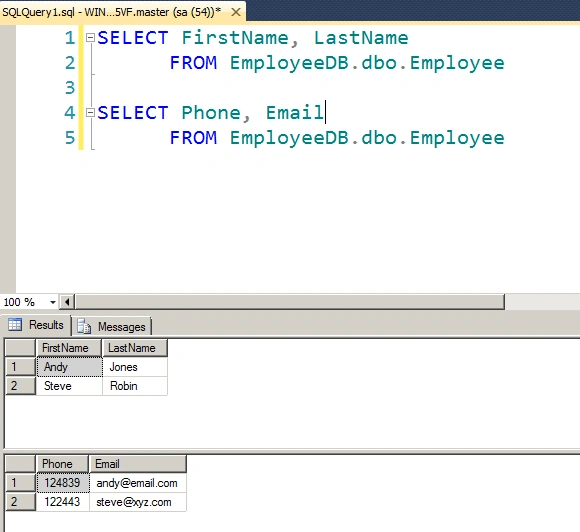

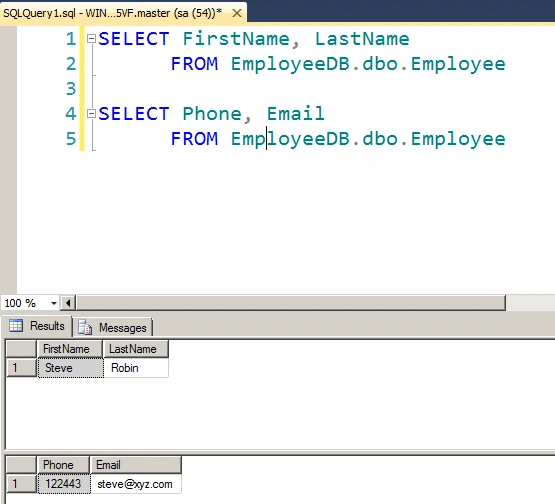

Before delete:

After deletion:

Summary

In this article we saw how to do table splitting and delete data operations. Happy coding!
