Show all DataServer, Show all database of a selected DataServer and take backup of a selected database.

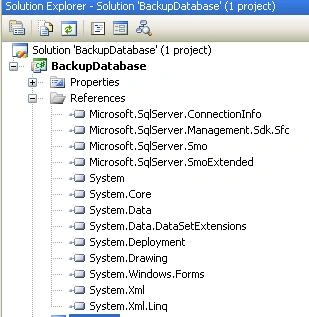

These are the reference list..


Image 1.

This is my c# code
  1. using System;
  2. using System.Collections.Generic;
  3. using System.ComponentModel;
  4. using System.Data;
  5. using System.Drawing;
  6. using System.Linq;
  7. using System.Text;
  8. using System.Windows.Forms;
  9. using Microsoft.SqlServer.Server;
  10. using Microsoft.SqlServer.Management.Smo;
  11. using Microsoft.SqlServer.Management;
  12. using System.IO;
  13. namespace WindowsFormsApplication1
  14. {
  15. public partial class Form1 : Form
  16. {
  17. public Form1()
  18. {
  19. InitializeComponent();
  20. }
  21. private void Form1_Load(object sender, EventArgs e)
  22. {
  23. GetAllServer();
  24. }
  25. //To Get All Server
  26. private void GetAllServer()
  27. {
  28. DataTable dt = SmoApplication.EnumAvailableSqlServers(false);
  29. if (dt.Rows.Count > 0)
  30. {
  31. foreach (DataRow dr in dt.Rows)
  32. {
  33. comboBoxServer.Items.Add((dr["Name"]));
  34. }
  35. }
  36. }
  37. //To Get All DataBase of a Selected Server
  38. private void GetAllDataBase()
  39. {
  40. System.Data.SqlClient.SqlConnection SqlCon = new System.Data.SqlClient.SqlConnection("server=" + comboBoxServer.SelectedItem.ToString() + ";uid=" + textBoxUid.Text + ";pwd=" + textBoxPassword.Text + ";");
  41. SqlCon.Open();
  42. System.Data.SqlClient.SqlCommand SqlCom = new System.Data.SqlClient.SqlCommand();
  43. SqlCom.Connection = SqlCon;
  44. SqlCom.CommandType = CommandType.StoredProcedure;
  45. SqlCom.CommandText = "sp_databases";
  46. System.Data.SqlClient.SqlDataReader SqlDR;
  47. SqlDR = SqlCom.ExecuteReader();
  48. while (SqlDR.Read())
  49. {
  50. comboBoxDatabaseList.Items.Add(SqlDR.GetString(0));
  51. }
  52. }
  53. //To Take Backup
  54. private void TakeBackUp(string BackupDBName, string FileNamePath)
  55. {
  56. try
  57. {
  58. if (textBoxUid.Text != "" && textBoxPassword.Text != "")
  59. {
  60. Server sqlServerInstance = new Server(new Microsoft.SqlServer.Management.Common.ServerConnection(new System.Data.SqlClient.SqlConnection("Data Source=" + comboBoxServer.SelectedItem.ToString() + ";Initial Catalog=" + comboBoxDatabaseList.SelectedItem.ToString() + "; uid=" + textBoxUid.Text + "; pwd=" + textBoxPassword.Text + ";")));
  61. Backup objBackup = new Backup();
  62. objBackup.Devices.AddDevice(FileNamePath, DeviceType.File);
  63. objBackup.Database = BackupDBName;
  64. objBackup.Action = BackupActionType.Database;
  65. objBackup.SqlBackup(sqlServerInstance);
  66. MessageBox.Show("The backup of database " + "'" + BackupDBName + "'" + " completed sccessfully", "Microsoft SQL Server Management Studio", MessageBoxButtons.OK, MessageBoxIcon.Information);
  67. }
  68. else
  69. {
  70. MessageBox.Show("Please enter userId and password");
  71. }
  72. }
  73. catch (Exception ex)
  74. {
  75. MessageBox.Show(ex.Message);
  76. }
  77. }
  78. private void button1_Click(object sender, EventArgs e)
  79. {
  80. if (comboBoxDatabaseList.SelectedIndex > 0)
  81. {
  82. if (textBoxBackFileName.Text != "")
  83. {
  84. TakeBackUp(comboBoxDatabaseList.SelectedItem.ToString(), "D:\\" + textBoxBackFileName.Text + ".bak");
  85. }
  86. else
  87. {
  88. MessageBox.Show("Please type a name for backup file");
  89. }
  91. }
  92. else
  93. {
  94. MessageBox.Show("Please select a database to backup");
  95. }
  96. }
  97. private void button2_Click(object sender, EventArgs e)
  98. {
  99. this.Dispose();
  100. }
  101. private void comboBoxServer_SelectedIndexChanged(object sender, EventArgs e)
  102. {
  103. comboBoxDatabaseList.Items.Clear();
  104. textBoxUid.Text = "";
  105. textBoxPassword.Text = "";
  106. MessageBox.Show("Enter UserId And Password to connect this DataSource.");
  107. }
  108. private void buttonConnectDb_Click(object sender, EventArgs e)
  109. {
  110. if (comboBoxServer.SelectedIndex > 0)
  111. {
  112. if (textBoxUid.Text != "" && textBoxPassword.Text != "")
  113. {
  114. GetAllDataBase();
  115. MessageBox.Show("Successfully Connected.");
  116. }
  117. else
  118. {
  119. MessageBox.Show("Please enter userId and password");
  120. }
  121. }
  122. else
  123. {
  124. MessageBox.Show("Please select a Server to connect");
  125. }
  126. }
  127. }
  128. }

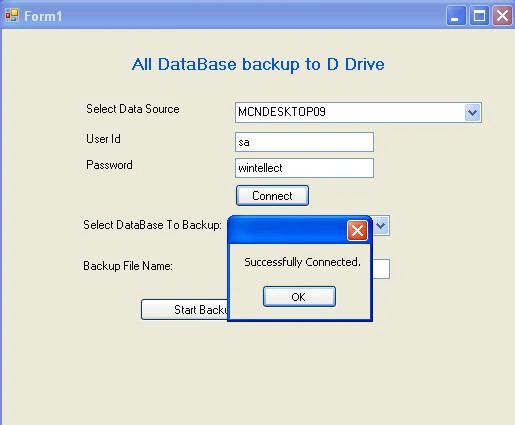

When running the application


Image 2.

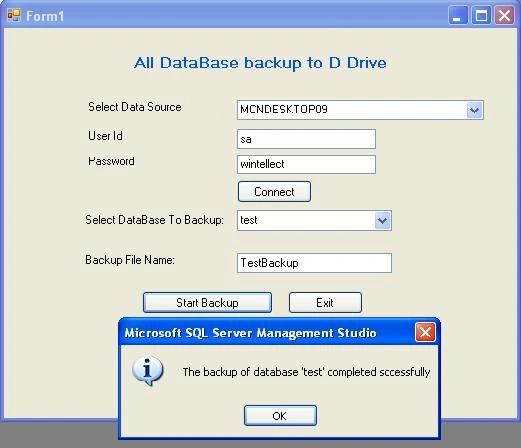

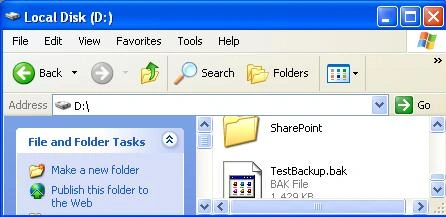

After successfully connecting select database and type the name of backup file this backup file will save in D Drive(You can change the location).


Image 3.


Image 4.
