Transforming Objects Movement Using C# Scripts In Unity

Introduction


This article demonstrates how to move objects using C# scripts in Unity.

Prerequisites

Unity Environment version 2018.4.19f1

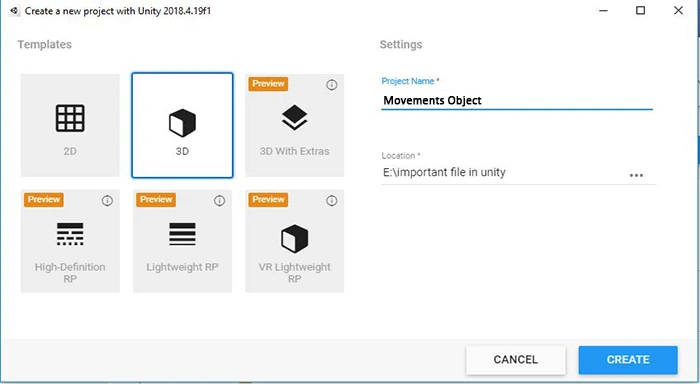

Create a New Project


Transforming Objects Movement Using C# Scripts In Unity


Create objects in Unity

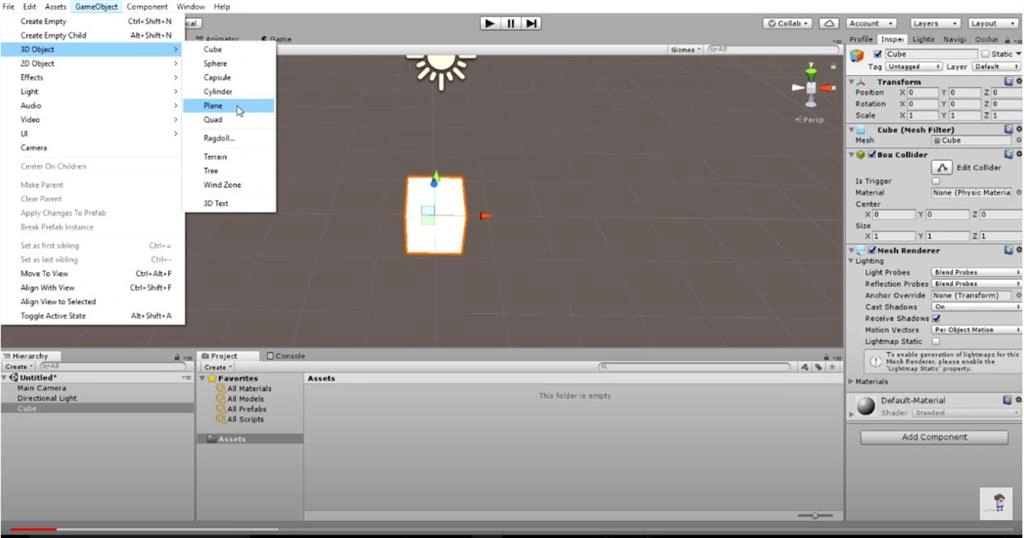

First, you have to open the Unity project. Create the Plane for your game.

Transforming Objects Movement Using C# Scripts In Unity

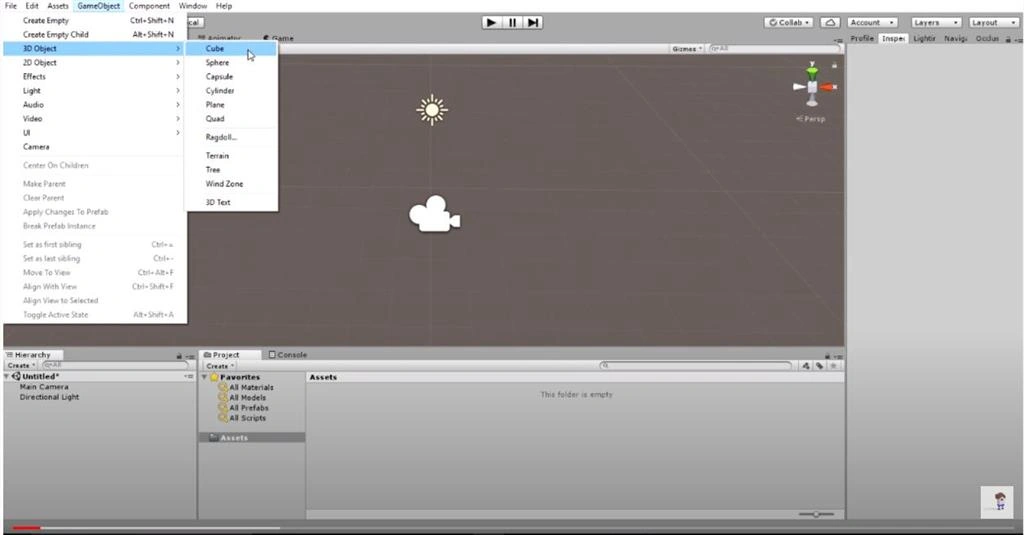

Click on the "GameObject" menu in the menu bar. Select 3D objects and pick the "Cube" option.

Transforming Objects Movement Using C# Scripts In Unity

The cube will be added to the scene View.

Transforming Objects Movement Using C# Scripts In Unity

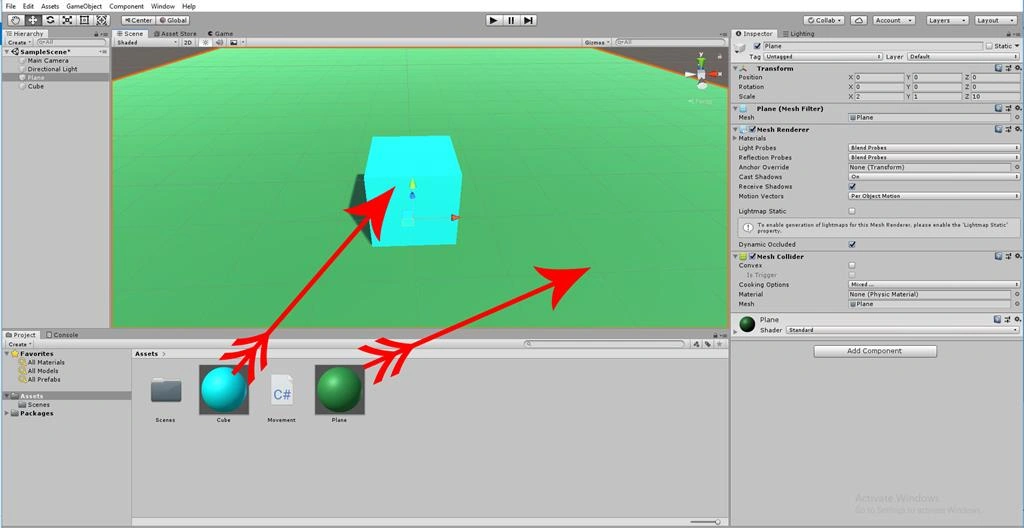

Drag and drop the Skyblue and Green material. The color of the Cube & Plane will be changed into Skyblue and Green.

Transforming Objects Movement Using C# Scripts In Unity

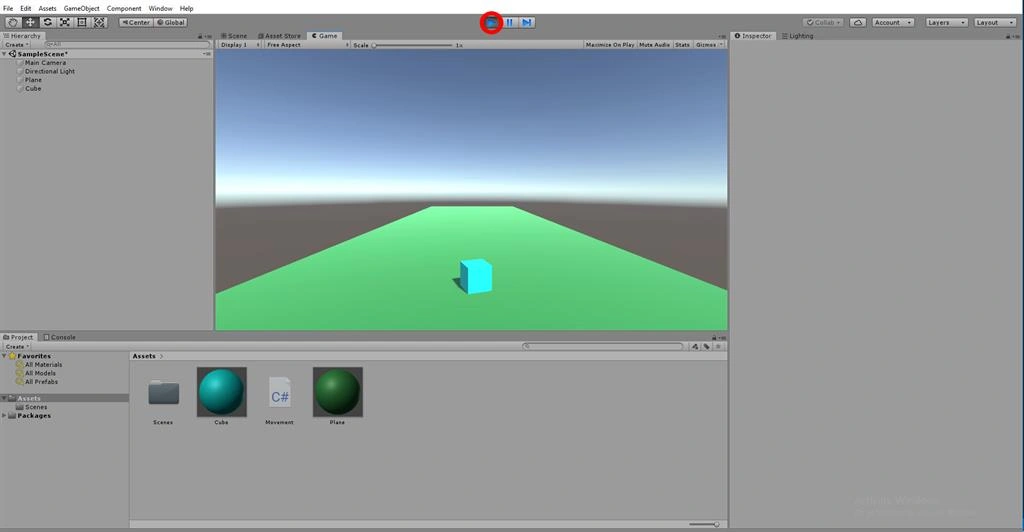

Click on the Play button. The cube will now appear in game View.

Transforming Objects Movement Using C# Scripts In Unity


Create C# Script

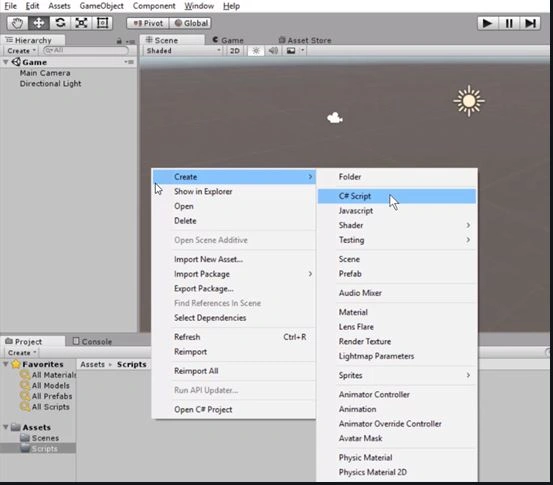

Right click on Assets. Select Create >> C# script.

Transforming Objects Movement Using C# Scripts In Unity

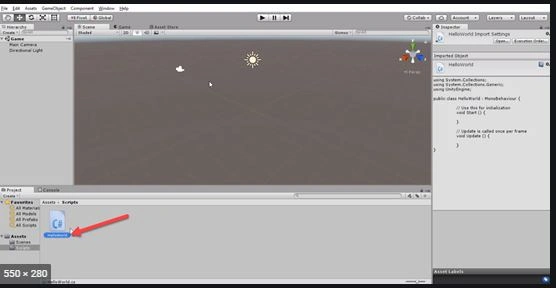

Rename the script as move.

Transforming Objects Movement Using C# Scripts In Unity

Write the predefined coding like the following,

(Jump,Horizontal,Vertical)
  1. using System.Collections;
  2. using System.Collections.Generic;
  3. using UnityEngine;
  4.
  5. public class Movement : MonoBehaviour
  6. {
  7.     Vector3 Vec;
  8.     // Start is called before the first frame update
  9.     void Start()
  10.     {
  11.
  12.     }
  13.
  14.     // Update is called once per frame
  15.     void Update()
  16.     {
  17.
  18.         Vec = transform.localPosition;
  19.         Vec.y += Input.GetAxis("Jump") * Time.deltaTime * 20;
  20.         Vec.x += Input.GetAxis("Horizontal") * Time.deltaTime * 20;
  21.         Vec.z += Input.GetAxis("Vertical") * Time.deltaTime * 20;
  22.         transform.localPosition = Vec;
  23.     }
  24. }

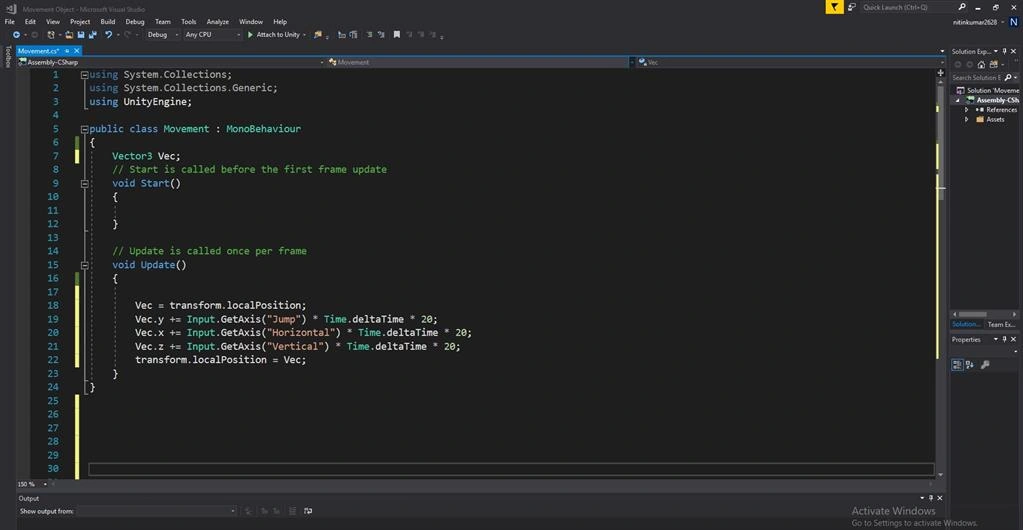

Save the program.

Transforming Objects Movement Using C# Scripts In Unity

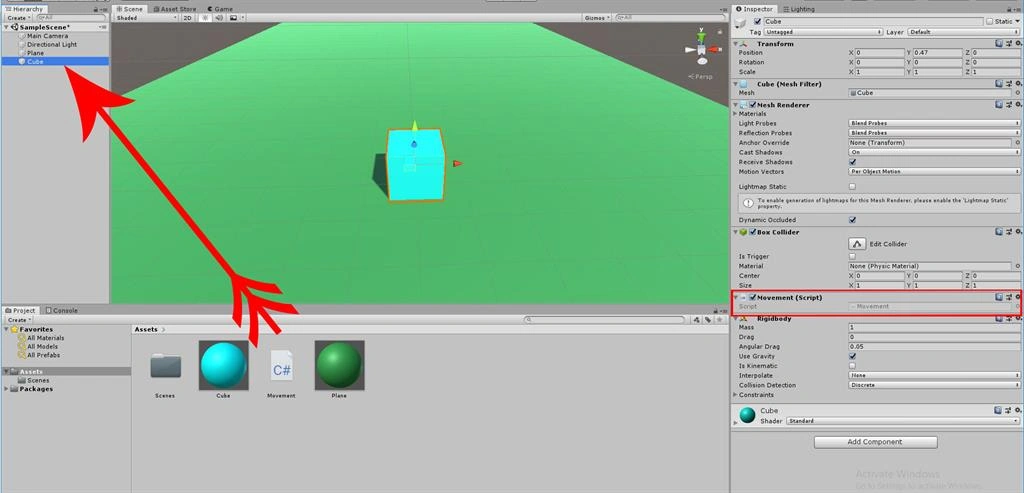

Go back to the Unity window. Drag and drop the move script onto the cube.

Transforming Objects Movement Using C# Scripts In Unity

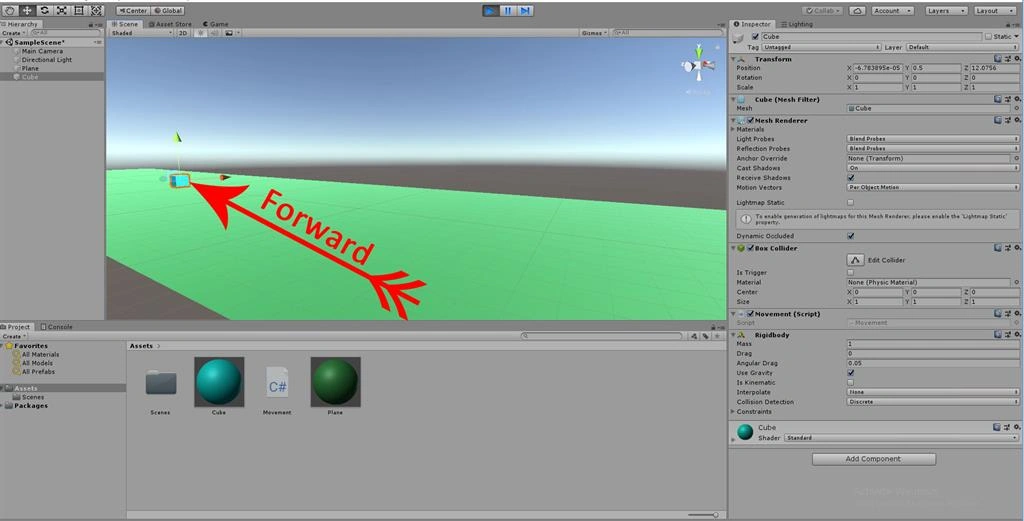

Click on the Play button. Press "Up Arrow" Key, and the Cube will move in a forward direction.

Transforming Objects Movement Using C# Scripts In Unity

Press the "Down Arrow" Key, and the Cube will move in a backwards direction.

Transforming Objects Movement Using C# Scripts In Unity

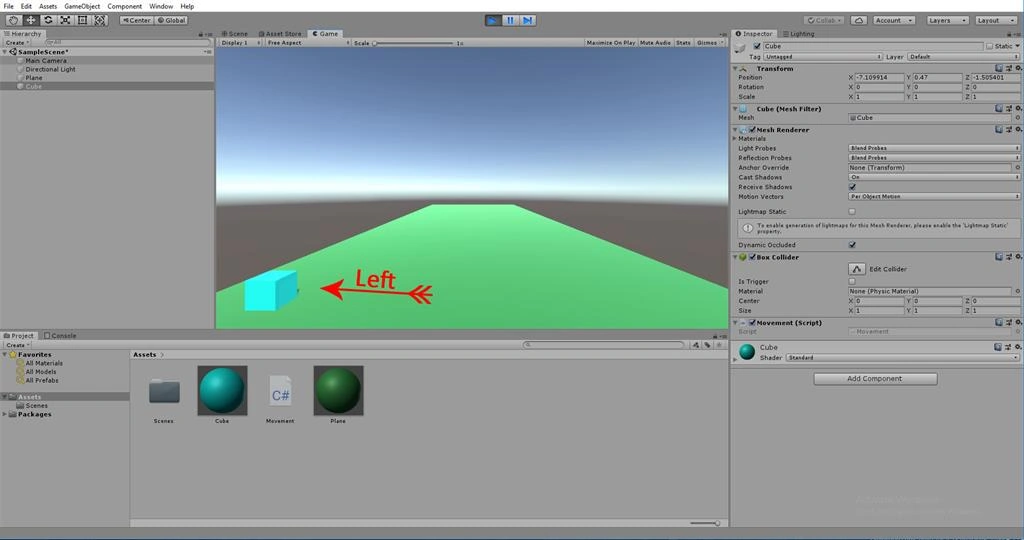

Press the "Left Arrow" Key, and the Cube will move to the left.

Transforming Objects Movement Using C# Scripts In Unity

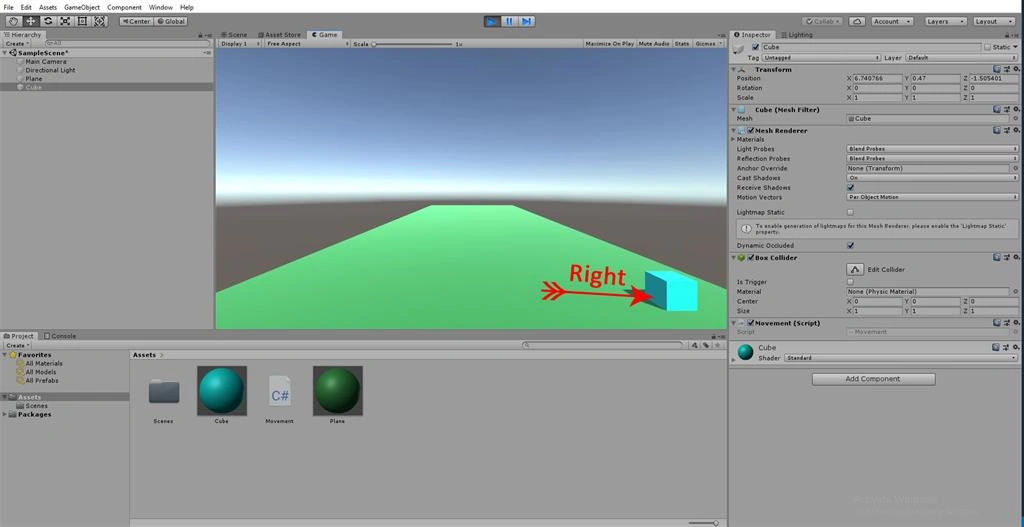

Press the  "Right Arrow" Key, and the Cube will move to the  right.

Transforming Objects Movement Using C# Scripts In Unity

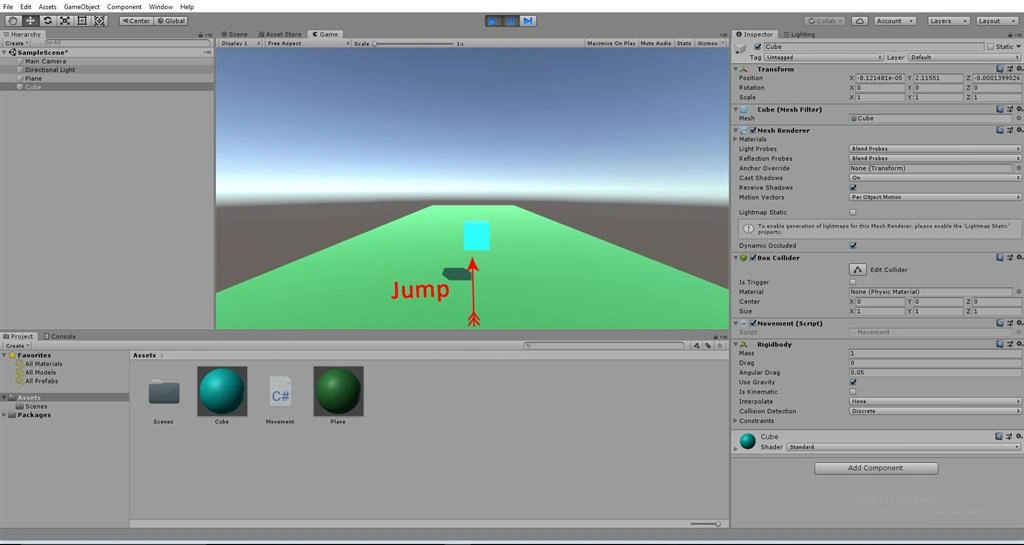

Press the "Space" Key, and the Cube will jump.
Transforming Objects Movement Using C# Scripts In Unity

Move and Rotate the object by Arrow key press
  1. using System.Collections;
  2. using System.Collections.Generic;
  3. using UnityEngine;
  4.
  5. public class Movement : MonoBehaviour
  6. {
  7.
  8.     // Start is called before the first frame update
  9.     void Start()
  10.     {
  11.
  12.     }
  13.
  14.     // Update is called once per frame
  15.     void Update()
  16.     {
  17.
  18.         if (Input.GetKey(KeyCode.UpArrow))
  19.         {
  20.             this.transform.Translate(Vector3.forward * Time.deltaTime);
  21.         }
  22.
  23.         if (Input.GetKey(KeyCode.DownArrow))
  24.         {
  25.             this.transform.Translate(Vector3.back * Time.deltaTime);
  26.         }
  27.
  28.         if (Input.GetKey(KeyCode.LeftArrow))
  29.         {
  30.             this.transform.Rotate(Vector3.up, -10);
  31.         }
  32.
  33.         if (Input.GetKey(KeyCode.RightArrow))
  34.         {
  35.             this.transform.Rotate(Vector3.up, 10);
  36.         }
  37.
  38.     }
  39. }
Save the program.

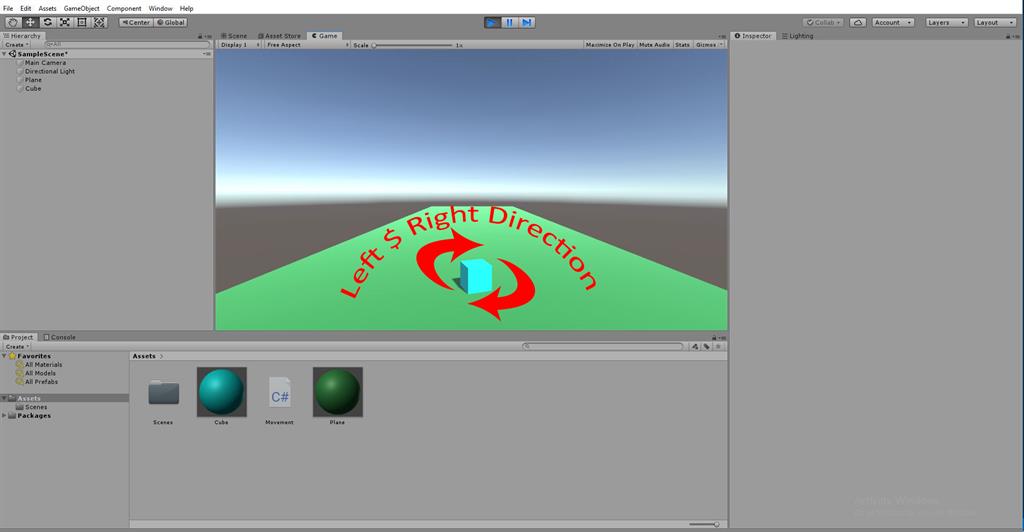

Press "Left & Right Arrow" Key, and the Cube will Rotate to the  left and right.

Transforming Objects Movement Using C# Scripts In Unity

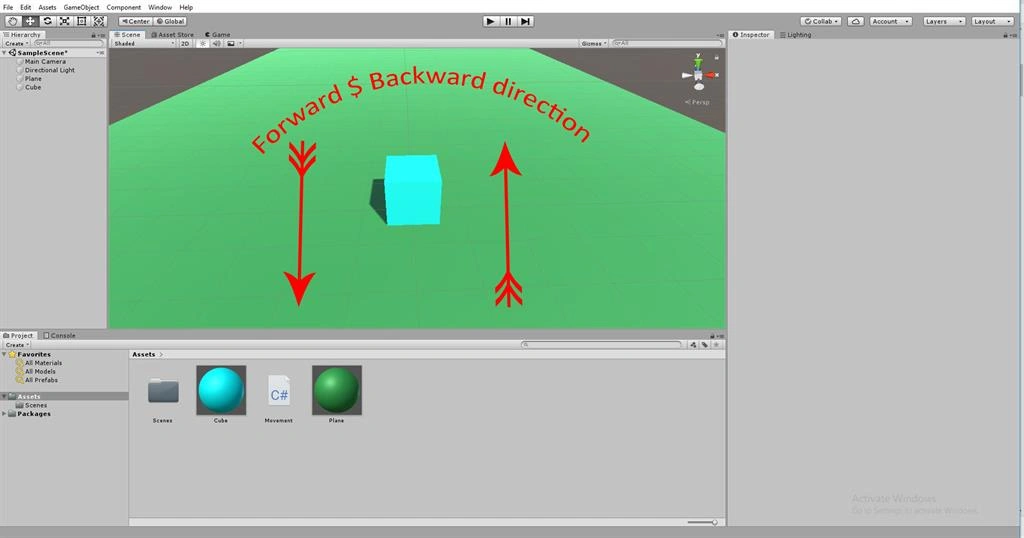

Press the "Up & Down Arrow" Key, and the Cube will move  forward and backwards.

Transforming Objects Movement Using C# Scripts In Unity

Move the object by key press.

Write the code like the following.
  1. using System.Collections;
  2. using System.Collections.Generic;
  3. using UnityEngine;
  4.
  5. public class Movement : MonoBehaviour
  6. {
  7.
  8.     // Start is called before the first frame update
  9.     void Start()
  10.     {
  11.
  12.     }
  13.
  14.     // Update is called once per frame
  15.     void Update()
  16.     {
  17.         if (Input.GetKey(KeyCode.A))
  18.         {
  19.             transform.Translate(0.1f, 0f, 0f);
  20.         }
  21.         if (Input.GetKey(KeyCode.D))
  22.         {
  23.             transform.Translate(-0.1f, 0f, 0f);
  24.         }
  25.         if (Input.GetKey(KeyCode.S))
  26.         {
  27.             transform.Translate(0.0f, 0f, -0.1f);
  28.         }
  29.         if (Input.GetKey(KeyCode.W))
  30.         {
  31.             transform.Translate(0.0f, 0f, 0.1f);
  32.         }
  33.     }
  34. }
Save the program.

Go to Unity window. Click on the Play button. Press the “W” key. The object will move forward.

Transforming Objects Movement Using C# Scripts In Unity

Press the “S” key. The object will move  backwards.

Transforming Objects Movement Using C# Scripts In Unity

Press “D” key. The object will move to the right side.

Transforming Objects Movement Using C# Scripts In Unity

Press the “A” key. The object will move to the left side.

Transforming Objects Movement Using C# Scripts In Unity


Summary


I hope,you understood how to transform where objects move using C# scripts in Unity.
