Understand Bound Action In Power Automate

Introduction

During certain scenarios, it is required to call bound action. To call a bound action we can do it with JavaScript, plugins and power automate. In all the other methods except power automate you have to write explicit logic to call a bound action. As an example, we call a sample bound action which was built for contact entity/table from power automate.

Step 1

Login to the required Power Apps environment using URL make.powerapps.com by providing username and password and click on Flows on the left-hand side as shown in the below figure.

Understand Bound Action in Power Automate

Step 2

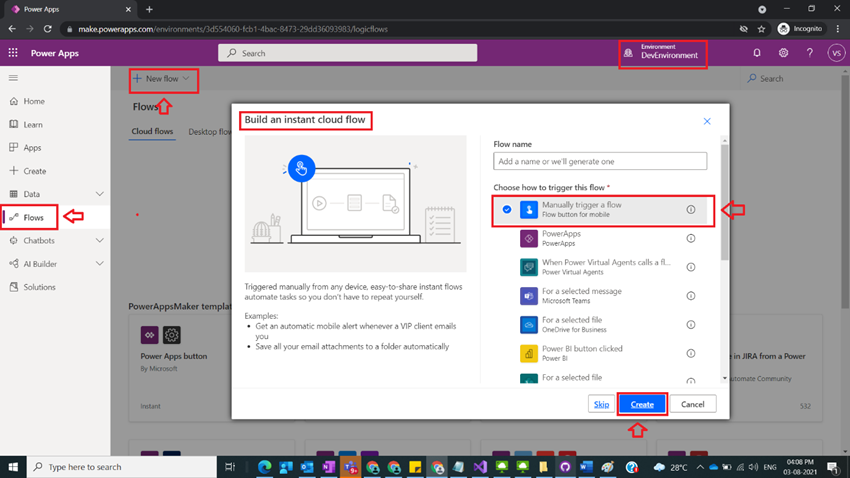

After Step 1, Click on New Flow and select instant cloud flow and provide the trigger as Manually trigger a flow and click on Create as shown in the below figure.

Understand Bound Action in Power Automate

Step 3

After Step 2, you have to build a bound action on contact entity with input and output arguments of string type as shown in the below figure.

Understand Bound Action in Power Automate

Step 4

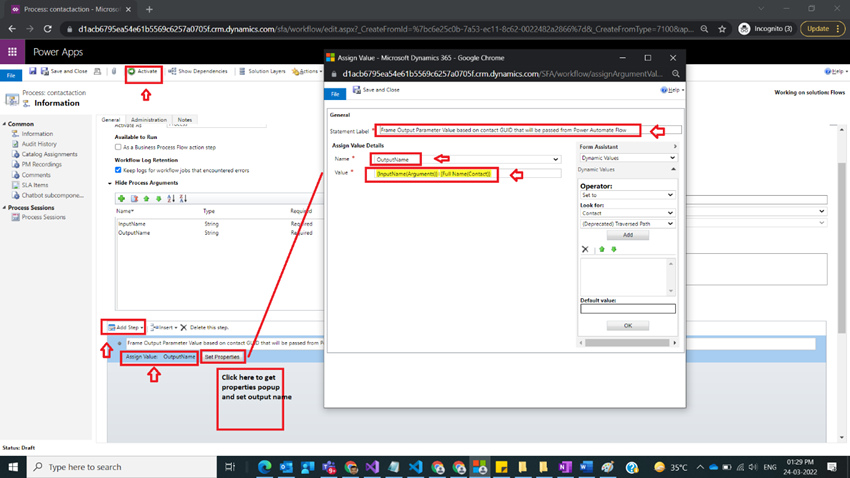

After Step 3, make sure to use Assign value Step, and then on click of properties button a popup will open there provide the value for outputName by providing full name of the contact and activate action after closing popup as shown in the below figure.

Understand Bound Action in Power Automate

Step 5

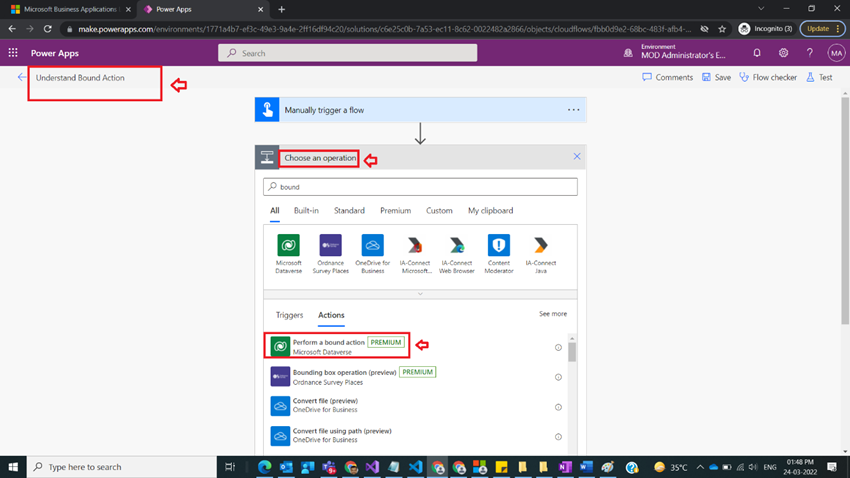

After Step 4, go back to the flow screen which we have created in step 2 and name the flow as Understand Bound Action, and under actions select perform a bound action as shown in the below figure.

Understand Bound Action in Power Automate

Step 6

After Step 5, under perform a bound action provide the following inputs

Table name : contacts
Action name : cr5bc_contactaction
Row ID : 42f3c213-2f63-ec11-8f8f-000d3a9ebd69 <copy guid of any contact record and paste it here>
Input Name : Contact Full Name

as shown in the below figure.

Understand Bound Action in Power Automate

Step 7

After Step 6, take compose action and select outputname as an input

Inputs : @{outputs('Perform_a_bound_action')?['body/OutputName']}

as shown in the below figure.

Understand Bound Action in Power Automate

Step 8

After Step 7, save and test the flow and observe output as shown in the below figure.

Understand Bound Action in Power Automate

Note

  1. In action, under add step you can specify condition as well, just for demo purpose I have not provided it.
  2. If you don’t see output parameter property in the result JSON, then the issue was in the action you have not assigned any value to output Name.
  3. In case you are using automated flow then in step 6 no need of hardcoding contact GUID, you can directly extract the value from contact and assign.

Conclusion

In this way, we can call bound action from power automate without writing explicit code.
