Update View Using JSON Data In MVC Using AJAX

Here are the steps,

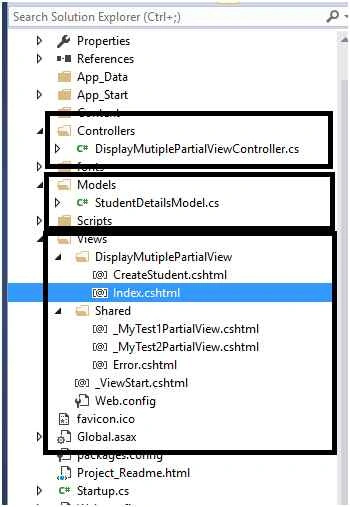

Step 1: Create the basic structure of your project, View and View Model.

Step 2: Create Controller add Action which will return the JSON result, My Controller is as below. Note I have added action which return the JSON result.

using DropdownGrid.Models;
using System;
using System.Web.Mvc;
namespace DropdownGrid.Controllers
{
public class JSONANDAJAXDemoController: Controller
{
public ActionResult Index()
{
MyMultipleUpdateViewModel obj = new MyMultipleUpdateViewModel();
obj.myTest1ViewModel = new MyTest1ViewModel();
obj.myTest1ViewModel.MyTestUpdate = "Test1";
obj.myTest2ViewModel = new MyTest2ViewModel();
obj.myTest2ViewModel.MyTestUpdate = "Test2";
return View(obj);
}
public JsonResult GetJSONObject()
{
MyMultipleUpdateViewModel obj = new MyMultipleUpdateViewModel();
obj.myTest1ViewModel = new MyTest1ViewModel();
obj.myTest1ViewModel.MyTestUpdate = "Test1" + DateTime.Now.ToString();
obj.myTest2ViewModel = new MyTest2ViewModel();
obj.myTest2ViewModel.MyTestUpdate = "Test2" + DateTime.Now.ToString();
return Json(obj, JsonRequestBehavior.AllowGet);
}
}
}

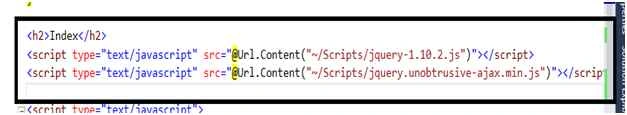

Step 3: Include jQuery and AJAX in your project.

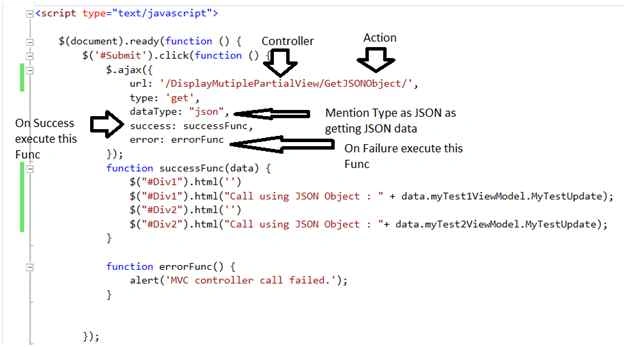

Case 4: Give call for your JSON action as in the following way,

This is my AJAX call to JSON action.

<script type="text/javascript">
$(document)
.ready(function ()
{
$('#Submit')
.click(function ()
{
$.ajax(
{
url: '/JSONANDAJAXDemo/GetJSONObject/',
type: 'get',
dataType: "json",
success: successFunc,
error: errorFunc
});
function successFunc(data)
{
$("#Div1")
.html('')
$("#Div1")
.html("Call using JSON Object : " + data.myTest1ViewModel.MyTestUpdate);
$("#Div2")
.html('')
$("#Div2")
.html("Call using JSON Object : " + data.myTest2ViewModel.MyTestUpdate);
}
function errorFunc()
{
alert('MVC controller call failed.');
}
});
});
</script>

Note: You may add table or design in any form of HTML.

Step 5: Include div’s in your code .

<div id="Div1"> Initial State : @Model.myTest1ViewModel.MyTestUpdate </div>
<div id="Div2"> Initial State : @Model.myTest2ViewModel.MyTestUpdate </div>
<input type="submit" value="Load Json Object Data" id="Submit" />

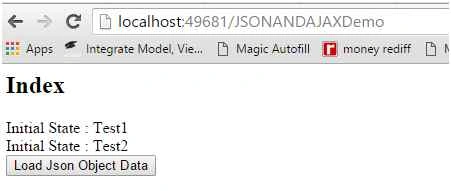

Step 6: Run the project and click on button you will find the JSON data displaying in the Initial view state.

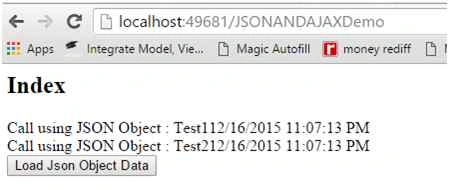

On click load button:

Index
