Using Error Provider Control in Windows Forms and C#

Introduction

In this example, we will see how to use the ErrorProvider control in Windows forms to provide validations in Windows Forms and display user-friendly error messages to the user if the validation fails.

Error Provider

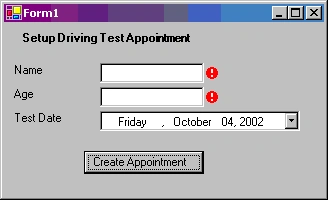

Figure 1. Error Provider Sample

The complete code listing is provided at the end of the sample.

Create a new Visual C# Windows Forms application. The project will create a default form, Form1.cs. Add controls as shown in the figure below and set the properties of the controls as indicated in the table.

Sample Form

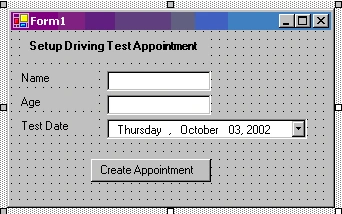

Figure 2. Sample Form Layout

Control	Property Name	Property Value
Label	Text	"Setup Driving Test Appointment"
Label	Text	"Name"
TextBox	Text	""
Label	Text	"Age"
TextBox	Text	""
Label	Text	"Test Date"
DateTimePicker	Text	"Create Appointment"
Button	Text

Table 1. Properties for Sample Form Layout Controls

Now add an ErrorProvider control to the Form. In Visual Studio.Net, you can drag and drop the control from the toolbox. The control is added to the form and displayed in the control tray in the Windows form in the Design view. If you are not using Visual Studio.Net, then you can add the control in the code. Please refer to the code listing provided at the end of the article.

Now create an event handler for the "Validating" event of the textBox1 control. We will validate the TextBox to ensure that the user has entered a value.

private void textBox1_Validating(object sender, System.ComponentModel.CancelEventArgs e)
{
    ValidateName();
}
private bool ValidateName()
{
    bool bStatus = true;
    if (textBox1.Text == "")
    {
        errorProvider1.SetError(textBox1, "Please enter your Name");
        bStatus = false;
    }
    else
    {
        errorProvider1.SetError(textBox1, "");
    }
    return bStatus;
}

Code Snippet: Validate the Name TextBox

Next, we will add the validations for the textBox2 control which accepts Age as the data input. We will ensure that the Age is mandatory, is in numeric format and the user is 18 years or older.

private void textBox2_Validating(object sender, System.ComponentModel.CancelEventArgs e)
{
    ValidateAge();
}
private bool ValidateAge()
{
    bool bStatus = true;
    if (textBox2.Text == "")
    {
        errorProvider1.SetError(textBox2, "Please enter your Age");
        bStatus = false;
    }
    else
    {
        errorProvider1.SetError(textBox2, "");
        try
        {
            int temp = int.Parse(textBox2.Text);
            errorProvider1.SetError(textBox2, "");

            if (temp < 18)
            {
                errorProvider1.SetError(textBox2, "You must be at least 18 years old to setup a test");
                bStatus = false;
            }
            else
            {
                errorProvider1.SetError(textBox2, "");
            }
        }
        catch
        {
            errorProvider1.SetError(textBox2, "Please enter your age as a number");
            bStatus = false;
        }
    }

    return bStatus;
}

Code Snippet: Validate the Age TextBox

Now we will add the validations for the DateTimePicker controls which collects the Test Date information. We will implement the business rule to allow test appointments to be set up on weekdays only using validation on the form.

private void dateTimePicker1_Validating(object sender, System.ComponentModel.CancelEventArgs e)
{
    ValidateTestDate();
}
private bool ValidateTestDate()
{
    bool bStatus = true;
    if ((dateTimePicker1.Value.DayOfWeek == DayOfWeek.Sunday) ||
        (dateTimePicker1.Value.DayOfWeek == DayOfWeek.Saturday))
    {
        errorProvider1.SetError(dateTimePicker1, "Appointment cannot be scheduled on the weekend. Please select a weekday.");
        bStatus = false;
    }
    else
    {
        errorProvider1.SetError(dateTimePicker1, "");
    }
    return bStatus;
}

Code Snippet: Validate the Date Selection

Invoking the SetError method of the ErrorProvider control displays an error indicator image next to the control specified as the first argument to the SetError method. The string specified in the second argument in the function invocation is displayed as the tooltip when the mouse is moved over the Error indicator.

When the user enters data in the controls that fail validation, a blinking error image is displayed on the form next to the control, and the error message is displayed as a tooltip to the error image.

You can display multiple error indications on a form at the same time using the same ErrorProvider control. You can also display errors that occur in DataSets. You need to set the DataSource, DataMember, and ContainerControl properties of the ErrorProvider control to set the error for a databound control. To display the dataset column error, invoke the SetColumnError method of the ErrorProvider.

You can customize the ErrorProvider control to set the BlinkRate and BlinkStyle. You can also display a custom error image instead of the default image.

Now we will add code in our sample to validate the complete form when the "Create Appointment" button is clicked.

private void ValidateForm()
{
    bool bValidName = ValidateName();
    bool bValidAge = ValidateAge();
    bool bValidTestDate = ValidateTestDate();
    if (bValidName && bValidAge && bValidTestDate)
    {
        MessageBox.Show("Appointment will be created now");
    }
    else
    {
        MessageBox.Show("Please enter valid data");
    }
}

Code Snippet: Validate all form controls when the Create Appointment button is clicked

If the user clicks the Create Appointment button and the data is not valid, error indicators are displayed next to the controls with invalid data.

Validation in Action

Validation Form

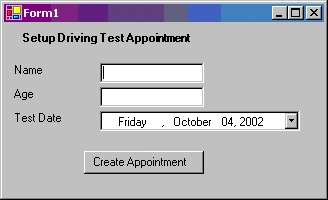

Figure 3. Validation Form

Validation Errors

Figure 4. Validation Errors

Error message

Figure 5. Error message displayed in addition to the form error indicators.

Complete Code Listing: Save as ValidatingForm.cs.

using System;
using System.Drawing;
using System.Collections;
using System.ComponentModel;
using System.Windows.Forms;
using System.Data;
namespace SampleApp
{
    public class Form1 : System.Windows.Forms.Form
    {
        private System.Windows.Forms.Label label1;
        private System.Windows.Forms.TextBox textBox1;
        private System.Windows.Forms.TextBox textBox2;
        private System.Windows.Forms.Label label2;
        private System.Windows.Forms.Label label3;
        private System.Windows.Forms.DateTimePicker dateTimePicker1;
        private System.Windows.Forms.Label label4;
        private System.Windows.Forms.Button button1;
        private System.Windows.Forms.ErrorProvider errorProvider1;
        public Form1()
        {
            this.label1 = new System.Windows.Forms.Label();
            this.textBox1 = new System.Windows.Forms.TextBox();
            this.textBox2 = new System.Windows.Forms.TextBox();
            this.label2 = new System.Windows.Forms.Label();
            this.label3 = new System.Windows.Forms.Label();
            this.dateTimePicker1 = new System.Windows.Forms.DateTimePicker();
            this.label4 = new System.Windows.Forms.Label();
            this.button1 = new System.Windows.Forms.Button();
            this.errorProvider1 = new System.Windows.Forms.ErrorProvider();
            this.SuspendLayout();
            // Label1
            this.label1.Location = new System.Drawing.Point(8, 40);
            this.label1.Name = "label1";
            this.label1.Size = new System.Drawing.Size(80, 16);
            this.label1.TabIndex = 0;
            this.label1.Text = "Name";
            this.label1.Click += new System.EventHandler(this.label1_Click);
            // TextBox1
            this.textBox1.Location = new System.Drawing.Point(96, 40);
            this.textBox1.Name = "textBox1";
            this.textBox1.Size = new System.Drawing.Size(104, 20);
            this.textBox1.TabIndex = 1;
            this.textBox1.Text = "";
            this.textBox1.Validating += new System.ComponentModel.CancelEventHandler(this.textBox1_Validating);
            // Label2
            this.label2.Location = new System.Drawing.Point(8, 64);
            this.label2.Name = "label2";
            this.label2.Size = new System.Drawing.Size(80, 16);
            this.label2.TabIndex = 3;
            this.label2.Text = "Age";
            // TextBox2
            this.textBox2.Location = new System.Drawing.Point(96, 64);
            this.textBox2.Name = "textBox2";
            this.textBox2.Size = new System.Drawing.Size(104, 20);
            this.textBox2.TabIndex = 4;
            this.textBox2.Text = "";
            this.textBox2.Validating += new System.ComponentModel.CancelEventHandler(this.textBox2_Validating);
            // Label3
            this.label3.Location = new System.Drawing.Point(8, 88);
            this.label3.Name = "label3";
            this.label3.Size = new System.Drawing.Size(80, 16);
            this.label3.TabIndex = 5;
            this.label3.Text = "Test Date";
            // DateTimePicker1
            this.dateTimePicker1.Location = new System.Drawing.Point(96, 88);
            this.dateTimePicker1.Name = "dateTimePicker1";
            this.dateTimePicker1.TabIndex = 6;
            this.dateTimePicker1.Validating += new System.ComponentModel.CancelEventHandler(this.dateTimePicker1_Validating);
            // Label4
            this.label4.Font = new System.Drawing.Font("Microsoft Sans Serif", 8.25F, System.Drawing.FontStyle.Bold, System.Drawing.GraphicsUnit.Point, ((System.Byte)(0)));
            this.label4.Location = new System.Drawing.Point(16, 8);
            this.label4.Name = "label4";
            this.label4.Size = new System.Drawing.Size(184, 23);
            this.label4.TabIndex = 7;
            this.label4.Text = "Setup Driving Test Appointment";
            // Button1
            this.button1.Location = new System.Drawing.Point(80, 128);
            this.button1.Name = "button1";
            this.button1.Size = new System.Drawing.Size(120, 23);
            this.button1.TabIndex = 8;
            this.button1.Text = "Create Appointment";
            this.button1.Click += new System.EventHandler(this.button1_Click);
            // ErrorProvider1
            this.errorProvider1.DataMember = null;
            // Form1
            this.AutoScaleBaseSize = new System.Drawing.Size(5, 13);
            this.ClientSize = new System.Drawing.Size(320, 173);
            this.Controls.AddRange(new System.Windows.Forms.Control[] { this.button1, this.label4, this.dateTimePicker1, this.label3, this.label2, this.textBox2, this.textBox1, this.label1 });
            this.Name = "Form1";
            this.Text = "Form1";
            this.Load += new System.EventHandler(this.Form1_Load);
            this.ResumeLayout(false);
        }
        [STAThread]
        static void Main()
        {
            Application.Run(new Form1());
        }
        private void label1_Click(object sender, System.EventArgs e)
        {
        }
        private void Form1_Load(object sender, System.EventArgs e)
        {
            errorProvider1.ContainerControl = this;
        }
        private void textBox1_Validating(object sender, System.ComponentModel.CancelEventArgs e)
        {
            ValidateName();
        }
        private void textBox2_Validating(object sender, System.ComponentModel.CancelEventArgs e)
        {
            ValidateAge();
        }
        private void dateTimePicker1_Validating(object sender, System.ComponentModel.CancelEventArgs e)
        {
            ValidateTestDate();
        }
        private void button1_Click(object sender, System.EventArgs e)
        {
            ValidateForm();
        }
        private void ValidateForm()
        {
            bool bValidName = ValidateName();
            bool bValidAge = ValidateAge();
            bool bValidTestDate = ValidateTestDate();

            if (bValidName && bValidAge && bValidTestDate)
            {
                MessageBox.Show("Appointment will be created now");
            }
            else
            {
                MessageBox.Show("Please enter valid data");
            }
        }
        private bool ValidateName()
        {
            bool bStatus = true;

            if (textBox1.Text == "")
            {
                errorProvider1.SetError(textBox1, "Please enter your Name");
                bStatus = false;
            }
            else
            {
                errorProvider1.SetError(textBox1, "");
            }

            return bStatus;
        }
        private bool ValidateAge()
        {
            bool bStatus = true;
            if (textBox2.Text == "")
            {
                errorProvider1.SetError(textBox2, "Please enter your Age");
                bStatus = false;
            }
            else
            {
                errorProvider1.SetError(textBox2, "");

                try
                {
                    int temp = int.Parse(textBox2.Text);
                    errorProvider1.SetError(textBox2, "");

                    if (temp < 18)
                    {
                        errorProvider1.SetError(textBox2, "You must be at least 18 years old to setup a test");
                        bStatus = false;
                    }
                    else
                    {
                        errorProvider1.SetError(textBox2, "");
                    }
                }
                catch
                {
                    errorProvider1.SetError(textBox2, "Please enter your age as a number");
                    bStatus = false;
                }
            }

            return bStatus;
        }
        private bool ValidateTestDate()
        {
            bool bStatus = true;

            if ((dateTimePicker1.Value.DayOfWeek == DayOfWeek.Sunday) ||
                (dateTimePicker1.Value.DayOfWeek == DayOfWeek.Saturday))
            {
                errorProvider1.SetError(dateTimePicker1, "Appointment cannot be scheduled on the weekend. Please select a weekday");
                bStatus = false;
            }
            else
            {
                errorProvider1.SetError(dateTimePicker1, "");
            }
            return bStatus;
        }
    }
}

Note. This article is purely for demonstration. This article should not be construed as the best practices white paper. This article is entirely original unless specified. Any resemblance to other material is an unintentional coincidence and should not be misconstrued as malicious, slanderous, or anything else hereof.

Conclusion

In this example, we learned how to invoke validate input to Windows Forms controls and display user-friendly informative error messages.
