Introduction

This article explains how to use the Query Operators in Web API2 for filtering the data. For this we need to make the Web API method a Queryable method. Here we use the OData library that provides the [Queryable] attribute to the ASP.NET Web API2.

The following are the various query methods that we can use in the Web API:

  • $top=n: Here n=1,2,3,..... it returns the first n entities from the entity set.
  • $skip=n: Here n=1,2,3,4..... it skips the first n entities from the entity and returns the rest of the entities.
  • $select: It returns only the specified properties of the entity.
  • $filter: It returns only that entities that are matched with the expressions.
  • $orderedby: It returns the result in descending or ascending order. That is the Value of the properties.
  • $format: It defines that the returning data in which format such as XML or JSON.

Use the following procedure to create the Web API application.

Step 1

Create the application using the following:

  • Start Visual Studio 2013.
  • From the Start Window select "New Project".
  • Select "Installed" -> "Template" -> "Visual C#" -> "Web" -> "Visual Studio 2012" and then select "ASP.NET MVC4 Web Application".

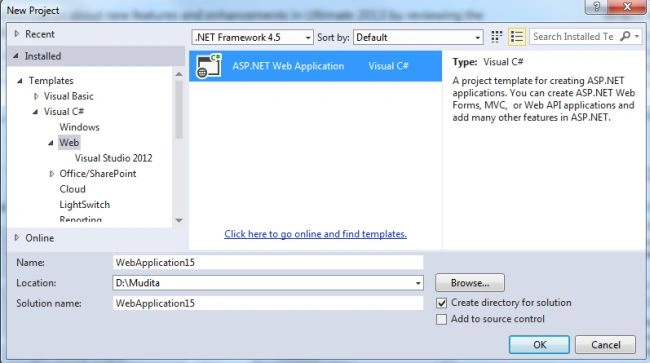

    Select Web Application

  • Click on the "OK" button.
  • From the MVC4 project window select "Web API".

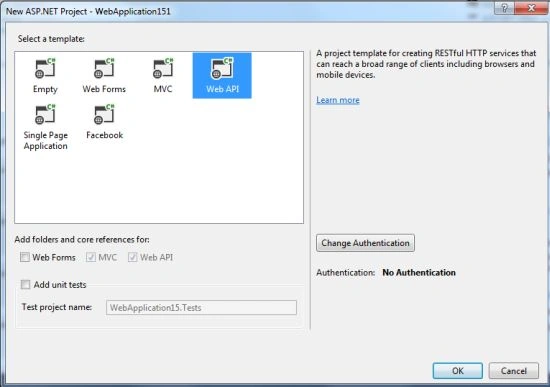

    Select Web API

  • Click on the "OK" button.

Step 2

Now add the Model Class:

  • In the Solution Explorer.
  • Right-click on the Model folder.
  • Select "Add" -> "Class".
  • Select "Installed" -> "Visual C#" and select "Class".

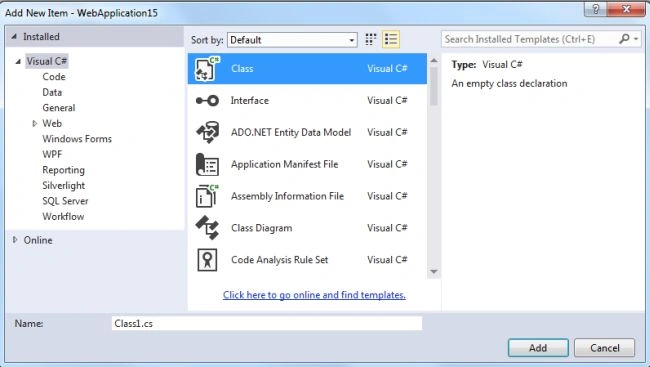

    Add An Model class

  • Click on the "Add" button.

Add the following simple lines of code:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. namespace WebApplication15.Models
  6. {
  7. public class Employee
  8. {
  9. public int id { get; set; }
  10. public string Name { get; set; }
  11. public string Address { get; set; }
  12. }
  13. }

Step 3

Now add an API Controller to the project as in the following:

  • In the "Solution Explorer".
  • Right-click on the "Controller folder".
  • Select "Add" -> "Controller".
  • Select "API Controller" from the template.

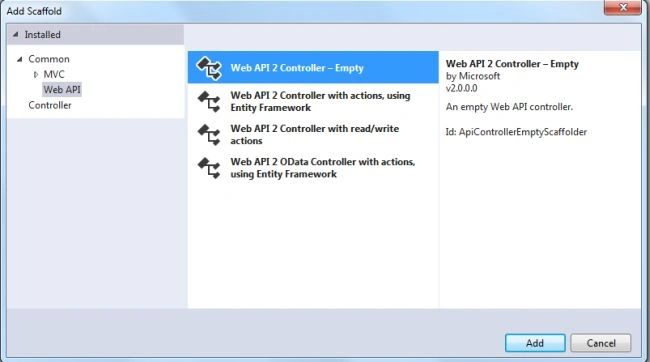

    Select Web API2 Controller

  • Change name of the controller.

    Change Name of Controller

  • Click on the "Add" button.

Add the following code:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Net;
  5. using System.Net.Http;
  6. using System.Web.Http;
  7. using WebApplication15.Models;
  8. namespace WebApplication15.Controllers
  9. {
  10. public class EmployeesController : ApiController
  11. {
  12. public IQueryable<Employee> GetEmployee()
  13. {
  14. List<Employee> list = new List<Employee>();
  15. list.Add(new Employee { id = 1, Name = "Name1", Address = "Address1" });
  16. list.Add(new Employee { id = 2, Name = "Name2", Address = "Address2" });
  17. list.Add(new Employee { id = 3, Name = "Name3", Address = "Address3" });
  18. list.Add(new Employee { id = 4, Name = "Name4", Address = "Address4" });
  19. list.Add(new Employee { id = 5, Name = "Name5", Address = "Address5" });
  20. list.Add(new Employee { id = 6, Name = "Name6", Address = "Address6" });
  21. return list.AsQueryable();
  22. }
  23. }
  24. }

Step 4

Now install the Web API2 OData 5.0.0 package using the following:

  • Go to the Tools menu.
  • Select "Library Package Manager" -> "Package Manager Console".

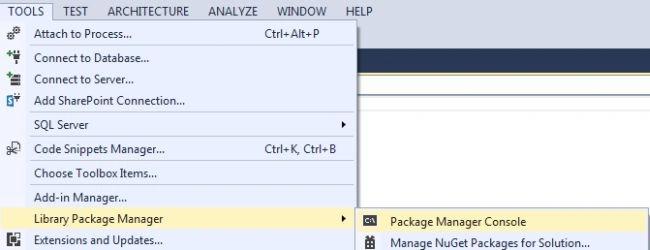

    Select Package Manager Console

  • In the Console window type this command: "Install-Package Microsoft.AspNet.WebApi.OData -Version 5.0.0 "

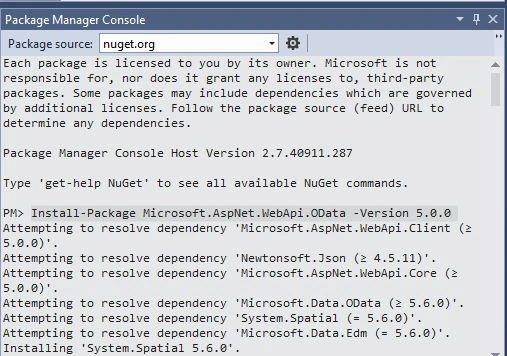

    Console Window

Now we add the [Queryable] attribute to the EmployeesController as in the following:

  1. [Queryable]
  2. public IQueryable<Employee> GetEmployee()

Step 5

Now execute the application and copy the URL. Now open the foddle2 tool, paste the copied URL into fiddle and navigate to the existing URL: "http://localhost:42095/api/employees".

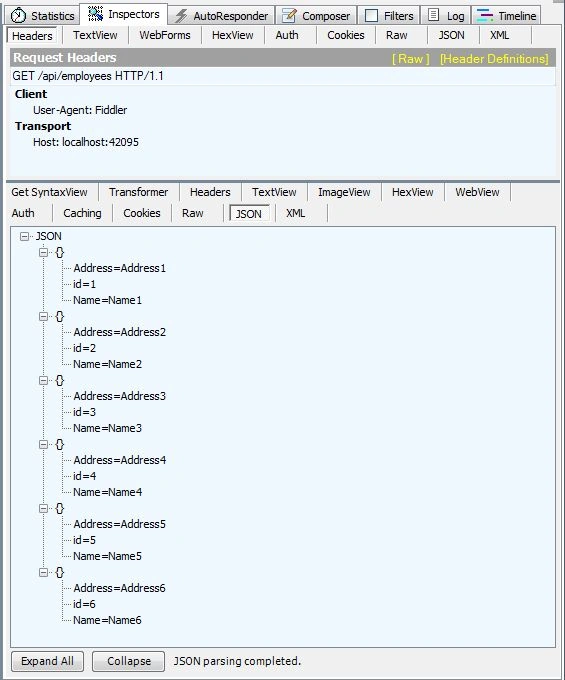

Get All Values

Select Top 2 record "http://localhost:42095/api/employees?$top=2".

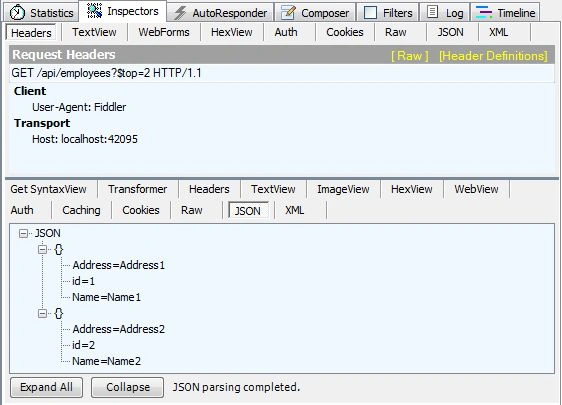

Select top2 record

Skip the starting 2 record "http://localhost:42095/api/employees?$skip=3".

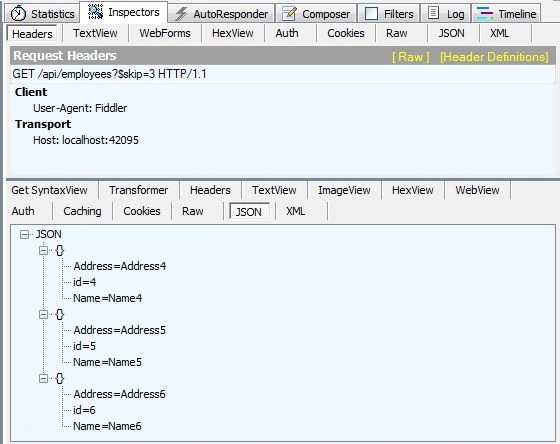

Skip starting 3 record
