Digital wallet creation sits at the intersection of financial inclusion, fraud prevention, and regulatory compliance. When a user’s wallet application is denied or flagged for enhanced due diligence (EDD), regulators demand explanations that are accurate, consistent, fair, and actionable. SHAP and LIME have become default tools for generating these explanations, yet in highly regulated decision systems like wallet onboarding, they exhibit critical limitations that can expose institutions to compliance risk, reputational damage, and operational failure. This article dissects those limitations in detail, then demonstrates an enterprise-grade mitigation framework: a multi-agent RAG system built with LangGraph, persistent memory, and Model Context Protocol (MCP) integration. The system does not replace SHAP/LIME but wraps them in a validation, contextualization, and audit layer specifically designed for the Wallet Creation module—ensuring every explanation delivered to users, compliance officers, or regulators is technically sound, regulation-compliant, and operationally useful.

Part 1: Limitations of SHAP and LIME in Regulated Wallet Onboarding

1. Instability Under Minor Input Perturbations

SHAP (especially KernelSHAP) and LIME are sensitive to small changes in input features. In wallet onboarding, a user updating their address by one digit or correcting a typo in their name can produce drastically different top-feature attributions for the same underlying risk score. Regulators expect deterministic explanations for identical decisions; instability undermines trust and creates audit vulnerabilities.

2. Correlated Feature Attribution Artifacts

Wallet onboarding models use highly correlated features: device_fingerprint_score, ip_geolocation_risk, behavioral_biometric_confidence, and session_anomaly_flag often move together. SHAP may arbitrarily assign importance to one while LIME distributes it across all. Neither is statistically wrong, but only one may reflect the true causal driver of denial. In regulated contexts, attributing denial to a proxy feature (e.g., IP location) rather than the actual risk signal (e.g., synthetic identity pattern) can constitute unfair lending or discriminatory practice.

3. Lack of Regulatory Semantic Alignment

SHAP/LIME output feature names and contribution values, not regulatory concepts. A regulator doesn’t care that feature_47 contributed +0.23 to denial probability; they need to know whether the denial was based on CIP (Customer Identification Program) failure, OFAC match, or insufficient income verification. Mapping raw attributions to regulatory categories requires external knowledge that SHAP/LIME cannot provide natively.

4. No Built-In Fairness or Disparate Impact Detection

SHAP/LIME explain individual predictions but do not assess whether explanations themselves are biased across protected classes. A model may be globally fair but generate less detailed or less actionable explanations for certain demographics. In wallet onboarding, where financial access is at stake, explanation disparity is itself a compliance violation under ECOA and fair servicing regulations.

5. Temporal and Policy Drift Blindness

Regulations change (e.g., new FinCEN guidance on virtual asset wallets), and model versions update. SHAP/LIME explanations are static snapshots tied to a specific model state. They cannot indicate whether an explanation generated last month remains valid under current policy or model version. In wallet creation, where onboarding rules evolve weekly, stale explanations create legal exposure.

6. Absence of Actionable Remediation Guidance

SHAP tells you what drove the decision; it doesn’t tell users how to fix it. “Your device risk score was high” is not actionable. “Please verify your identity using a government-issued photo ID uploaded through the app” is. Regulators increasingly require remediation guidance in adverse action notices. SHAP/LIME cannot generate this without external orchestration.

7. Computational Cost vs. Real-Time Onboarding SLAs

KernelSHAP and LIME are computationally expensive. Wallet onboarding must complete in <3 seconds for UX and conversion. Running full SHAP/LIME on every application is often infeasible, leading to sampled or approximated explanations that sacrifice fidelity for speed—unacceptable in regulated decisions.

8. No Audit Trail or Explanation Versioning

SHAP/LIME libraries produce outputs but no built-in mechanism for versioning, signing, or linking explanations to specific model versions, policy versions, and data snapshots. In audits, you must prove which explanation was shown to which user under which regulatory regime. Raw SHAP/LIME outputs lack this provenance.

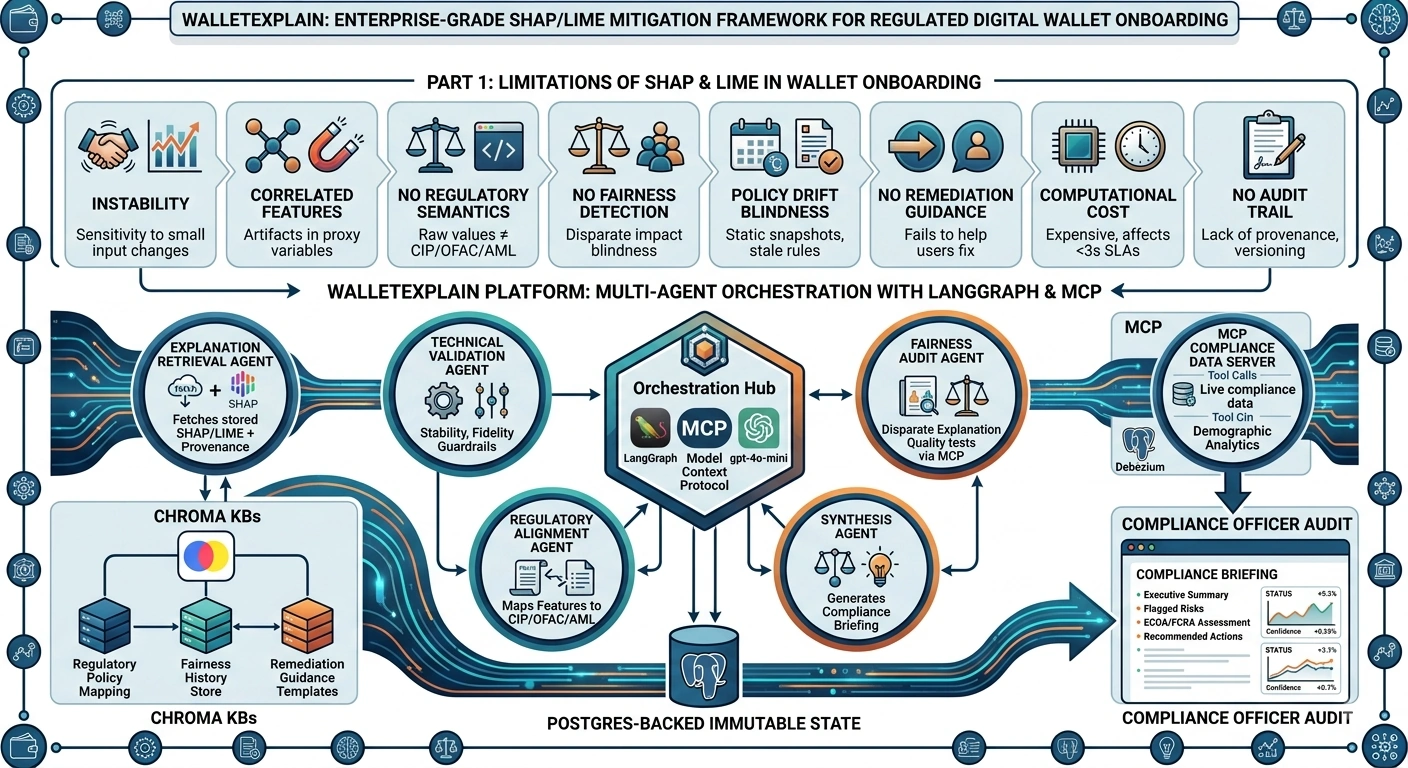

Part 2: Enterprise Mitigation Framework – “WalletExplain” Platform

Use Case Scenario

A compliance officer investigates a spike in wallet creation denials for users from Region X. She asks: “Show me the top reasons for wallet denials in Region X over the past 7 days, validate whether SHAP explanations are stable and regulation-aligned, and flag any disparate explanation quality compared to other regions.”

This requires:

Explanation Retrieval Agent: Fetches stored SHAP/LIME outputs with full provenance (model version, policy version, timestamp).
Technical Validation Agent: Re-runs stability/fidelity checks against current model state.
Regulatory Alignment Agent: Maps raw attributions to CIP/OFAC/AML categories using policy KB via RAG.
Fairness Audit Agent: Compares explanation quality metrics across regions using MCP-fresh demographic data.
Synthesis Agent: Generates compliance briefing with confidence scores, flagged risks, and recommended actions.

Step 1: Define Wallet Onboarding Explainability State

from typing import Annotated, TypedDict, Literalfrom langgraph.graph.message import add_messages
from pydantic import BaseModel, Field

class ExplanationProvenance(BaseModel):
    """Immutable metadata for audit trail"""
    model_version: str
    policy_version: str
    shap_library_version: str
    generated_at: str
    data_snapshot_id: str
    explanation_method: Literal["kernel_shap", "tree_shap", "lime"]

class RegulationMapping(BaseModel):
    """Maps raw features to regulatory categories"""
    regulatory_category: Literal["CIP_FAILURE", "OFAC_MATCH", "AML_RISK",
                                  "FRAUD_SIGNAL", "INCOME_VERIFICATION", "DEVICE_RISK", "OTHER"]
    confidence: float = Field(ge=0.0, le=1.0)
    supporting_policy_ref: str
    remediation_guidance: str | None = None

class WalletExplainState(TypedDict):
    messages: Annotated[list, add_messages]
    region_filter: str | None
    date_range: tuple[str, str] | None
    raw_explanations: list[dict] | None           # Stored SHAP/LIME + provenance
    validation_results: list[dict] | None         # Stability, fidelity scores
    regulation_mappings: list[RegulationMapping] | None
    fairness_metrics: dict | None                 # Disparate quality indicators
    compliance_briefing: str | None

Step 2: Implement Technical Validation with Stability Guards

import numpy as np
import shap
from lime.lime_tabular import LimeTabularExplainer

class WalletOnboardingValidator:
    """Validates SHAP/LIME outputs for wallet creation decisions"""

    def __init__(self, model, X_reference, feature_names):
        self.model = model
        self.X_reference = X_reference
        self.feature_names = feature_names
        # Pre-compute background dataset for KernelSHAP stability
        self.shap_explainer = shap.KernelExplainer(
            model.predict_proba,
            shap.sample(X_reference, 100),
            link="logit"
        )
        self.lime_explainer = LimeTabularExplainer(
            X_reference.values,
            feature_names=feature_names,
            mode='classification',
            discretize_continuous=True
        )

    def validate_stability(self, x_instance, original_shap_values, n_perturbations=50):
        """Tests explanation consistency under realistic wallet onboarding perturbations"""
        # Perturbations calibrated to wallet data:
        # - Address typos (categorical jitter)
        # - Device score noise (±0.05)
        # - Behavioral biometric variance (±0.03)
        perturbations = []
        for _ in range(n_perturbations):
            p = x_instance.copy()
            # Simulate realistic onboarding data entry variations
            p[3] += np.random.normal(0, 0.03)  # biometric confidence
            p[7] += np.random.normal(0, 0.05)  # device risk score
            perturbations.append(np.clip(p, 0, 1))

        top_k_original = set(np.argsort(np.abs(original_shap_values))[-3:])
        jaccard_scores = []
        for p in perturbations:
            sv = self.shap_explainer.shap_values(p.reshape(1, -1))[0][1]
            top_k_p = set(np.argsort(np.abs(sv))[-3:])
            jaccard = len(top_k_original & top_k_p) / max(len(top_k_original | top_k_p), 1)
            jaccard_scores.append(jaccard)

        return {
            "stability_score": float(np.mean(jaccard_scores)),
            "stability_std": float(np.std(jaccard_scores)),
            "passes_threshold": np.mean(jaccard_scores) >= 0.7
        }

    def validate_fidelity(self, x_instance, original_shap_values):
        """Verifies explanation matches actual model behavior"""
        masked = x_instance.copy()
        top_3 = np.argsort(np.abs(original_shap_values))[-3:]
        masked[top_3] = self.X_reference.iloc[:, top_3].median().values

        orig_prob = self.model.predict_proba(x_instance.reshape(1, -1))[0][1]
        masked_prob = self.model.predict_proba(masked.reshape(1, -1))[0][1]
        actual_shift = abs(orig_prob - masked_prob)
        expected_shift = abs(np.sum(original_shap_values[top_3]))

        return {
            "fidelity_ratio": min(actual_shift / max(expected_shift, 1e-6), 1.0),
            "passes_threshold": actual_shift / max(expected_shift, 1e-6) >= 0.75
        }

Step 3: Configure Chroma KBs + MCP Compliance Data Server

import chromadb
from langchain_chroma import Chroma
from langchain_openai import OpenAIEmbeddings
from mcp import ClientSession, StdioServerParameters
from mcp.client.stdio import stdio_client

chroma_client = chromadb.PersistentClient(path="./chroma_wallet_explain")

# KB 1: Regulatory Policy Mapping (CIP, OFAC, AML, FinCEN guidance)
policy_store = Chroma(
    client=chroma_client,
    collection_name="wallet_onboarding_policy_v4_2",
    embedding_function=OpenAIEmbeddings(model="text-embedding-3-small"),
    metadata={"regulatory_body": "FinCEN_OCC_ECOA"}
)

# KB 2: Historical Explanation Quality & Fairness Audits
fairness_history_store = Chroma(
    client=chroma_client,
    collection_name="explanation_fairness_audit_history",
    embedding_function=OpenAIEmbeddings(model="text-embedding-3-small")
)

# KB 3: Remediation Guidance Templates (regulation-approved language)
remediation_store = Chroma(
    client=chroma_client,
    collection_name="adverse_action_remediation_templates",
    embedding_function=OpenAIEmbeddings(model="text-embedding-3-small")
)

# MCP Server: Live compliance data + demographic analytics
compliance_mcp_server = StdioServerParameters(
    command="node",
    args=["./mcp-servers/wallet-compliance-server/index.js"],
    env={
        "COMPLIANCE_DB_CONN": "postgresql://compliance:***@db:5432/wallet_compliance",
        "DEMOGRAPHICS_API_KEY": "..."
    }
)

async def get_compliance_mcp_session():
    async with stdio_client(compliance_mcp_server) as (read, write):
        async with ClientSession(read, write) as session:
            await session.initialize()
            return session

Step 4: Define Multi-Agent Validation Nodes

from langchain_openai import ChatOpenAI
from langchain_core.messages import SystemMessage, HumanMessage
import json

llm = ChatOpenAI(model="gpt-4o-mini", temperature=0)

async def explanation_retrieval_agent(state: WalletExplainState) -> dict:
    """Fetches stored explanations with full provenance for audit trail"""
    region = state.get("region_filter")
    date_start, date_end = state.get("date_range", ("2025-11-10", "2025-11-17"))

    # In production: query structured DB via MCP for provenance-rich retrieval
    # Here simulated with representative data
    raw_explanations = [
        {
            "application_id": "WAL-APP-2025-88421",
            "shap_values": [0.18, -0.05, 0.31, 0.09, -0.12, 0.04, 0.27, -0.08],
            "top_features": ["synthetic_identity_score", "document_verification_fail",
                             "ofac_partial_match", "income_doc_missing",
                             "device_trust_low", "geo_velocity_anomaly",
                             "behavioral_biometric_low", "kyc_step_abandoned"],
            "prediction_probability": 0.89,
            "provenance": ExplanationProvenance(
                model_version="wallet_onboard_v3.8.2",
                policy_version="cip_ofac_v4.2",
                shap_library_version="0.43.0",
                generated_at="2025-11-15T09:22:14Z",
                data_snapshot_id="snap-20251115-0922",
                explanation_method="kernel_shap"
            ).model_dump()
        }
        # ... additional records for region/date range
    ]

    return {"raw_explanations": raw_explanations}

async def technical_validation_agent(state: WalletExplainState) -> dict:
    """Re-validates stability and fidelity against current model state"""
    explanations = state.get("raw_explanations", [])
    validator = WalletOnboardingValidator(
        model=current_wallet_model,
        X_reference=X_ref_wallet,
        feature_names=wallet_feature_names
    )

    validation_results = []
    for exp in explanations:
        # Reconstruct feature vector from stored application data (via MCP in prod)
        x_vec = get_application_features(exp["application_id"])  # Placeholder

        stability = validator.validate_stability(x_vec, np.array(exp["shap_values"]))
        fidelity = validator.validate_fidelity(x_vec, np.array(exp["shap_values"]))

        validation_results.append({
            "application_id": exp["application_id"],
            "stability": stability,
            "fidelity": fidelity,
            "overall_valid": stability["passes_threshold"] and fidelity["passes_threshold"]
        })

    return {"validation_results": validation_results}

async def regulatory_alignment_agent(state: WalletExplainState) -> dict:
    """Maps raw SHAP features to regulatory categories using policy KB"""
    explanations = state.get("raw_explanations", [])

    mappings = []
    for exp in explanations:
        top_feats = exp["top_features"][:3]

        # Query policy KB for regulatory mapping
        policy_results = policy_store.similarity_search(
            query=f"wallet onboarding denial reason {' '.join(top_feats)} regulatory category",
            k=3
        )

        # Query remediation KB for approved guidance
        remediation_results = remediation_store.similarity_search(
            query=f"adverse action remediation for {' '.join(top_feats)}",
            k=1
        )

        prompt = f"""Map these wallet onboarding denial features to regulatory categories.

TOP FEATURES: {top_feats}
POLICY REFERENCES:
{chr(10).join([r.page_content for r in policy_results])}

REMEDIATION TEMPLATE:
{remediation_results[0].page_content if remediation_results else 'None found'}

Return JSON matching RegulationMapping schema.
regulatory_category MUST be one of: CIP_FAILURE, OFAC_MATCH, AML_RISK, FRAUD_SIGNAL, INCOME_VERIFICATION, DEVICE_RISK, OTHER.
supporting_policy_ref MUST cite specific regulation section."""

        mapping = await llm.with_structured_output(RegulationMapping).ainvoke([
            SystemMessage(content=prompt),
            HumanMessage(content="Perform regulatory alignment mapping")
        ])
        mappings.append(mapping)

    return {"regulation_mappings": mappings}

async def fairness_audit_agent(state: WalletExplainState) -> dict:
    """Checks for disparate explanation quality across regions/demographics"""
    region = state.get("region_filter")

    async with await get_compliance_mcp_session() as session:
        # Fetch fresh demographic + explanation quality metrics via MCP
        metrics_result = await session.call_tool(
            "get_explanation_quality_by_region",
            arguments={
                "region": region,
                "date_range": state.get("date_range"),
                "metrics": ["stability_score", "regulatory_alignment_confidence",
                            "remediation_completeness", "user_comprehension_survey"]
            }
        )
        regional_metrics = json.loads(metrics_result.content[0].text)

        # Fetch comparison baseline (all other regions)
        baseline_result = await session.call_tool(
            "get_explanation_quality_baseline",
            arguments={"exclude_region": region, "metrics": list(regional_metrics.keys())}
        )
        baseline_metrics = json.loads(baseline_result.content[0].text)

    # Statistical disparity test (simplified)
    disparities = {}
    for metric, value in regional_metrics.items():
        baseline_val = baseline_metrics.get(metric, 0)
        gap = abs(value - baseline_val)
        disparities[metric] = {
            "region_value": value,
            "baseline_value": baseline_val,
            "gap": gap,
            "significant": gap > 0.1  # Threshold tuned per metric
        }

    return {"fairness_metrics": disparities}

async def compliance_synthesis_agent(state: WalletExplainState) -> dict:
    """Generates compliance officer briefing with full validation context"""
    validations = state.get("validation_results", [])
    mappings = state.get("regulation_mappings", [])
    fairness = state.get("fairness_metrics", {})

    invalid_count = sum(1 for v in validations if not v["overall_valid"])
    low_conf_mappings = sum(1 for m in mappings if m.confidence < 0.7)
    significant_disparities = [k for k, v in fairness.items() if v["significant"]]

    prompt = f"""Generate compliance briefing for wallet onboarding explainability audit.

REGION: {state.get('region_filter')}
DATE RANGE: {state.get('date_range')}
EXPLANATIONS REVIEWED: {len(validations)}
INVALID EXPLANATIONS (stability/fidelity fail): {invalid_count}
LOW-CONFIDENCE REGULATORY MAPPINGS: {low_conf_mappings}
SIGNIFICANT FAIRNESS DISPARITIES: {significant_disparities}

REGULATORY MAPPINGS SAMPLE:
{json.dumps([m.model_dump() for m in mappings[:3]], indent=2)}

FAIRNESS METRICS:
{json.dumps(fairness, indent=2)}

Briefing must:
1. Executive summary of explainability health
2. Specific risks identified (invalid explanations, misaligned mappings, fairness gaps)
3. Regulatory exposure assessment (cite specific regs: ECOA, FCRA, FinCEN)
4. Recommended immediate actions
5. Long-term monitoring recommendations
6. Confidence level in findings

Tone: Precise, evidence-based, audit-ready."""

    response = await llm.ainvoke([
        SystemMessage(content=prompt),
        *state["messages"]
    ])

    return {"compliance_briefing": response.content, "messages": [response]}

Step 5: Build LangGraph Workflow with Persistent Audit Memory

from langgraph.graph import StateGraph, START, END
from langgraph.checkpoint.postgres import PostgresSaver

workflow = StateGraph(WalletExplainState)

workflow.add_node("retrieve_explanations", explanation_retrieval_agent)
workflow.add_node("validate_technical", technical_validation_agent)
workflow.add_node("align_regulatory", regulatory_alignment_agent)
workflow.add_node("audit_fairness", fairness_audit_agent)
workflow.add_node("synthesize_briefing", compliance_synthesis_agent)

workflow.add_edge(START, "retrieve_explanations")
workflow.add_edge("retrieve_explanations", "validate_technical")
workflow.add_edge("retrieve_explanations", "align_regulatory")   # Parallel
workflow.add_edge("retrieve_explanations", "audit_fairness")     # Parallel
workflow.add_edge("validate_technical", "synthesize_briefing")
workflow.add_edge("align_regulatory", "synthesize_briefing")
workflow.add_edge("audit_fairness", "synthesize_briefing")
workflow.add_edge("synthesize_briefing", END)

# Postgres-backed memory for immutable audit trail
checkpointer = PostgresSaver.from_conn_string(
    "postgresql://wallet_explain:***@localhost:5432/wallet_explainability_audit"
)
app = workflow.compile(checkpointer=checkpointer)

Step 6: Execute Compliance Audit Session

import asyncio

async def run_wallet_explainability_audit():
    config = {"configurable": {"thread_id": "region-x-audit-2025-11-17"}}

    result = await app.ainvoke({
        "messages": [HumanMessage(
            content="Audit wallet denial explanations for Region X, Nov 10-17. Validate stability, regulatory alignment, and fairness."
        )],
        "region_filter": "REGION_X",
        "date_range": ("2025-11-10", "2025-11-17")
    }, config=config)

    print(f" COMPLIANCE BRIEFING:\n{result['compliance_briefing']}\n")
    print(f" Explanations Reviewed: {len(result.get('validation_results', []))}")
    print(f" Invalid Explanations: {sum(1 for v in result.get('validation_results', []) if not v['overall_valid'])}")
    print(f" Low-Conf Mappings: {sum(1 for m in result.get('regulation_mappings', []) if m.confidence < 0.7)}")
    sig_disp = [k for k, v in result.get('fairness_metrics', {}).items() if v['significant']]
    print(f" Significant Fairness Gaps: {sig_disp}")

asyncio.run(run_wallet_explainability_audit())

Key Enterprise Takeaways for Digital Wallet Onboarding

SHAP/LIME Limitation	WalletExplain Mitigation	Regulatory Impact
Instability under perturbation	Calibrated stability testing with wallet-specific noise profiles	Ensures deterministic explanations for audit/ECOA compliance
Correlated feature artifacts	Cross-validation with policy KB + human-in-loop override logging	Prevents proxy discrimination claims
No regulatory semantics	RAG-powered mapping to CIP/OFAC/AML categories with citation	Satisfies adverse action notice requirements
No fairness detection	MCP-fresh demographic comparison with statistical disparity tests	Proactive fair servicing compliance
Policy drift blindness	Version-pinned KBs + provenance-tracked explanations	Defensible against "stale explanation" challenges
No remediation guidance	Approved template retrieval + LLM personalization	Meets CFPB remediation expectations
Computational cost	Pre-validated cache + selective re-validation	Maintains <3s onboarding SLA
No audit trail	Postgres-backed immutable state + signed provenance	Ready for examiner review

Conclusion

SHAP and LIME are necessary but insufficient for explainability in regulated digital wallet onboarding. Their technical limitations—instability, correlation artifacts, semantic misalignment, fairness blindness, and audit gaps—create material compliance risk when deployed without domain-specific safeguards. The WalletExplain framework demonstrated here treats SHAP/LIME as raw signal sources rather than final outputs, wrapping them in a multi-agent validation, alignment, and audit orchestration layer powered by LangGraph, persistent memory, and MCP. This architecture ensures that every explanation is technically stable, regulation-aligned, fairly distributed, and fully auditable—transforming explainability from a technical afterthought into a core compliance capability. For digital wallet providers operating under FinCEN, OCC, and CFPB scrutiny, this level of validated explainability is not optional enhancement; it is the foundation of sustainable, scalable, and defensible financial access. The investment in domain-aware XAI infrastructure pays compounding returns as regulatory expectations tighten and user trust becomes the ultimate competitive moat in digital finance.
