Value Types and Reference Types in C#

One of the most essential concepts in C# and .NET development is understanding the difference between Value Types and Reference Types.
This concept directly affects:

How data is stored in memory
How variables behave during assignment
How parameters are passed to methods
Application performance and memory usage
Bugs related to unexpected data changes

Many logical errors in C# applications arise because developers do not clearly understand how value and reference types work under the hood. This article explains the concept step by step, with clear explanations, examples, and real-world understanding.

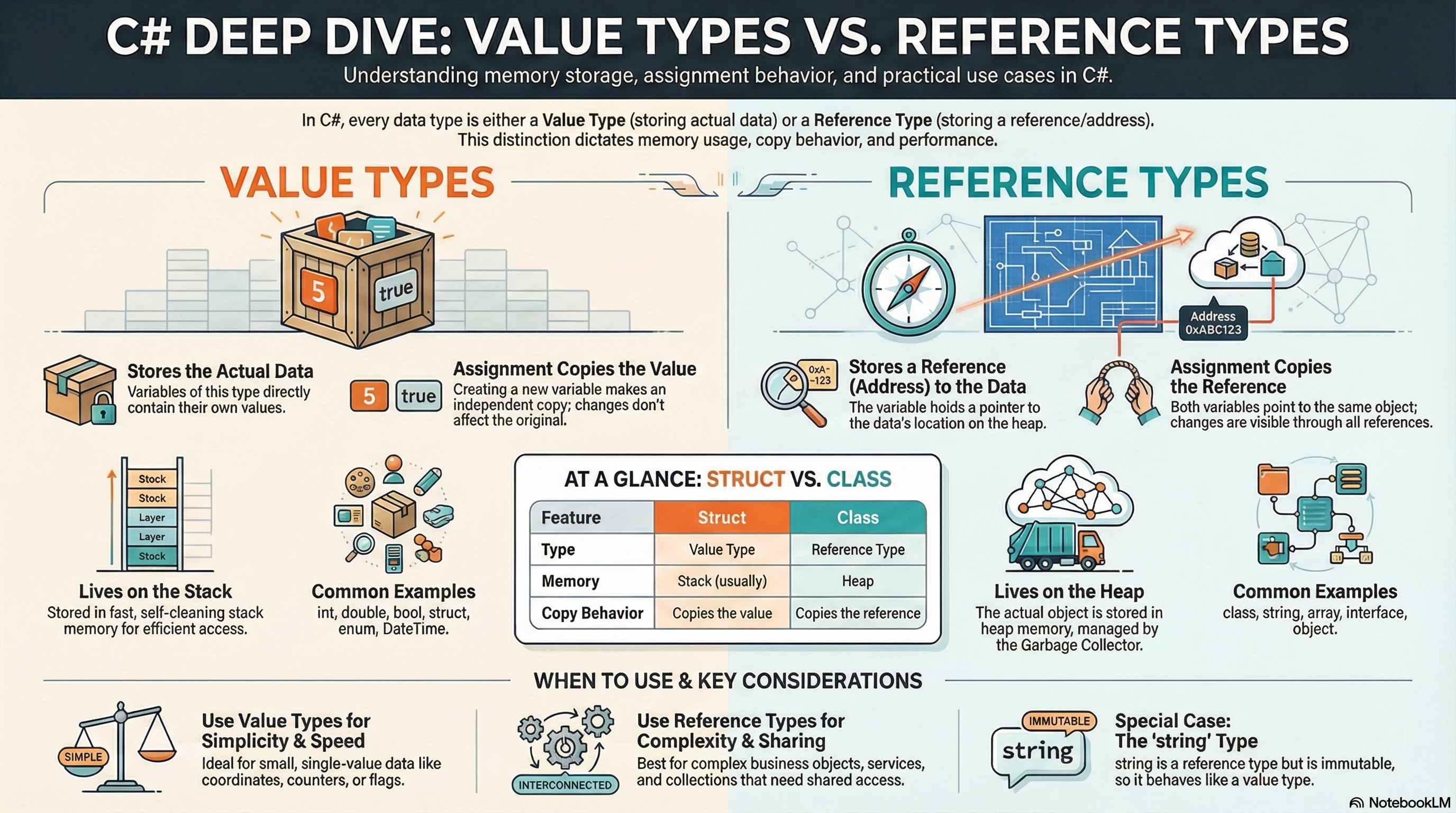

What Are Value Types and Reference Types?

In C#, every type belongs to one of these two categories:

Value Types → store actual data
Reference Types → store a reference (address) to data

The key difference lies in how data is stored and copied in memory.

1. Value Types in C#

A value type directly contains its data. When you assign a value type to another variable, a complete copy of the value is made.

Common Value Types

int
double
float
bool
char
struct
enum
decimal
DateTime

Key Characteristics of Value Types

Stored as actual values
Value types hold the data itself, not a reference to it.
Typically stored in stack memory
Stack allocation is fast and automatically cleaned up.
Assignment copies the value
Changing one variable does not affect another.
Immutable behavior during copying
Each variable maintains its own independent data.

Example of Value Type Assignment

int a = 10;
int b = a;

b = 20;

Console.WriteLine(a); // 10
Console.WriteLine(b); // 20

Explanation:
b gets a copy of a. Changes to b do not affect a.

Passing Value Types to Methods

When a value type is passed to a method, a copy is passed.

void ChangeValue(int x)
{
    x = 50;
}

int number = 10;
ChangeValue(number);

Console.WriteLine(number); // 10

The original value remains unchanged.

2. Reference Types in C#

A reference type stores a reference (memory address) to the actual data instead of the data itself.

Common Reference Types

class
string
array
interface
delegate
object
record

Key Characteristics of Reference Types

Stored in heap memory
The actual object lives in heap memory.
Variables store references, not data
Multiple variables can point to the same object.
Assignment copies the reference
Both variables refer to the same memory location.
Changes reflect across references
Modifying the object affects all references.

Example of Reference Type Assignment

class Person
{
    public string Name;
}

Person p1 = new Person();
p1.Name = "Ajay";

Person p2 = p1;
p2.Name = "Rahul";

Console.WriteLine(p1.Name); // Rahul

Explanation: Both p1 and p2 refer to the same object in memory.

Passing Reference Types to Methods

When reference types are passed to methods, the reference is copied, not the object.

void ChangeName(Person p)
{
    p.Name = "Amit";
}

Person person = new Person { Name = "Ajay" };
ChangeName(person);

Console.WriteLine(person.Name); // Amit

The change affects the original object.

Value Types vs Reference Types – Memory Perspective

Stack Memory

Faster access
Stores value types
Automatically cleaned

Heap Memory

Stores reference type objects
Managed by Garbage Collector
Slower than stack but flexible

What Actually Happens

Value types → direct data storage
Reference types → pointer on stack + object in heap

Struct vs Class – A Common Comparison

Feature	Struct	Class
Type	Value Type	Reference Type
Memory	Stack (mostly)	Heap
Copy Behavior	Copies value	Copies reference
Inheritance	Not supported	Supported
Null Allowed	No (except nullable)	Yes
Use Case	Small data	Complex objects

Special Case: string in C#

Although string is a reference type, it behaves like a value type because it is immutable.

string a = "Hello";
string b = a;

b = "World";

Console.WriteLine(a); // Hello

This behavior improves safety and avoids unexpected changes.

Using ref and out with Value Types

C# provides ref and out keywords to allow passing value types by reference.

void Update(ref int x)
{
    x = 100;
}

int number = 10;
Update(ref number);

Console.WriteLine(number); // 100

This allows modifying the original value.

When to Use Value Types

Use value types when:

Data is small and simple
An object represents a single value
Performance is critical
Immutability is desired

Examples:

Coordinates
Counters
Flags
Status values

When to Use Reference Types

Use reference types when:

Data is complex
Object has behavior (methods)
Shared access is required
Memory flexibility is needed

Examples:

Business entities
Services
Models
Collections

Real-World Example Scenario

Imagine a banking system:

AccountBalance → Value type (decimal)
Customer → Reference type (class)

This ensures:

Money is handled safely
Customer data is shared consistently

Choosing the right type directly impacts correctness.

Performance Considerations

Value types reduce heap allocations
Reference types increase GC pressure
Large structs can degrade performance
Small immutable structs are ideal

Balanced usage is key.

Understanding Value Types and Reference Types in C# is essential for writing correct, efficient, and maintainable code. This concept influences memory usage, performance, behavior during assignments, and method calls.

By mastering this difference, developers gain deeper control over how their applications behave and avoid subtle bugs that are otherwise difficult to trace.

This knowledge is foundational and directly applicable in real-world .NET development and technical interviews.

Thank you for reading this detailed guide on Value Types and Reference Types in C#.
A clear understanding of memory behavior is a hallmark of a strong C# developer.
