Versioning Doc Library in SharePoint 2010 Programmatically Using VS 2012

Versioning a Doc Library in SharePoint 2010 programmatically using VS 2012

Introduction

Today, in this article let's play around with one of the interesting and most useful concepts in SharePoint 2010.

Question: What is versioning?

In simple terms "Versioning is a process to save the history of updated tracks which can be retrieved later for any further usage on a SharePoint site".

Step 1: Open SharePoint 2010 Central Administration and navigate to a specific site.

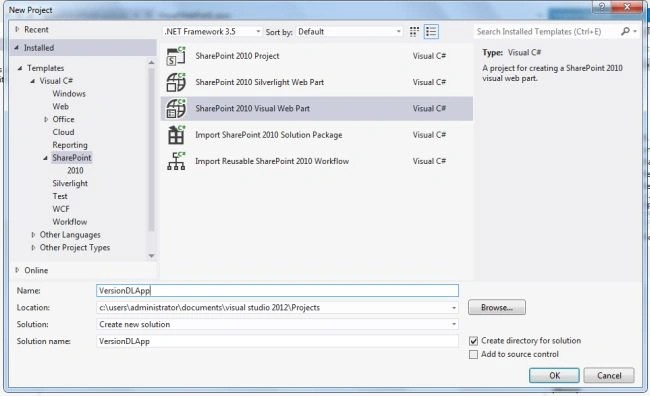

Step 2: Open up Visual Studio 2012 and try to "SharePoint Visual Web Part" project, as in:

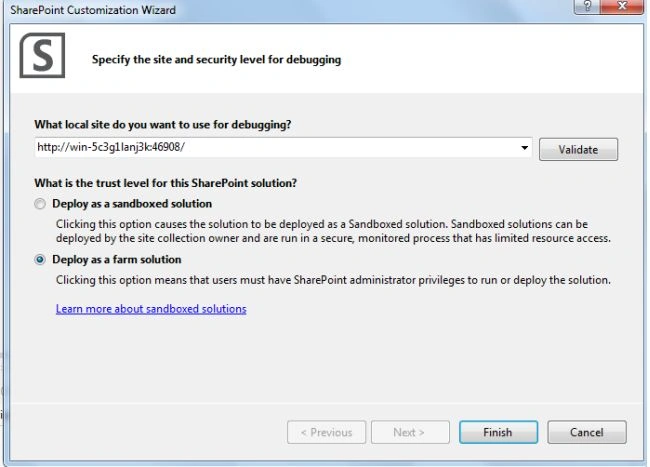

Step 3: Select "Deploy as a farm solution" as in the following and click the "Finish" button.

Step 4: The complete code of visualwebpart1usercontrol.ascx looks like this:

<%@ Assembly Name="$SharePoint.Project.AssemblyFullName$" %>

<%@ Assembly Name="Microsoft.Web.CommandUI, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>

<%@ Register TagPrefix="SharePoint" Namespace="Microsoft.SharePoint.WebControls"

Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>

<%@ Register TagPrefix="Utilities" Namespace="Microsoft.SharePoint.Utilities" Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>

<%@ Register TagPrefix="asp" Namespace="System.Web.UI" Assembly="System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" %>

<%@ Import Namespace="Microsoft.SharePoint" %>

<%@ Register TagPrefix="WebPartPages" Namespace="Microsoft.SharePoint.WebPartPages"

Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>

<%@ Control Language="C#" AutoEventWireup="true" CodeBehind="VisualWebPart1.ascx.cs"

Inherits="VersionDLApp.VisualWebPart1.VisualWebPart1" %>

<style type="text/css">

.auto-style1

{

height: 26px;

}

</style>

<%--<center>--%>

<div>

<table style="font-family: Verdana; text-align: center;">

<tr>

<td colspan="2" class="auto-style1">

<asp:label id="Label1" runat="server" text="Version Doc Lib - SharePoint 2010 via Visual Studio 2012"

font-bold="true" forecolor="Maroon" font-size="Large"></asp:label>

</td>

</tr>

<tr>

<td>

<asp:label id="Label2" runat="server" text="Please Enter Library Name:"></asp:label>

</td>

<td>

<asp:textbox id="TextBox1" runat="server" width="117px"></asp:textbox>

</td>

</tr>

<tr>

<td>

<asp:label id="Label3" runat="server" text="Please Enter Major Version Limit:"></asp:label>

</td>

<td>

<asp:textbox id="TextBox2" runat="server" width="117px"></asp:textbox>

</td>

</tr>

<tr>

<td>

<asp:label id="Label5" runat="server" text="Please Enter Major with Minor Version Limit"></asp:label>

</td>

<td>

<asp:textbox id="TextBox3" runat="server" width="117px"></asp:textbox>

</td>

</tr>

<tr>

<td colspan="2">

<asp:button id="Button1" runat="server" text="Create Versioning" forecolor="Orange"

font-bold="true" backcolor="Black" onclick="Button1_Click" width="164px" />

</td>

</tr>

<tr>

<td colspan="2">

<asp:label id="Label4" runat="server" font-bold="true"></asp:label>

</td>

</tr>

</table>

</div>

<%--</center>--%>

Step 5: The complete code of visualwebpart1usercontrol.ascx.cs looks like this:

using Microsoft.SharePoint;

using System;

using System.ComponentModel;

using System.Web.UI.WebControls.WebParts;namespace VersionDLApp.VisualWebPart1

{

[ToolboxItemAttribute(false)]

public partial class VisualWebPart1 : WebPart

{

// Uncomment the following SecurityPermission attribute only when doing Performance Profiling using

// the Instrumentation method, and then remove the SecurityPermission attribute when the code is ready

// for production. Because the SecurityPermission attribute bypasses the security check for callers of

// your constructor, it's not recommended for production purposes.

// [System.Security.Permissions.SecurityPermission(System.Security.Permissions.SecurityAction.Assert, UnmanagedCode = true)]

public VisualWebPart1()

{

}

protected override void OnInit(EventArgs e)

{

base.OnInit(e);

InitializeControl();

}

protected void Page_Load(object sender, EventArgs e)

{

TextBox1.Focus();

}

protected void Button1_Click(object sender, EventArgs e)

{

if (string.IsNullOrEmpty(TextBox1.Text))

{

Label4.Text = "Please Enter Some Values";

Label4.ForeColor = System.Drawing.Color.Red;

}

else

{

SPList list = SPContext.Current.Web.Lists[TextBox1.Text];

list.EnableVersioning = true;

list.EnableMinorVersions = true;

list.MajorVersionLimit = int.Parse(TextBox2.Text);

list.MajorWithMinorVersionsLimit = int.Parse(TextBox3.Text);

list.Update();

Label4.Text = "Versioning Created Successfully for " + TextBox1.Text;

Label4.ForeColor = System.Drawing.Color.Green;

TextBox1.Text = string.Empty;

TextBox2.Text = string.Empty;

TextBox3.Text = string.Empty;

}

}

}

}

Step 6: Deploy the solution file and add the new webpart to a SharePoint site.

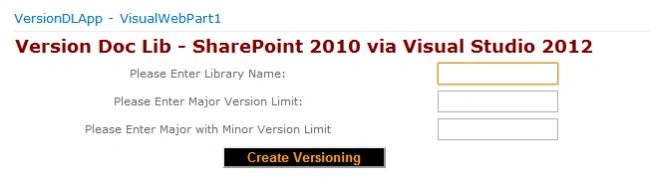

Step 7: The output of the application looks like this:

Step 8: Data entering output of the application looks like this:

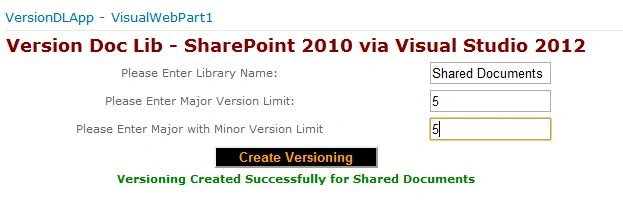

Step 9: Versioning created output of the application looks like this:

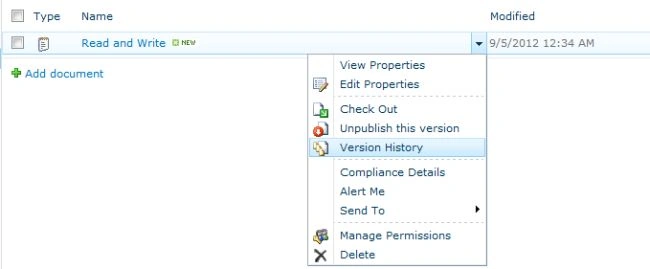

Step 10: Versioning history output of the application looks like this:

I hope this article is useful for you.
