Ways to Bind DataGridView in C# Windows Forms

Introduction

I would like to share multiple ways to bind a DataGridView to a Window Forms form using C#.

We will learn the following ways to bind a DataGridView.

Binding DataGridView using Generic List
Binding DataGridView using DataTable
Binding DataGridView using LINQ query result
Binding DataGridView using Array
Binding DataGridView using a two-dimension array
Binding DataGridView manually

1. Binding DataGridView with Generic List

Add the following class to the project:

public class Emp
{
    public int ID { get; set; }
    public string Name { get; set; }
    public string City { get; set; }
    public Emp(int id, string name, string city)
    {
        this.ID = id;
        this.Name = name;
        this.City = city;
    }
}

Create List of Emp

protected List<Emp> GetEmpList()
{
    List<Emp> lEmp = new List<Emp>();
    Emp oemp = new Emp(1234, "Devesh Omar", "GZB");
    lEmp.Add(oemp);
    oemp = new Emp(1234, "ROLI", "GZB");
    lEmp.Add(oemp);
    oemp = new Emp(1235, "ROLI", "MainPuri");
    lEmp.Add(oemp);
    oemp = new Emp(1236, "ROLI", "Kanpur");
    lEmp.Add(oemp);
    oemp = new Emp(1237, "Manish Omar", "GZB");
    lEmp.Add(oemp);
    oemp = new Emp(1238, "ROLI1", "MainPuri");
    lEmp.Add(oemp);
    oemp = new Emp(1239, "ROLI2", "MainPuri");
    lEmp.Add(oemp);
    oemp = new Emp(1230, "ROLI3", "CNB");
   lEmp.Add(oemp);
   oemp = new Emp(1231, "ROLI4", "CNB-UP");
   lEmp.Add(oemp);
   oemp = new Emp(1232, "ROLI5", "GHAZIABAD");
   lEmp.Add(oemp);
   oemp = new Emp(1233, "ROLI6", "UP");
   lEmp.Add(oemp);
   return lEmp;
}

Binding Grid

dataGridView1.DataSource = GetEmpList();

The following will be the screen.

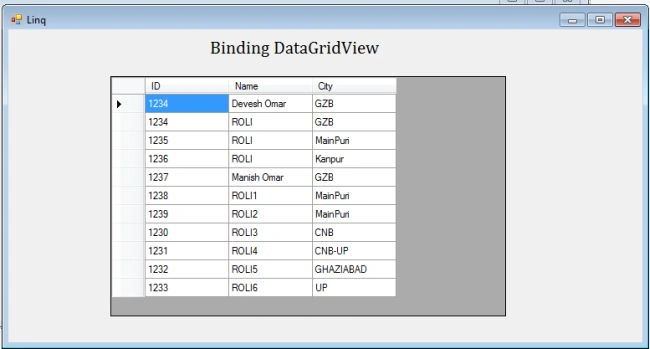

Binding DataGridView with Generic List

2. Binding DataGridView using DataTable

Create a DataTable and define the columns as in the following:

DataTable table = new DataTable();
table.Columns.Add("ID", typeof(int));
table.Columns.Add("NAME", typeof(string));
table.Columns.Add("CITY", typeof(string));

Add Rows

table.Rows.Add(111, "Devesh", "Ghaziabad");
table.Rows.Add(222, "ROLI", "KANPUR");
table.Rows.Add(102, "ROLI", "MAINPURI");
table.Rows.Add(212, "DEVESH", "KANPUR");

Binding DataGridView

dataGridView1.DataSource=table;

Running the code, the following will be the screen.

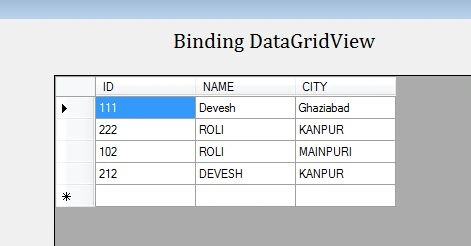

Binding DatagridView using Datatable

3. Binding DataGridView using LINQ query result

First we need to create a Generic list, the following is the sample code:

protected List<Emp> GetEmpList()
{
    List<Emp> lEmp = new List<Emp>();
    Emp oemp = new Emp(1234, "Devesh Omar", "GZB");
    lEmp.Add(oemp);
    oemp = new Emp(1234, "ROLI", "GZB");
    lEmp.Add(oemp);
    oemp = new Emp(1235, "ROLI", "MainPuri");
    lEmp.Add(oemp);
    oemp = new Emp(1236, "ROLI", "Kanpur");
    lEmp.Add(oemp);
    oemp = new Emp(1237, "Manish Omar", "GZB");
    lEmp.Add(oemp);
    oemp = new Emp(1238, "ROLI1", "MainPuri");
    lEmp.Add(oemp);
    oemp = new Emp(1239, "ROLI2", "MainPuri");
    lEmp.Add(oemp);
    oemp = new Emp(1230, "ROLI3", "CNB");
    lEmp.Add(oemp);
    oemp = new Emp(1231, "ROLI4", "CNB-UP");
    lEmp.Add(oemp);
    oemp = new Emp(1232, "ROLI5", "GHAZIABAD");
    lEmp.Add(oemp);
    oemp = new Emp(1233, "ROLI6", "UP");
    lEmp.Add(oemp);
    return lEmp;
}

Writing a LINQ query for the list above:

List<Emp> Lstemp = GetEmpList();
var columns = from t in Lstemp
orderby t.Name
select new
{
    EmpID = t.ID,
    Name = t.Name,
    City = t.City
};

Binding Grid

dataGridView1.DataSource = columns.ToList();

Running the code.

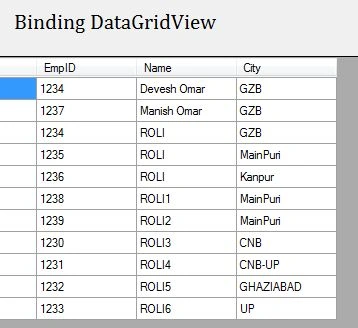

Binding DatagridView using Linq

Adding Row_number to the LINQ query:

List<Emp> Lstemp = GetEmpList();
int Srno = 0;
var columns = from t in Lstemp
orderby t.Name
select new
{
    Row_number=++Srno,
    EmpID = t.ID,
    Name = t.Name,
    City = t.City
};

In this query, we have Row_number=++Srno that would result in an auto-increment row and act as a row number.

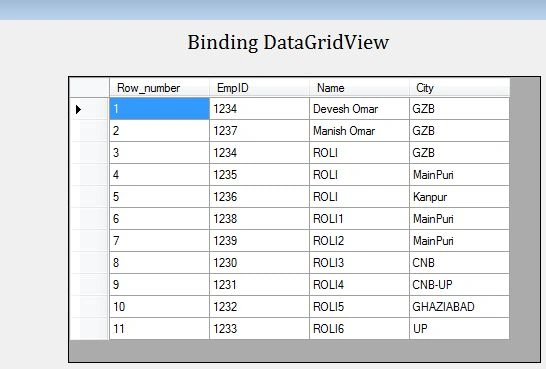

query

4. Binding DataGridView using Array

Add the following class to the project:

public class Emp
{
    public int ID { get; set; }
    public string Name { get; set; }
    public string City { get; set; }

    public Emp(int id, string name, string city)
    {
       this.ID = id;
       this.Name = name;
       this.City = city;
    }
}

Defining Array

var arrEmp = new[] {
    new Emp( 1, "Devesh Omar", "Noida"),
    new Emp( 2, "Roli", "Kanpur"),
    new Emp( 3, "Roli Gupta", "Mainpuri"),
    new Emp( 3, "Roli Gupta", "Kanpur"),
    new Emp( 3, "Devesh Roli ", "Noida"),
};

Binding Grid

dataGridView1.DataSource = arrEmp;

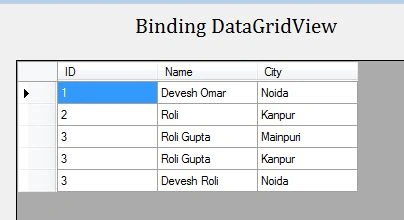

Binding DataGridView using Array

5. Binding DataGridView using Two dimension Array

Declaring Array

string[][] Array = new string[100][];

Adding values to the array:

for(int i = 0; i < 100; i++)
Array[i] = new string[2] { "ROLI:"+i, "DEVESH:"+i };

Defining LINQ for array:

var data = (from arr in Array select new { Column_1 = arr[0], Column_2 = arr[1] });

Binding data

dataGridView1.DataSource = data.ToList();

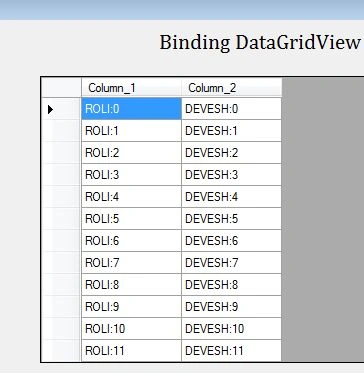

Binding DatagridView using Two dimension Array

6. Binding DataGridView Manually

Defining columns

dataGridView1.ColumnCount = 3;
dataGridView1.Columns[0].Name = "ID";
dataGridView1.Columns[1].Name = "Name";
dataGridView1.Columns[2].Name = "City";

Adding Rows

string[] row = new string[] { "1", "DEvesh omar", "NOIDA" };
dataGridView1.Rows.Add(row);
row = new string[] { "2", "ROLI", "KANPUR" };
dataGridView1.Rows.Add(row);
row = new string[] { "3", "DEVESH", "NOIDA!22" };
dataGridView1.Rows.Add(row);
row = new string[] { "4", "ROLI", "MAINPURI" };
dataGridView1.Rows.Add(row);

Running the code:

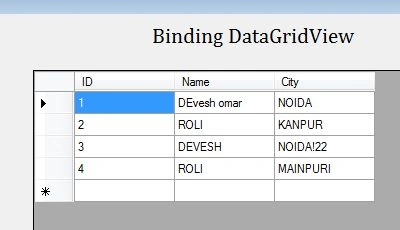

Binding DatagridView

Conclusion

We have learned various ways to bind a DataGridView to a C# Windows Forms form.
