Windows Template Studio For UWP Developer

In the last post, I introduced you to Template 10 for UWP Development that explains the fundamentals and uses of Template 10. In this post, you’ll see how to start UWP development using the Windows Template Studio (WTS). With little or no prior experience with UWP, you’ll learn how to use Windows Template Studio (WTS) to produce a good foundation for amazing Windows 10 UWP applications, get those apps ready for publishing and see them run on UWP devices ranging from Xbox One and PC.



Windows Template Studio is Microsoft’s new approach towards UWP (Universal Windows Platform) applications. The first version was officially launched in 2017 as a Visual Studio Extension developed by Microsoft. It’s a wizard-based experience that can transform your primary necessities like Design, Structure, Frameworks, and pages into an impeccable UWP project. WTS introduces, its wizard-based experience, To make UWP development easier and time saver, for every Universal Windows app developer.



Windows Template Studio Advantages



A Solid Starting Point



Windows Template Studio(WTS) provides a solid starting point, so there's no need to write a lot of code from scratch for implementation of MVVM, the latest Windows 10 features and other required practices.



Wide Range to Project types



Windows Template Studio (WTS) supports four project types: basic, navigation pane, pivot and tabs, and a menu bar.



Wide Range to Project types



Windows Template Studio (WTS) currently supports five common patterns: code-behind, basic MVVM, MVVMLight, Caliburn.Micro, and Prism.



Windows 10 features



Windows Template Studio (WTS) currently supports features covering analytics, application launching, application lifecycle (settings storage, suspend and resume, multiple views), background work, connected experiences (share source and target), and user interaction (app notifications, Live tiles, prompts, feedback, drag & drop and theme selection).



Necessary Documentation



Windows Template Studio(WTS) has very good and helpful documentation for developers.



Let's have a quick start,



Step 1



Open Visual Studio 2019 on your computer.



Step 2



Click at Manage Extensions under Extensions Menu.



Step 3



Search for "Window Template Studio" in Manage Extensions window, Then download the extension named as Window Template Studio.





Step 4



After this installation completion, hit at the close button and open a new instance of your visual studio.



Step 5



Now click on "Create a new Project" in Visual Studio 2019.





Step 6



In the window appears "You can look for "Window Template Studio (universal Windows)" here. After selection, hit the Next Button.





Step 7



In the next window, put your project name, location, and related information. And hit the Create Button.

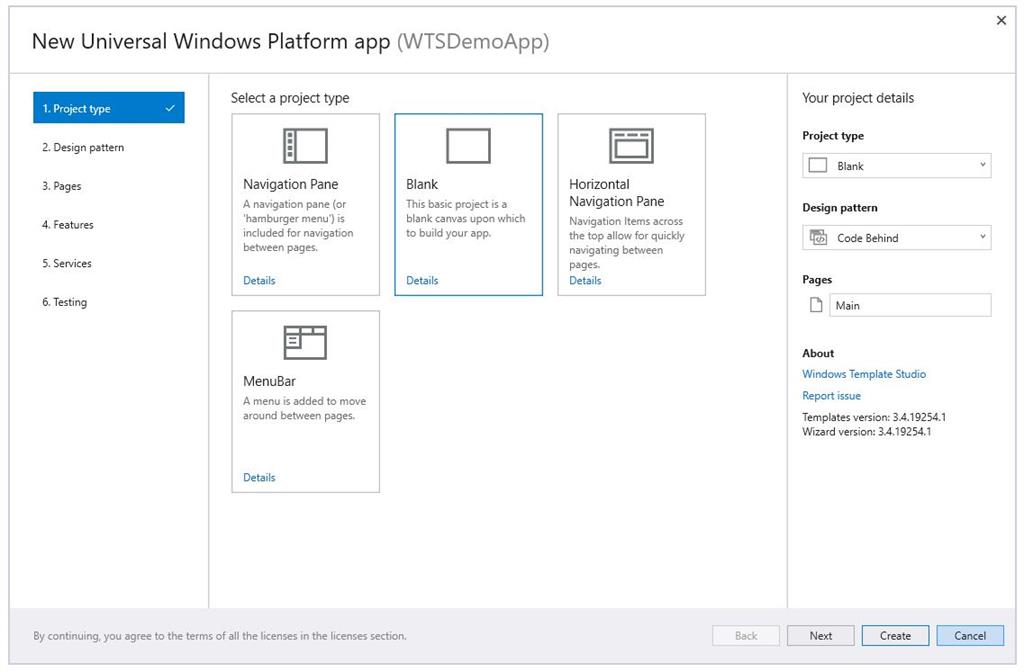

Step 8



So here the Window Template Studio's wizard UI shows that now you have to select your project type as per your project demand. Here I am going to select the Blank project type and go for next.





Step 9



Now you can select multiple types of design patterns for your project in the wizard window. Here I am going to select the Prism as my project design pattern and hit the next button.





Step 10



In the next window, you can able to attach various types of pages as per our needs of the project. Now, I am adding a blank page and clicking on next.

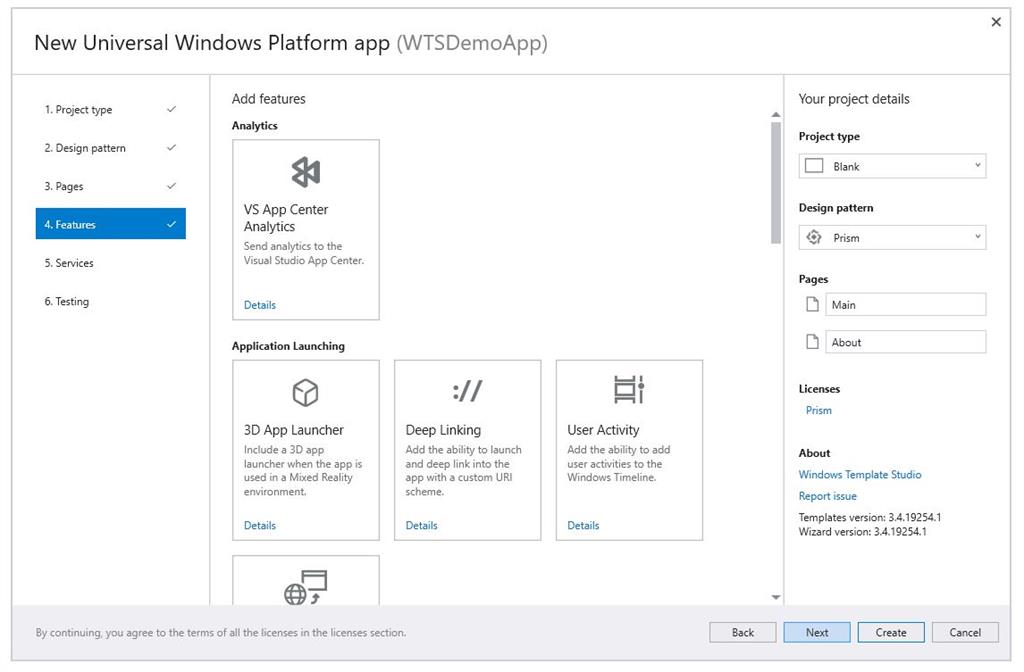

Step 11



In the next window, you can see there is a list of features available. Here I am not going to select any one of them for now. And, hit the Next button.





Step 12



In the next window, you can see there is a list of services available for the project. Here I am not going to select any one of them for now. And, hit the Next button.

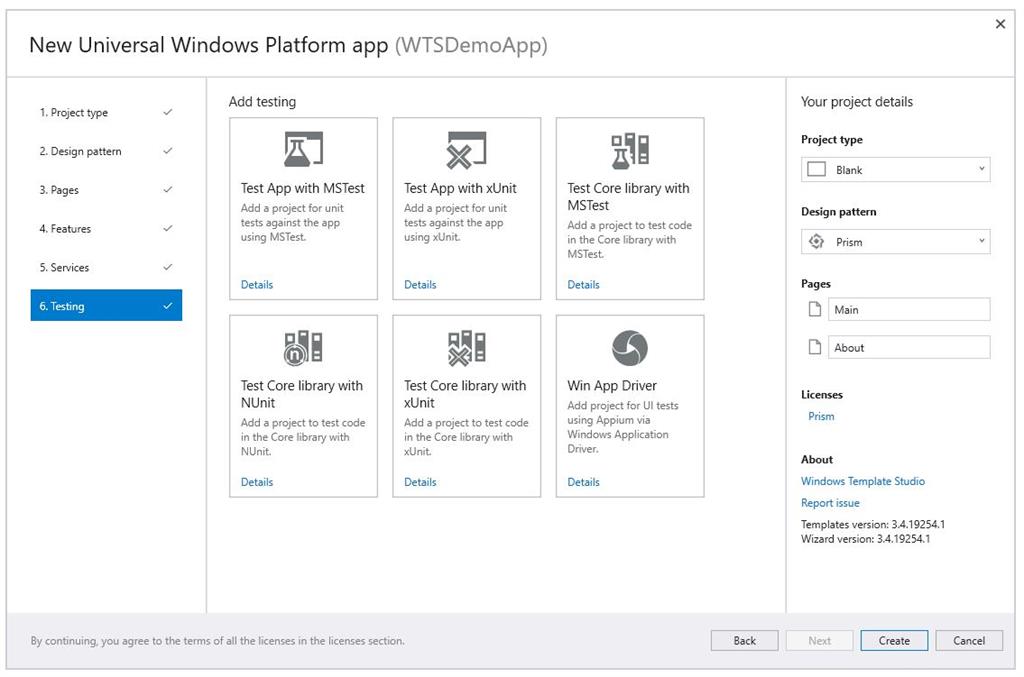

Step 13



In the next wizard's Testing window, follow the previous step, Select no on of Testing Project for now. And, hit the Create button.







Step 14



After project loading completion, you can see in the solution explorer of your visual studio the loaded project has a good folder structure that makes it easy for you to put your file and component respectively.





Step 15



Now build and run your first UWP App.





The company has been working continuously on improving it since its launch, with many updates being released over time. So if you're interested in reading more about Windows Template Studio, you can check out the official GitHub page. You can also make your own contributions to it by suggesting new ideas & features.
