Wizard Control in ASP.Net

Wizard control eliminates the need to design forms to execute a step-by-step process in the actual business flow. This simplifies the work of developers to design and write the code.

The control provides a mechanism that allows you to easily build the desired wizard as a collection of steps, add a new step, or reorder the steps. You don't have to write any infrastructure whatsoever for navigation or to persist user data between steps.

The asp, wizard is a control name and wizard steps is the parent element for the asp:wizardstep element.

<asp:wizard id="wizard1" runat="server">
  <wizardsteps>
    <asp:WizardStep runat="server" Title="Personal Information" StepType="Auto">
      <!-- Place the control here. -->
    </asp:WizardStep>
  </wizardsteps>
</asp:wizard>

There can be multiple wizard step that iterates from by form. The control can be placed in the wizard step tag.

The step is the enum type which has the attributes Auto, Complete, Finish, Start, and Step.

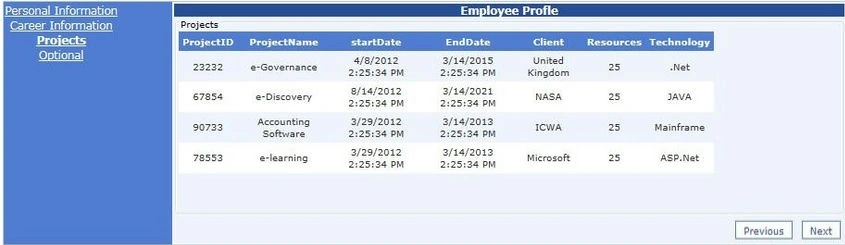

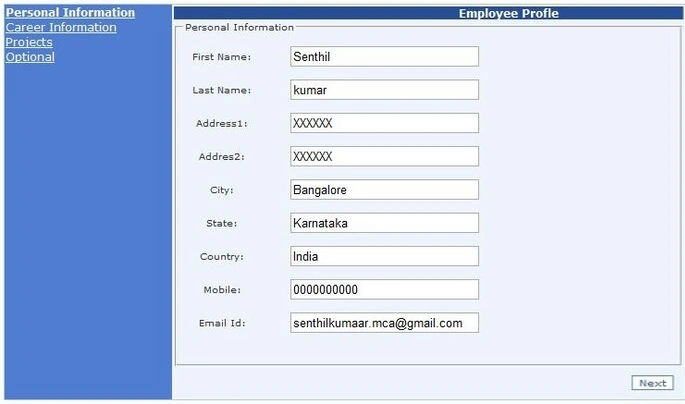

The first form will have the next button and all the subsequent forms will have the previous and next button.

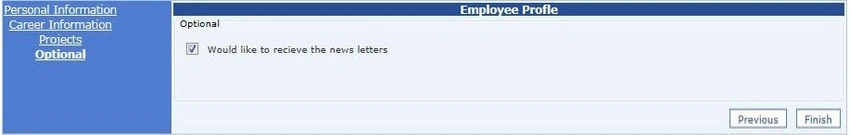

The last wizard step tag should be defined as the complete step type.

There are events that are used to write the events on the controls in the wizard control.

1. OnActiveStepChanged
2. OnCancelButtonClick
3. OnPreviousButtonClick
4. OnNextButtonClick
5. OnFinishButtonClick
6. OnSideBarButtonClick

For example, the Finish button click event can be written on the server side like the following.

protected void OnFinish(object sender, WizardNavigationEventArgs e)
{
    WizardStepType t = Wizard1.WizardSteps[e.NextStepIndex].StepType;
    if (t == WizardStepType.Finish)
    {
        // code here...
    }
}

Wizard control properties

Template	Description
FinishNavigationTemplate	Specifies the navigation bar shown before the last page of the wizard; by default, the navigation bar contains the Previous and Finish buttons
HeaderTemplate	Specifies the title bar of the wizard
SideBarTemplate	Used to display content on the left side of the wizard control
StartNavigationTemplate	Specifies the navigation bar for the first view in the wizard; by default, it contains only the Next button
StepNavigationTemplate	Specifies the navigation bar for steps other than first, finish, or complete; by default, contains Previous and Next buttons

Wizard Style Properties
