Working With Free Community Edition Of Databricks Spark Cluster

I have already written some articles about Azure Databricks cluster creation and its usage in C# Corner.

In the above articles, I explained about Azure Databricks Spark Cluster. To test these services, you must have an Azure account. Many people do not have an Azure account yet. Those who do not have an Azure account, please try Databricks Community edition. It is free.

In this article, we will see the steps for creating a free community edition Databricks account and we will also see the basic table actions. (CRUD Operations)

Databricks is a company founded by the creators of Apache Spark, and it aims to help clients with cloud-based big data processing using Spark. They are involved in making Apache Spark, a distributed computing framework built atop Scala (Scala is a programming language, which is a modified version of Java. It uses JVM for compilation). Databricks develops a web-based platform for working with Spark, that provides automated cluster management.

Step 1 - Creating a free Databricks community edition account

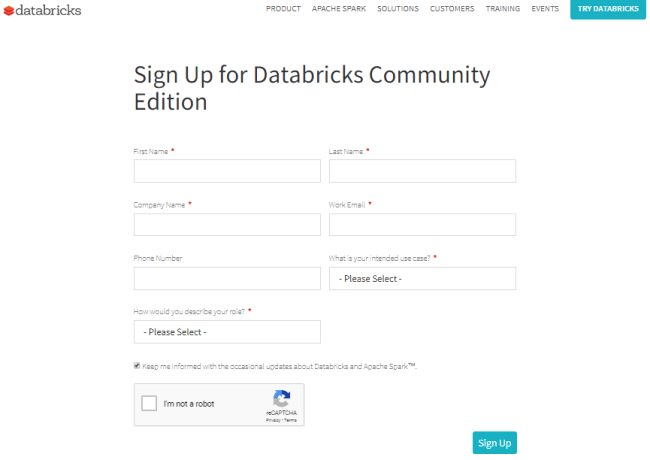

Please use this URL to sign up for a free account.

Databricks community edition account

Enter your personal details and click the “Sign Up” button.

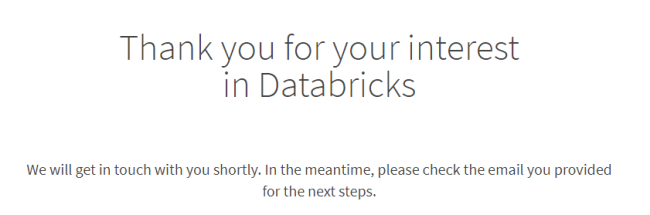

After a few seconds, your account will be created.

Sign Up

Please check your email and you will be notified with a mail.

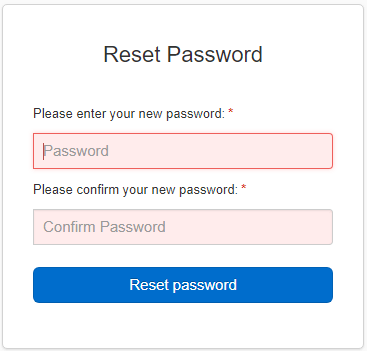

You must verify your account by clicking the link provided in the mail. It will redirect you to a password reset screen. Please give a password to your account.

password reset screen

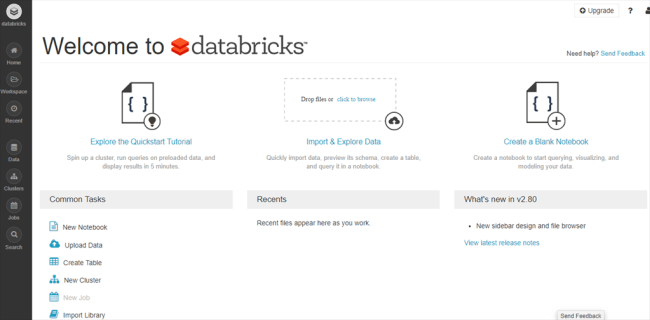

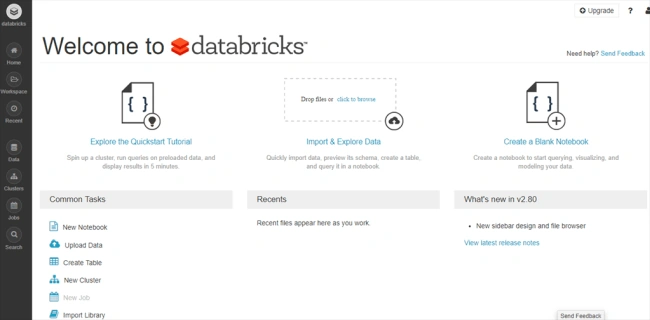

Now, our Databricks account is ready to use.

Databricks account

Step 2 - Cluster Creation

You can use the “Clusters” menu in the left pane of the dashboard or you can use the “New Cluster” option in the “Common Tasks” on the dashboard to create a new cluster.

Cluster Creation

Cluster Creation

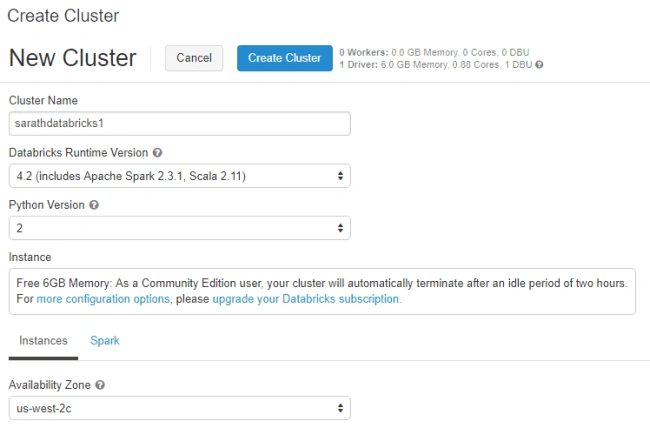

Please note we are using the free edition of Databricks Spark cluster. You only get a single driver cluster. In this cluster, we don’t have any worker nodes. The driver memory is 6.0 GB only. For our testing and educational purposes, this is more than enough. Later we can upgrade this account to the enterprise edition.

Our cluster creation will take some time to finish. Now, it shows the “Pending” state.

“Pending” state

After some time, our cluster will be ready.

Databricks community edition account

Step 3 - Upload CSV File

We can create a table now. We are going to create the table from the existing CSV file. We first upload the CSV from our local system to DBFS (Databricks File System.) I am using a sample CITY_LIST.CSV file which contains the sample data for some cities in India.

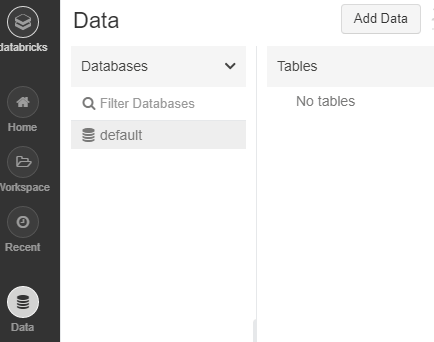

Please click the “Data” menu and click “Add Data” button.

Upload CSV File

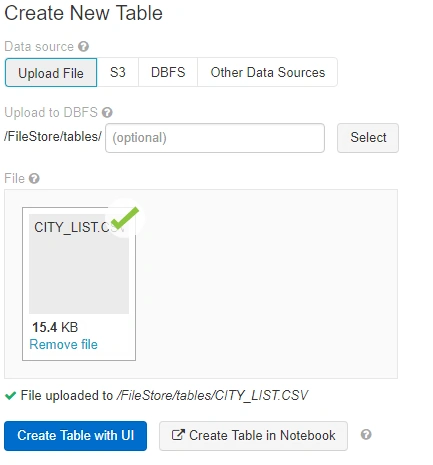

You can browse the CSV file from the local system and upload.

CSV file

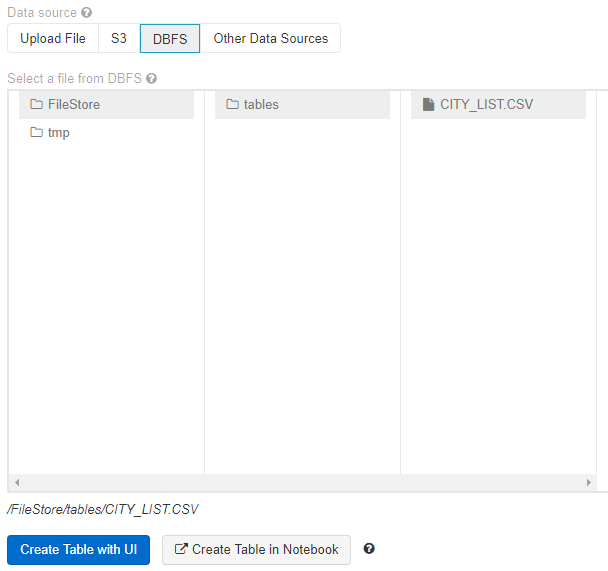

Now, our file will be saved to “/FileStore/tables” folder. This is the DBFS file system.

DBFS file system

Step 4 - Table Creation

We can use either “Create Table with UI” or “Create Table in Notebook” option to create the new table. I am going with “Create Table with UI” option. Both are easy to use. If you want to familiarize yourself with Python/Scala commands, please go with the second option.

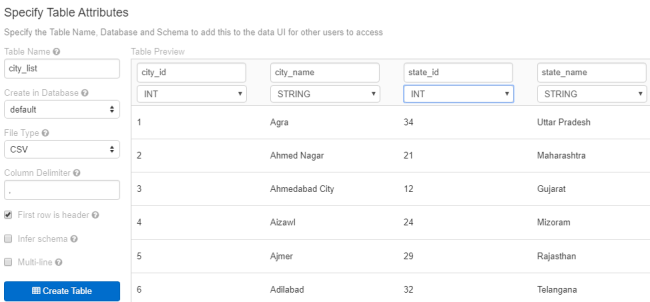

Please choose the cluster name from the drop down and click “Preview Table” button and choose table attributes. I selected “First row is header” option.

Table Creation

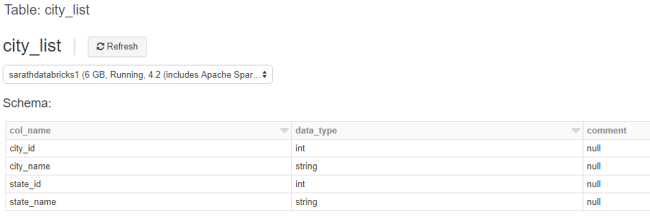

Please click the “Create Table” button. Our table will be created shortly.

Create Table

We can read the data from the table using a SQL notebook.

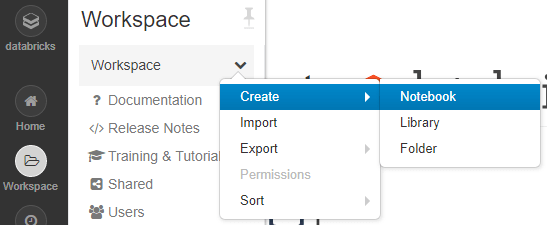

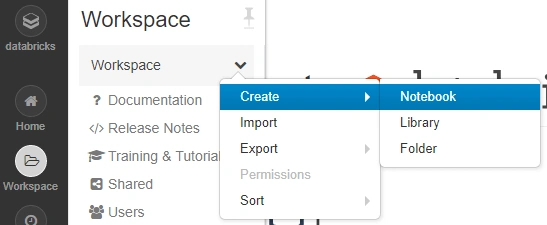

For creating a notebook please click “Workspace” menu and click “Create” “Notebook”

Workspace

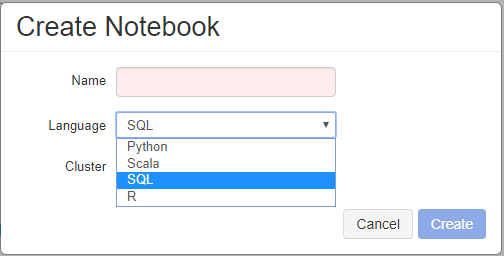

Currently, there are four types of Notebooks supported by Databricks. (Python, Scala, SQL, and R) In this article, we will use SQL notebook.

types of Notebooks

Please give a valid name to your notebook and click “Create” button.

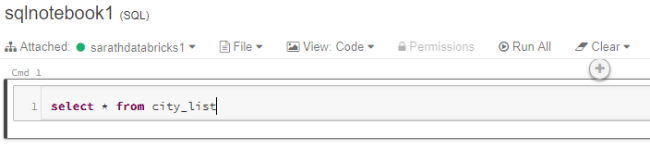

Now our notebook is created, and we can give a query to get the data from the table.

get the data from table

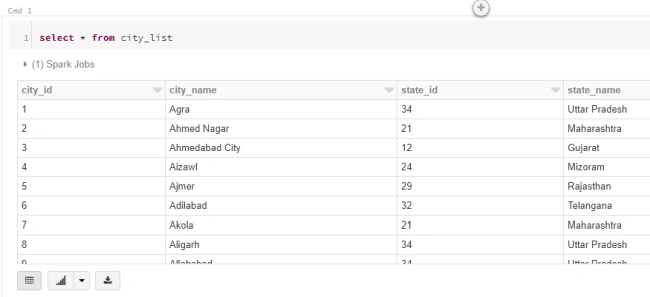

The above SQL statement is a simple read statement and will return all the records from the table. You can enter “
Shift+Enter” key get the result.

records from table

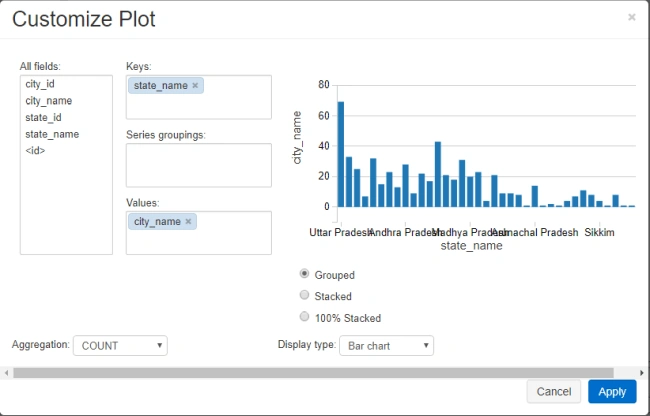

You can even get the result in a graph format too. It is easy to customize the plot options.

graph format

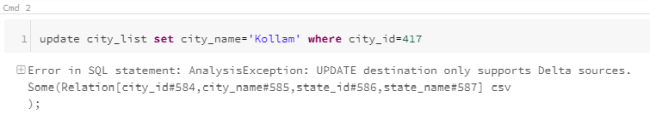

We have created a table from an existing CSV file and read the records using SQL notebook. Please note you can’t update any record in this table. If you try to update this table, you will get below error message.

error message

We have created this table from a CSV file.
It does not support ACID transactions. To avoid this issue, we can use the Databricks delta feature.

Databricks Delta delivers a powerful transactional storage layer by harnessing the power of Apache Spark and Databricks DBFS. It supports ACID transactions.

Step 5 - Create a table with Delta feature

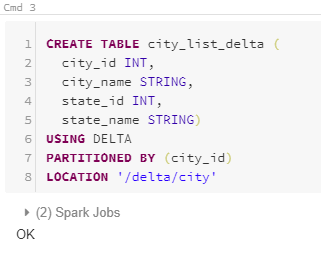

Now, we can create a table with the same structure as our previous “city_list” table.

table with Delta feature

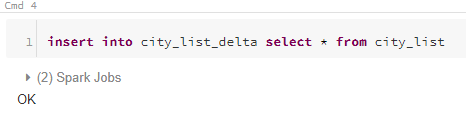

We can insert data into this table from our existing table using the below statement.

insert data to this table

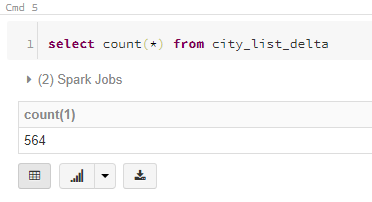

We can verify the record count in a new table.

record count in new table

We got a total of 564 records from this new table, the same as the previous table. We confirmed that all the existing data are successfully inserted into the new table.

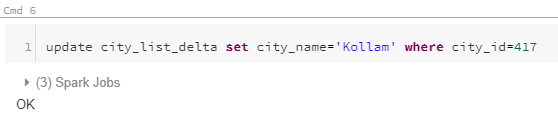

We can again check the “UPDATE” statement in this new table.

“UPDATE” statement

This time, we didd not get any error message. That means,

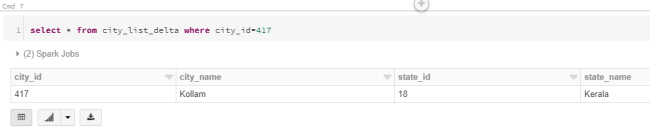

our record is successfully updated. We can verify it by below statement.

Databricks community edition account

Previously it was “Quilon”, now it is changed to “Kollam”. Our update query worked successfully.

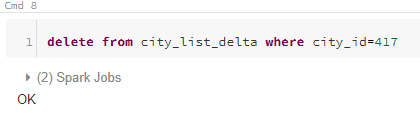

Now, we can check the “DELETE” statement as well.

DELETE” statement

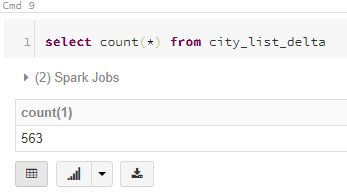

We can verify the deletion by the below statement.

DELETE statement

Now, we got only 563 records. Previously it was 564 records. One record was successfully deleted from our table.

We have seen all CRUD operations in this DELTA table. Please note this free Databricks community edition has some limitations. We can’t use all the features of Databricks.

In this article, we have seen the steps for creating the free Databricks community account and we created a normal table from existing CSV file and later we created a table with DELTA support. This delta table supports all CRUD operations and ACID features.
