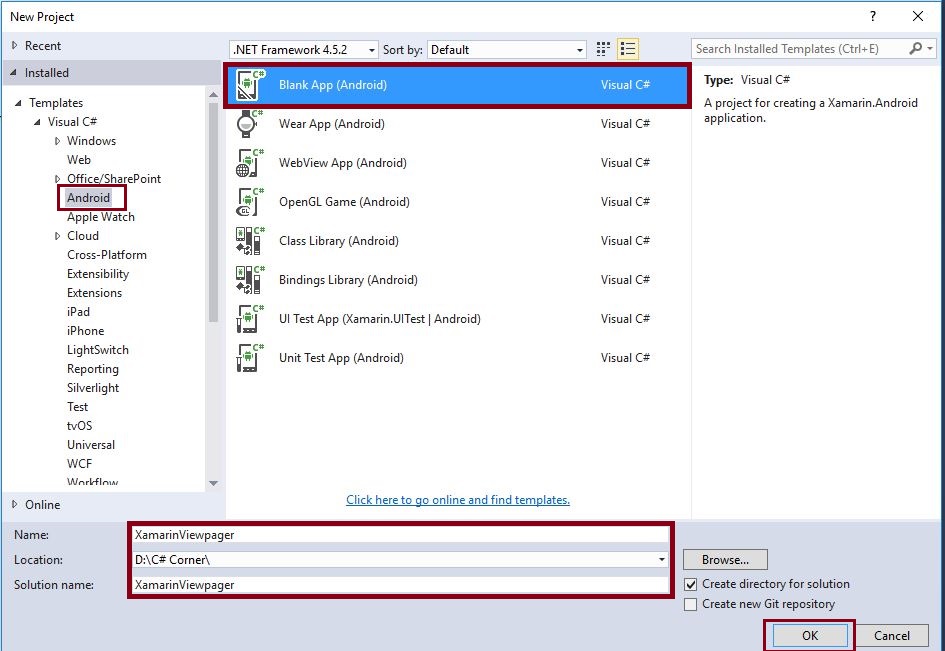

Step 1: Open Visual Studio->New Project->Templates->Visual C#->Android->Blank App.

Select Blank App. Then, give Project Name and Project Location.

Step 2

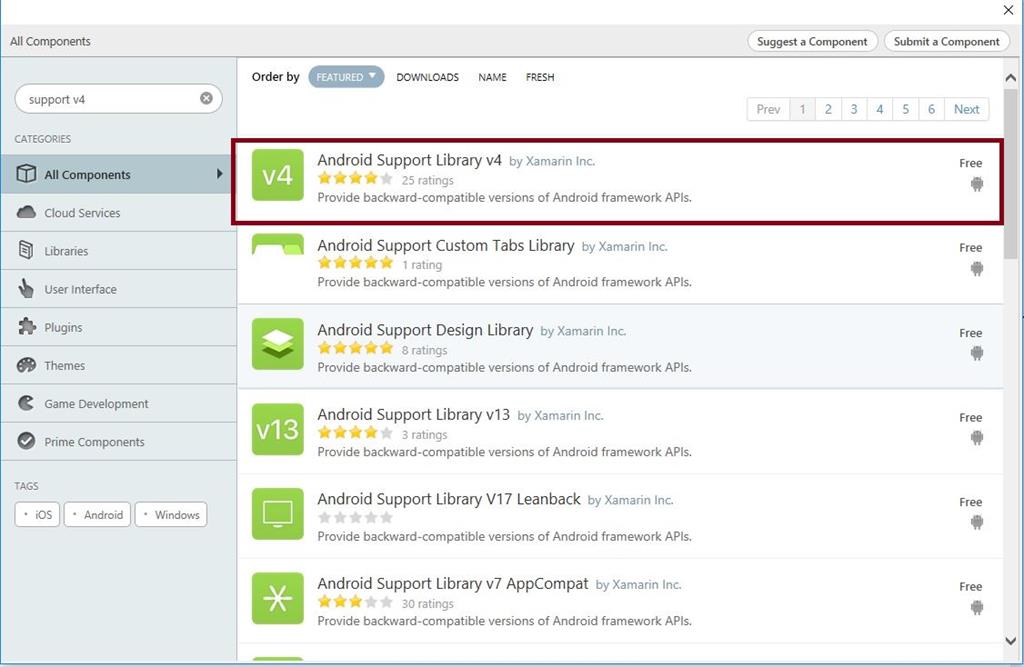

Next, go to Solution Explorer-> Project Name-> Components and right click to get More Components. Open a new dialog box. Use this dialog box to search the Support v4. Then, add the Android Support Library v4 packages.

Step 3

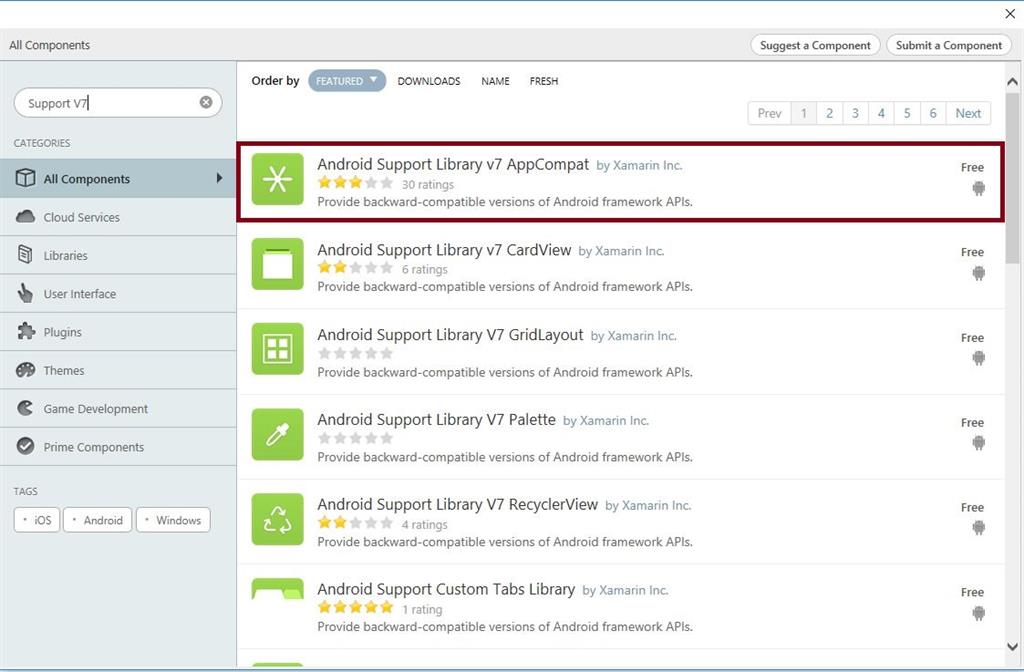

Next, go to Solution Explorer-> Project Name-> Components. Right click to get more components and open a new dialog box. In this dialog box, search the Support v7. Then, add the Android Support v7 AppCompat packages.

Step 4

Next, go to Solution Explorer-> Project Name-> Components. Right click to get more components and open a new dialog box. In this dialog box, search for the Design. Then, add the Android Support Design Library packages.

Step 5

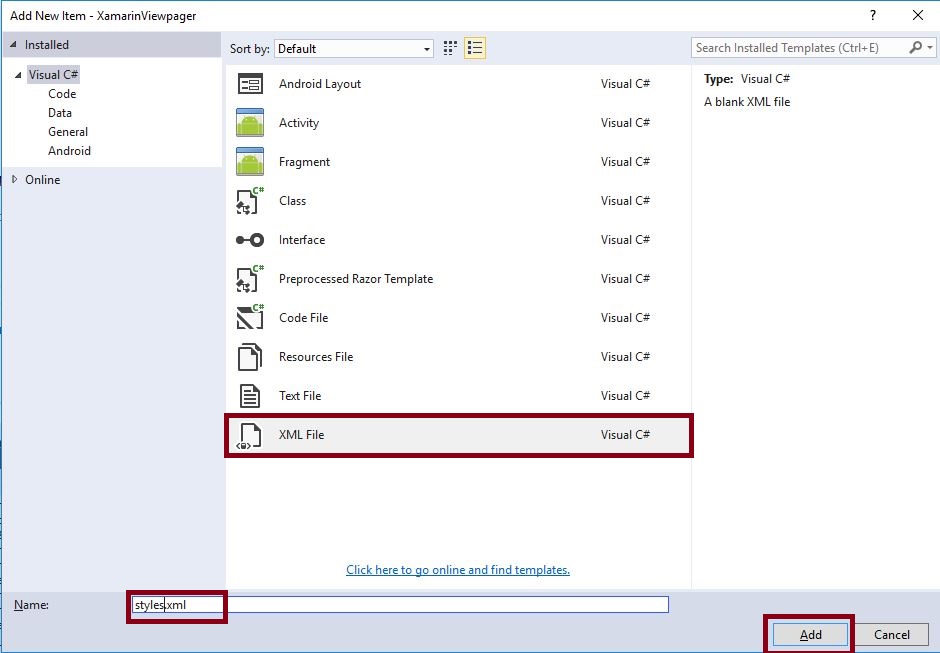

Before starting the Design View, it needs Theme.AppCompat.Light.NoActionBar. So, we create style.xml file. Go to Solution Explorer-> Project Name->Resources->values. Right click to Add->New Item and then, open a new dialog box. Then, select xml file and name it as styles.xml.

Step 6

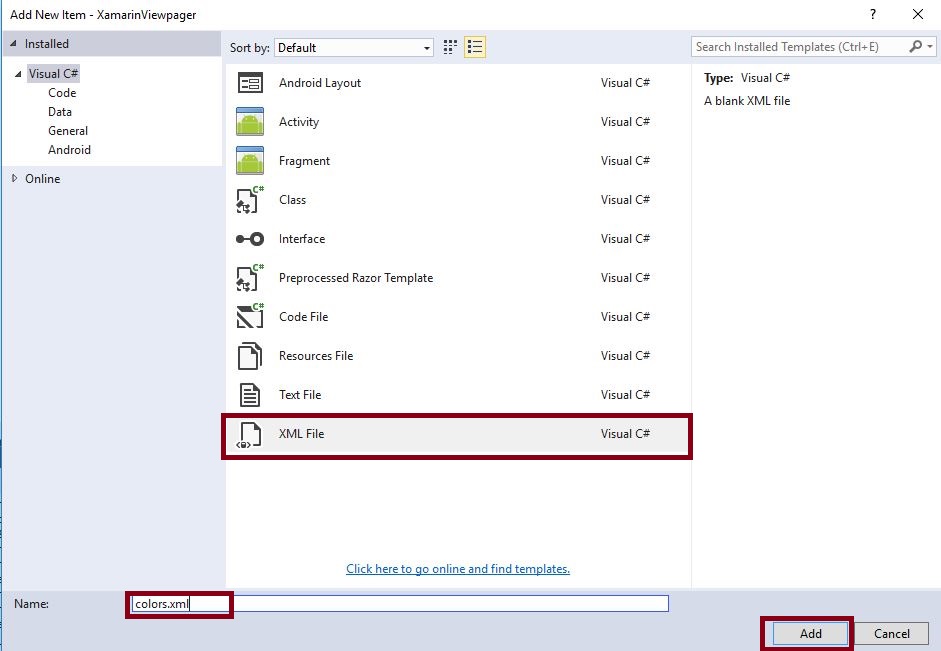

Next, we need to create color.xml file. Go to Solution Explorer-> Project Name->Resources->values. Right click to Add->New Item. Then, open a new dialog box. Selet an xml file and name it as colors.xml.

Step 7

Now, open Solution Explorer-> Project Name->Resources->values->colors.xml. Click to open the Design View and give the following code:

<?xml version="1.0" encoding="utf-8" ?>
<resources>
<color name="ColorPrimary">#2196F3</color>
<color name="ColorPrimaryDark">#1976D2</color>
</resources>

Step 8

Next, open Solution Explorer-> Project Name->Resources->values->styles.xml. Click to open Design View and paste the following code:

<?xml version="1.0" encoding="utf-8" ?>
<resources>
<style name="Theme.DesignDemo" parent="Base.Theme.DesignDemo">
</style>
<style name="Base.Theme.DesignDemo" parent="Theme.AppCompat.Light.NoActionBar">
<item name="colorPrimary">@color/ColorPrimary</item> <item name="colorPrimaryDark">@color/ColorPrimaryDark</item>
</style>
<style name="MyCustomTabLayout" parent="Widget.Design.TabLayout">
<item name="tabTextColor">#707070</item> <item name="tabSelectedTextColor">#00A859</item> <item name="tabIndicatorColor">#00A859</item> <item name="android:textStyle">bold</item> <item name="tabTextAppearance">@style/TextAppearance.AppCompat.Subhead.Inverse</item>
</style>
</resources>

Here, the name for MyCustomTabLayout is showing TabLayout in Design view.

Step 9

Again, open Solution Explorer-> Project Name->Resources->layout ->Main.axml. Click to open the Design View and give the following code:

<?xml version="1.0" encoding="utf-8"?>
<android.support.design.widget.CoordinatorLayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
android:id="@+id/main_content"
android:layout_width="match_parent"
android:layout_height="match_parent">
<android.support.design.widget.AppBarLayout
android:id="@+id/appbar"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:theme="@style/ThemeOverlay.AppCompat.Dark.ActionBar">
<android.support.v7.widget.Toolbar
android:id="@+id/toolbar"
android:layout_width="match_parent"
android:layout_height="?attr/actionBarSize"
android:background="#33B86C"
app:popupTheme="@style/ThemeOverlay.AppCompat.Light" />
<android.support.design.widget.TabLayout
android:id="@+id/tabs"
android:layout_width="match_parent"
app:tabGravity="fill"
app:tabMode="fixed"
app:tabIndicatorHeight="4dp"
android:background="#FEFEFE"
style="@style/MyCustomTabLayout"
android:layout_height="wrap_content" />
</android.support.design.widget.AppBarLayout>
<android.support.v4.view.ViewPager
android:id="@+id/viewpager"
android:layout_width="match_parent"
android:layout_height="match_parent"
app:layout_behavior="@string/appbar_scrolling_view_behavior" />
<android.support.design.widget.FloatingActionButton
android:id="@+id/fab"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_gravity="end|bottom"
android:layout_margin="15dp"
android:src="@drawable/ic_done" />
</android.support.design.widget.CoordinatorLayout>

Step 10: After Design view creation open Solution Explorer-> Project Name->MainActivity.cs then following below steps.

Step 11: Add below Namespaces,

using Android.Support.V4.View;
using Android.Support.V7.App;
using Android.Support.Design.Widget;
using V4Fragment = Android.Support.V4.App.Fragment;
using V4FragmentManager = Android.Support.V4.App.FragmentManager;
using System.Collections.Generic;
using V7Toolbar = Android.Support.V7.Widget.Toolbar;

Step 12

Now, we need to create ViewPager variable and declare the viewpager within the OnCreate(). Before it, we need to change the Activity in AppCompatActivity.

//SupportActionBar
SetSupportActionBar(toolbar);
SupportActionBar.SetIcon(Resource.Drawable.Icon);
//ViewPager
viewpager = FindViewById < Android.Support.V4.View.ViewPager > (Resource.Id.viewpager);
var toolbar = FindViewById < V7Toolbar > (Resource.Id.toolbar);
setupViewPager(viewpager); //Calling SetupViewPager Method
//TabLayout
var tabLayout = FindViewById < TabLayout > (Resource.Id.tabs);
tabLayout.SetupWithViewPager(viewpager);
//FloatingActionButton
var fab = FindViewById < FloatingActionButton > (Resource.Id.fab);
fab.Click += (sender, e) => {
Snackbar.Make(fab, "Here's a snackbar!", Snackbar.LengthLong).SetAction("Action", v => Console.WriteLine("Action handler")).Show();
};

Step 13: Next step is to create setupViewPager() method. We need to create some fragment page. So, we create fragment class and two axml design pages.

Step 14

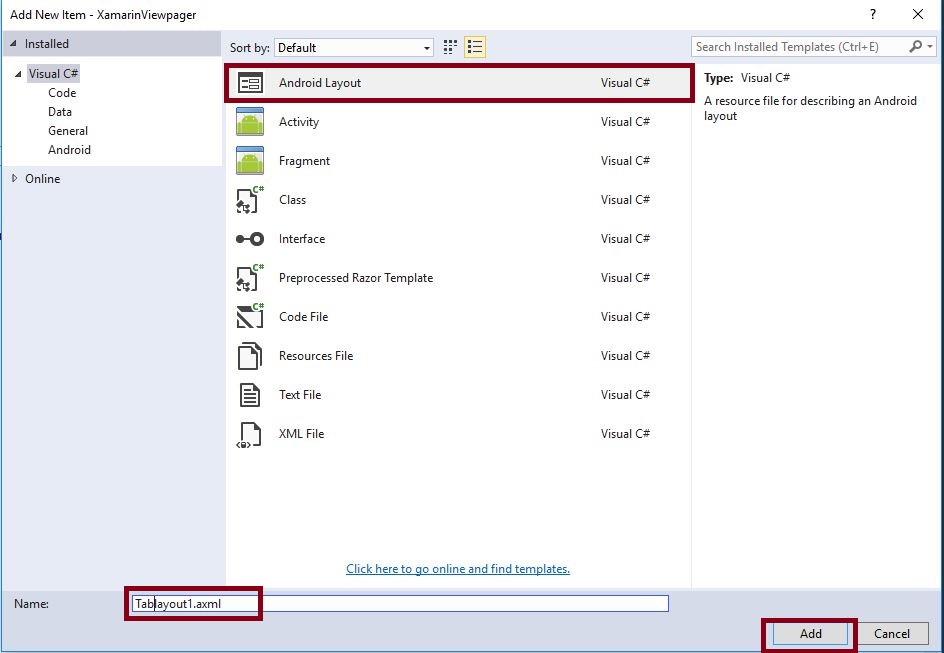

Go to Solution Explorer-> Project Name->Resources->layout. Right click to Add->New Item and then, open a new dialog box. Then, select Android Layout and name it as Tablayout1.axml.

Step 15

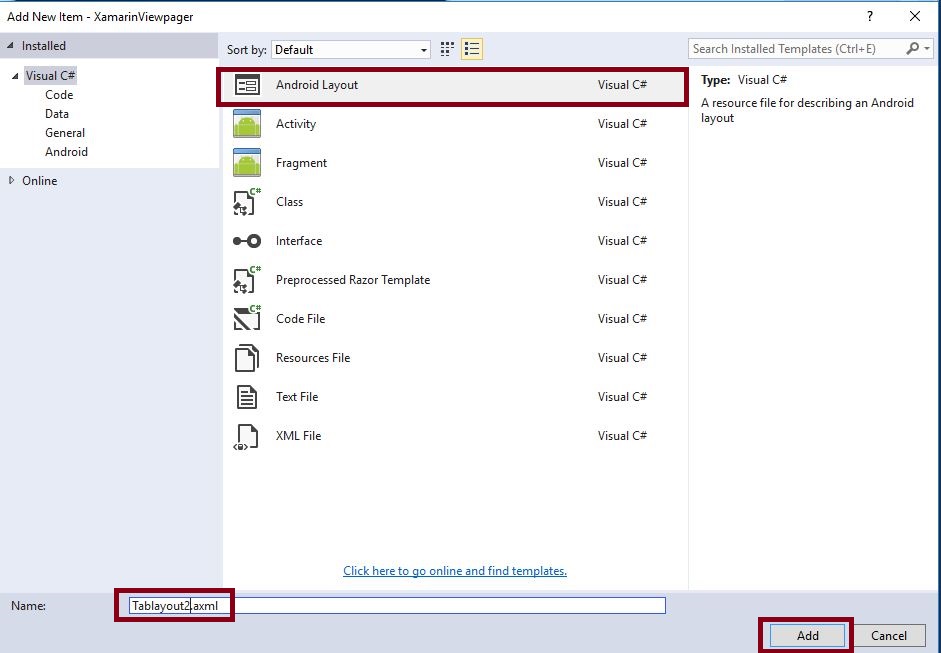

Go to Solution Explorer-> Project Name->Resources->layout. Right click to Add->New Item and open a new dialog box. Then, select Android Layout and give it a name as Tablayout2.axml.

Step 16

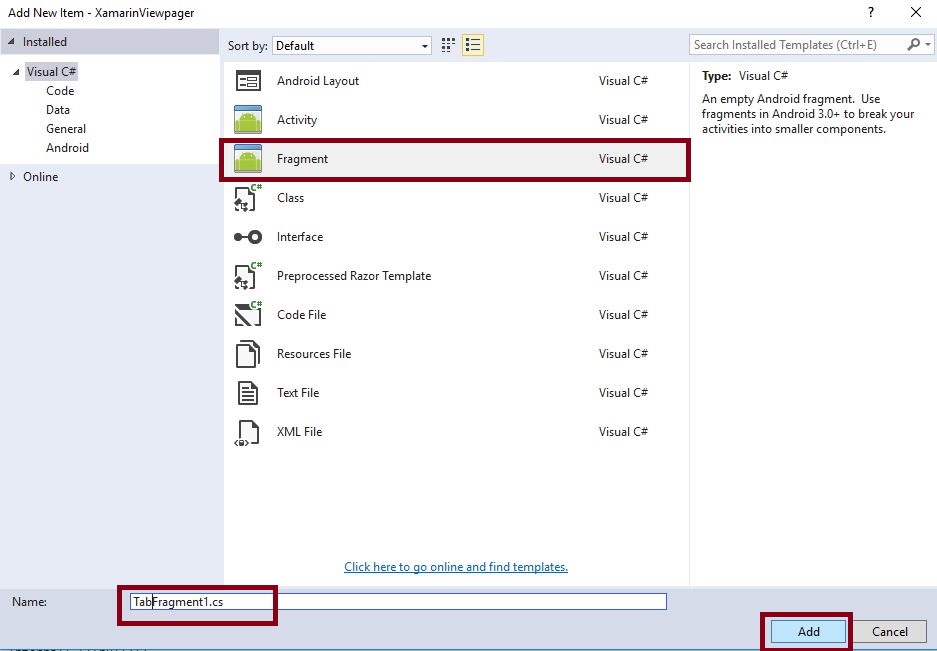

Go to Solution Explorer-> Project Name. Right click to Add->New Item and then, open a new dialog box. Then, select Fragment and name it as TabFragment1.cs.

Step 17

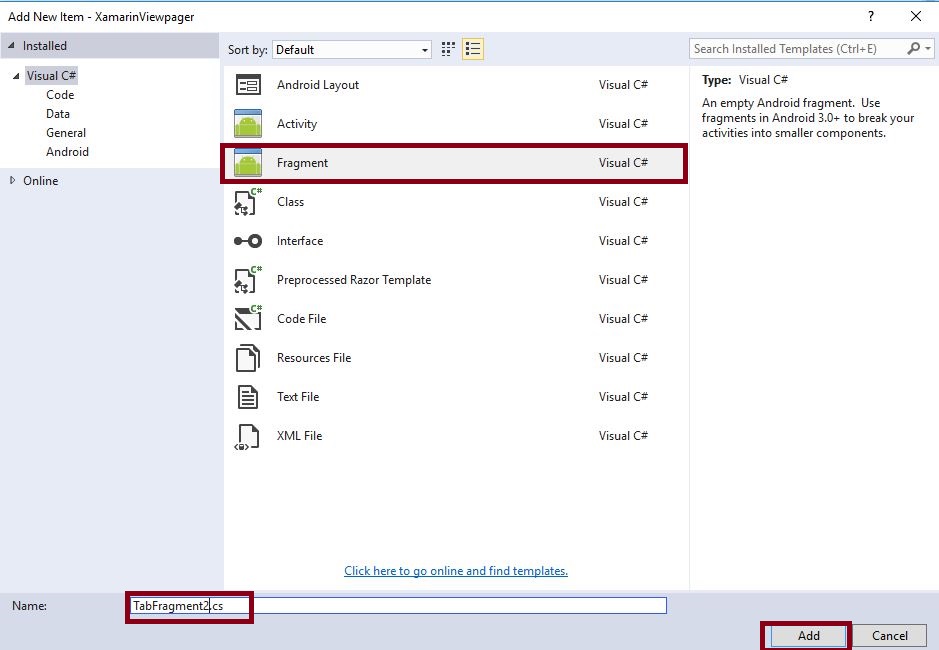

Go to Solution Explorer-> Project Name. Right click to Add->New Item and open a new dialog box. Then, select Fragment and give it a name as TabFragment2.cs.

Step 18

Now, open Solution Explorer-> Project Name->Resources->layout ->Tablayout1.axml. Click on open Design View and use following code.

<TextView
android:text="First Page"
android:textAppearance="?android:attr/textAppearanceLarge"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:id="@+id/textView1" />

Step 19

Next, open Solution Explorer-> Project Name->Resources->layout ->Tablayout2.axml. Click to open Design View and paste the following code:

<TextView
android:text="Second Page"
android:textAppearance="?android:attr/textAppearanceLarge"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:id="@+id/textView1" />

Step 20

After the creation of Design View, we need to open Solution Explorer-> Project Name->TabFragment1.cs. Then, create View and Change Fragment to Fragment,

public override View OnCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState)
{
var v = inflater.Inflate(Resource.Layout.Tablayout1, container, false);
return v;
}

Step 21: Next, open Solution Explorer-> Project Name->TabFragment2.cs. Then, create View and Change Fragment to Fragment,

public override View OnCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState)
{
var v = inflater.Inflate(Resource.Layout.Tablayout2, container, false);
return v;
}

Step 22: Again, we need to open the MainActivity.cs to create SetupViewpager() after OnCreaete().

void setupViewPager(Android.Support.V4.View.ViewPager viewPager)
{
var adapter = new Adapter(SupportFragmentManager);
adapter.AddFragment(new TabFragment1(), "First Fragment");
adapter.AddFragment(new TabFragment2(), "Second Fragment");
viewPager.Adapter = adapter;
viewpager.Adapter.NotifyDataSetChanged();
}

Here, we use SupportFragmentManager to create New Adapter Class below the setupViewPager.

Adpater Class

class Adapter: Android.Support.V4.App.FragmentPagerAdapter {
List < V4Fragment > fragments = new List < V4Fragment > ();
List < string > fragmentTitles = new List < string > ();
public Adapter(V4FragmentManager fm): base(fm) {}
public void AddFragment(V4Fragment fragment, String title) {
fragments.Add(fragment);
fragmentTitles.Add(title);
}
public override V4Fragment GetItem(int position) {
return fragments[position];
}
public override int Count {
get {
return fragments.Count;
}
}
public override Java.Lang.ICharSequence GetPageTitleFormatted(int position) {
return new Java.Lang.String(fragmentTitles[position]);
}
}

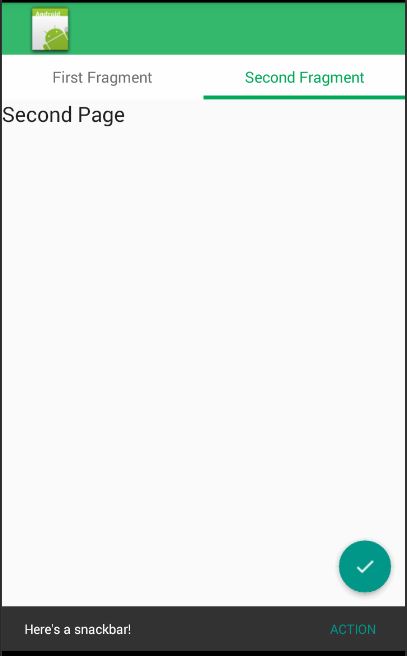

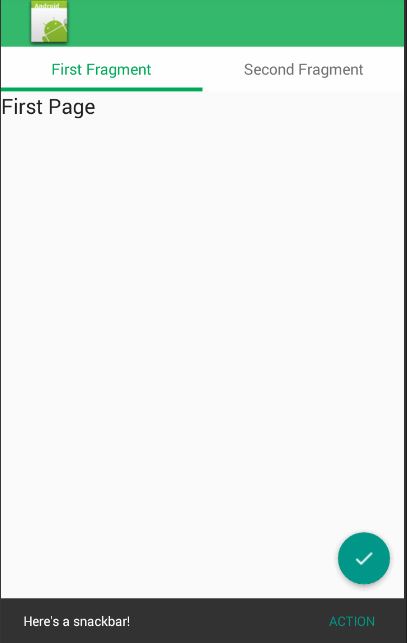

Step 23: Press F5 or Build and Run the Application.

Finally, we have successfully created the Xamarin Android Viewpager, Tablayout, FloactionAction, SupportActionBar using XamarinAndroidSupportDesign.
