Xamarin.Android - Stop Watch Seconds And Milliseconds

In this article, I shall show you how to make a simple stop watch app in Xamarin Android. A stopwatch is a handheld timepiece designed to measure the amount of time elapsed from a particular time when it is activated to the time when the piece is deactivated. A large digital version of a stopwatch designed for viewing at a distance, as in a sports stadium, is called a stopclock. In manual timing, the clock is started and stopped by a person pressing a button.

Introduction

In this article, I shall show you how to make a simple stop watch app in Xamarin Android. A stopwatch is a handheld timepiece designed to measure the amount of time elapsed from a particular time when it is activated to the time when the piece is deactivated. A large digital version of a stopwatch designed for viewing at a distance, as in a sports stadium, is called a stopclock. In manual timing, the clock is started and stopped by a person pressing a button.

Prerequisites
  • Radial Progress
  • Visual Studio 2017
The steps given below are required to be followed in order to create a Stop Watch app in Xamarin.Android, using Visual Studio.

Step 1

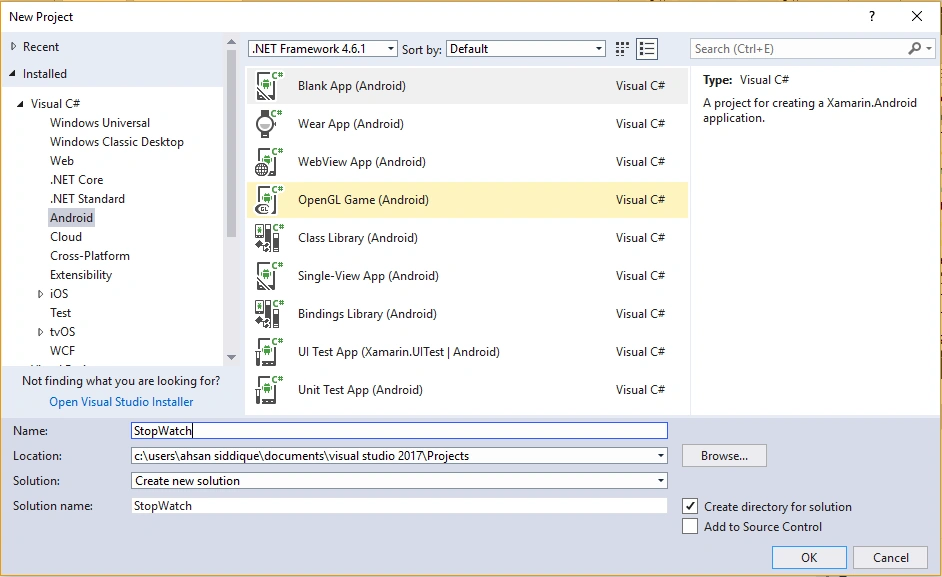

Open Visual Studio and go to New Project-> Templates-> Visual C#-> Android-> Blank app. Give it a name, like StopWatch.


Step 2

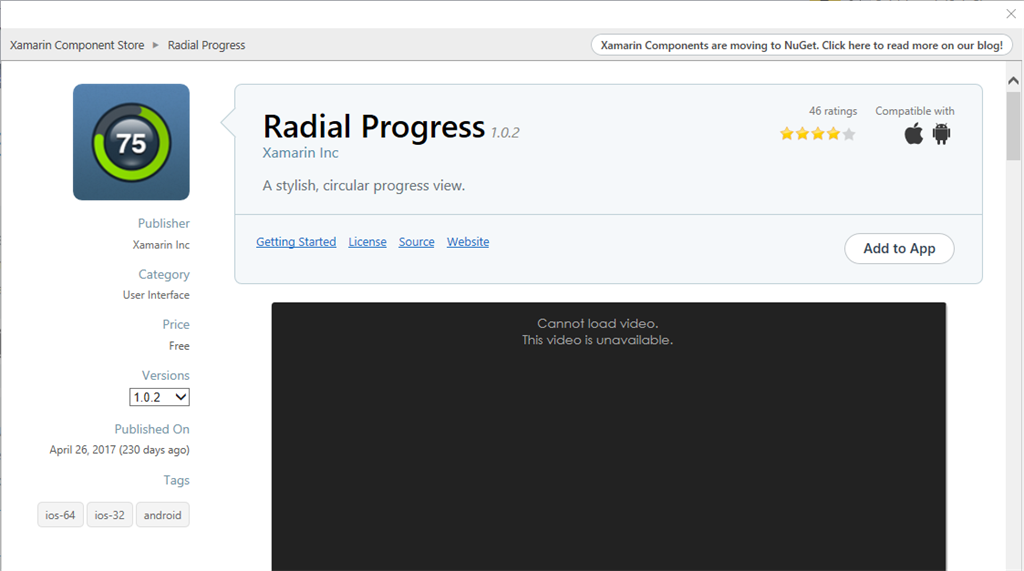

Go to Solution Explorer-> Components -> then Right Click-> Get More Components. In this way, you can move on Xamarin Components Store, search for Radial Progress, and add that to the app.


Step 3

Open Solution Explorer-> Project Name-> Resources-> Layout-> Main.axml and add the following code. The layout will have an RadialProgressView in order to preview of progress. I also added a TextView to display the watch and two button Start and Stop.

(FileName: Main.axml)

XML Code
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.     android:orientation="vertical"
  4.     android:layout_width="match_parent"
  5.     android:layout_height="match_parent">
  6.     <radialprogress.RadialProgressView
  7.         android:id="@+id/progressView"
  8.         android:layout_width="300px"
  9.         android:layout_height="300px"
  10.         android:layout_margin="20dp"
  11.         android:layout_gravity="center_horizontal"
  12.         min_value="0"
  13.         max_value="60"
  14.         progress_type="big"
  15.         hide_label="true"
  16.         progress_color="#009688" />
  17.     <TextView
  18.         android:text="0:0:0"
  19.         android:textAppearance="?android:attr/textAppearanceLarge"
  20.         android:layout_width="wrap_content"
  21.         android:layout_height="wrap_content"
  22.         android:layout_gravity="center_horizontal"
  23.         android:id="@+id/txtTimer" />
  24.     <Button
  25.         android:text="Start"
  26.         android:layout_width="match_parent"
  27.         android:layout_height="wrap_content"
  28.         android:id="@+id/btnstart" />
  29.     <Button
  30.         android:text="Stop"
  31.         android:layout_width="match_parent"
  32.         android:layout_height="wrap_content"
  33.         android:id="@+id/btnstop" />
  34. </LinearLayout>
Step 4

Now, go to solution Explorer-> Project Name-> MainActivity file and add following code and use appropriate namespaces.

(FileName: MainActivity.cs)

MainActivity C# Code
  1. using Android.App;
  2. using Android.OS;
  3. using Android.Widget;
  4. using RadialProgress;
  5. using System.Timers;
  6. namespace StopWatch
  7. {
  8.     [Activity(Label = "StopWatch", MainLauncher = true)]
  9.     public class MainActivity : Activity
  10.     {
  11.         RadialProgressView radialProgrssView;
  12.         Button btnStart, btnStop;
  13.         TextView txtTimer;
  14.         Timer timer;
  15.         int hour = 0, min = 0, sec = 0;
  16.         protected override void OnCreate(Bundle savedInstanceState)
  17.         {
  18.             base.OnCreate(savedInstanceState);
  19.             // Set our view from the "main" layout resource
  20.             SetContentView(Resource.Layout.Main);
  21.             radialProgrssView = FindViewById<RadialProgressView>(Resource.Id.progressView);
  22.             btnStart = FindViewById<Button>(Resource.Id.btnstart);
  23.             btnStop = FindViewById<Button>(Resource.Id.btnstop);
  24.             txtTimer = FindViewById<TextView>(Resource.Id.txtTimer);
  25.             btnStart.Click += delegate {
  26.                 timer = new Timer();
  27.                 timer.Interval = 1000; // 1 second
  28.                 timer.Elapsed += Timer_Elapsed;
  29.                 timer.Start();
  30.             };
  31.             btnStop.Click += delegate {
  32.                 timer.Dispose();
  33.                 timer = null;
  34.             };
  35.         }
  36.         private void Timer_Elapsed(object sender, ElapsedEventArgs e)
  37.         {
  38.             sec++;
  39.             if(sec == 60)
  40.             {
  41.                 min++;
  42.                 sec = 0;
  43.             }
  44.             if(min == 60)
  45.             {
  46.                 hour++;
  47.                 min = 0;
  48.             }
  49.             RunOnUiThread(() => { txtTimer.Text = $"{hour}:{min}:{sec}"; });
  50.             radialProgrssView.Value = sec;
  51.         }
  52.     }
  53. }

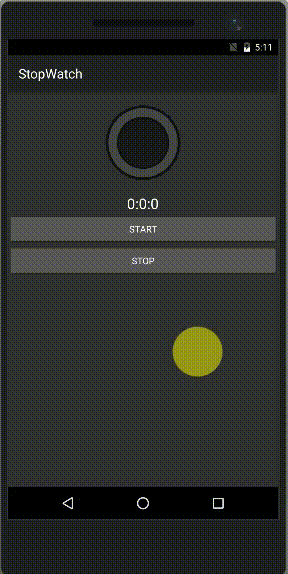

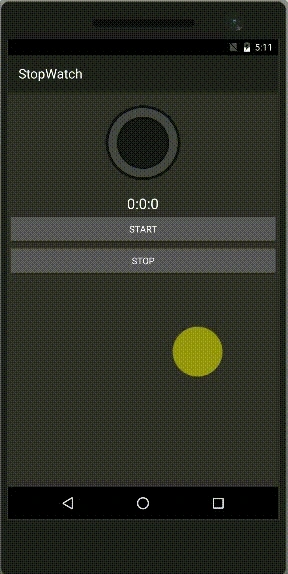

Output



Create Another Project For Stop Watch Milliseconds

The steps given below are required to be followed in order to create a Stop Watch Milliseconds app in Xamarin.Android, using Visual Studio.

Step 1

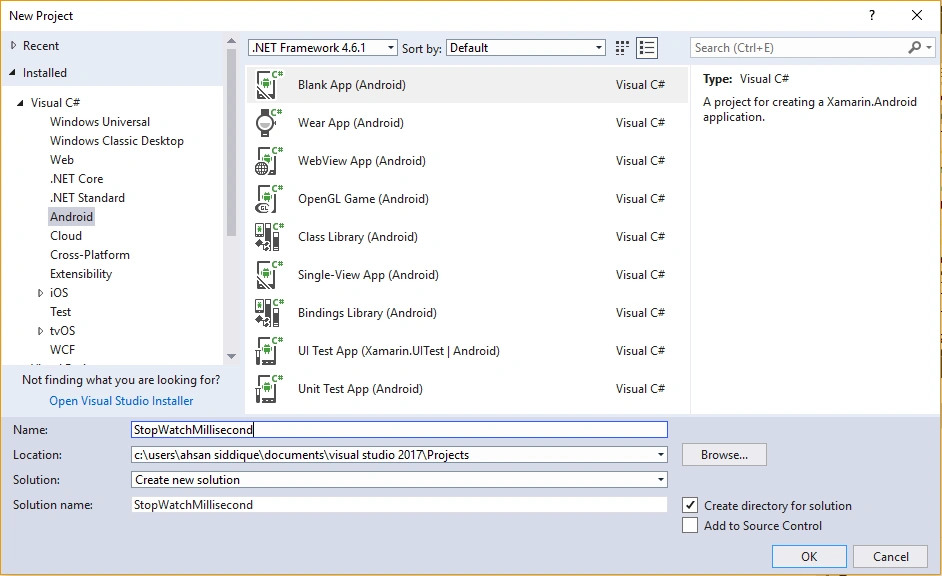

Open Visual Studio and go to New Project-> Templates-> Visual C#-> Android-> Blank app. Give it a name, like StopWatchMilliseconds.



Step 2

Open Solution Explorer-> Project Name-> Resources-> Layout-> Main.axml and add the following code.

(FileName: Main.axml)

XML Code
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.     android:orientation="vertical"
  4.     android:layout_width="match_parent"
  5.     android:layout_height="match_parent">
  6.     <TextView
  7.         android:text="0:00:000"
  8.         android:textAppearance="?android:attr/textAppearanceLarge"
  9.         android:layout_width="wrap_content"
  10.         android:layout_height="wrap_content"
  11.         android:id="@+id/txtTimer"
  12.         android:textSize="40sp"
  13.         android:layout_gravity="center_horizontal"
  14.         android:layout_marginTop="20dp"
  15.         android:layout_marginBottom="10dp" />
  16.     <LinearLayout
  17.         android:orientation="horizontal"
  18.         android:layout_width="match_parent"
  19.         android:layout_height="wrap_content">
  20.         <Button
  21.             android:text="Start"
  22.             android:layout_width="0dp"
  23.             android:layout_weight="1"
  24.             android:layout_height="wrap_content"
  25.             android:id="@+id/btnStart" />
  26.         <Button
  27.             android:text="Pause"
  28.             android:layout_width="0dp"
  29.             android:layout_weight="1"
  30.             android:layout_height="wrap_content"
  31.             android:id="@+id/btnPause" />
  32.         <Button
  33.             android:text="Lap"
  34.             android:layout_width="0dp"
  35.             android:layout_weight="1"
  36.             android:layout_height="wrap_content"
  37.             android:id="@+id/btnLap" />
  38.     </LinearLayout>
  39.   <LinearLayout
  40.     android:orientation="vertical"
  41.     android:layout_width="match_parent"
  42.     android:layout_height="wrap_content">
  43.     <ScrollView
  44.     android:layout_width="match_parent"
  45.     android:layout_height="wrap_content">
  46.       <LinearLayout
  47.         android:orientation="vertical"
  48.         android:layout_width="match_parent"
  49.         android:layout_height="wrap_content"
  50.         android:id="@+id/container">
  51.       </LinearLayout>
  52.     </ScrollView>
  53.   </LinearLayout>
  54. </LinearLayout>
Step 3

Open Solution Explorer-> Project Name-> Resources-> Layout-> Right Click to Add-> New Item, select Layout from list, give it a name like row.axml, and add the following code.

(FileName: row.axml)

XML Code
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.     android:orientation="vertical"
  4.     android:layout_width="match_parent"
  5.     android:layout_height="match_parent"
  6.     android:minWidth="25px"
  7.     android:minHeight="25px">
  8.     <TextView
  9.         android:text="Large Text"
  10.         android:textAppearance="?android:attr/textAppearanceLarge"
  11.         android:layout_width="match_parent"
  12.         android:layout_height="wrap_content"
  13.         android:id="@+id/textView1" />
  14. </LinearLayout>
Step 4

Now, go to solution Explorer-> Project Name-> MainActivity file and add following code and use appropriate namespaces.

(FileName: MainActivity.cs)

MainActivity C# Code
  1. using Android.App;
  2. using Android.Widget;
  3. using Android.OS;
  4. using System.Timers;
  5. using System;
  6. using Android.Views;
  7. using Android.Content;
  8. namespace StopWatchMilliseconds
  9. {
  10.     [Activity(Label = "StopWatchMilliseconds", MainLauncher = true)]
  11.     public class MainActivity : Activity
  12.     {
  13.         Button btnStart, btnPause, btnLap;
  14.         TextView txtTimer;
  15.         LinearLayout container;
  16.         Timer timer;
  17.         int mins = 0, secs = 0, millisecond = 1;
  18.         protected override void OnCreate(Bundle savedInstanceState)
  19.         {
  20.             base.OnCreate(savedInstanceState);
  21.             // Set our view from the "main" layout resource
  22.             SetContentView(Resource.Layout.Main);
  23.             btnStart = FindViewById<Button>(Resource.Id.btnStart);
  24.             btnPause = FindViewById<Button>(Resource.Id.btnPause);
  25.             btnLap = FindViewById<Button>(Resource.Id.btnLap);
  26.             container = FindViewById<LinearLayout>(Resource.Id.container);
  27.             txtTimer = FindViewById<TextView>(Resource.Id.txtTimer);
  28.             btnStart.Click += delegate {
  29.                 timer = new Timer();
  30.                 timer.Interval = 1; // 1 Milliseconds
  31.                 timer.Elapsed += Timer_Elapsed;
  32.                 timer.Start();
  33.             };
  34.             btnPause.Click += delegate {
  35.                 timer.Stop();
  36.                 timer = null;
  37.             };
  38.             btnLap.Click += delegate {
  39.                 LayoutInflater inflater = (LayoutInflater)BaseContext.GetSystemService(Context.LayoutInflaterService);
  40.                 View addView = inflater.Inflate(Resource.Layout.row, null);
  41.                 TextView textContent = addView.FindViewById<TextView>(Resource.Id.textView1);
  42.                 textContent.Text = txtTimer.Text;
  43.                 container.AddView(addView);
  44.             };
  45.         }
  46.         private void Timer_Elapsed(object sender, ElapsedEventArgs e)
  47.         {
  48.             millisecond++;
  49.             if (millisecond > 1000)
  50.             {
  51.                 secs++;
  52.                 millisecond = 0;
  53.             }
  54.             if (secs == 59)
  55.             {
  56.                 mins++;
  57.                 secs = 0;
  58.             }
  59.             RunOnUiThread(() => {
  60.                 txtTimer.Text = String.Format("{0}:{1:00}:{2:000}", mins, secs, millisecond);
  61.             });
  62.         }
  63.     }
  64. }

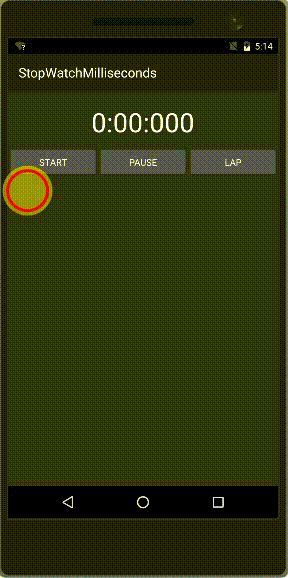

Output



Summary

This was the process of creating a Stop Watch app in Xamarin.Android, using Visual Studio. Please share your comments and feedback.
