Xamarin Forms 4.6

Introduction


Hello guys...

Xamarin Forms 4.6

Today I would like to show you about Xamarin Forms 4.6. In this update, there are lots of cool new features.

So, let's get started.


Implementation

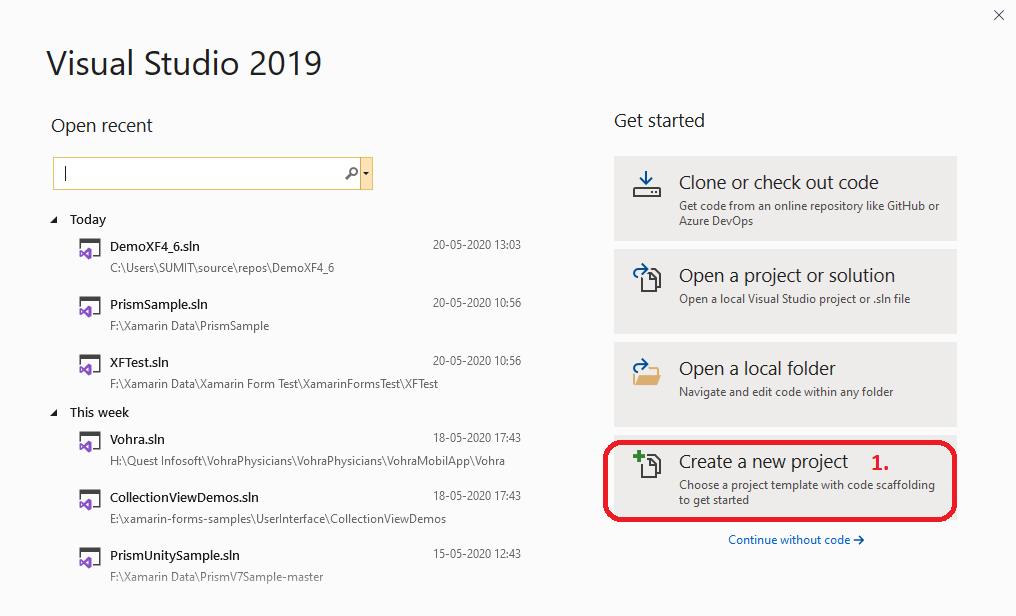

First, we start the VS 2019 and click on create a new project.

Xamarin Forms 4.6

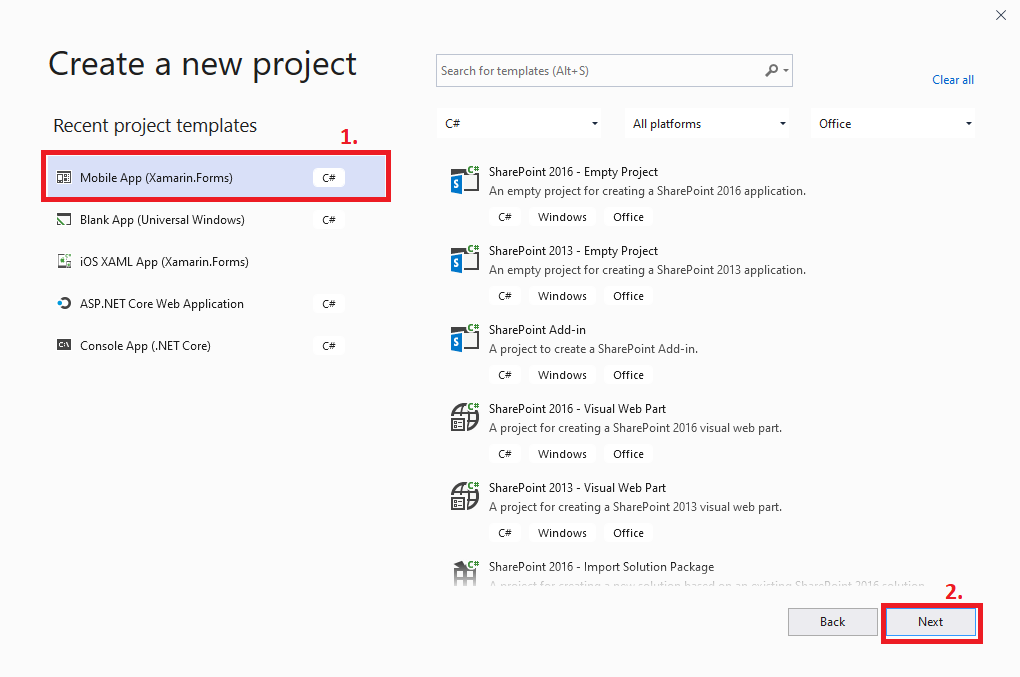

Then search the Xamarin.forms project and select Mobile App(Xamarin.Forms). Click Next.

Xamarin Forms 4.6

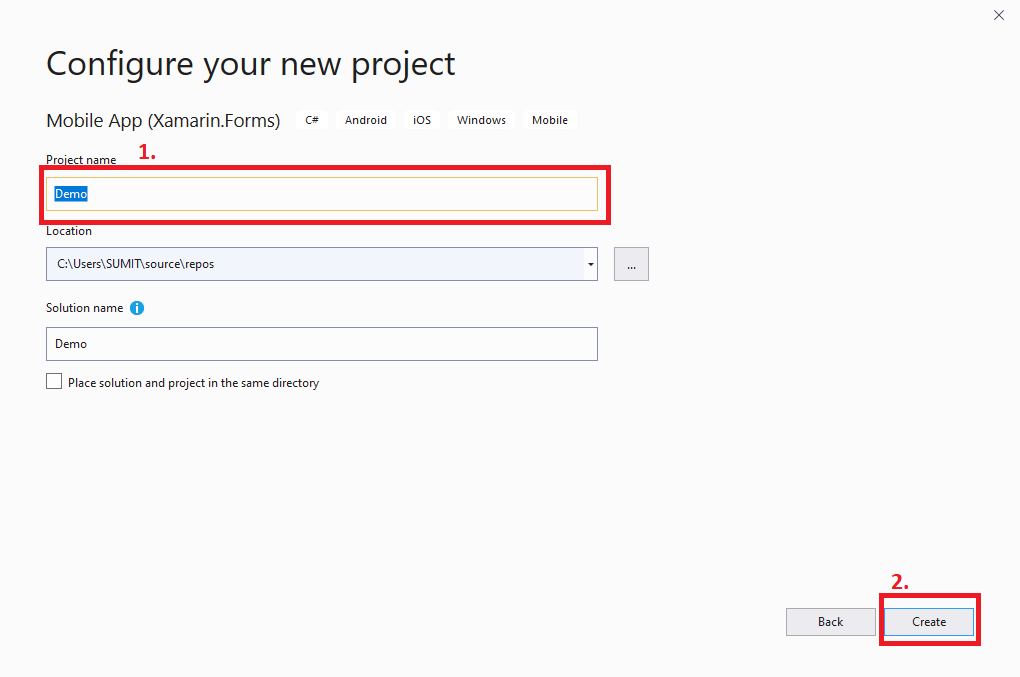

Now, I am going to the project name which is DemoXF4_6, then click the create button.

Xamarin Forms 4.6

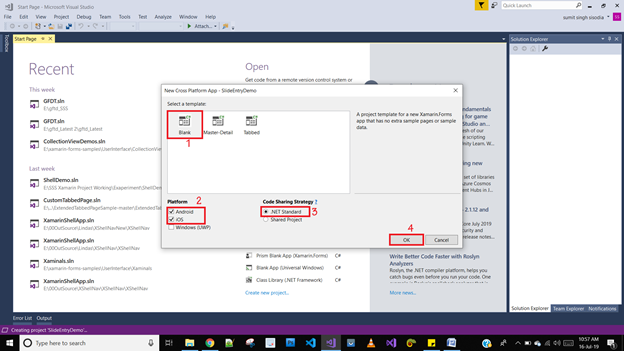

After clicking the create button, a dialogue appears like in the below image.

Xamarin Forms 4.6

This is another dialogue window where you can:
  1. Choose the blank app
  2. Select the project(Android, iOS) you want to create
  3. Select the Code Sharing Strategy .NET Standard
  4. Click OK, then create the project
First, we check the xamarin.forms latest Nuget Package. Check if the xamarin forms Nuget Package is updated or not. If not, we will update it. The following are the steps for updating the package.

Xamarin Forms 4.6

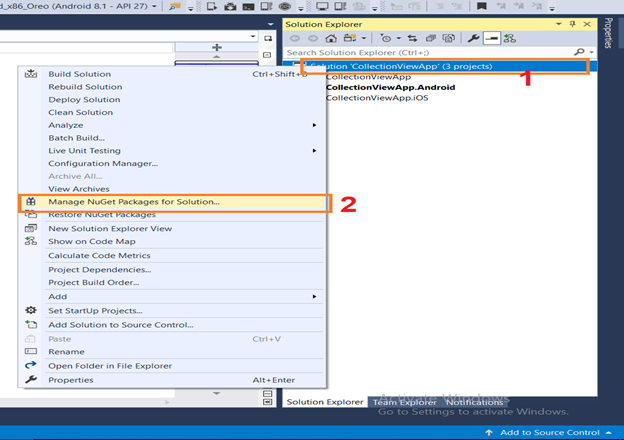

First, we select the solution and right-click on the solution and then select the Nuget package as shown in this below screen.

Xamarin Forms 4.6

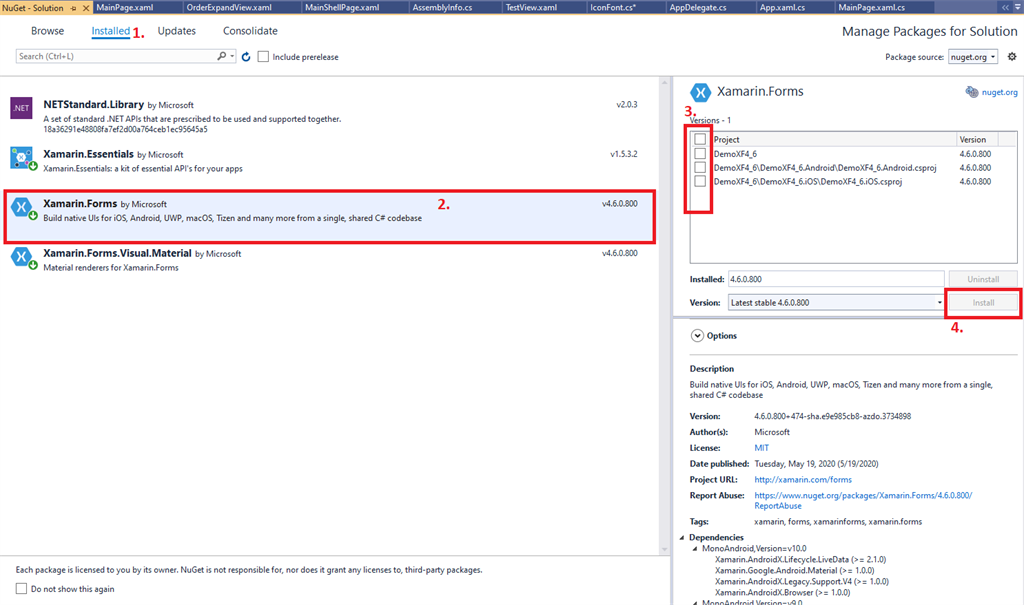

Now a new window appears (Nuget - Solution). This window contains the information to all packages used in this project. Here, we can select the install tab, and search the xamarin.Forms and update it in PCL, Android, and iOS.


Feature of Xamarin Forms 4.6

  1. Fonts
  2. GIF Supported
  3. RadioButton
  4. Expender
  5. VisualMaterial
  6. AppTheme
Before using this feature, we add the flag in App.cs such as:
  1. Device.SetFlags(new string[]
  2. {   "RadioButton_Experimental",
  3.     "AppTheme_Experimental",
  4.     "Markup_Experimental",
  5.     "Expander_Experimental"
  6.     });

Font in Xamarin Forms


Setup

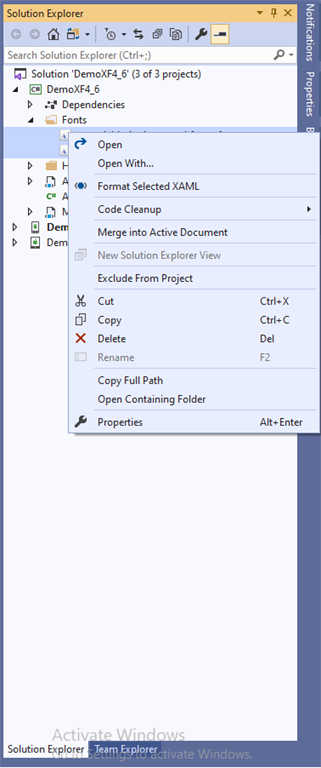

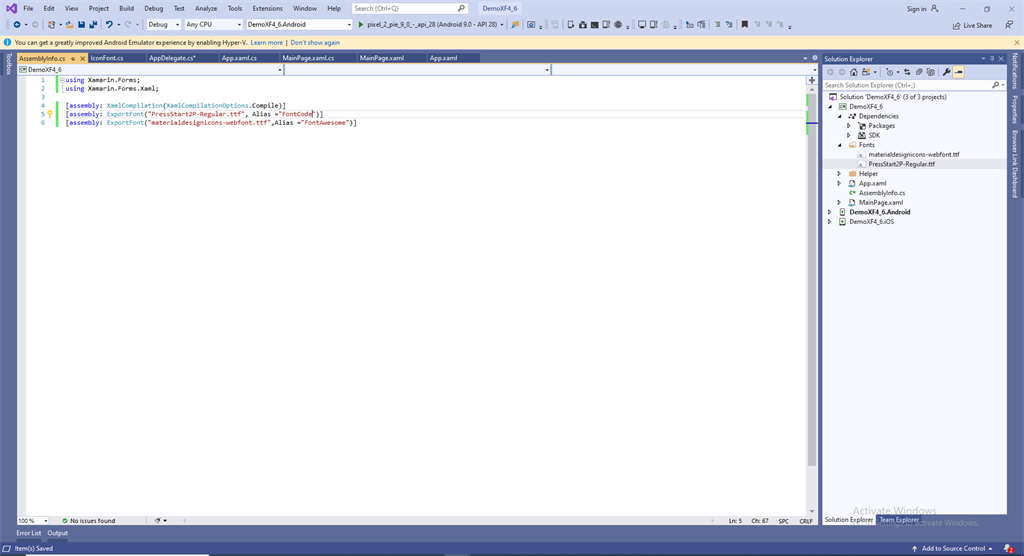

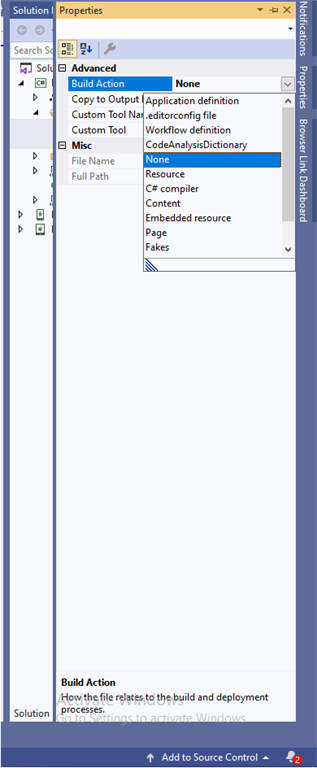

First, we create a Fonts Folder and add a font like PressStart2P-Regular.ttf or materialdesignicons-webfont.ttf. After adding the fonts, we can set the font property None to an Embedded resource, and set the reference or aliased in assemblyInfo file and write a line for set the Alias and use it in our controls.

Xamarin Forms 4.6 Xamarin Forms 4.6
  1. [assembly: ExportFont("PressStart2P-Regular.ttf", Alias ="FontCode")]
  2. [assembly: ExportFont("materialdesignicons-webfont.ttf",Alias ="FontAwesome")]
Xamarin Forms 4.6

Example
  1. <Label
  2.    FontFamily="FontCode"
  3.    FontSize="Large"
  4.    HorizontalOptions="Center"
  5.    Text="Login Form"
  6.    VerticalOptions="Center" />

GIF Supported in Xamarin Forms


GIF image is simple image animation, simply put, it is a 5-10 sec video clip animation. This is a very easy part to load into the image. We can add the IsAnimationPlaying as True.

Example
  1. <Image
  2.    Aspect="Fill"
  3.    HeightRequest="250"
  4.    IsAnimationPlaying="True"
  5.    Source="https://steamuserimages-a.akamaihd.net/ugc/931561575357966166/6BE65F9887FD3207D44464189B1DF1A9A3ACEDD9/" />

RadioButton in Xamarin Forms


RadioButton, which is the most required control on Camarin forms, is a type of button control that allows the user to select one option in the group. We can define the radio group using the GroupName Property.

Example
  1. <RadioButton
  2.    GroupName="Remember"
  3.    IsChecked="False"
  4.    Text="Remember" />
  5.
  6. <RadioButton
  7.    GroupName="Remember"
  8.    IsChecked="False"
  9.    Text="Not Remember" />

Expender in Xamarin Forms


In Xamarin Forms, the expander is a Collapsible container. In this control, one is Header container that is shown and another which is a hidden part is the expander container. When users tap on the header, another part is collapsed.

Example
  1. <Expander
  2.     x:Name="expander"
  3.     Grid.Row="1"
  4.     Grid.Column="0"
  5.     Margin="0,0,0,10"
  6.     Padding="0,20"
  7.     FlexLayout.Basis="100%">
  8.     <Expander.Header>
  9.         <Frame
  10.         Padding="5"
  11.         BackgroundColor="AntiqueWhite"
  12.         Visual="Material">
  13.         <StackLayout
  14.         Margin="0,0,0,6"
  15.         HorizontalOptions="FillAndExpand"
  16.         Orientation="Horizontal">
  17.
  18.             <Image Source="{FontImage FontFamily=FontAwesome, Glyph={x:Static
  19.             helper:IconFont.Notebook}, Size=30, Color=Black}" />
  20.
  21.             <Label
  22.             FontSize="18"
  23.             HorizontalOptions="FillAndExpand"
  24.             Text="Order Status" />
  25.         </StackLayout>
  26.         </Frame>
  27.     </Expander.Header>
  28.         <Grid
  29.         Padding="10,0"
  30.         BackgroundColor="AliceBlue"
  31.         RowSpacing="0">
  32.             <Grid.ColumnDefinitions>
  33.             <ColumnDefinition Width="10" />
  34.             <ColumnDefinition Width="*" />
  35.             </Grid.ColumnDefinitions>
  36.                 <Grid
  37.                 Grid.Row="0"
  38.                 Grid.Column="0"
  39.                 RowSpacing="0">
  40.                 <Grid.RowDefinitions>
  41.                 <RowDefinition Height="Auto" />
  42.                 <RowDefinition Height="Auto" />
  43.                 </Grid.RowDefinitions>
  44.                 <BoxView
  45.                 Grid.Row="0"
  46.                 Grid.Column="0"
  47.                 BackgroundColor="Accent"
  48.                 CornerRadius="10"
  49.                 HeightRequest="10"
  50.                 WidthRequest="10" />
  51.                 <BoxView
  52.                 Grid.Row="1"
  53.                 Grid.Column="0"
  54.                 BackgroundColor="Accent"
  55.                 HorizontalOptions="Center"
  56.                 VerticalOptions="Start"
  57.                 WidthRequest="2" />
  58.         </Grid>
  59.         <Label
  60.         Grid.Row="0"
  61.         Grid.Column="1"
  62.         Text="Ordered and Approved" />
  63.         <Grid
  64.         Grid.Row="1"
  65.         Grid.Column="0"
  66.         RowSpacing="0">
  67.             <Grid.RowDefinitions>
  68.             <RowDefinition Height="Auto" />
  69.             <RowDefinition Height="Auto" />
  70.             </Grid.RowDefinitions>
  71.                 <BoxView
  72.                 Grid.Row="0"
  73.                 Grid.Column="0"
  74.                 BackgroundColor="Accent"
  75.                 CornerRadius="10"
  76.                 HeightRequest="10"
  77.                 WidthRequest="10" />
  78.                 <BoxView
  79.                 Grid.Row="1"
  80.                 Grid.Column="0"
  81.                 BackgroundColor="Accent"
  82.                 HorizontalOptions="Center"
  83.                 VerticalOptions="Start"
  84.                 WidthRequest="2" />
  85.         </Grid>
  86.         <Label
  87.         Grid.Row="1"
  88.         Grid.Column="1"
  89.         Text="Packed" />
  90.         <Grid
  91.         Grid.Row="2"
  92.         Grid.Column="0"
  93.         RowSpacing="0">
  94.             <Grid.RowDefinitions>
  95.             <RowDefinition Height="Auto" />
  96.             <RowDefinition Height="Auto" />
  97.             </Grid.RowDefinitions>
  98.                 <BoxView
  99.                 Grid.Row="0"
  100.                 Grid.Column="0"
  101.                 BackgroundColor="Accent"
  102.                 CornerRadius="10"
  103.                 HeightRequest="10"
  104.                 WidthRequest="10" />
  105.                 <BoxView
  106.                 Grid.Row="1"
  107.                 Grid.Column="0"
  108.                 BackgroundColor="Accent"
  109.                 HorizontalOptions="Center"
  110.                 VerticalOptions="Start"
  111.                 WidthRequest="2" />
  112.         </Grid>
  113.         <Label
  114.         Grid.Row="2"
  115.         Grid.Column="1"
  116.         Text="Shipped" />
  117.         <Grid
  118.         Grid.Row="3"
  119.         Grid.Column="0"
  120.         RowSpacing="0">
  121.             <Grid.RowDefinitions>
  122.             <RowDefinition Height="Auto" />
  123.             <RowDefinition Height="Auto" />
  124.             </Grid.RowDefinitions>
  125.                 <BoxView
  126.                 Grid.Row="0"
  127.                 Grid.Column="0"
  128.                 BackgroundColor="Accent"
  129.                 CornerRadius="10"
  130.                 HeightRequest="10"
  131.                 WidthRequest="10" />
  132.                 <BoxView
  133.                 Grid.Row="1"
  134.                 Grid.Column="0"
  135.                 BackgroundColor="Accent"
  136.                 HorizontalOptions="Center"
  137.                 VerticalOptions="Start"
  138.                 WidthRequest="2" />
  139.         </Grid>
  140.
  141.         <Label
  142.         Grid.Row="3"
  143.         Grid.Column="1"
  144.         Text="Delivery" />
  145.
  146.         <Grid
  147.         Grid.Row="4"
  148.         Grid.Column="0"
  149.         RowSpacing="0">
  150.             <Grid.RowDefinitions>
  151.             <RowDefinition Height="Auto" />
  152.             <RowDefinition Height="Auto" />
  153.             </Grid.RowDefinitions>
  154.                 <BoxView
  155.                 Grid.Row="0"
  156.                 Grid.Column="0"
  157.                 BackgroundColor="Accent"
  158.                 CornerRadius="10"
  159.                 HeightRequest="10"
  160.                 WidthRequest="10" />
  161.                 <BoxView
  162.                 Grid.Row="1"
  163.                 Grid.Column="0"
  164.                 BackgroundColor="Accent"
  165.                 HorizontalOptions="Center"
  166.                 IsVisible="False"
  167.                 VerticalOptions="Start"
  168.                 WidthRequest="2" />
  169.         </Grid>
  170.
  171.         <Label
  172.             Grid.Row="4"
  173.             Grid.Column="1"
  174.             Text="Installation & Demo" />
  175.     </Grid>
  176. </Expander>

Visual.Material


Xamarin.Forms.Visual.Material is used to apply the material design rule in Xamarin Forms apps that look identical on iOS and Android.

If you want to use the material design in xamarin forms control so firstly we need to add Nuget Xamarin.Forms.Visual.Material package in all framework.

After adding Nuget Xamarin.Forms.Visual.Material package the most important thing is that we can initialize the control in Android and iOS.

Android MainActivity.cs,
  1. global::Xamarin.Forms.FormsMaterial.Init(this, savedInstanceState);
iOS AppDelegate.cs
  1. global::Xamarin.Forms.FormsMaterial.Init();
Example
  1. <Entry
  2.     Placeholder="Username"
  3.     Style="{StaticResource EntryStyle}"
  4.     Visual="Material" />
  5.
  6. <Entry
  7.     IsPassword="True"
  8.     Placeholder="Password"
  9.     Style="{StaticResource EntryStyle}"
  10.     Visual="Material" />

AppTheme


Recently, our mobile device includes a Dark or Light Theme, AppTheme is another different API in xamarin.forms for using the dark or light mode. It immediately responds when the Device is changed to Dark or Light and uses it with Dynamically Like DynamicResources.

Example
  1. <AppThemeColor
  2.     x:Key="PageBackgroundColor"
  3.     Dark="#0B0C10"
  4.     Light="#E7717D" />
