Introduction

This is a familiar game with a new twist. To win, you must find and flag all ten bugs. Ten bugs are hidden in a 9-by-9 grid of tiles.That first double tab is always safe. Thereafter, numbers indicate the number of surrounding tiles with bugs. Flag it with a single tab. Avoid double-tabbing a tile with bug!.
Let's start.
Step 1

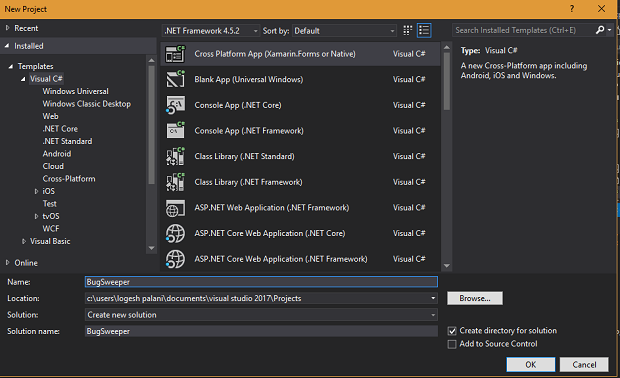

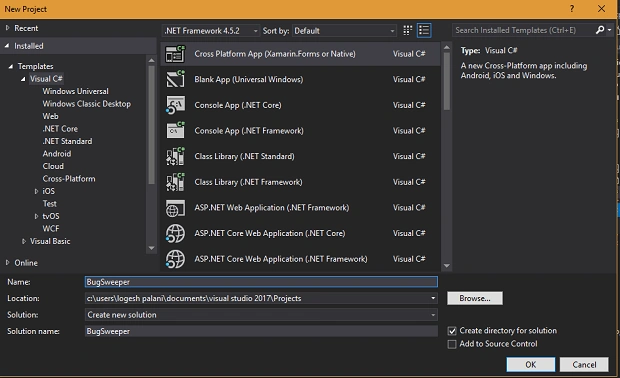

You can create Xamarin.Forms app by going to File >> New >> Visual C# >> Cross-platform >> Cross-Platform App (Xamarin.Native or Xamarin.Forms), enter desired name for your project, and press OK.

(Project name- BugSweeper)

Step 2

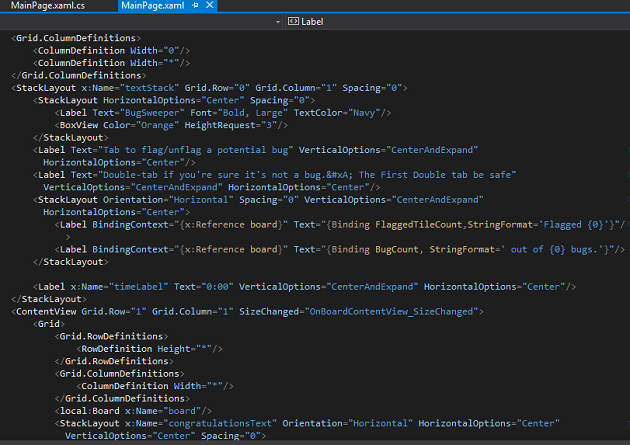

After the project creation, go to Solution Explorer >> BugSweeper(PCL) app >> click open MainPage.xaml and add the following code.

Used ToolBox items,
  • StackLayout
  • Label
  • BoxView
  • Grid
  1. <?xml version="1.0" encoding="utf-8" ?>
  2. <ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
  3. xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
  4. xmlns:local="clr-namespace:BugSwapperApp"
  5. x:Class="BugSwapperApp.MainPage">
  7. <ContentView SizeChanged="OnMainContentView_SizeChanged">
  8. <Grid x:Name="mainGrid" ColumnSpacing="0" RowSpacing="0">
  9. <Grid.RowDefinitions>
  10. <RowDefinition Height="7*"/>
  11. <RowDefinition Height="4*"/>
  12. </Grid.RowDefinitions>
  13. <Grid.ColumnDefinitions>
  14. <ColumnDefinition Width="0"/>
  15. <ColumnDefinition Width="*"/>
  16. </Grid.ColumnDefinitions>
  17. <StackLayout x:Name="textStack" Grid.Row="0" Grid.Column="1" Spacing="0">
  18. <StackLayout HorizontalOptions="Center" Spacing="0">
  19. <Label Text="BugSweeper" Font="Bold, Large" TextColor="Navy"/>
  20. <BoxView Color="Orange" HeightRequest="3"/>
  21. </StackLayout>
  22. <Label Text="Tab to flag/unflag a potential bug" VerticalOptions="CenterAndExpand" HorizontalOptions="Center"/>
  23. <Label Text="Double-tab if you're sure it's not a bug.
  24. The First Double tab be safe" VerticalOptions="CenterAndExpand" HorizontalOptions="Center"/>
  25. <StackLayout Orientation="Horizontal" Spacing="0" VerticalOptions="CenterAndExpand" HorizontalOptions="Center">
  26. <Label BindingContext="{x:Reference board}" Text="{Binding FlaggedTileCount,StringFormat='Flagged {0}'}"/>
  27. <Label BindingContext="{x:Reference board}" Text="{Binding BugCount, StringFormat=' out of {0} bugs.'}"/>
  28. </StackLayout>
  30. <Label x:Name="timeLabel" Text="0:00" VerticalOptions="CenterAndExpand" HorizontalOptions="Center"/>
  31. </StackLayout>
  32. <ContentView Grid.Row="1" Grid.Column="1" SizeChanged="OnBoardContentView_SizeChanged">
  33. <Grid>
  34. <Grid.RowDefinitions>
  35. <RowDefinition Height="*"/>
  36. </Grid.RowDefinitions>
  37. <Grid.ColumnDefinitions>
  38. <ColumnDefinition Width="*"/>
  39. </Grid.ColumnDefinitions>
  40. <local:Board x:Name="board"/>
  41. <StackLayout x:Name="congratulationsText" Orientation="Horizontal" HorizontalOptions="Center" VerticalOptions="Center" Spacing="0">
  42. <Label Text="C" TextColor="Black"/>
  43. <Label Text="O" TextColor="Black"/>
  44. <Label Text="N" TextColor="Black"/>
  45. <Label Text="G" TextColor="Black"/>
  46. <Label Text="R" TextColor="Black"/>
  47. <Label Text="A" TextColor="Black"/>
  48. <Label Text="T" TextColor="Black"/>
  49. <Label Text="U" TextColor="Black"/>
  50. <Label Text="L" TextColor="Black"/>
  51. <Label Text="A" TextColor="Black"/>
  52. <Label Text="T" TextColor="Black"/>
  53. <Label Text="I" TextColor="Black"/>
  54. <Label Text="O" TextColor="Black"/>
  55. <Label Text="N" TextColor="Black"/>
  56. <Label Text="S" TextColor="Black"/>
  57. <Label Text="!" TextColor="Black"/>
  58. <Label Text="!" TextColor="Black"/>
  59. </StackLayout>
  60. <StackLayout x:Name="consolationText" Orientation="Horizontal" Spacing="0" HorizontalOptions="Center" VerticalOptions="Center">
  61. <Label Text="T" TextColor="Black"/>
  62. <Label Text="O" TextColor="Black"/>
  63. <Label Text="O" TextColor="Black"/>
  64. <Label Text="L" TextColor="Black"/>
  65. <Label Text="O" TextColor="Black"/>
  66. <Label Text="S" TextColor="Black"/>
  67. <Label Text="T" TextColor="Black"/>
  68. <Label Text="!" TextColor="Black"/>
  69. <Label Text=":" TextColor="Gray"/>
  70. <Label Text=")" TextColor="Green"/>
  71. </StackLayout>
  72. <Button x:Name="playAgainButton" Text="Play Another Game?" VerticalOptions="Center" HorizontalOptions="Center" Clicked="onplayAgainButton_Clicked" BorderColor="Black" BorderWidth="2" BackgroundColor="White" TextColor="Blue"/>
  73. </Grid>
  74. </ContentView>
  76. </Grid>
  78. </ContentView>
  80. </ContentPage>


Step 3

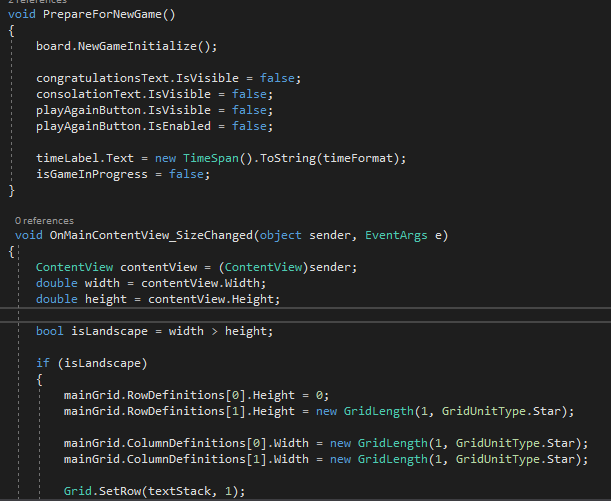

In this step, open Solution Explorer >> BugSweeper (PCL) >> MainPage.xaml.cs and double click to open MainPage.xaml.cs. Here is the code.
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using System.Threading.Tasks;
  6. using Xamarin.Forms;
  8. namespace BugSwapperApp
  9. {
  10. public partial class MainPage : ContentPage
  11. {
  12. const string timeFormat = @"%m\:ss";
  14. bool isGameInProgress;
  15. DateTime gameStartTime;
  16. public MainPage()
  17. {
  18. InitializeComponent();
  20. board.GameStarted += (sender, args) =>
  21. {
  22. isGameInProgress = true;
  23. gameStartTime = DateTime.Now;
  24. Device.StartTimer(TimeSpan.FromSeconds(1), () =>
  25. {
  26. timeLabel.Text = (DateTime.Now - gameStartTime).ToString(timeFormat);
  27. return isGameInProgress;
  28. });
  29. }; board.GameEnded += (sender, hasWon) =>
  30. {
  31. isGameInProgress = false;
  33. if (hasWon)
  34. {
  35. DisplayWonAnimation();
  36. }
  37. else
  38. {
  39. DisplayLostAnimation();
  40. }
  41. };
  42. PrepareForNewGame();
  43. }
  44. void PrepareForNewGame()
  45. {
  46. board.NewGameInitialize();
  48. congratulationsText.IsVisible = false;
  49. consolationText.IsVisible = false;
  50. playAgainButton.IsVisible = false;
  51. playAgainButton.IsEnabled = false;
  53. timeLabel.Text = new TimeSpan().ToString(timeFormat);
  54. isGameInProgress = false;
  55. }
  57. void OnMainContentView_SizeChanged(object sender, EventArgs e)
  58. {
  59. ContentView contentView = (ContentView)sender;
  60. double width = contentView.Width;
  61. double height = contentView.Height;
  63. bool isLandscape = width > height;
  65. if (isLandscape)
  66. {
  67. mainGrid.RowDefinitions[0].Height = 0;
  68. mainGrid.RowDefinitions[1].Height = new GridLength(1, GridUnitType.Star);
  70. mainGrid.ColumnDefinitions[0].Width = new GridLength(1, GridUnitType.Star);
  71. mainGrid.ColumnDefinitions[1].Width = new GridLength(1, GridUnitType.Star);
  73. Grid.SetRow(textStack, 1);
  74. Grid.SetColumn(textStack, 0);
  75. }
  76. else // portrait
  77. {
  78. mainGrid.RowDefinitions[0].Height = new GridLength(3, GridUnitType.Star);
  79. mainGrid.RowDefinitions[1].Height = new GridLength(5, GridUnitType.Star);
  81. mainGrid.ColumnDefinitions[0].Width = 0;
  82. mainGrid.ColumnDefinitions[1].Width = new GridLength(1, GridUnitType.Star);
  84. Grid.SetRow(textStack, 0);
  85. Grid.SetColumn(textStack, 1);
  86. }
  87. }
  89. void OnBoardContentView_SizeChanged(object sender, EventArgs e)
  90. {
  91. ContentView contentView = (ContentView)sender;
  92. double width = contentView.Width;
  93. double height = contentView.Height;
  94. double dimension = Math.Min(width, height);
  95. double horzPadding = (width - dimension) / 2;
  96. double vertPadding = (height - dimension) / 2;
  97. contentView.Padding = new Thickness(horzPadding, vertPadding);
  98. }
  99. async void DisplayWonAnimation()
  100. {
  101. congratulationsText.Scale = 0;
  102. congratulationsText.IsVisible = true;
  104. // Because IsVisible has been false, the text might not have a size yet,
  105. // in which case Measure will return a size.
  106. double congratulationsTextWidth = congratulationsText.Measure(Double.PositiveInfinity, Double.PositiveInfinity).Request.Width;
  108. congratulationsText.Rotation = 0;
  109. congratulationsText.RotateTo(3 * 360, 1000, Easing.CubicOut);
  111. double maxScale = 0.9 * board.Width / congratulationsTextWidth;
  112. await congratulationsText.ScaleTo(maxScale, 1000);
  114. foreach (View view in congratulationsText.Children)
  115. {
  116. view.Rotation = 0;
  117. view.RotateTo(180);
  118. await view.ScaleTo(3, 100);
  119. view.RotateTo(360);
  120. await view.ScaleTo(1, 100);
  121. }
  123. await DisplayPlayAgainButton();
  124. }
  126. async void DisplayLostAnimation()
  127. {
  128. consolationText.Scale = 0;
  129. consolationText.IsVisible = true;
  131. // (See above for rationale)
  132. double consolationTextWidth = consolationText.Measure(Double.PositiveInfinity, Double.PositiveInfinity).Request.Width;
  134. double maxScale = 0.9 * board.Width / consolationTextWidth;
  135. await consolationText.ScaleTo(maxScale, 1000);
  136. await Task.Delay(1000);
  137. await DisplayPlayAgainButton();
  138. }
  140. async Task DisplayPlayAgainButton()
  141. {
  142. playAgainButton.Scale = 0;
  143. playAgainButton.IsVisible = true;
  144. playAgainButton.IsEnabled = true;
  146. // (See above for rationale)
  147. double playAgainButtonWidth = playAgainButton.Measure(Double.PositiveInfinity, Double.PositiveInfinity).Request.Width;
  149. double maxScale = board.Width / playAgainButtonWidth;
  150. await playAgainButton.ScaleTo(maxScale, 1000, Easing.SpringOut);
  151. }
  155. void onplayAgainButton_Clicked(object sender, EventArgs e)
  156. {
  157. PrepareForNewGame();
  158. }
  159. }
  160. }

Step 4

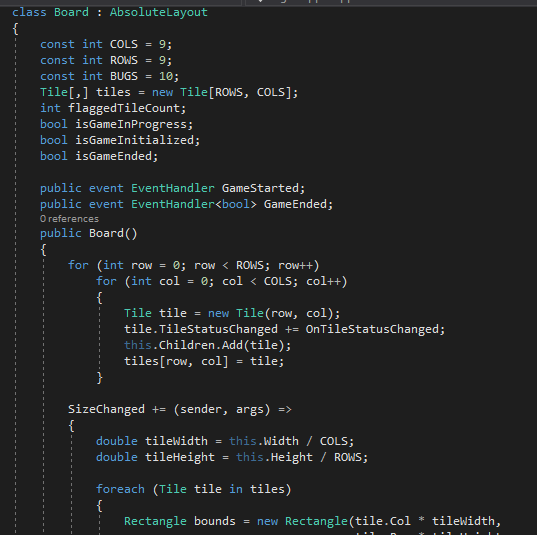

Open Solution Explorer >> BugSweeper(PCL) >> right click and select New Item. In this popup window, select Cross Platform >> Class.

This way, you can add a new class. Now, create a new class named Board.cs and double-click to get into its design view and insert the code given below.
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using System.Threading.Tasks;
  6. using Xamarin.Forms;
  8. namespace BugSwapperApp
  9. {
  10. class Board : AbsoluteLayout
  11. {
  12. const int COLS = 9;
  13. const int ROWS = 9;
  14. const int BUGS = 10;
  15. Tile[,] tiles = new Tile[ROWS, COLS];
  16. int flaggedTileCount;
  17. bool isGameInProgress;
  18. bool isGameInitialized;
  19. bool isGameEnded;
  21. public event EventHandler GameStarted;
  22. public event EventHandler<bool> GameEnded;
  23. public Board()
  24. {
  25. for (int row = 0; row < ROWS; row++)
  26. for (int col = 0; col < COLS; col++)
  27. {
  28. Tile tile = new Tile(row, col);
  29. tile.TileStatusChanged += OnTileStatusChanged;
  30. this.Children.Add(tile);
  31. tiles[row, col] = tile;
  32. }
  34. SizeChanged += (sender, args) =>
  35. {
  36. double tileWidth = this.Width / COLS;
  37. double tileHeight = this.Height / ROWS;
  39. foreach (Tile tile in tiles)
  40. {
  41. Rectangle bounds = new Rectangle(tile.Col * tileWidth,
  42. tile.Row * tileHeight,
  43. tileWidth, tileHeight);
  44. AbsoluteLayout.SetLayoutBounds(tile, bounds);
  45. }
  46. };
  48. NewGameInitialize();
  49. }
  51. public void NewGameInitialize()
  52. {
  53. // Clear all the tiles.
  54. foreach (Tile tile in tiles)
  55. tile.Initialize();
  57. isGameInProgress = false;
  58. isGameInitialized = false;
  59. isGameEnded = false;
  60. this.FlaggedTileCount = 0;
  61. }
  63. public int FlaggedTileCount
  64. {
  65. set
  66. {
  67. if (flaggedTileCount != value)
  68. {
  69. flaggedTileCount = value;
  70. OnPropertyChanged();
  71. }
  72. }
  73. get
  74. {
  75. return flaggedTileCount;
  76. }
  77. }
  79. public int BugCount
  80. {
  81. get
  82. {
  83. return BUGS;
  84. }
  85. }
  88. // Not called until the first tile is double-tapped.
  89. void DefineNewBoard(int tappedRow, int tappedCol)
  90. {
  91. // Begin the assignment of bugs.
  92. Random random = new Random();
  93. int bugCount = 0;
  95. while (bugCount < BUGS)
  96. {
  97. // Get random row and column.
  98. int row = random.Next(ROWS);
  99. int col = random.Next(COLS);
  101. // Skip it if it's already a bug.
  102. if (tiles[row, col].IsBug)
  103. {
  104. continue;
  105. }
  107. // Avoid the tappedRow & Col & surrounding ones.
  108. if (row >= tappedRow - 1 &&
  109. row <= tappedRow + 1 &&
  110. col >= tappedCol - 1 &&
  111. col <= tappedCol + 1)
  112. {
  113. continue;
  114. }
  116. // It's a bug!
  117. tiles[row, col].IsBug = true;
  119. // Calculate the surrounding bug count.
  120. CycleThroughNeighbors(row, col,
  121. (neighborRow, neighborCol) =>
  122. {
  123. ++tiles[neighborRow, neighborCol].SurroundingBugCount;
  124. });
  126. bugCount++;
  127. }
  128. }
  130. void CycleThroughNeighbors(int row, int col, Action<int, int> callback)
  131. {
  132. int minRow = Math.Max(0, row - 1);
  133. int maxRow = Math.Min(ROWS - 1, row + 1);
  134. int minCol = Math.Max(0, col - 1);
  135. int maxCol = Math.Min(COLS - 1, col + 1);
  137. for (int neighborRow = minRow; neighborRow <= maxRow; neighborRow++)
  138. for (int neighborCol = minCol; neighborCol <= maxCol; neighborCol++)
  139. {
  140. if (neighborRow != row || neighborCol != col)
  141. callback(neighborRow, neighborCol);
  142. }
  143. }
  145. void OnTileStatusChanged(object sender, TileStatus tileStatus)
  146. {
  147. if (isGameEnded)
  148. return;
  150. // With a first tile tapped, the game is now in progress.
  151. if (!isGameInProgress)
  152. {
  153. isGameInProgress = true;
  155. // Fire the GameStarted event.
  156. if (GameStarted != null)
  157. {
  158. GameStarted(this, EventArgs.Empty);
  159. }
  160. }
  162. // Update the "flagged" bug count before checking for a loss.
  163. int flaggedCount = 0;
  165. foreach (Tile tile in tiles)
  166. if (tile.Status == TileStatus.Flagged)
  167. flaggedCount++;
  169. this.FlaggedTileCount = flaggedCount;
  171. // Get the tile whose status has changed.
  172. Tile changedTile = (Tile)sender;
  174. // If it's exposed, some actions are required.
  175. if (tileStatus == TileStatus.Exposed)
  176. {
  177. if (!isGameInitialized)
  178. {
  179. DefineNewBoard(changedTile.Row, changedTile.Col);
  180. isGameInitialized = true;
  181. }
  183. if (changedTile.IsBug)
  184. {
  185. isGameInProgress = false;
  186. isGameEnded = true;
  188. // Fire the GameEnded event!
  189. if (GameEnded != null)
  190. {
  191. GameEnded(this, false);
  192. }
  193. return;
  194. }
  196. // Auto expose for zero surrounding bugs.
  197. if (changedTile.SurroundingBugCount == 0)
  198. {
  199. CycleThroughNeighbors(changedTile.Row, changedTile.Col,
  200. (neighborRow, neighborCol) =>
  201. {
  202. // Expose all the neighbors.
  203. tiles[neighborRow, neighborCol].Status = TileStatus.Exposed;
  204. });
  205. }
  206. }
  208. // Check for a win.
  209. bool hasWon = true;
  211. foreach (Tile til in tiles)
  212. {
  213. if (til.IsBug && til.Status != TileStatus.Flagged)
  214. hasWon = false;
  216. if (!til.IsBug && til.Status != TileStatus.Exposed)
  217. hasWon = false;
  218. }
  220. // If there's a win, celebrate!
  221. if (hasWon)
  222. {
  223. isGameInProgress = false;
  224. isGameEnded = true;
  226. // Fire the GameEnded event!
  227. if (GameEnded != null)
  228. {
  229. GameEnded(this, true);
  230. }
  231. return;
  232. }
  233. }
  234. }
  235. }


Step 5

Now, we need to add images. For that, go to Solution Explorer >> BugSweeper(PCL) >> right-click on BugSweeper(PCL) project and select Add>> Existing Item. In this popup window, select images to insert and the images are used for tiles.
  1. BugSwapperApp.Microsoft.png
  2. BugSwapperApp.Microsoft.png
Step 6

In this step, similarly, create a new class named Tile.cs. Here is the code for this class.
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using System.Threading.Tasks;
  6. using Xamarin.Forms;
  8. namespace BugSwapperApp
  9. {
  10. enum TileStatus
  11. {
  12. Hidden,
  13. Flagged,
  14. Exposed
  15. }
  16. class Tile : Frame
  17. {
  18. TileStatus tileStatus = TileStatus.Hidden;
  19. Label label;
  20. Image flagImage, bugImage;
  21. static ImageSource flagImageSource;
  22. static ImageSource bugImageSource;
  23. bool doNotFireEvent;
  25. public event EventHandler<TileStatus> TileStatusChanged;
  27. static Tile()
  28. {
  29. flagImageSource = ImageSource.FromResource("BugSwapperApp.Microsoft.png");
  30. bugImageSource = ImageSource.FromResource("BugSwapperApp.Xbox.png");
  31. }
  33. public Tile(int row , int col)
  34. {
  35. this.Row = row;
  36. this.Col = col;
  38. this.BackgroundColor = Color.Yellow;
  39. this.OutlineColor = Color.Blue;
  40. this.Padding = 2;
  42. label = new Label
  43. {
  44. Text = " ",
  45. TextColor = Color.Yellow,
  46. BackgroundColor = Color.Blue,
  47. HorizontalTextAlignment = TextAlignment.Center,
  48. VerticalTextAlignment = TextAlignment.Center,
  49. };
  51. flagImage = new Image
  52. {
  53. Source = flagImageSource,
  55. };
  57. bugImage = new Image
  58. {
  59. Source = bugImageSource
  60. };
  62. TapGestureRecognizer singleTap = new TapGestureRecognizer
  63. {
  64. NumberOfTapsRequired = 1
  65. };
  66. singleTap.Tapped += OnSingleTap;
  67. this.GestureRecognizers.Add(singleTap);
  68. if (Device.OS != TargetPlatform.Windows && Device.OS != TargetPlatform.WinPhone)
  69. {
  70. TapGestureRecognizer doubleTap = new TapGestureRecognizer
  71. {
  72. NumberOfTapsRequired = 2
  73. };
  74. doubleTap.Tapped += OnDoubleTap;
  75. this.GestureRecognizers.Add(doubleTap);
  78. }
  79. }
  81. public int Row { private set; get; }
  83. public int Col { private set; get; }
  85. public bool IsBug { set; get; }
  87. public int SurroundingBugCount { set; get; }
  89. public TileStatus Status
  90. {
  91. set
  92. {
  93. if (tileStatus != value)
  94. {
  95. tileStatus = value;
  97. switch (tileStatus)
  98. {
  99. case TileStatus.Hidden:
  100. this.Content = null;
  102. #if FIX_WINDOWS_PHONE_NULL_CONTENT
  104. if (Device.OS == TargetPlatform.WinPhone || Device.OS == TargetPlatform.Windows) {
  105. this.Content = new Label { Text = " " };
  106. }
  108. #endif
  109. break;
  111. case TileStatus.Flagged:
  112. this.Content = flagImage;
  113. break;
  115. case TileStatus.Exposed:
  116. if (this.IsBug)
  117. {
  118. this.Content = bugImage;
  119. }
  120. else
  121. {
  122. this.Content = label;
  123. label.Text =
  124. (this.SurroundingBugCount > 0) ?
  125. this.SurroundingBugCount.ToString() : " ";
  126. }
  127. break;
  128. }
  130. if (!doNotFireEvent && TileStatusChanged != null)
  131. {
  132. TileStatusChanged(this, tileStatus);
  133. }
  134. }
  135. }
  136. get
  137. {
  138. return tileStatus;
  139. }
  140. }
  142. // Does not fire TileStatusChanged events.
  143. public void Initialize()
  144. {
  145. doNotFireEvent = true;
  146. this.Status = TileStatus.Hidden;
  147. this.IsBug = false;
  148. this.SurroundingBugCount = 0;
  149. doNotFireEvent = false;
  150. }

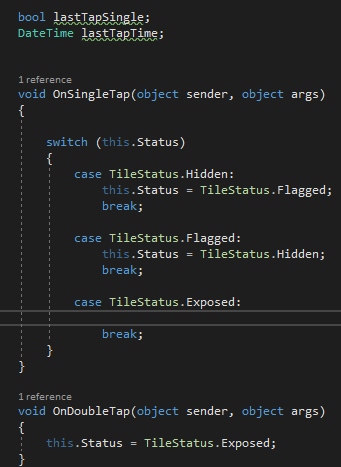

  154. bool lastTapSingle;
  155. DateTime lastTapTime;
  158. void OnSingleTap(object sender, object args)
  159. {
  161. switch (this.Status)
  162. {
  163. case TileStatus.Hidden:
  164. this.Status = TileStatus.Flagged;
  165. break;
  167. case TileStatus.Flagged:
  168. this.Status = TileStatus.Hidden;
  169. break;
  171. case TileStatus.Exposed:
  173. break;
  174. }
  175. }
  177. void OnDoubleTap(object sender, object args)
  178. {
  179. this.Status = TileStatus.Exposed;
  180. }
  181. }
  182. }
Step 7

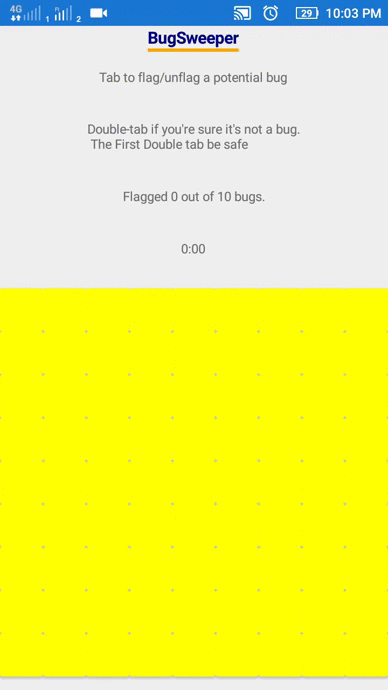

Click ' F5 ' or Build to run your projects. Running this project, you will have the result like below.

Finally, we have successfully created a Xamarin.Forms BugSweeper Application.
