Please refer my previous article to learn more about creating NINTEX workflow.

We will be adding the user to SharePoint group by calling the web service _vti_bin/usergroup.asmx. I have created a list which has Name – Single line of text, UserLoginName – People picker and Comments – Multi line of text field.

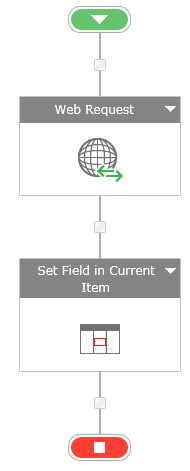

Workflow Design:

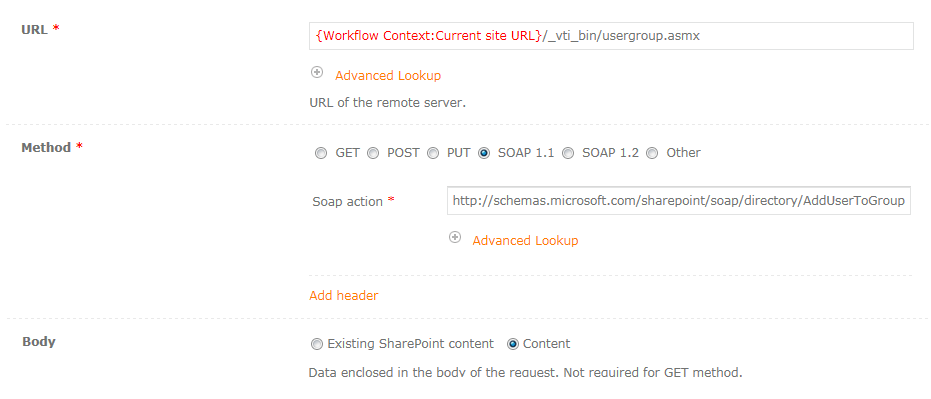

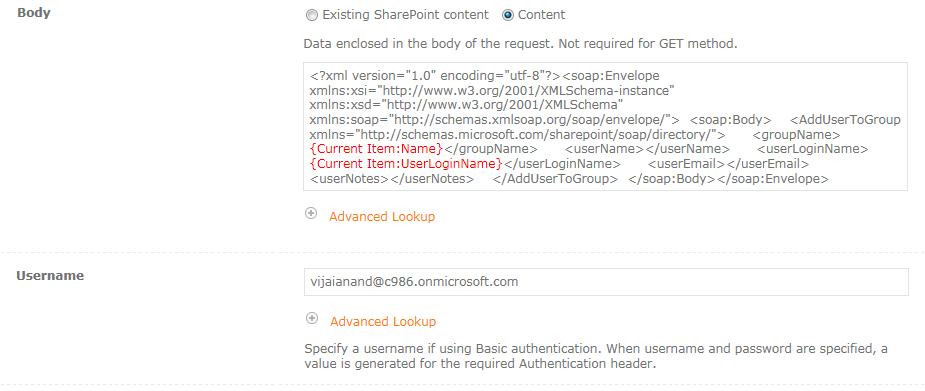

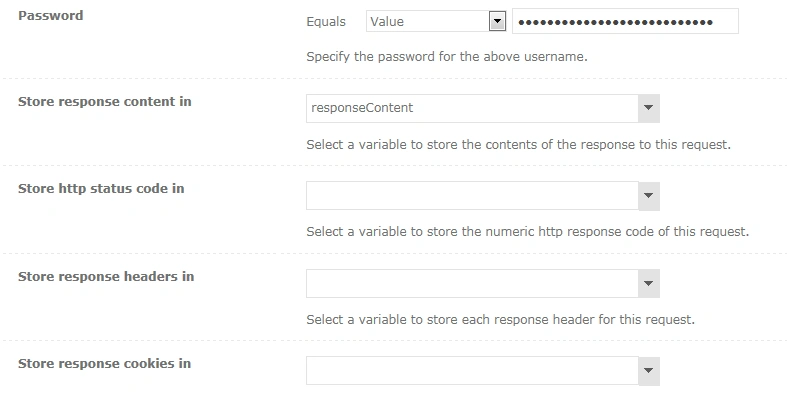

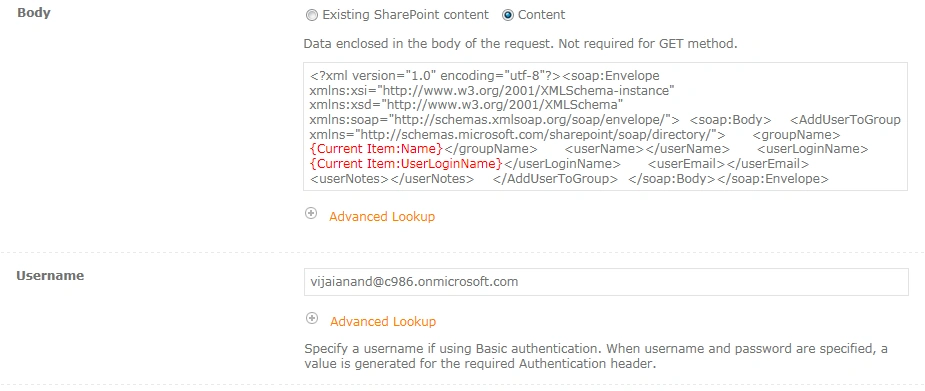

Web Request Action

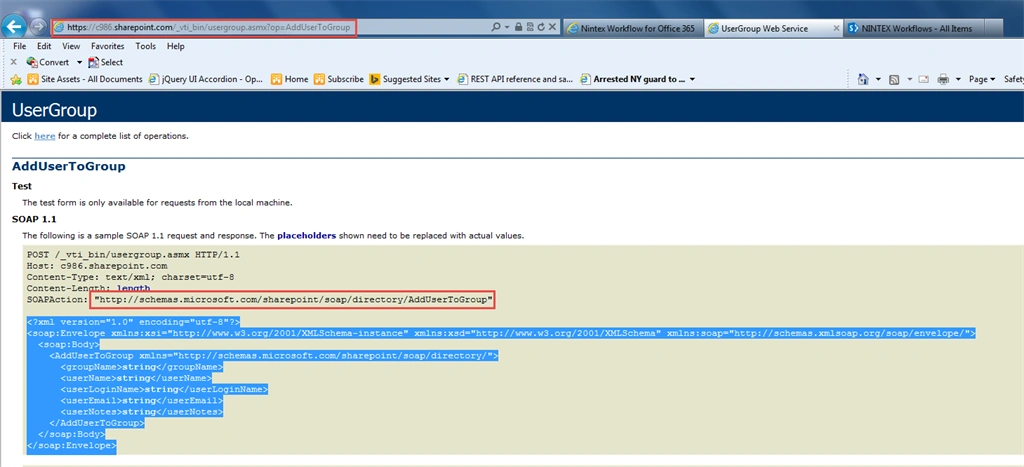

Soap Action

Set Field in Current Item

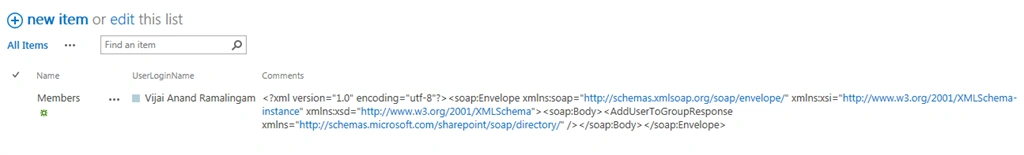

Result
The specified user is added to the specified group successfully.
