PopupMenu

A PopupMenu displays a Menu in a model popup window anchored to a View.

Procedure

  1. Start Eclipse IDE.
  2. Create a new project.
  3. Create a MainActivity.java file.
  4. Create an activity_main.xml for layout design.
  5. Take a button and a textview in xml file.
  6. Lookup the button in java file.
  7. In onClick function Declare PopupMenu like this:

PopupMenu pi=new PopupMenu(MainActivity.this, v);
pi.inflate(R.menu.main);
pi.setOnMenuItemClickListener
(new OnMenuItemClickListener()
{
public boolean onMenuItemClick(MenuItem vv)
{
switch (vv.getItemId())
{
case R.id.action_settings:
Toast.makeText(getApplicationContext(),
"Abhijeet", 100).show();
break;
default:
break;
}
return false;
}
});
pi.show();
}
}

Code is given below

MainActivity.java

package com.example.popupmenuuuuu;
import android.app.Activity;
import android.os.Bundle;
import android.view.MenuItem;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
import android.widget.PopupMenu;
import android.widget.Toast;
import android.widget.PopupMenu.OnMenuItemClickListener;

public class MainActivity extends Activity
implements OnClickListener
{
Button b1;
@Override
protected void onCreate(Bundle savedInstanceState)
{
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
b1=(Button)findViewById(R.id.button1);
b1.setOnClickListener(this);
}
public void onClick(View v)
{
// TODO Auto-generated method stub
PopupMenu pi=new PopupMenu(MainActivity.this, v);
pi.inflate(R.menu.main);
pi.setOnMenuItemClickListener
(new OnMenuItemClickListener()
{
public boolean onMenuItemClick(MenuItem vv)
{
// TODO Auto-generated method stub
switch (vv.getItemId())
{
case R.id.action_settings:
Toast.makeText(getApplicationContext(),
"Abhijeet", 100).show();
break;
default:
break;
}
return false;
}
});
pi.show();
}
}

activity_main.xml:

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:paddingBottom="@dimen/activity_vertical_margin"

android:paddingLeft="@dimen/activity_horizontal_margin"

android:paddingRight="@dimen/activity_horizontal_margin"

android:paddingTop="@dimen/activity_vertical_margin"

tools:context=".MainActivity" >


 <TextView

android:id="@+id/textView1"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="PopupMenu Demo" />

<Button

android:id="@+id/button1"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_alignLeft="@+id/textView1"

android:layout_below="@+id/textView1"

android:layout_marginLeft="36dp"

android:layout_marginTop="27dp"

android:text="Click Here" />
 </RelativeLayout>

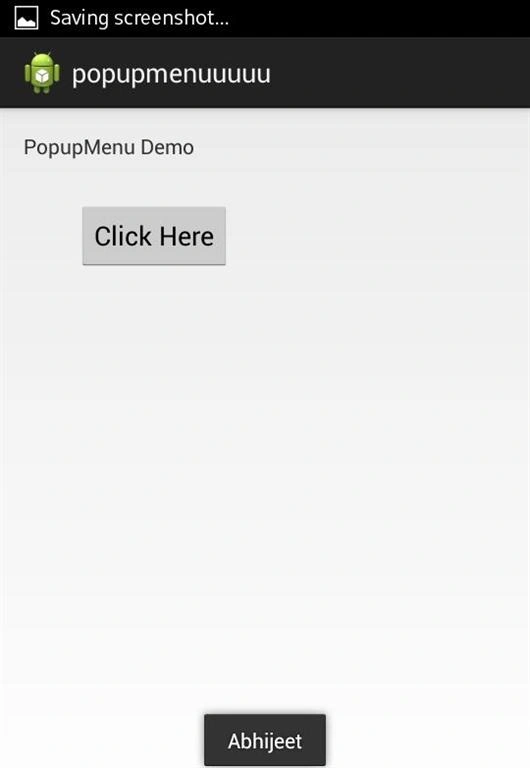

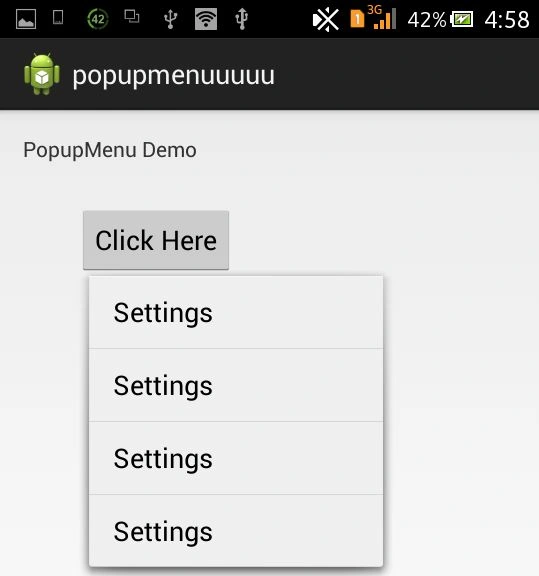

Output
