Introduction

Usually, while using validation in Kendo Grid, you will find some design issues in the Grid when displaying the warning/error message. This blog will tell you how to fix this issue..

Kendo Grid with validation

I will implement the Kendo Grid by referring http://demos.telerik.com/kendo-ui/grid/editing

KendoGrid.html

  1. <!DOCTYPE html>
  2. <html>
  3. <head>
  4. <meta charset="utf-8">
  5. <title>Untitled</title>
  7. <link rel="stylesheet" href="http://kendo.cdn.telerik.com/2017.1.118/styles/kendo.common.min.css">
  8. <link rel="stylesheet" href="http://kendo.cdn.telerik.com/2017.1.118/styles/kendo.rtl.min.css">
  9. <link rel="stylesheet" href="http://kendo.cdn.telerik.com/2017.1.118/styles/kendo.default.min.css">
  10. <link rel="stylesheet" href="http://kendo.cdn.telerik.com/2017.1.118/styles/kendo.mobile.all.min.css">
  12. <script src="http://code.jquery.com/jquery-1.12.3.min.js"></script>
  13. <script src="http://kendo.cdn.telerik.com/2017.1.118/js/angular.min.js"></script>
  14. <script src="http://kendo.cdn.telerik.com/2017.1.118/js/jszip.min.js"></script>
  15. <script src="http://kendo.cdn.telerik.com/2017.1.118/js/kendo.all.min.js"></script></head>
  16. <body>
  17. <div id="example">
  18. <div id="grid"></div>
  20. <script>
  21. $(document).ready(function () {
  24. var crudServiceBaseUrl = "https://demos.telerik.com/kendo-ui/service",
  25. dataSource = new kendo.data.DataSource({
  26. transport: {
  27. read: {
  28. url: crudServiceBaseUrl + "/Products",
  29. dataType: "jsonp"
  30. },
  31. update: {
  32. url: crudServiceBaseUrl + "/Products/Update",
  33. dataType: "jsonp"
  34. },
  35. destroy: {
  36. url: crudServiceBaseUrl + "/Products/Destroy",
  37. dataType: "jsonp"
  38. },
  39. create: {
  40. url: crudServiceBaseUrl + "/Products/Create",
  41. dataType: "jsonp"
  42. },
  43. parameterMap: function(options, operation) {
  44. if (operation !== "read" && options.models) {
  45. return {models: kendo.stringify(options.models)};
  46. }
  47. }
  48. },
  49. batch: true,
  50. pageSize: 20,
  51. schema: {
  52. model: {
  53. id: "ProductID",
  54. fields: {
  55. ProductID: { editable: false, nullable: true },
  56. ProductName: { validation: { required: true } },
  57. UnitPrice: { type: "number", validation: { required: true, min: 1} },
  58. Discontinued: { type: "boolean" },
  59. UnitsInStock: { type: "number", validation: { min: 0, required: true } }
  60. }
  61. }
  62. }
  63. });
  65. $("#grid").kendoGrid({
  66. dataSource: dataSource,
  67. navigatable: true,
  68. pageable: true,
  69. height: 550,
  70. toolbar: ["create", "save", "cancel"],
  71. columns: [
  72. "ProductName",
  73. { field: "UnitPrice", title: "Unit Price", format: "{0:c}", width: 120 },
  74. { field: "UnitsInStock", title: "Units In Stock", width: 120 },
  75. { field: "Discontinued", width: 120 },
  76. { command: "destroy", title: " ", width: 150 }],
  77. editable: true
  78. });
  79. });
  80. </script>
  81. </div>
  82. </body>
  83. </html>

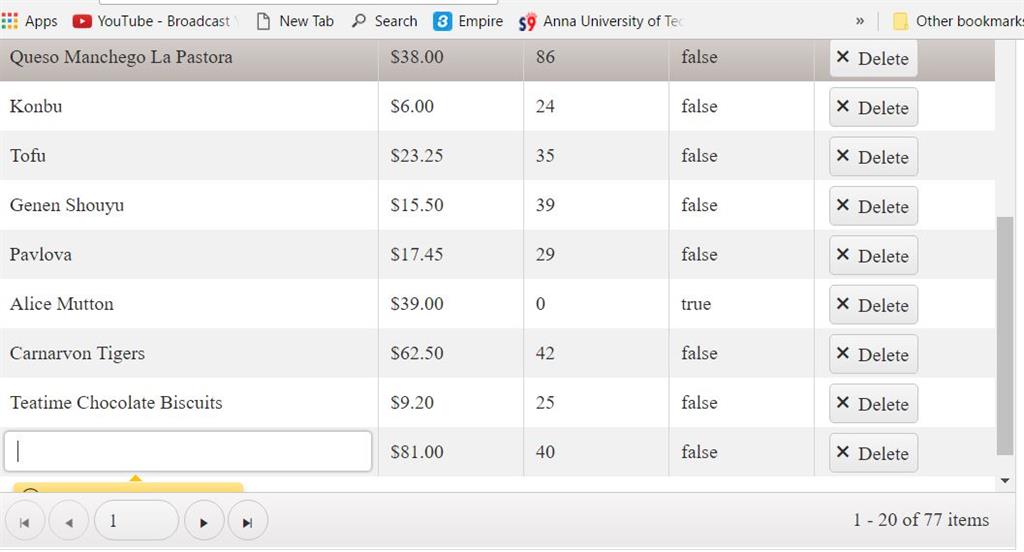

Result in browser

From the above figure, you can notice there is a break in error message. In the last row of Grid, the user needs to scroll down manually to check the error message. This is somewhat odd from a user's perspective. Let’s see how to fix it with simple logic which is written in the below function.
  1. $(function () {
  2. var grid = $("#grid").data("kendoGrid");
  4. grid.table.on("focusout", ".k-invalid", function () {
  5. var content = grid.content;
  6. var height = content.height();
  7. var cell = $(this).closest("td");
  8. var message = cell.find(".k-invalid-msg");
  9. var callout = message.find(".k-callout");
  10. var position = message.position();
  11. var top = position.top + callout.outerHeight() + message.outerHeight();
  12. if (top > height) {
  13. content.scrollTop(content.scrollTop() + top - height);
  14. }
  15. });
  16. });
Complete code
  1. <!DOCTYPE html>
  2. <html>
  3. <head>
  4. <meta charset="utf-8">
  5. <title>Untitled</title>
  7. <link rel="stylesheet" href="http://kendo.cdn.telerik.com/2017.1.118/styles/kendo.common.min.css">
  8. <link rel="stylesheet" href="http://kendo.cdn.telerik.com/2017.1.118/styles/kendo.rtl.min.css">
  9. <link rel="stylesheet" href="http://kendo.cdn.telerik.com/2017.1.118/styles/kendo.default.min.css">
  10. <link rel="stylesheet" href="http://kendo.cdn.telerik.com/2017.1.118/styles/kendo.mobile.all.min.css">
  12. <script src="http://code.jquery.com/jquery-1.12.3.min.js"></script>
  13. <script src="http://kendo.cdn.telerik.com/2017.1.118/js/angular.min.js"></script>
  14. <script src="http://kendo.cdn.telerik.com/2017.1.118/js/jszip.min.js"></script>
  15. <script src="http://kendo.cdn.telerik.com/2017.1.118/js/kendo.all.min.js"></script></head>
  16. <body>
  17. <div id="example">
  18. <div id="grid"></div>
  20. <script>
  21. $(document).ready(function () {
  23. $(function () {
  24. var grid = $("#grid").data("kendoGrid");
  26. grid.table.on("focusout", ".k-invalid", function () {
  27. var content = grid.content;
  28. var height = content.height();
  29. var cell = $(this).closest("td");
  30. var message = cell.find(".k-invalid-msg");
  31. var callout = message.find(".k-callout");
  32. var position = message.position();
  33. var top = position.top + callout.outerHeight() + message.outerHeight();
  34. if (top > height) {
  35. content.scrollTop(content.scrollTop() + top - height);
  36. }
  37. });
  38. });
  40. var crudServiceBaseUrl = "https://demos.telerik.com/kendo-ui/service",
  41. dataSource = new kendo.data.DataSource({
  42. transport: {
  43. read: {
  44. url: crudServiceBaseUrl + "/Products",
  45. dataType: "jsonp"
  46. },
  47. update: {
  48. url: crudServiceBaseUrl + "/Products/Update",
  49. dataType: "jsonp"
  50. },
  51. destroy: {
  52. url: crudServiceBaseUrl + "/Products/Destroy",
  53. dataType: "jsonp"
  54. },
  55. create: {
  56. url: crudServiceBaseUrl + "/Products/Create",
  57. dataType: "jsonp"
  58. },
  59. parameterMap: function(options, operation) {
  60. if (operation !== "read" && options.models) {
  61. return {models: kendo.stringify(options.models)};
  62. }
  63. }
  64. },
  65. batch: true,
  66. pageSize: 20,
  67. schema: {
  68. model: {
  69. id: "ProductID",
  70. fields: {
  71. ProductID: { editable: false, nullable: true },
  72. ProductName: { validation: { required: true } },
  73. UnitPrice: { type: "number", validation: { required: true, min: 1} },
  74. Discontinued: { type: "boolean" },
  75. UnitsInStock: { type: "number", validation: { min: 0, required: true } }
  76. }
  77. }
  78. }
  79. });
  81. $("#grid").kendoGrid({
  82. dataSource: dataSource,
  83. navigatable: true,
  84. pageable: true,
  85. height: 550,
  86. toolbar: ["create", "save", "cancel"],
  87. columns: [
  88. "ProductName",
  89. { field: "UnitPrice", title: "Unit Price", format: "{0:c}", width: 120 },
  90. { field: "UnitsInStock", title: "Units In Stock", width: 120 },
  91. { field: "Discontinued", width: 120 },
  92. { command: "destroy", title: " ", width: 150 }],
  93. editable: true
  94. });
  95. });
  96. </script>
  97. </div>
  98. </body>
  99. </html>

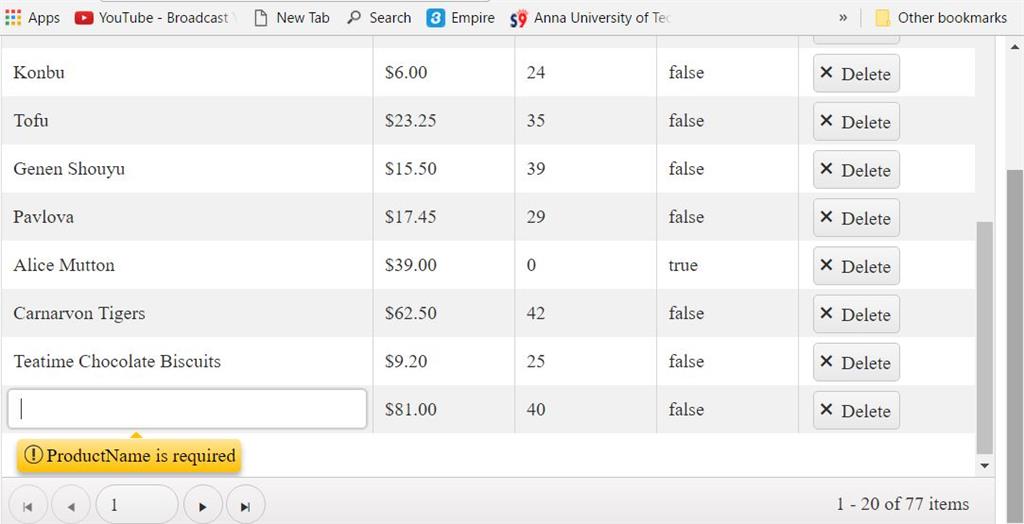

Result in Browser

I hope you have enjoyed this blog. Your valuable feedback, questions, and comments about this blog are always welcome.
