So, Code for Password Strength Indicator looks like this:

<Ajax:PasswordStrength ID="PasswordStrength1" runat="server" DisplayPosition="RightSide" StrengthIndicatorType="BarIndicator" TargetControlID="TextBox1" PrefixText="Stength:" Enabled="true" RequiresUpperAndLowerCaseCharacters="true" MinimumLowerCaseCharacters="1" MinimumUpperCaseCharacters="1" MinimumSymbolCharacters="1" MinimumNumericCharacters="1" PreferredPasswordLength="10" TextStrengthDescriptions="VeryPoor; Weak; Average; Strong; Excellent" StrengthStyles="VeryPoor; Weak; Average; Excellent; Strong;" CalculationWeightings="25;25;15;35" BarBorderCssClass="border" HelpStatusLabelID="Label1">

</Ajax:PasswordStrength>


And Complete Source Code looks like this:

<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="Password_Strength.WebForm1" %>

<%@ Register Assembly="AjaxControlToolkit" Namespace="AjaxControlToolkit" TagPrefix="Ajax" %>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">


 <html xmlns="http://www.w3.org/1999/xhtml">
 <head id="Head1" runat="server">
 <title></title>
 <style type="text/css">
 .VeryPoor
 {
background-color:red;
}

.Weak
 {
background-color:orange;
}

.Average
 {
background-color: #A52A2A
 }
.Excellent
 {
background-color:yellow;
}
.Strong
 {
background-color:green;
}
.border
 {
border: medium solid #800000;
width:500px;
}
</style>
 </head>
 <body>
 <form id="form1" runat="server">
 <div>
 <Ajax:ToolkitScriptManager ID="ToolkitScriptManager1" runat="server">
 </Ajax:ToolkitScriptManager>
 <center>
 Please Enter Password: <asp:TextBox ID="TextBox1" runat="server
TextMode="Password"></asp:TextBox>
 </center><br />

<Ajax:PasswordStrength ID="PasswordStrength1" runat="server" DisplayPosition="RightSide" StrengthIndicatorType="BarIndicator"
 TargetControlID="TextBox1" PrefixText="Stength:" Enabled="true
RequiresUpperAndLowerCaseCharacters="true" MinimumLowerCaseCharacters="1"
 MinimumUpperCaseCharacters="1" MinimumSymbolCharacters="1
MinimumNumericCharacters="1" PreferredPasswordLength="10"
 TextStrengthDescriptions="VeryPoor; Weak; Average; Strong; Excellent"
StrengthStyles="VeryPoor; Weak; Average; Excellent; Strong;"
 CalculationWeightings="25;25;15;35" BarBorderCssClass="border
HelpStatusLabelID="Label1">

</Ajax:PasswordStrength>
 </div>
 <br />
 <br /><br />
 <br />
 <div>
 <Ajax:PasswordStrength ID="PasswordStrength2" runat="server
DisplayPosition="BelowLeft" StrengthIndicatorType="Text"
TargetControlID="TextBox1" PrefixText="Stength:" Enabled="true
RequiresUpperAndLowerCaseCharacters="true" MinimumLowerCaseCharacters="1"
 MinimumUpperCaseCharacters="1" MinimumSymbolCharacters="1
MinimumNumericCharacters="1" PreferredPasswordLength="10"
 TextStrengthDescriptions="VeryPoor; Weak; Average; Strong; Excellent"
BarBorderCssClass="border">
</Ajax:PasswordStrength>
 </div>
 <div><br /><br />
 <center>
 <asp:Label ID="Label1" runat="server" Font-Bold="true" Font-Size="Medium
ForeColor="Brown"></asp:Label>
 </center>
 </div>
</form>
 </body>
 </html>
Output of this program:

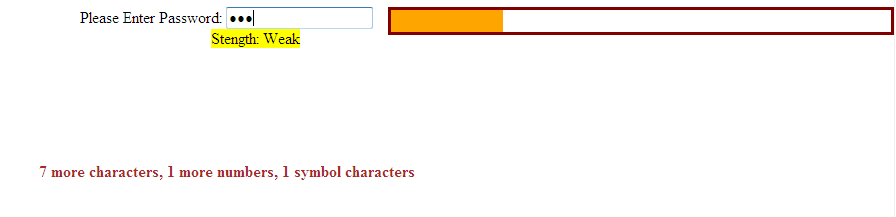

For Weak Password:

weak password.png

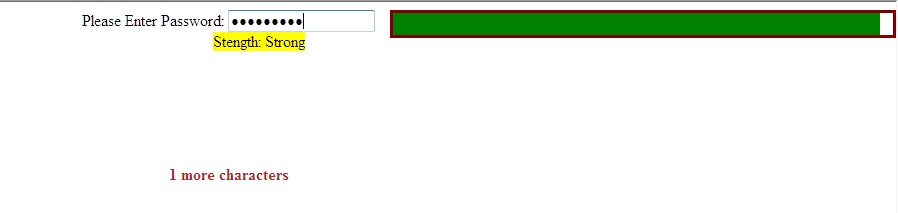

For Strong Password:

Strong Pasword.jpg
