A multiple choice test created on c#

Hi Bee.

You requested a multiple chioce quiz and I delivered.

Check it out. See how I did it.

Include for anyone to download is the project file.

I developed the project using Visual Studio 2017 Community Edition.

VS 2017 Community Edition is free of charge. Anyone can download it at Microsoft's website and starting using it.

Here are some teasers:

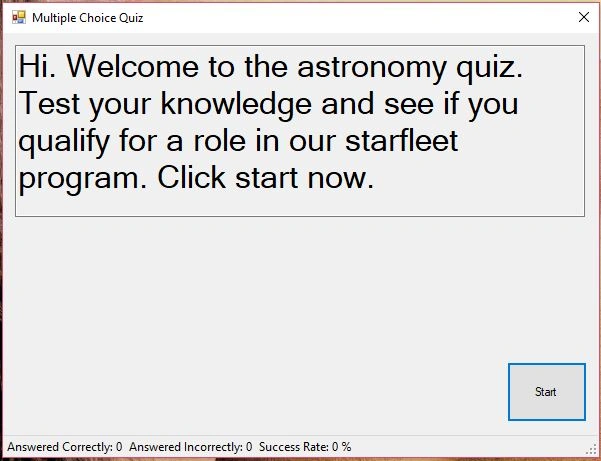

Application Start Up:

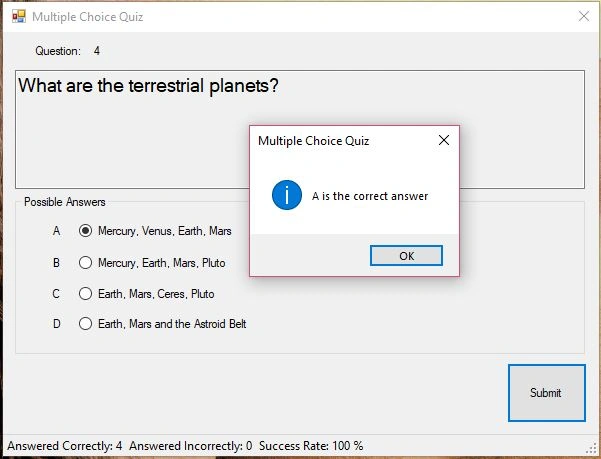

A Correct Answer During Quiz

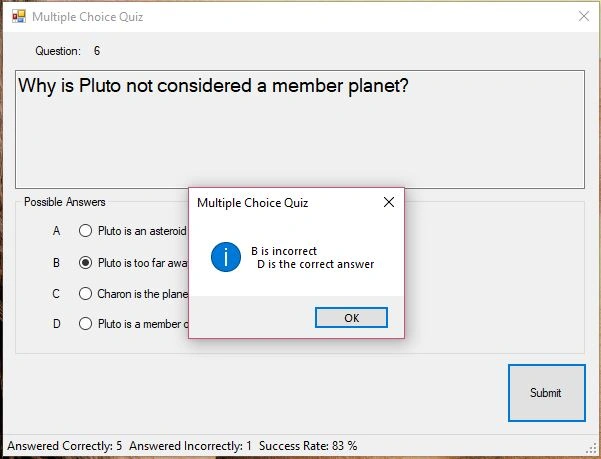

A Wrong Answer During Quiz

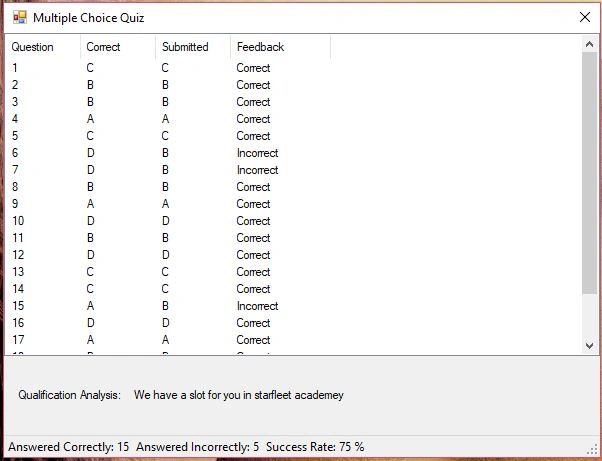

End Quiz Summary Sample 1

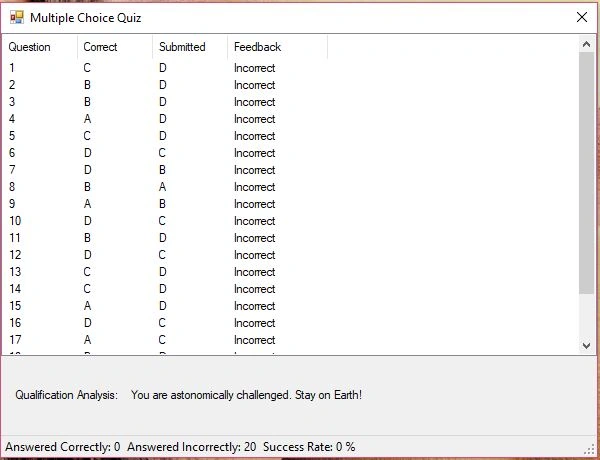

End Quiz Sample Summary 2

Code for the UI Form: If you want to see all the code download the project

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
namespace MultipleChoiceQuiz
{
public partial class QuizForm : Form
{
// Class: QuizForm
// Provide the user the questions and possible answers (data)
// Provides the user the means to answer the question
// Front End Presentation Layer
// support variables
private DataBase m_dataBase=null;
private Quiz m_quiz = null;
private int m_questionNumber = 0;
public QuizForm()
{
InitializeComponent();
// middle tier components
m_dataBase = new DataBase();
m_quiz = new Quiz();
}
private void QuizForm_Load(object sender, EventArgs e)
{
// subscribers subscribe to publisher's events
// this is what we call loooooooooose coupling...
// publisher.Event += subscriber.Method
m_dataBase.QuestionAcquired += this.DataBase_QuestionAcquired;
m_dataBase.AnswerProvided += m_quiz.DataBase_AnswerProvided;
m_dataBase.DatabaseLoaded += m_quiz.DataBase_OnLoad;
m_quiz.AnswerEvaluated += this.Quiz_AnswerEvaluated;
m_quiz.QuizEnded += this.Quiz_QuizEnded;
// Other initializations and state starts
m_dataBase.QueryDatabase();
btnSubmit.Enabled = GetSubmitButtonEnabledState();
UpdateStatusPanels(0, 0, 0m);
SetupSummaryListView();
}
#region Event Subscriptions
public void DataBase_QuestionAcquired(object sender, QuestionEventArgs e)
{
// Method: DataBase_QuestionAcquired
// QuizForm subscriber uses data from publisher DataBase
// Present the question to the user/quiz taker
Question q = e.Question;
lblQuestionNumber.Text = q.QuestionNumber.ToString();
txtQuestion.Text = q.QuestionText;
optA.Text = q.AnswerTextA;
optB.Text = q.AnswerTextB;
optC.Text = q.AnswerTextC;
optD.Text = q.AnswerTextD;
}
public void Quiz_AnswerEvaluated(object sender, EvaluationEventArgs e)
{
UpdateStatusPanels(e.CorrectlyAnswered, e.IncorrectlyAnswered, e.SuccessPercentage);
MessageBox.Show(e.Feedback, "Multiple Choice Quiz", MessageBoxButtons.OK, MessageBoxIcon.Information);
}
public void Quiz_QuizEnded(object sender, QuizEndSummaryEventArgs e)
{
pnlSummary.BringToFront();
foreach(SummaryItem listItem in e.QuizSummary)
{
ListViewItem i = new ListViewItem();
i.Text = listItem.QuestionNumber.ToString();
ListViewItem.ListViewSubItem s1 = new ListViewItem.ListViewSubItem();
s1.Text = listItem.CorrectAnswer;
i.SubItems.Add(s1);
ListViewItem.ListViewSubItem s2 = new ListViewItem.ListViewSubItem();
s2.Text = listItem.SubmittedAnswer;
i.SubItems.Add(s2);
ListViewItem.ListViewSubItem s3 = new ListViewItem.ListViewSubItem();
s3.Text = listItem.Feedback;
i.SubItems.Add(s3);
lvwSummary.Items.Add(i);
}
lblAnlysis.Text = e.Analysis;
}
#endregion
#region UI State Management
private void ResetAnswers()
{
optA.Checked = false;
optB.Checked = false;
optC.Checked = false;
optD.Checked = false;
}
private void UpdateStatusPanels(int correctAnswered, int incorrectAnswered, decimal successPercentage)
{
tsslCorrect.Text = $"Answered Correctly: {correctAnswered}";
tsslIncorrect.Text = $"Answered Incorrectly: {incorrectAnswered}";
tsslPercent.Text = $"Success Rate: {successPercentage} %";
}
private Boolean GetSubmitButtonEnabledState()
{
// default to false
Boolean result = false;
// Conditions for true
// one of the four radio buttons: optA, optB, optC or optD
// must have a checked value of ture
result = ((optA.Checked == true) || (optB.Checked == true) || (optC.Checked == true) || (optD.Checked == true));
return result;
}
#endregion
#region Ui Control Events
private void btnSubmit_Click(object sender, EventArgs e)
{
// send user answer to the quiz engine for evaluation
m_quiz.Evaluate(m_questionNumber, GetSelectedAnswer());
// reset the answers
ResetAnswers();
// change submit button state
btnSubmit.Enabled = GetSubmitButtonEnabledState();
// advanced the question number
m_questionNumber++;
// get a new questino
m_dataBase.GetQuestion(m_questionNumber);
}
private void btnStart_Click(object sender, EventArgs e)
{
m_questionNumber++;
m_dataBase.GetQuestion(m_questionNumber);
pnlQuestion.BringToFront();
}
private void optA_Click(object sender, EventArgs e)
{
// change submit button state
btnSubmit.Enabled = GetSubmitButtonEnabledState();
}
private void optB_Click(object sender, EventArgs e)
{
// change submit button state
btnSubmit.Enabled = GetSubmitButtonEnabledState();
}
private void optC_Click(object sender, EventArgs e)
{
// change submit button state
btnSubmit.Enabled = GetSubmitButtonEnabledState();
}
private void optD_Click(object sender, EventArgs e)
{
// change submit button state
btnSubmit.Enabled = GetSubmitButtonEnabledState();
}
#endregion
#region Supporting Subroutines
private void SetupSummaryListView()
{
lvwSummary.Columns.Clear();
lvwSummary.Columns.Add("Question", 75, HorizontalAlignment.Left);
lvwSummary.Columns.Add("Correct", 75, HorizontalAlignment.Left);
lvwSummary.Columns.Add("Submitted", 75, HorizontalAlignment.Left);
lvwSummary.Columns.Add("Feedback", 100, HorizontalAlignment.Left);
}
private string GetSelectedAnswer()
{
string answer = string.Empty;
if(optA.Checked==true) { answer = "A"; }
if (optB.Checked == true) { answer = "B"; }
if (optC.Checked == true) { answer = "C"; }
if (optD.Checked == true) { answer = "D"; }
return answer;
}
#endregion
}
}

Have a great day! Stay C#! Stay .Net Framework!

5 Replies

Know the answer? Post it — somebody with the same question will find it here.

Jacki Thomas6y ago
If someone were to repurpose this quiz for something else, where would you find the questions and answers so that you could change them.
Leonard Jade Balajadia7y ago
Is there a design for this? I am not able to find it in the file you sent.
Edit: I just found it. Sorry about that. :)
John Rothenberger7y ago
How would you add a print button option to a summary form like this one?

Thank You

John
