Best Architecture for asp.net MVC and webapi

Mark Tabor

Hi I am going to build an ERP for that I like to chose asp.NET MVC with SQL server ,HTML CSS bootstrap for frontend , I like to use web API as well can someone suggest a best project architecture along with any example to see.

Thanks

9 Replies

Know the answer? Post it — somebody with the same question will find it here.

Mark Tabor5y ago
Hi I am attaching two approaches suggest which one is best to implement from Photo # 01 and Photo # 02

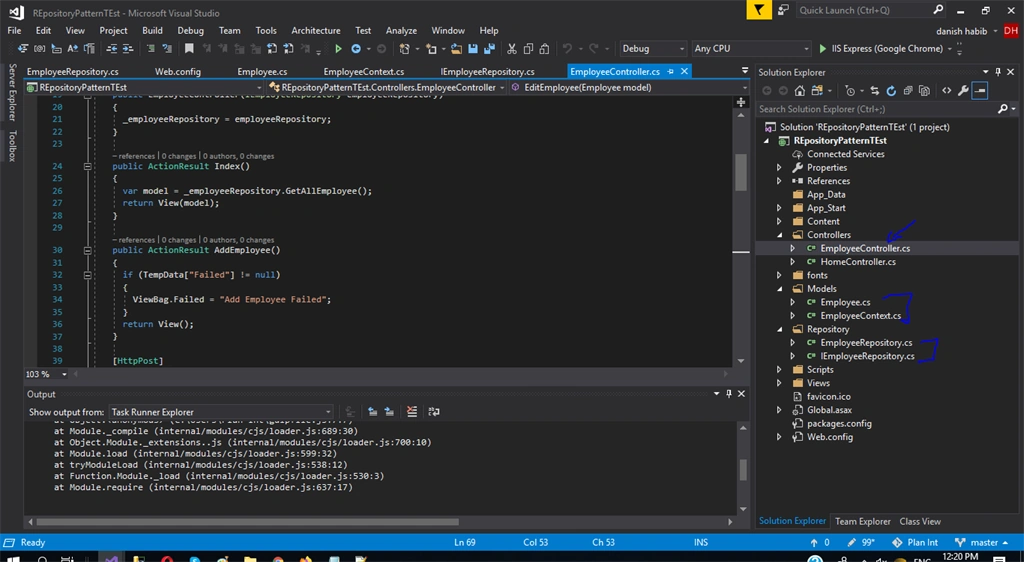

Photo # 01 is below

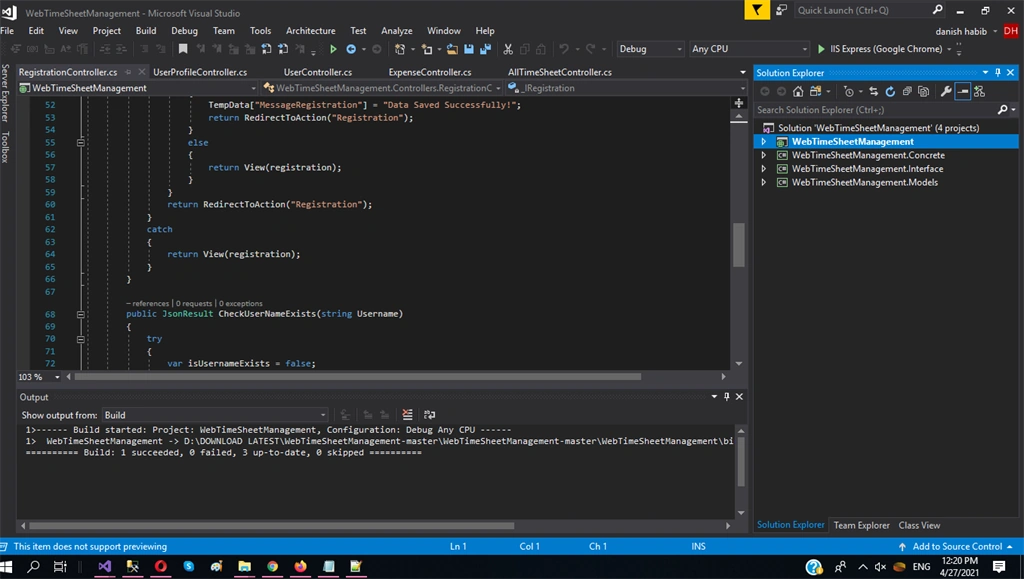

Below is photo # 02 :
Although this approach we using all db code inside controller.
you can suggest any best approach but must share an example as well so that I can understand it first.
+1
Rijwan Ansari5y ago
Hi,

Considering current trends, I will recommend to go for clean architecture.
I have ready to use template.
This is independent/minimal change of framework, Front-end and database.
https://github.com/rijwanansari/SampleCleanArchRepo

Application Library: Contains services and core application logic (.net standard)
CoreCommon: contain reuseable/helper common classes/functions/extensions (.net standard)
Domain: Pure Application/database Domain/entity (.net standard)
Data/Infrastructure/persistence: DAL .net core
Appweb: Host/Presentaion and webpi. Here I have user angular template, however, you can use MVC one.
Simple version of https://github.com/jasontaylordev/CleanArchitecture
You can details
https://jasontaylor.dev/clean-architecture-getting-started/
+2
Salman Beg5y ago
Check this link for repository pattern example, https://www.c-sharpcorner.com/UploadFile/3d39b4/crud-using-the-repository-pattern-in-mvc/ https://www.c-sharpcorner.com/UploadFile/8a67c0/repository-pattern-with-Asp-Net-mvc-with-entity-framework/
+1
Mark Tabor5y ago
Sachin Singh do you have any project which uses this pattern.
+1
Sachin Singh5y ago
I think you will use Entity Framework , so all your Entity Will be generated in BOL layer but your context class must generate in DAL , if you don't know how to split entity then please let me know.
BLL will be for business logics (CRUD+ business specific methods)
+1
Mark Tabor5y ago
BOL AND BLL what does they contain ?
+1
Sachin Singh5y ago
1.BOL (Business object)
2.BLL (Business Logic)
3.DAL (Data Aceess)
4.Web API
5.UI (MVC)

MVC's controller will call the web API using HttpClient or RestClient, Web API will call the BLL, BLL will call the DAL + BOL.
so, a simple architecture.
+1
Mark Tabor5y ago
can you share any open source project which is using repository pattern .
Salman Beg thanks
0
Salman Beg5y ago
Hey you can use the repository pattern for that. Thanks
0
