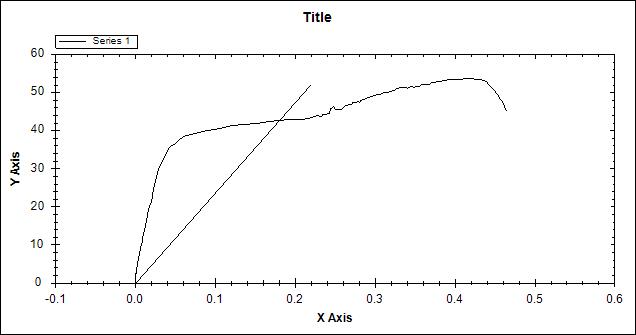

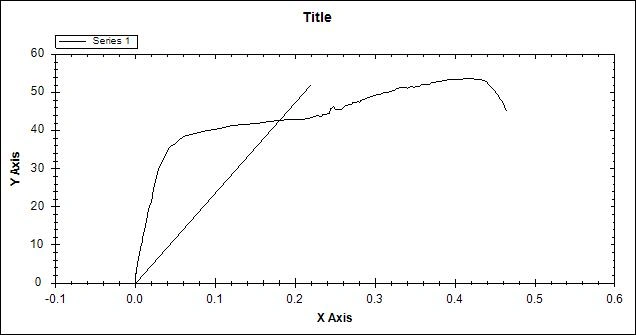

I need to get the intersection points of 2 series. iam using zedgraph

An alternative approach to finding the intersection points of two series in ZedGraph is to utilize mathematical methods for line intersection detection. One common method is to use vector algebra to find the intersection point of two lines. Here's a general outline of how you can implement this approach:

1. Iterate through each pair of adjacent points in the two series.
2. Treat each pair of points as endpoints of line segments.
3. Compute the equation of the line passing through each pair of points.
4. Determine if the lines defined by the segments intersect.
5. If the lines intersect, compute the intersection point.
6. Add the intersection point to a list.

using System;
using System.Collections.Generic;
using ZedGraph;

class Program
{
    static void Main(string[] args)
    {
        // Create two sample series
        PointPairList series1 = new PointPairList(new double[] { 1, 2, 3, 4 }, new double[] { 1, 2, 3, 4 });
        PointPairList series2 = new PointPairList(new double[] { 2, 3, 4, 5 }, new double[] { 1, 2, 3, 4 });

        // Find intersection points
        List intersectionPoints = FindIntersectionPoints(series1, series2);

        // Output intersection points
        Console.WriteLine("Intersection Points:");
        foreach (PointPair point in intersectionPoints)
        {
            Console.WriteLine($"X: {point.X}, Y: {point.Y}");
        }
    }

    static List FindIntersectionPoints(PointPairList series1, PointPairList series2)
    {
        List intersectionPoints = new List();

        // Iterate through each pair of adjacent points in the two series
        for (int i = 0; i < series1.Count - 1; i++)
        {
            PointPair p1 = series1[i];
            PointPair p2 = series1[i + 1];

            for (int j = 0; j < series2.Count - 1; j++)
            {
                PointPair p3 = series2[j];
                PointPair p4 = series2[j + 1];

                // Compute the intersection point of the lines defined by the segments
                PointPair intersection = ComputeLineIntersection(p1, p2, p3, p4);

                if (intersection != null)
                {
                    intersectionPoints.Add(intersection);
                }
            }
        }

        return intersectionPoints;
    }

    static PointPair ComputeLineIntersection(PointPair p1, PointPair p2, PointPair p3, PointPair p4)
    {
        // Compute the slopes of the lines
        double slope1 = (p2.Y - p1.Y) / (p2.X - p1.X);
        double slope2 = (p4.Y - p3.Y) / (p4.X - p3.X);

        // Compute the y-intercepts of the lines
        double intercept1 = p1.Y - slope1 * p1.X;
        double intercept2 = p3.Y - slope2 * p3.X;

        // Compute the intersection point
        double x = (intercept2 - intercept1) / (slope1 - slope2);
        double y = slope1 * x + intercept1;

        // Check if the intersection point is within the line segments
        if ((x >= Math.Min(p1.X, p2.X) && x <= Math.Max(p1.X, p2.X)) &&
            (y >= Math.Min(p1.Y, p2.Y) && y <= Math.Max(p1.Y, p2.Y)) &&
            (x >= Math.Min(p3.X, p4.X) && x <= Math.Max(p3.X, p4.X)) &&
            (y >= Math.Min(p3.Y, p4.Y) && y <= Math.Max(p3.Y, p4.Y)))
        {
            return new PointPair(x, y);
        }

        return null; // No intersection
    }
}

To find the intersection points of two series in ZedGraph, you can iterate through the points of each series and compare them to find the intersections. ZedGraph does not provide built-in functionality for finding intersections.

using System;
using System.Collections.Generic;
using ZedGraph;

class Program
{
    static void Main(string[] args)
    {
        // Create two sample series
        PointPairList series1 = new PointPairList(new double[] { 1, 2, 3, 4 }, new double[] { 1, 2, 3, 4 });
        PointPairList series2 = new PointPairList(new double[] { 2, 3, 4, 5 }, new double[] { 1, 2, 3, 4 });

        // Find intersection points
        List intersectionPoints = FindIntersectionPoints(series1, series2);

        // Output intersection points
        Console.WriteLine("Intersection Points:");
        foreach (PointPair point in intersectionPoints)
        {
            Console.WriteLine($"X: {point.X}, Y: {point.Y}");
        }
    }

    static List FindIntersectionPoints(PointPairList series1, PointPairList series2)
    {
        List intersectionPoints = new List();

        // Iterate through each point of series1
        for (int i = 0; i < series1.Count - 1; i++)
        {
            PointPair point1 = series1[i];
            PointPair point2 = series1[i + 1];

            // Iterate through each point of series2
            for (int j = 0; j < series2.Count - 1; j++)
            {
                PointPair point3 = series2[j];
                PointPair point4 = series2[j + 1];

                // Check for intersection between line segments
                PointPair intersection = FindIntersection(point1, point2, point3, point4);
                if (intersection != null)
                {
                    intersectionPoints.Add(intersection);
                }
            }
        }

        return intersectionPoints;
    }

    static PointPair FindIntersection(PointPair p1, PointPair p2, PointPair p3, PointPair p4)
    {
        // Implementation of intersection logic goes here
        // For simplicity, let's assume no intersection in this example
        return null;
    }
}
