i wanna make a minecraft luanccher basex on C# language and give me

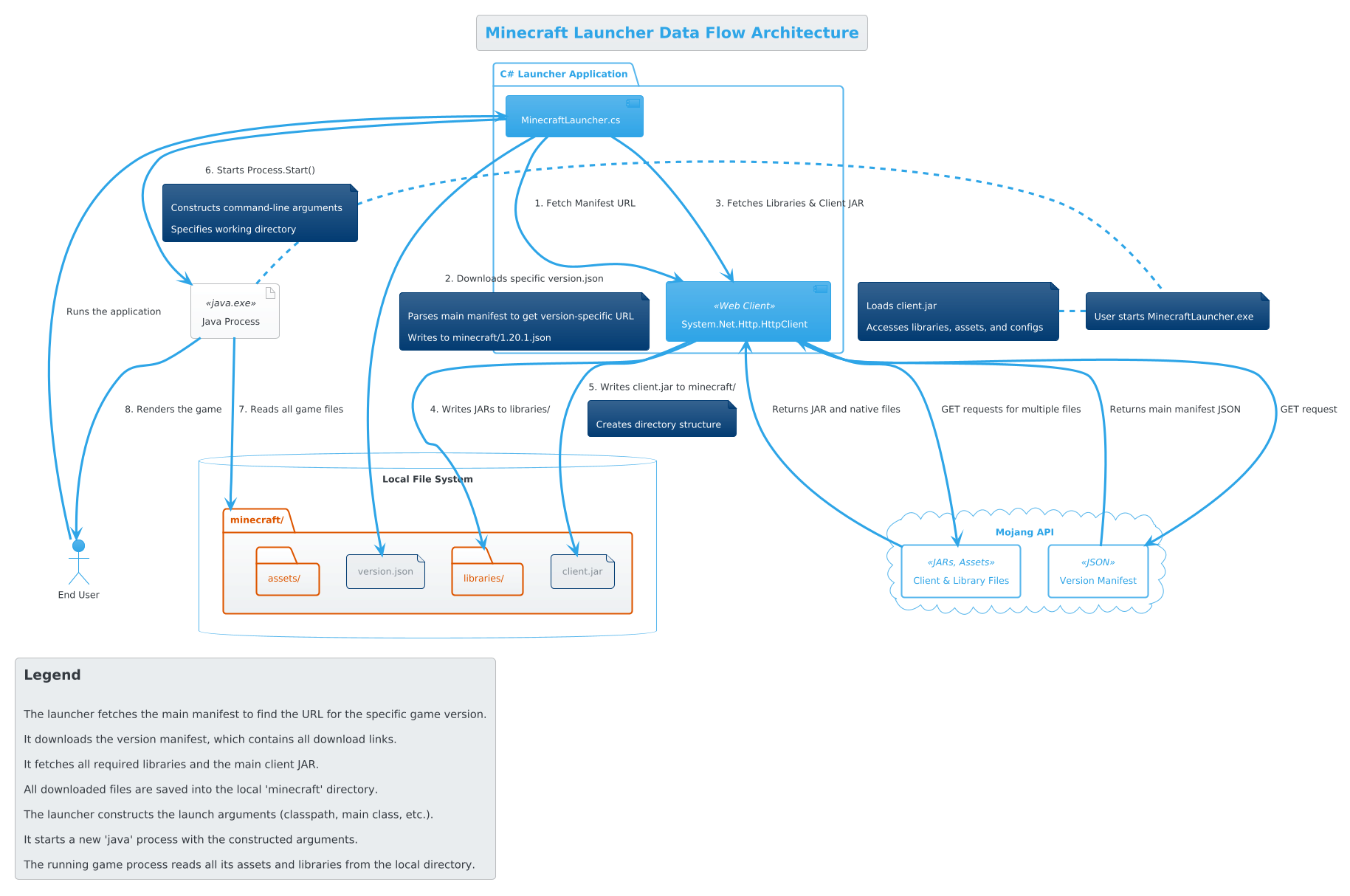

 This diagram provides a clear visual breakdown of the data flow, highlighting the separation between the external Mojang API, your C# launcher's logic, and the local files it manages to run the final Java process.



C# console application that serves as the core logic for a basic Minecraft launcher. This code handles the essential steps of downloading the necessary game files and launching the game. You can use this as a foundation to build a full-featured graphical user interface (GUI) with a framework like WPF or WinForms later on.

// A simple console-based Minecraft launcher written in C#.
// This application demonstrates the core logic required to:
// 1. Fetch game version information from the Mojang API.
// 2. Download the main Minecraft client JAR file.
// 3. Download all required game libraries.
// 4. Construct the correct command-line arguments.
// 5. Launch the game using the default Java executable.

using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.IO;
using System.Linq;
using System.Net.Http;
using System.Text.Json;
using System.Threading.Tasks;

public class MinecraftLauncher
{
    // Define the game version to launch
    private const string GameVersion = "1.20.1";

    // Base URL for Minecraft version manifests
    private const string VersionManifestUrl = "https://launchermeta.mojang.com/mc/launcher/manifest.json";

    // Path to store all game files (relative to the executable)
    private static readonly string MinecraftHome = Path.Combine(AppDomain.CurrentDomain.BaseDirectory, "minecraft");

    private static readonly HttpClient client = new HttpClient();

    public static async Task Main(string[] args)
    {
        Console.WriteLine("Starting Minecraft Launcher...");

        // Ensure the directories for game files exist
        if (!Directory.Exists(MinecraftHome))
        {
            Directory.CreateDirectory(MinecraftHome);
            Console.WriteLine($"Created directory: {MinecraftHome}");
        }

        try
        {
            // Step 1: Get the URL for the specific version manifest
            Console.WriteLine($"Fetching manifest for version {GameVersion}...");
            var versionInfo = await GetVersionInfoAsync(VersionManifestUrl, GameVersion);
            if (versionInfo == null)
            {
                Console.WriteLine($"Error: Version {GameVersion} not found.");
                return;
            }

            // Step 2: Download the full version manifest JSON
            Console.WriteLine("Downloading version manifest...");
            var versionManifestPath = Path.Combine(MinecraftHome, $"{GameVersion}.json");
            await DownloadFileAsync(versionInfo.url, versionManifestPath);
            var versionManifest = JsonDocument.Parse(await File.ReadAllTextAsync(versionManifestPath));

            // Step 3: Download the main Minecraft client JAR
            var clientJarUrl = versionManifest.RootElement.GetProperty("downloads").GetProperty("client").GetProperty("url").GetString();
            var clientJarPath = Path.Combine(MinecraftHome, "client.jar");
            Console.WriteLine("Downloading main Minecraft client JAR...");
            await DownloadFileAsync(clientJarUrl, clientJarPath);

            // Step 4: Download all necessary libraries
            Console.WriteLine("Downloading required libraries...");
            var libraries = versionManifest.RootElement.GetProperty("libraries").EnumerateArray();
            var libraryPaths = await DownloadLibrariesAsync(libraries);

            // Step 5: Construct the classpath string
            var allJarPaths = new List { clientJarPath };
            allJarPaths.AddRange(libraryPaths);
            var classPath = string.Join(Path.PathSeparator, allJarPaths);

            // Step 6: Construct the launch arguments
            Console.WriteLine("Constructing launch arguments...");
            var mainClass = versionManifest.RootElement.GetProperty("mainClass").GetString();
            var arguments = versionManifest.RootElement.GetProperty("arguments").GetProperty("game").EnumerateArray();
            var launchArguments = ConstructArguments(arguments);

            // Add the classpath and main class to the arguments list
            var processArgs = new List();
            processArgs.Add($"-Djava.library.path=\"{Path.Combine(MinecraftHome, "natives")}\""); // Required for native libraries
            processArgs.Add($"-cp");
            processArgs.Add($"\"{classPath}\"");
            processArgs.Add(mainClass);
            processArgs.AddRange(launchArguments);

            // Step 7: Launch the game
            Console.WriteLine("Launching Minecraft...");
            var javaExecutable = "java.exe"; // Assumes 'java.exe' is in the system's PATH
            var startInfo = new ProcessStartInfo(javaExecutable, string.Join(" ", processArgs))
            {
                RedirectStandardOutput = true,
                RedirectStandardError = true,
                UseShellExecute = false,
                CreateNoWindow = true,
                WorkingDirectory = MinecraftHome
            };

            using var process = Process.Start(startInfo);

            // For a console application, you might want to show output
            Console.WriteLine("Game process started. Press any key to exit this launcher.");
            Console.ReadKey();

            // Optional: Wait for the game process to exit
            // process.WaitForExit();
            // Console.WriteLine($"Minecraft exited with code {process.ExitCode}");
        }
        catch (Exception ex)
        {
            Console.WriteLine($"An error occurred: {ex.Message}");
            Console.WriteLine(ex.StackTrace);
        }
    }

    ///

    /// Fetches the manifest file and returns the specific version's URL.
    ///
    private static async Task GetVersionInfoAsync(string url, string version)
    {
        var jsonString = await client.GetStringAsync(url);
        var jsonDoc = JsonDocument.Parse(jsonString);
        var versions = jsonDoc.RootElement.GetProperty("versions").EnumerateArray();

        foreach (var v in versions)
        {
            if (v.GetProperty("id").GetString() == version)
            {
                return v.EnumerateObject();
            }
        }
        return default; // Return default if version is not found
    }

    ///

    /// Downloads a file from a URL to a specified path.
    ///
    private static async Task DownloadFileAsync(string url, string path)
    {
        if (File.Exists(path))
        {
            Console.WriteLine($"File already exists, skipping: {Path.GetFileName(path)}");
            return;
        }

        var response = await client.GetAsync(url);
        response.EnsureSuccessStatusCode();

        await using var fs = new FileStream(path, FileMode.Create, FileAccess.Write, FileShare.None);
        await response.Content.CopyToAsync(fs);
        Console.WriteLine($"Downloaded: {Path.GetFileName(path)}");
    }

    ///

    /// Downloads all required libraries from the manifest.
    ///
    private static async Task> DownloadLibrariesAsync(JsonElement.ArrayEnumerator libraries)
    {
        var libraryPaths = new List();
        var tasks = new List();

        foreach (var library in libraries)
        {
            var rules = library.TryGetProperty("rules", out var ruleElement) ? ruleElement.EnumerateArray().ToList() : null;

            // For simplicity, we only download libraries without rules or rules that allow for the current OS.
            // This example only handles Windows, a full launcher would need to handle "os": "osx" and "os": "linux"
            if (rules != null && rules.Any(r => r.GetProperty("action").GetString() == "disallow" && r.GetProperty("os").GetProperty("name").GetString() == "windows"))
            {
                continue;
            }

            // A full launcher would also need to handle natives and their extraction.
            if (library.TryGetProperty("downloads", out var downloads) && downloads.TryGetProperty("artifact", out var artifact))
            {
                var libraryUrl = artifact.GetProperty("url").GetString();
                var libraryPath = Path.Combine(MinecraftHome, "libraries", artifact.GetProperty("path").GetString());

                // Ensure the directory for the library exists
                Directory.CreateDirectory(Path.GetDirectoryName(libraryPath));

                tasks.Add(DownloadFileAsync(libraryUrl, libraryPath));
                libraryPaths.Add(libraryPath);
            }
        }

        await Task.WhenAll(tasks);
        return libraryPaths;
    }

    ///

    /// Constructs the final game arguments by replacing placeholders.
    ///
    private static List ConstructArguments(JsonElement.ArrayEnumerator arguments)
    {
        var finalArgs = new List();
        var placeholderMap = new Dictionary
        {
            { "auth_uuid", Guid.NewGuid().ToString("N") },
            { "version_name", GameVersion },
            { "game_directory", MinecraftHome },
            { "assets_root", Path.Combine(MinecraftHome, "assets") },
            { "assets_index_name", GameVersion }, // Placeholder, needs asset manifest
            { "auth_access_token", "YOUR_ACCESS_TOKEN" }, // Requires a proper auth flow
            { "auth_player_name", "PlayerName" }, // Set a default name
            { "user_type", "mojang" },
            { "version_type", "release" }
        };

        foreach (var arg in arguments)
        {
            if (arg.ValueKind == JsonValueKind.String)
            {
                var value = arg.GetString();
                foreach (var kvp in placeholderMap)
                {
                    value = value.Replace($"${{{kvp.Key}}}", kvp.Value);
                }
                finalArgs.Add(value);
            }
        }
        return finalArgs;
    }
}
