Silverlight Datagrid - Retrieving details on Editing


Created a new Project SLDatagridClick and

Add a DataModel as shown below to the Web Project.

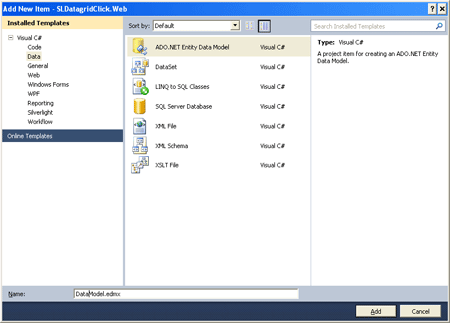

Add DataModel in silverlight

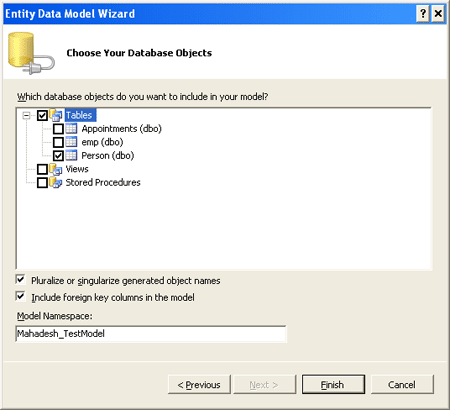

DataModel Wizard in silverlight

Data Model is created as shown below :

DataModel  in silverlight
WCFService  in silverlight

Add a method to the DataService as shown below :

[OperationContract]
public IEnumerable<Persons> GetPersons()
    {
        DataEntities context = new DataEntities();

        var persons = from o in context.People
        select new
Persons
        {
            id = o.ID,
            firstName = o.FirstName,
            lastName = o.LastName
        };
        return persons;
    }

public class Persons
    {
        public int id { get; set; }
        public string firstName { get; set; }
        public string lastName { get; set; }
    }


Add the Service Reference to the Silverlight Project.

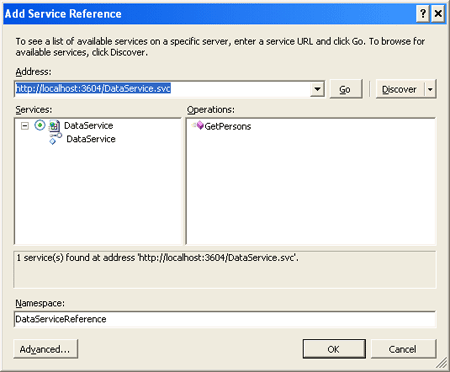

Add Service Reference  in silverlight

Now lets get into the Silverlight project.

Modify the MainPage.xaml.cs as shown below :

using SLDatagridClick.DataServiceReference;

namespace SLDatagridClick
{
    public partial class MainPage :
UserControl
    {
        public MainPage()
        {
            InitializeComponent();
            DataServiceClient client = new DataServiceClient();
            client.GetPersonsCompleted += new EventHandler<GetPersonsCompletedEventArgs>(client_GetPersonsCompleted);
            client.GetPersonsAsync();
        }

        void client_GetPersonsCompleted(object sender, GetPersonsCompletedEventArgs e)
        {
            dg.ItemsSource = e.Result;
        }
    }
}


Now lets give it a run and see the output :

DataGrid Display  in silverlight

Now lets get to work. When I Edit the cell , I should be able to retrieve the modified cell contents. I have just tried to bring together some of the scenarios I came across while using Datagrid. In this article I would demonstrate one such scenario :

Lets add the code for that scenario :

Add the event handler :

dg.CellEditEnded += new EventHandler<DataGridCellEditEndedEventArgs>(dg_CellEditEnded);

Make use of the CellEditEnded.
