Introduction

This is a simple application for beginners that helps with how to perform create,edit,delete operations on a table in an ASP.NET MVC application. It also helps with how to create the database and add a table. We know that MVC is an integrated module. This is the integration of three words models,views,controllers. Models provide the business logic, Views isprovide the presentation and last controllers handle all of the requests that are provided by models,views. ASP.NET MVC gives you a powerful patterns-based way to build dynamic websites that enables a clean separation of concerns and that gives you full control over markup for enjoyable agile development. ASP.NET MVC is an alternative but not a replacement for ASP.NET Web Forms.

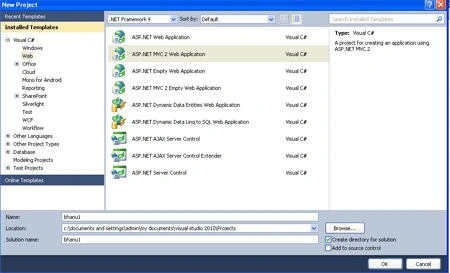

Step 1

Open Visual Studio 2010.



Step 2

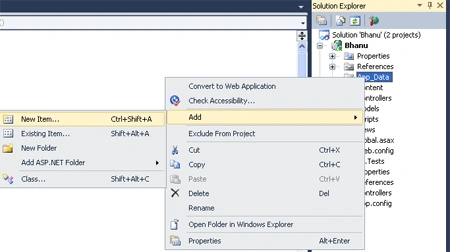

In the App_Data folder add SQL SERVER DATABASE. SQL SERVER DATABASE will then takes care of generating the appropriate SQL execution logic to use at runtime when we interact and use them.



Step 3

After add ingthe SQL SERVER DATABASE two files are created in the folder.

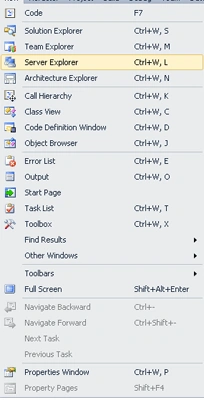

Step 4

Open the Server Explorer.

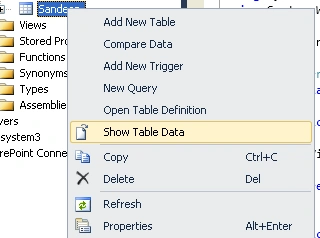

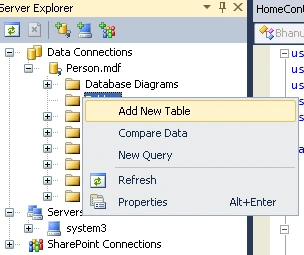

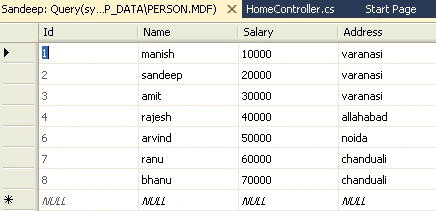

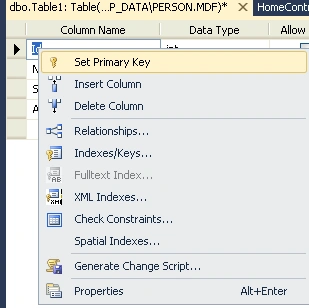

Step 5

Click the table.

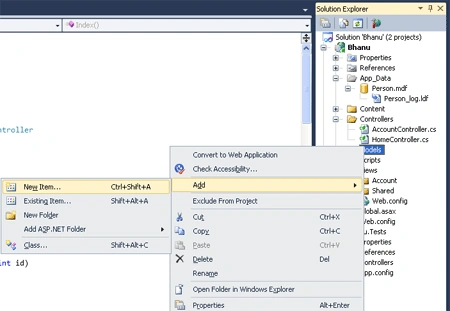

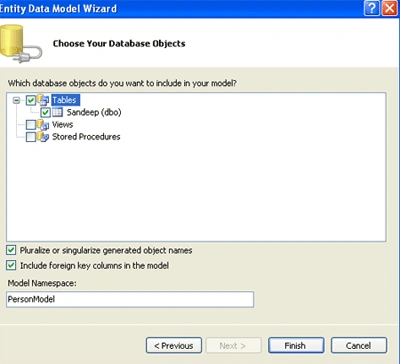

Step 6

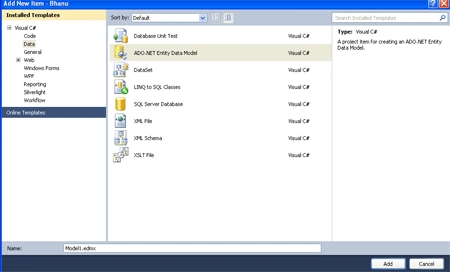

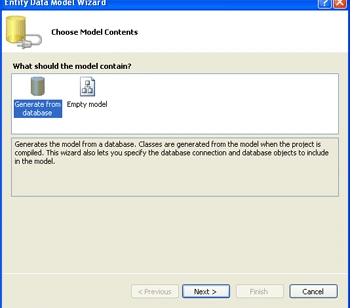

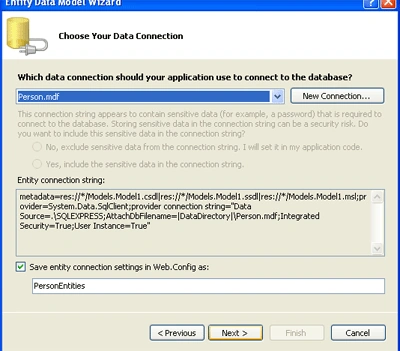

Add "ADO.NET Entity Data Model".







Step 7

Add controller.






Code

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Mvc;
  6. using bhanu1.Models;
  7. namespace bhanu1.Controllers
  8. {
  9. public class ranuController : Controller
  10. {
  11. //
  12. // GET: /ranu/
  13. private personEntities1 per = new personEntities1();
  14. public ActionResult Index()
  15. {
  16. return View(per.sandeep1.ToList());
  17. }
  18. //
  19. // GET: /ranu/Details/5
  20. public ActionResult Details(int id)
  21. {
  22. return View();
  23. }
  24. //
  25. // GET: /ranu/Create
  26. public ActionResult Create()
  27. {
  28. return View();
  29. }
  30. //
  31. // POST: /ranu/Create
  32. [HttpPost]
  33. public ActionResult Create([Bind(Exclude = "Id")]sandeep1 san)
  34. {
  35. try
  36. {
  37. // TODO: Add insert logic here
  38. per.AddTosandeep1(san);
  39. per.SaveChanges();
  40. return RedirectToAction("Index");
  41. }
  42. catch
  43. {
  44. return View();
  45. }
  46. }
  47. //
  48. // GET: /ranu/Edit/5
  49. public ActionResult Edit(int id)
  50. {
  51. return View();
  52. }
  53. //
  54. // POST: /ranu/Edit/5
  55. [HttpPost]
  56. public ActionResult Edit(int id, FormCollection collection)
  57. {
  58. try
  59. {
  60. // TODO: Add update logic here
  61. return RedirectToAction("Index");
  62. }
  63. catch
  64. {
  65. return View();
  66. }
  67. }
  68. //
  69. // GET: /ranu/Delete/5
  70. public ActionResult Delete(int id)
  71. {
  72. return View();
  73. }
  74. //
  75. // POST: /ranu/Delete/5
  76. [HttpPost]
  77. public ActionResult Delete(int id, FormCollection collection)
  78. {
  79. try
  80. {
  81. // TODO: Add delete logic here
  82. return RedirectToAction("Index");
  83. }
  84. catch
  85. {
  86. return View();
  87. }
  88. }
  89. }
  90. }

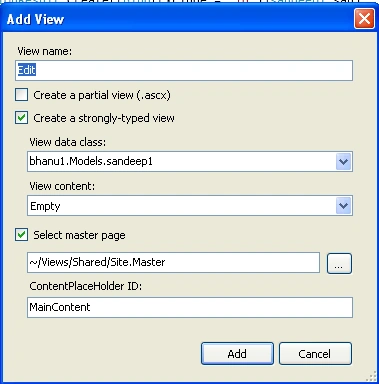

Step 8

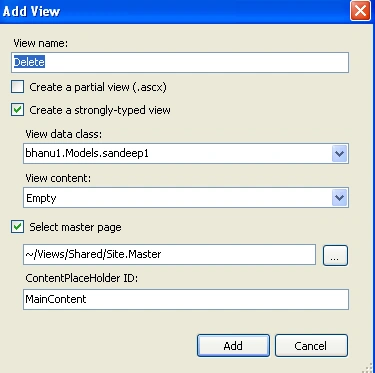

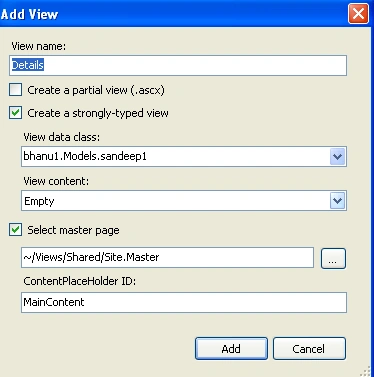

Add views.

Code

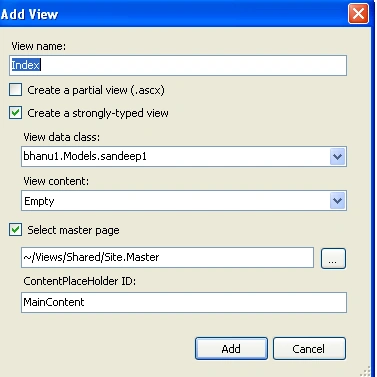

Code of index views

  1. <%@ Page Title="" Language="C#" MasterPageFile="~/Views/Shared/Site.Master" Inherits="System.Web.Mvc.ViewPage<IEnumerable<bhanu1.Models.sandeep1>>" %>
  2. <asp:Content ID="Content1" ContentPlaceHolderID="TitleContent" runat="server">
  3. Index
  4. </asp:Content>
  5. <asp:Content ID="Content2" ContentPlaceHolderID="MainContent" runat="server">
  6. <h2 style="background-color: #FFCCCC">Index</h2>
  7. <table>
  8. <tr>
  9. <th></th>
  10. <th style="background-color: #3399FF">
  11. Id
  12. </th>
  13. <th style="background-color: #9999FF">
  14. Name
  15. </th>
  16. <th style="background-color: #6699FF">
  17. Salary
  18. </th>
  19. <th style="background-color: #9999FF">
  20. Address
  21. </th>
  22. </tr>
  23. <% foreach (var item in Model) { %>
  24. <tr>
  25. <td>
  26. <%: Html.ActionLink("Edit", "Edit", new { id=item.Id }) %> |
  27. <%: Html.ActionLink("Details", "Details", new { id=item.Id })%> |
  28. <%: Html.ActionLink("Delete", "Delete", new { id=item.Id })%>
  29. </td>
  30. <td>
  31. <%: item.Id %>
  32. </td>
  33. <td>
  34. <%: item.Name %>
  35. </td>
  36. <td>
  37. <%: item.Salary %>
  38. </td>
  39. <td>
  40. <%: item.Address %>
  41. </td>
  42. </tr>
  43. <% } %>
  44. </table>
  45. <p>
  46. <%: Html.ActionLink("Create New", "Create") %>
  47. </p>
  48. </asp:Content>

Code

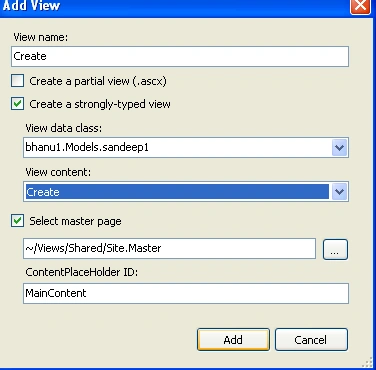

code of create views

  1. <%@ Page Title="" Language="C#" MasterPageFile="~/Views/Shared/Site.Master" Inherits="System.Web.Mvc.ViewPage<bhanu1.Models.sandeep1>" %>
  2. <script runat="server">
  3. </script>
  4. <asp:Content ID="Content1" ContentPlaceHolderID="TitleContent" runat="server">
  5. Create
  6. </asp:Content>
  7. <asp:Content ID="Content2" ContentPlaceHolderID="MainContent" runat="server">
  8. <h2 style="background-color: #00FFFF">Create</h2>
  9. <% using (Html.BeginForm()) {%>
  10. <%: Html.ValidationSummary(true) %>
  11. <fieldset>
  12. <legend style="background-color: #33CC33">Fields</legend>
  13. <div class="editor-label">
  14. <%: Html.LabelFor(model => model.Id) %>
  15. </div>
  16. <div class="editor-field">
  17. <%: Html.TextBoxFor(model => model.Id) %>
  18. <%: Html.ValidationMessageFor(model => model.Id) %>
  19. </div>
  20. <div class="editor-label">
  21. <%: Html.LabelFor(model => model.Name) %>
  22. </div>
  23. <div class="editor-field">
  24. <%: Html.TextBoxFor(model => model.Name) %>
  25. <%: Html.ValidationMessageFor(model => model.Name) %>
  26. </div>
  27. <div class="editor-label">
  28. <%: Html.LabelFor(model => model.Salary) %>
  29. </div>
  30. <div class="editor-field">
  31. <%: Html.TextBoxFor(model => model.Salary) %>
  32. <%: Html.ValidationMessageFor(model => model.Salary) %>
  33. </div>
  34. <div class="editor-label">
  35. <%: Html.LabelFor(model => model.Address) %>
  36. </div>
  37. <div class="editor-field">
  38. <%: Html.TextBoxFor(model => model.Address) %>
  39. <%: Html.ValidationMessageFor(model => model.Address) %>
  40. </div>
  41. <p>
  42. <input type="submit" value="Create" style="background-color: #FF99CC" />
  43. </p>
  44. </fieldset>
  45. <% } %>
  46. <div>
  47. <%: Html.ActionLink("Back to List", "Index") %>
  48. </div>
  49. </asp:Content>

Step 9

Press crlt+f5 and run your application.

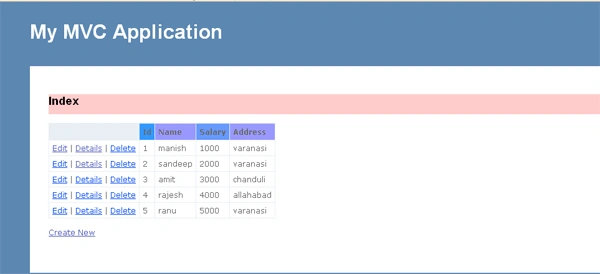

Output
