Column and StackedColumn Charts in ASP.Net

Background

ASP.Net Chart is a powerful control for creating interactive charts. Today we will discuss the Column and StackedColumn charts of ASP.Net. So let us start to learn about these chart type controls step-by-step.

Let us explain it with a practical example by creating a simple web application.

Step 1

Use the following script to create and insert data into the table for the chart:
  1. SET ANSI_NULLS ON
  2. GO
  3. SET QUOTED_IDENTIFIER ON
  4. GO
  5. SET ANSI_PADDING ON
  6. GO
  7. CREATE TABLE [dbo].[orderdet](
  8.     [id] [int] IDENTITY(1,1) NOT NULL,
  9.     [Month] [varchar](50) NULL,
  10.     [Orders] [intNULL,
  11.  CONSTRAINT [PK_Order TablePRIMARY KEY CLUSTERED
  12. (
  13.     [id] ASC
  14. )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ONON [PRIMARY]
  15. ON [PRIMARY]
  16.
  17. GO
  18. SET ANSI_PADDING OFF
  19. GO
  20. SET IDENTITY_INSERT [dbo].[orderdet] ON
  21.
  22. GO
  23. INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (1, N'Jan', 0)
  24. GO
  25. INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (2, N'Feb', 5)
  26. GO
  27. INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (3, N'March', 20)
  28. GO
  29. INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (4, N'April', 40)
  30. GO
  31. INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (5, N'May', 15)
  32. GO
  33. INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (6, N'Jun', 60)
  34. GO
  35. INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (7, N'July', 75)
  36. GO
  37. INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (8, N'Aug', 80)
  38. GO
  39. INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (9, N'Sep', 85)
  40. GO
  41. INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (10, N'Oct', 100)
  42. GO
  43. INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (11, N'Nov', 2)
  44. GO
  45. INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (12, N'Dec', 90)
  46. GO
  47. SET IDENTITY_INSERT [dbo].[orderdet] OFF
  48. Go
 After running the preceding script the records in the table will look as follows:


Step 2

Create a Stored Procedure to fetch the records from the database.
  1. Create procedure [dbo].[GetCharData]
  2. (
  3. @id int =null
  4.
  5. )
  6. as
  7. begin
  8. Select Month,Orders from Orderdet
  9. End
Step 3

Create a Web Application.
Create the website with:
  1. "Start" - "All Programs" - "Microsoft Visual Studio 2010".

  2. "File" - "New Project" - "C#" - "Empty Website" (to avoid adding a master page).

  3. Provide the project a name such as "UsingColumnandSatckedColumnChart" or another as you wish and specify the location.

  4. Then right-click on the Solution Explorer and select "Add New Item" then select Default.aspx page.

  5. Drag and Drop a Chart control from the ToolBox onto the Default.aspx page.
Now the Default.aspx source code will be as follows:
  1. <%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %>
  2.
  3. <%@ Register Assembly="System.Web.DataVisualization, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35"
  4.     Namespace="System.Web.UI.DataVisualization.Charting" TagPrefix="asp" %>
  5. <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
  6. <html xmlns="http://www.w3.org/1999/xhtml">
  7. <head runat="server">
  8.     <title>Article by Vithal Wadje</title>
  9. </head>
  10. <body bgcolor="blue">
  11.     <form id="form1" runat="server">
  12.     <h4 style="color: White;">
  13.         Article for C#Corner
  14.     </h4>
  15.     <asp:Chart ID="Chart1" runat="server" BackColor="128, 64, 0" BackGradientStyle="LeftRight"
  16.         BorderlineWidth="0" Height="340px" Palette="None" PaletteCustomColors="64, 0, 0"
  17.         Width="360px" BorderlineColor="192, 64, 0">
  18.         <Series>
  19.             <asp:Series Name="Series1"  YValuesPerPoint="12">
  20.             </asp:Series>
  21.         </Series>
  22.         <ChartAreas>
  23.             <asp:ChartArea Name="ChartArea1">
  24.             </asp:ChartArea>
  25.         </ChartAreas>
  26.     </asp:Chart>
  27.     </form>
  28. </body>
  29. </html>
Step 4

Create a method to bind the chart control. Then open the default.aspx.cs page and create the following function named Bindchart to bind the Chart Control as in the following:
  1. private void Bindchart()
  2.    {
  3.        connection();
  4.        com = new SqlCommand("GetCharData", con);
  5.        com.CommandType = CommandType.StoredProcedure;
  6.        SqlDataAdapter da = new SqlDataAdapter(com);
  7.        DataSet ds = new DataSet();
  8.        da.Fill(ds);
  9.
  10.        DataTable ChartData = ds.Tables[0];
  11.
  12.        //storing total rows count to loop on each Record
  13.        string[] XPointMember = new string[ChartData.Rows.Count];
  14.        int[] YPointMember = new int[ChartData.Rows.Count];
  15.
  16.        for (int count = 0; count < ChartData.Rows.Count; count++)
  17.        {
  18.            //storing Values for X axis
  19.            XPointMember[count] = ChartData.Rows[count]["Month"].ToString();
  20.            //storing values for Y Axis
  21.            YPointMember[count] = Convert.ToInt32(ChartData.Rows[count]["Orders"]);
  22.
  23.
  24.        }
  25.        //binding chart control
  26.        Chart1.Series[0].Points.DataBindXY(XPointMember, YPointMember);
  27.
  28.        //Setting width of line
  29.        Chart1.Series[0].BorderWidth = 10;
  30.        //setting Chart type
  31.       Chart1.Series[0].ChartType = SeriesChartType.Column;
  32.       //Chart1.Series[0].ChartType = SeriesChartType.StackedColumn;
  33.
  34.        //Hide or show chart back GridLines
  35.        Chart1.ChartAreas["ChartArea1"].AxisX.MajorGrid.Enabled = false;
  36.        Chart1.ChartAreas["ChartArea1"].AxisY.MajorGrid.Enabled = false;
  37.
  38.        //Enabled 3D
  39.        //Chart1.ChartAreas["ChartArea1"].Area3DStyle.Enable3D = true;
  40.        con.Close();
  41.
  42.    }
 Now, call the preceding function on page load as in the following:
  1. protected void Page_Load(object sender, EventArgs e)
  2.     {
  3.         if (!IsPostBack)
  4.         {
  5.             Bindchart();
  6.
  7.         }
  8.     }
 The entire code of the default.aspx.cs page will look as follows:
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7. using System.Data.SqlClient;
  8. using System.Configuration;
  9. using System.Data;
  10. using System.Web.UI.DataVisualization.Charting;
  11.
  12. public partial class _Default : System.Web.UI.Page
  13. {
  14.     private SqlConnection con;
  15.     private SqlCommand com;
  16.     private string constr, query;
  17.     private void connection()
  18.     {
  19.         constr = ConfigurationManager.ConnectionStrings["getconn"].ToString();
  20.         con = new SqlConnection(constr);
  21.         con.Open();
  22.
  23.     }
  24.     protected void Page_Load(object sender, EventArgs e)
  25.     {
  26.         if (!IsPostBack)
  27.         {
  28.             Bindchart();
  29.
  30.         }
  31.     }
  32.     private void Bindchart()
  33.     {
  34.         connection();
  35.         com = new SqlCommand("GetCharData", con);
  36.         com.CommandType = CommandType.StoredProcedure;
  37.         SqlDataAdapter da = new SqlDataAdapter(com);
  38.         DataSet ds = new DataSet();
  39.         da.Fill(ds);
  40.
  41.         DataTable ChartData = ds.Tables[0];
  42.
  43.         //storing total rows count to loop on each Record
  44.         string[] XPointMember = new string[ChartData.Rows.Count];
  45.         int[] YPointMember = new int[ChartData.Rows.Count];
  46.
  47.         for (int count = 0; count < ChartData.Rows.Count; count++)
  48.         {
  49.             //storing Values for X axis
  50.             XPointMember[count] = ChartData.Rows[count]["Month"].ToString();
  51.             //storing values for Y Axis
  52.             YPointMember[count] = Convert.ToInt32(ChartData.Rows[count]["Orders"]);
  53.
  54.
  55.         }
  56.         //binding chart control
  57.         Chart1.Series[0].Points.DataBindXY(XPointMember, YPointMember);
  58.
  59.         //Setting width of line
  60.         Chart1.Series[0].BorderWidth = 10;
  61.         //setting Chart type
  62.        Chart1.Series[0].ChartType = SeriesChartType.Column;
  63.        //Chart1.Series[0].ChartType = SeriesChartType.StackedColumn;
  64.
  65.         //Hide or show chart back GridLines
  66.         Chart1.ChartAreas["ChartArea1"].AxisX.MajorGrid.Enabled = false;
  67.         Chart1.ChartAreas["ChartArea1"].AxisY.MajorGrid.Enabled = false;
  68.
  69.         //Enabled 3D
  70.         //Chart1.ChartAreas["ChartArea1"].Area3DStyle.Enable3D = true;
  71.         con.Close();
  72.
  73.     }

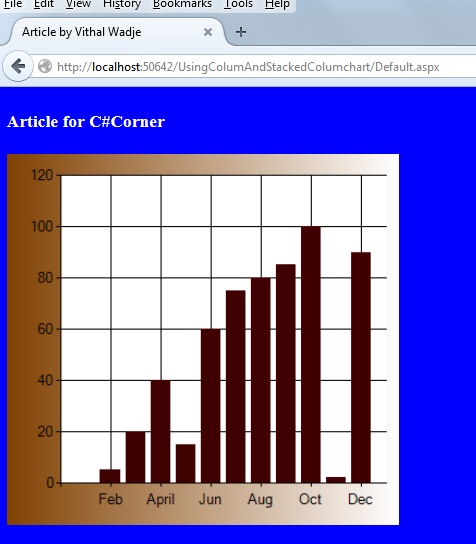

 Now, we have the entire logic to bind the chart from the database, let us run the application. The Column Chart will look as follows:



Now hide the chart Grid Lines as:
  1. //Hide or show chart back GridLines
  2. Chart1.ChartAreas["ChartArea1"].AxisX.MajorGrid.Enabled = false;
  3. Chart1.ChartAreas["ChartArea1"].AxisY.MajorGrid.Enabled = false;
 Then the Column chart will look as follows:



Now enable the 3D Style as in the following:
  1. //Enabled 3D
  2.  Chart1.ChartAreas["ChartArea1"].Area3DStyle.Enable3D = true;


Now let us switch to a StackedColumn chart as in the following:
  1. //setting Chart type
  2.       Chart1.Series[0].ChartType = SeriesChartType.StackedColumn;

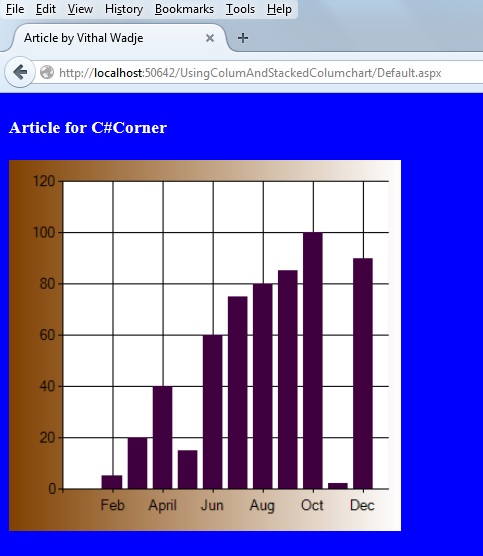

 Now run the application and the StackedColumn type chart will look as follows:



 Now hide the chart Grid Lines as:
  1. //Hide or show chart back GridLines
  2.  Chart1.ChartAreas["ChartArea1"].AxisX.MajorGrid.Enabled = false;
  3.   Chart1.ChartAreas["ChartArea1"].AxisY.MajorGrid.Enabled = false;
Then the StackedColumn chart will look as follows:



Now enable the 3D Style as in the following:
  1. //Enabled 3D
  2.  Chart1.ChartAreas["ChartArea1"].Area3DStyle.Enable3D = true;
 Now the 3D style StackedColumn Chart will look as follows:



Now from all the preceding explanations we saw how to create and use a Column and StackedColumn chart.

Notes
  • Download the Zip file from the attachment for the full source code of the application.
  • Change the connection string in the web.config file to specify your server location.
Summary

My next article explains another chart type of ASP.Net. I hope this article is useful for all readers, if you have any suggestion then please contact me including beginners also.
