Adding Radio Button Control in Web API

Introduction

In this article, I will show you how to add a RadioButton control in the Web API. We use the radio button in a group in which we select only one at a time. When the user uses the radio button then the user makes a choice among a set of absolute and related options. The user can select only one option from the radio buttons set. Radio Buttons are so called because they work like channels on a radio.

Now see an example of adding the radio button control in the Web API.

Step 1

Create a Web API application as in the following:

  • Start Visual Studio 2012.
  • From the start window select "Installed" -> "Visual C#" -> "Web".
  • Select "ASP.NET MVC4 Web Application" and click the "OK" button.


  • From the "MVC4 project" window select "Web API".


  • Click the "OK" button.

Step 2

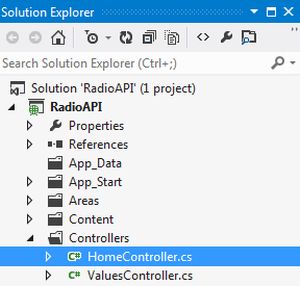

Select the "HomeController.cs" file and write some code. This file exists in:

  • In the "SolutionExplorer".
  • Select "Controller" -> "HomeController".


Add the following code in this file:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Mvc;
  6. namespace RadioAPI.Controllers
  7. {
  8.     public class HomeController : Controller
  9.     {
  10.         public ActionResult Index()
  11.         {
  12.             return View();
  13.         }
  14.         [AcceptVerbs(HttpVerbs.Post)]
  15.         public string Display(FormCollection form)
  16.         {
  17.             string selectlanguage = form["language"];
  18.             return "Selected Language: <b>" + selectlanguage + "</b>";
  19.         }
  20.     }
  21. }

Step 3

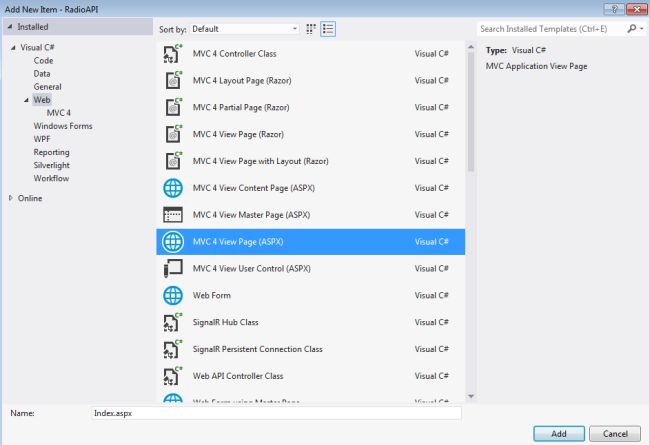

Add a View page "MVC 4  View Page (ASPX)" named "Index.aspx".

  • In the "Solution Explorer".

  • Right Click on the "Home" -> "Add" -> "New Item".


  • Select "Installed" -> "Visual C#" -> "Web" -> "MVC 4 View Page(ASPX)".


  • Click the "Add" button.

Add the following code in this view page:

  1. <%@ Page Language="C#" Inherits="System.Web.Mvc.ViewPage" %>
  2.  <html>
  3. <head id="Head1" runat="server">
  4.     <title>Index</title>
  5. </head>
  6. <body>
  7. <% using (Html.BeginForm("Display","Home",FormMethod.Post)) { %>
  8.     <div><b>Choose any Language: </b><br />
  9.        <br /> <%= Html.RadioButton("language", "C#") %> C#
  10.         <br /><%= Html.RadioButton("language", "C++") %> C++
  11.         <br /><%= Html.RadioButton("language", "C") %> C
  12.         <br />  <%= Html.RadioButton("language", "Java") %> Java
  13.         <br />  <%= Html.RadioButton("language", "HTML") %> HTML
  14.         <br />  <%= Html.RadioButton("language", "Javascript") %> Javascript
  15.         <br /><br />
  16.         <input type="submit" value="Submit" />
  17.     </div>
  18.     <%} %>
  19. </body>
  20. </html>

Step 4

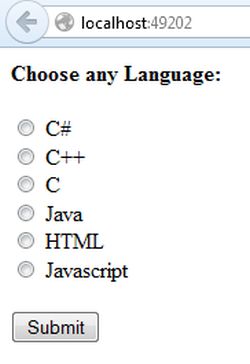

Execute the application by pressing "F5". The output will be shown like this:


Select any language and click on the submit button.
