Search Record and Display in WebGrid in WebAPI

Introduction

This article describes how to search the records and displays in a WebGrid in the Web API.

The following is the procedure for creating the application.

Step 1

First create an Web API Application using the following:

  • Start Visual Studio 2012.

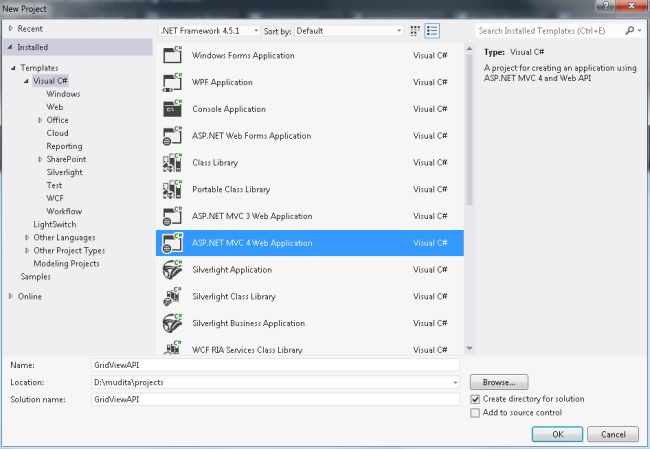

  • From the start window select "New Project".
  • From the new project window select "Installed" -> "Visual C#" -> "Web".
  • Select "ASP.NET MVC4 web Application" and click the "OK" button.

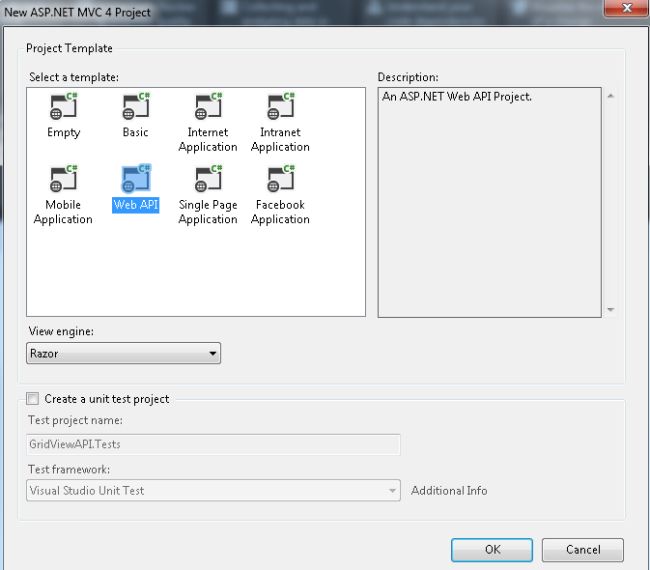

  • From the "MVC4 Project" window select "Web API".


  • Click the "OK" button.

Step 2

In this step add a model class:

  • In the "Solution Explorer".
  • Right-click on the Model folder.
  • Select "Add" -> "Class".

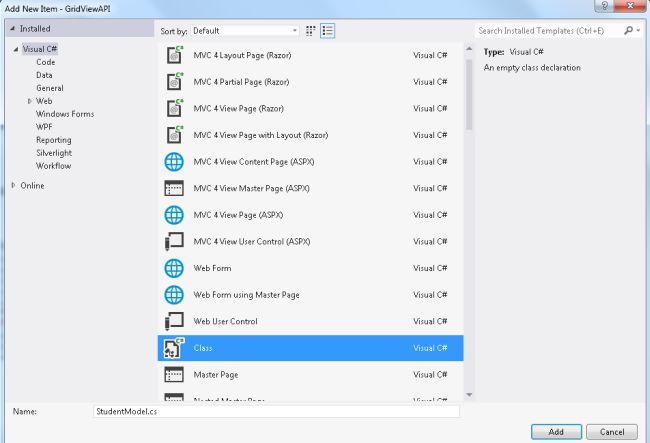

  • From the Add new item window select "Installed" -> "Visual C#".


  • Select "Class" and then click the "Add" button.

Add the following code:

using System;

using System.Collections.Generic;

using System.Linq;

using System.Web;

namespace GridViewAPI.Models

{

    public class StudentModel

    {

        public string key { get; set; }

        public List<StudentRecord> StudentRModel { get; set; }

    }

    public class StudentRecord

    {

        public string Name {get; set;}

        public string Course{get;set;}

        public string Rank{get;set;}

        public string City { get; set; }

}

}

Step 3

In the "HomeController" write some code. This file exists:

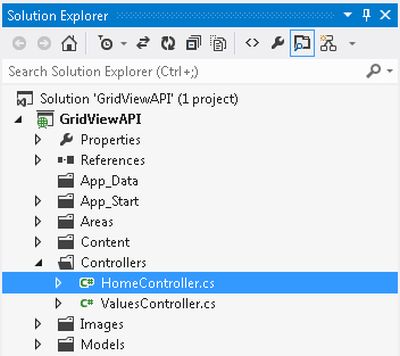

  • In the "Solution Explorer".
  • Expand the "Controller" folder.
  • Select "Homecontroller".


Add the following code:

using System;

using System.Collections.Generic;

using System.Linq;

using System.Web;

using System.Web.Mvc;

using GridViewAPI.Models;

namespace GridViewAPI.Controllers

{

    public class HomeController : Controller

    {

        [HttpGet]

        public ActionResult Index()

        {

            StudentModel obj = new StudentModel();

            obj.StudentRModel = new List<StudentRecord>();

            obj.StudentRModel = GetData().OrderBy(m => m.Course).ToList();

            return View(obj);

        }

        [HttpPost]

        public ActionResult Index(StudentModel student)

        {

            student.StudentRModel = GetData().Where(m => m.Course == student.key.ToUpper()).ToList();

            return View(student);

        }

        public List<StudentRecord> GetData()

        {

            List<StudentRecord> objmodel = new List<StudentRecord>();

            objmodel.Add(new StudentRecord { Course = "MCA", Name = "Smith", Rank = "10",City="Kanpur" });

            objmodel.Add(new StudentRecord { Course = "MCA", Name = "Jhon", Rank = "5", City = "Lucknow" });

            objmodel.Add(new StudentRecord { Course = "MBA", Name = "Tanya", Rank = "3", City = "Delhi" });

            objmodel.Add(new StudentRecord { Course = "MBA", Name = "Malini", Rank = "4", City = "Banglore" });

            objmodel.Add(new StudentRecord { Course = "MBA", Name = "Varun", Rank = "19", City = "Gurgao" });

            objmodel.Add(new StudentRecord { Course = "BTech", Name = "Arun", Rank = "13", City = "Noida" });

            objmodel.Add(new StudentRecord { Course = "BTech", Name = "Vishakha", Rank = "7", City = "Rajasthan" });

            objmodel.Add(new StudentRecord { Course = "BCA", Name = "Tarun", Rank = "9", City = "Gujrat" });

            objmodel.Add(new StudentRecord { Course = "BCA", Name = "Mayank", Rank = "1", City = "Kannauj" });

            objmodel.Add(new StudentRecord { Course = "BCA", Name = "Ram", Rank = "2", City = "Jaipur" });

            return objmodel;

        }

    }

}



Step4

In the "View" write some code. This view exists:

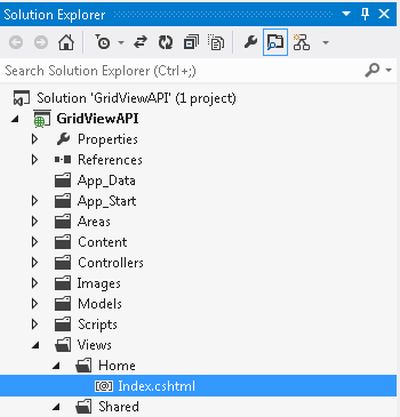

  • In the "Solution Explorer".
  • Expend the "Views" folder.
  • Select "Home"->"index.cshtml".


Add the following code:

@model GridViewAPI.Models.StudentModel

@{

    ViewBag.Title = "Index";

}

<style type="text/css">

table.gridtable {

    font-family: verdana,arial,sans-serif;

    font-size:11px;

    color:#333333;

    border-width: 1px;

    border-color: #4800ff;

    border-collapse: collapse;

}

table.gridtable th {

    border-width: 1px;

    padding: 8px;

    border-style: solid;

    border-color: #4800ff;

    background-color: #ffd800;

}

table.gridtable td {

    border-width: 1px;

    padding: 8px;

    border-style: solid;

    border-color: #4800ff;

    background-color: #999999;

}

</style>

@using (Html.BeginForm())

{

    <table width="40%" cellpadding="0" cellspacing="0">

        <tr>

            <td align="right">

                Search :

            </td>

            <td align="left">@Html.TextBoxFor(m => m.key) <input type="submit" value="Search" />

            </td>

            <td align="left">



            </td>

        </tr>

        <tr>

            <td colspan="2">

            <br />

                @{



    var grid = new WebGrid(source: Model.StudentRModel, rowsPerPage: 10);

                }

                @grid.GetHtml(alternatingRowStyle: "even",

                  tableStyle: "gridtable",

                    columns: grid.Columns(

                    grid.Column("Course", "Course"),

                    grid.Column("Name", header: "Name"),

                    grid.Column("Rank", "Rank"),

                    grid.Column("City", "City")

                    ))

            </td>

        </tr>

    </table>

}

Step5

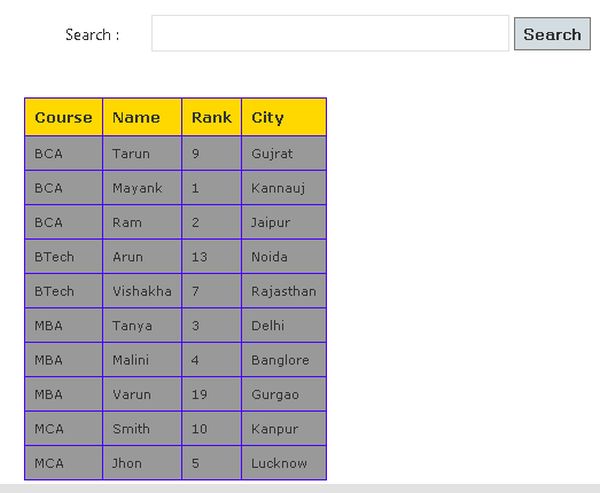

Now execute the application:

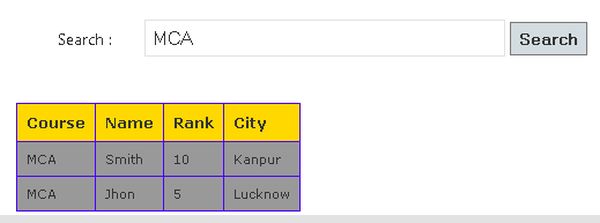

Search the record type and Course name in the search box then click on the search button.
