Creating an Editable Table in Java

Introduction


In this article, we are going to making a table. This table is not a static table; it is editable. And in my previous article The Use of JTable in Swing we describe how to create a table and insert data in to table. Today we describe how changes can be made in a table Dynamically. Editable is nothing; it just is a simple table with some flexible options within a table.

In this example, we are going to use a java class DefualtCellEditor. With the help of this class we make cells of a table editable.


DefaultCellEditor class API Description


Constructors
  • DefaultCellEditor(JCheckBox checkBox) : Constructs a DefaultCellEditor object that uses a check box.
  • DefaultCellEditor(JComboBox comboBox) : Constructs a DefaultCellEditor object that uses a combo box.
  • DefaultCellEditor(JTextField textField) : Constructs a DefaultCellEditor that uses a text field.
General use methods
  • void cancelCellEditing() : Forwards the message from the CellEditor to the delegate.
  • Object getCellEditorValue() : Forwards the message from the CellEditor to the delegate.
  • int getClickCountToStart() : Returns the number of clicks needed to start editing.
  • Component getComponent() : Returns a reference to the editor component.
  • boolean isCellEditable(EventObject anEvent) : Forwards the message from the CellEditor to the delegate.
  • void setClickCountToStart(int count) : Specifies the number of clicks needed to start editing.
  • boolean shouldSelectCell(EventObject anEvent) : Forwards the message from the CellEditor to the delegate.
  • boolean stopCellEditing() : Forwards the message from the CellEditor to the delegate.
Code Explanation

Step 1:  Importing necessary packages because we use the following classes of appropriate packages:
  1. import javax.swing.DefaultCellEditor;
  2. import javax.swing.JComboBox;
  3. import javax.swing.JFrame;
  4. import javax.swing.JScrollPane;
  5. import javax.swing.JTable;
  6. import javax.swing.table.AbstractTableModel;
  7. import javax.swing.table.TableModel;
Step 2: Creating a class and main methods with a frame:
  1. public class EditableTable
  2. {
  3.     public static void main(String[] a)
  4.     {
  5.         JFrame frame = new JFrame();
  6.         frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
Step 3: Creating a two dimensional array of object types containing data information and a single dimensional array of title and education String type.
  1. String[] Education = { "PG","Msc", "B-Tech,","Bsc", "12th", "10th" };
  2. String[] columnTitles = { "First Name", "Last Name", "weight", "Qualification", "age(18+)" };
  3. Object[][] dataEntries = {
  4. { "ABHISHEK", "DUBEY", new Integer(50), "B-tech", new Boolean(false) },
  5. { "MANISH", "TIWARI", new Integer(80), "PG", new Boolean(true) },
  6. { "ANURUDDHA ", "PANDEY", new Integer(80), "Msc", new Boolean(true) },
  7. { "Bindresh", "AGINHOTRI", new Integer(80), "Bsc", new Boolean(true) },
  8. { "SOURABH", "TRIPATHI", new Integer(80), "PG", new Boolean(true) },
  9. { "AMIT", "GUPTA", new Integer(70), "Gratuate", new Boolean(false) },
  10. { "AMIT", "VERMA", new Integer(55), "12TH", new Boolean(true) }, };
Step 4: Creating another component object.
  1. JComboBox comboBox = new JComboBox(Education);
  2. table.getColumnModel().getColumn(3).setCellEditor(new DefaultCellEditor(comboBox));
  3. frame.add(new JScrollPane(table));
  4. frame.setSize(300, 200);
  5. frame.setVisible(true);
Step 5: Creating another a  class which contains some helper methods.
  1. class EditableTableModel extends AbstractTableModel
  2. {
  3.      String[] columnTitles;
  4.      Object[][] dataEntries;
  5.      int rowCount;
  6.     public EditableTableModel(String[] columnTitles, Object[][] dataEntries)
  7.     {
  8.           this.columnTitles = columnTitles;
  9.           this.dataEntries = dataEntries;
  10.     }
  11.     public int getRowCount()
  12.     {
  13.           return dataEntries.length;
  14.     }
  15.     public int getColumnCount()
  16.     {
  17.          return columnTitles.length;
  18.     }
  19.     public Object getValueAt(int row, int column)
  20.     {
  21.          return dataEntries[row][column];
  22.     }
  23.     public String getColumnName(int column)
  24.     {
  25.          return columnTitles[column];
  26.     }
  27.     public Class getColumnClass(int column)
  28.     {
  29.          return getValueAt(0, column).getClass();
  30.     }
  31.     public boolean isCellEditable(int row, int column)
  32.     {
  33.          return true;
  34.      }
  35.     public void setValueAt(Object value, int row, int column)
  36.     {
  37.         dataEntries[row][column] = value;
  38.     }
  39. }
Complete code
  1. import javax.swing.DefaultCellEditor;
  2. import javax.swing.JComboBox;
  3. import javax.swing.JFrame;
  4. import javax.swing.JScrollPane;
  5. import javax.swing.JTable;
  6. import javax.swing.table.AbstractTableModel;
  7. import javax.swing.table.TableModel;
  8. public class EditableTable
  9. {
  10.     public static void main(String[] a)
  11.     {
  12.         JFrame frame = new JFrame();
  13.         frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
  14.         String[] columnTitles = { "First Name", "Last Name", "weight", "Qualification", "age(18+)" };
  15.         Object[][] dataEntries = {
  16.         { "ABHISHEK", "DUBEY", new Integer(50), "B-tech", new Boolean(false) },
  17.         { "MANISH", "TIWARI", new Integer(80), "PG", new Boolean(true) },
  18.         { "ANURUDDHA ", "PANDEY", new Integer(80), "Msc", new Boolean(true) },
  19.         { "Bindresh", "AGINHOTRI", new Integer(80), "Bsc", new Boolean(true) },
  20.         { "SOURABH", "TRIPATHI", new Integer(80), "PG", new Boolean(true) },
  21.         { "AMIT", "GUPTA", new Integer(70), "Gratuate", new Boolean(false) },
  22.         { "AMIT", "VERMA", new Integer(55), "12TH", new Boolean(true) }, };
  23.         TableModel model = new EditableTableModel(columnTitles, dataEntries);
  24.         JTable table = new JTable(model);
  25.         table.createDefaultColumnsFromModel();
  26.         String[] Education = { "PG","Msc", "B-Tech,","Bsc", "12th", "10th" };
  27.         JComboBox comboBox = new JComboBox(Education);
  28.         table.getColumnModel().getColumn(3).setCellEditor(new DefaultCellEditor(comboBox));
  29.         rame.add(new JScrollPane(table));
  30.         frame.setSize(300, 200);
  31.         frame.setVisible(true);
  32.         }
  33.     }
  34.      class EditableTableModel extends AbstractTableModel
  35.     {
  36.         String[] columnTitles;
  37.         Object[][] dataEntries;
  38.         int rowCount;
  39.         public EditableTableModel(String[] columnTitles, Object[][] dataEntries)
  40.         {
  41.             this.columnTitles = columnTitles;
  42.             this.dataEntries = dataEntries;
  43.         }
  44.         public int getRowCount()
  45.         {
  46.             return dataEntries.length;
  47.         }
  48.         public int getColumnCount()
  49.         {
  50.             return columnTitles.length;
  51.         }
  52.         public Object getValueAt(int row, int column)
  53.         {
  54.             return dataEntries[row][column];
  55.         }
  56.         public String getColumnName(int column)
  57.         {
  58.             return columnTitles[column];
  59.         }
  60.         public Class getColumnClass(int column)
  61.         {
  62.             return getValueAt(0, column).getClass();
  63.         }
  64.         public boolean isCellEditable(int row, int column)
  65.         {
  66.             return true;
  67.         }
  68.         public void setValueAt(Object value, int row, int column)
  69.         {
  70.              dataEntries[row][column] = value;
  71.         }
  72.     }
  73. }
Output

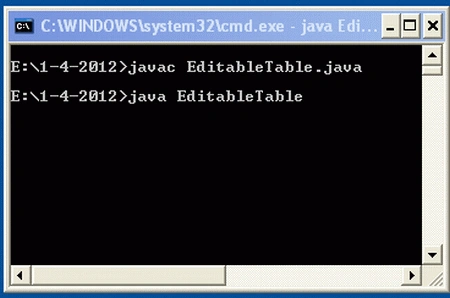

The initial output of cmd.


Basic output(first look):


The following output shows the modified option:


By using the mouse pointer you can edit the age column:
